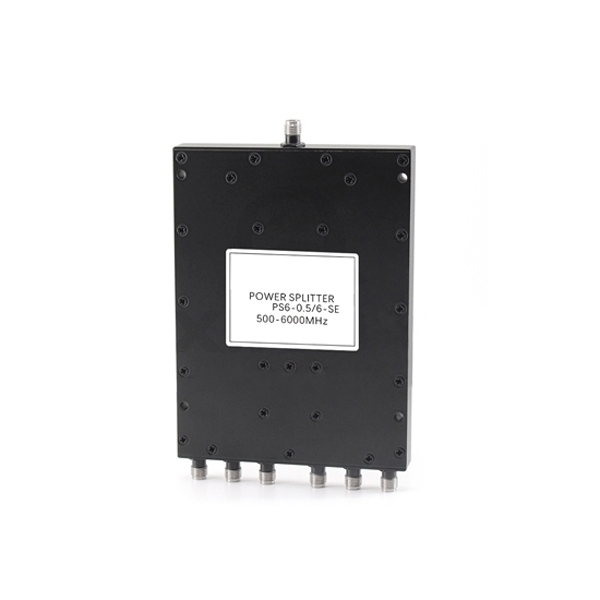

    Picture of RF Power Divider 6 Way, 0.5~6 GHz

    RF Power Divider 6 Way, 0.5~6 GHz

    0 review(s) | Add your review
    SKU: PH-PD-6W056GHZ
    $286.09
    ● Efficient 0.5-6 GHz high-power RF signal distribution. ● Functions as both precision splitter and combiner with minimal loss. ● Fan-cooled robust design ensures stable performance. ● Compact with SMA-Female connectors for easy integration.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products
    Picture of Coaxial Power Divider 2 Way, 0.5~6 GHz

    Coaxial Power Divider 2 Way, 0.5~6 GHz

    ● A broad frequency range of 0.5 to 6 GHz. ● Low insertion loss and excellent isolation for minimal signal degradation and reduced interference between ports. ● Precision engineered with robust SMA-Female connectors. ● Compact and lightweight aluminum housing.
    $81.99
    Picture of GPS Power Divider 2 Way, 0.7~2.2 GHz

    GPS Power Divider 2 Way, 0.7~2.2 GHz

    ● Efficient two-way coaxial power divider/combiner for the 0.7-2.2 GHz range. ● Low insertion loss and high isolation for minimal signal degradation. ● Integrated cooling fan ensures stable operation in high-power applications. ● Essential for GPS and microwave systems, offering precise signal splitting/combining.
    $146.39
    Picture of RF Power Divider 3 Way, 0.5~6 GHz

    RF Power Divider 3 Way, 0.5~6 GHz

    ● 3-way RF power divider operates from 0.5 to 6 GHz. ● Uses low-loss microstrip technology for reliable RF/microwave performance. ● Functions as both a power splitter and combiner for system versatility. ● Handles up to 20W (splitter) and features a surface-mount design.
    $178.79
    Picture of GPS Power Divider 4 Way, 0.6~2.2 GHz

    GPS Power Divider 4 Way, 0.6~2.2 GHz

    ● Efficiently splits one RF signal into four equal outputs from 0.6 to 2.2 GHz. ● Uses coaxial technology for low loss and precise 50Ω impedance matching. ● Built with robust N-female ports and an IP54 rating for reliable, versatile use. ● Ideal for GPS, base stations, and RF systems requiring accurate signal division.
    $393.89
    Overview

    This 6 way RF power divider is a crucial component designed for microwave communication systems. Operating across a broad frequency range from 0.5 to 6 GHz, it excels at splitting a single high-power input signal into six distinct output paths or combining multiple signals into one. Utilizing advanced microstrip and coaxial technologies, it ensures minimal insertion loss and excellent phase balance, making it ideal for demanding applications like GPS and other high-frequency systems. The integrated fan cooling system guarantees reliability and stability, even in high-power scenarios.

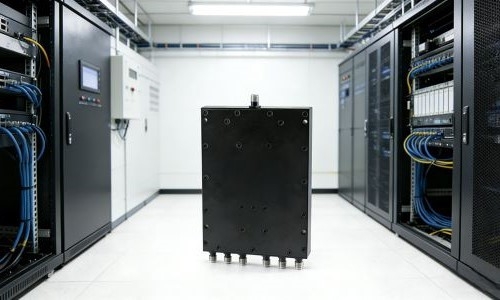

    RF power divider 6 way feature

    Feature

    • Efficiently splits or combines RF signals from 0.5 GHz to 6 GHz with high performance.
    • Features a fan-cooled design for enhanced heat dissipation and operational stability.
    • Delivers excellent amplitude and phase balance for consistent signal distribution across all ports.
    • Compact and lightweight design with standard SMA-Female connectors for easy system integration.


    Details

    1. Base Material: Using stainless steel as the base material, stainless steel passivation treatment is employed to enhance oxidation resistance and conductivity.
    2. Appearance & Material: The housing adopts an aluminum alloy sandblasting and anodizing process, providing strong oxidation resistance.

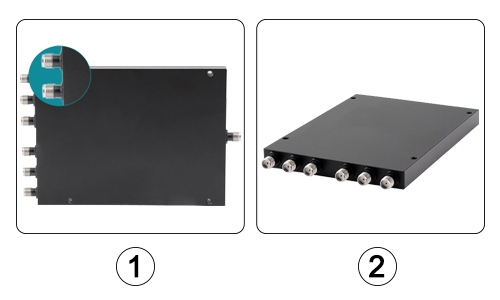

    RF power divider 6 way detail

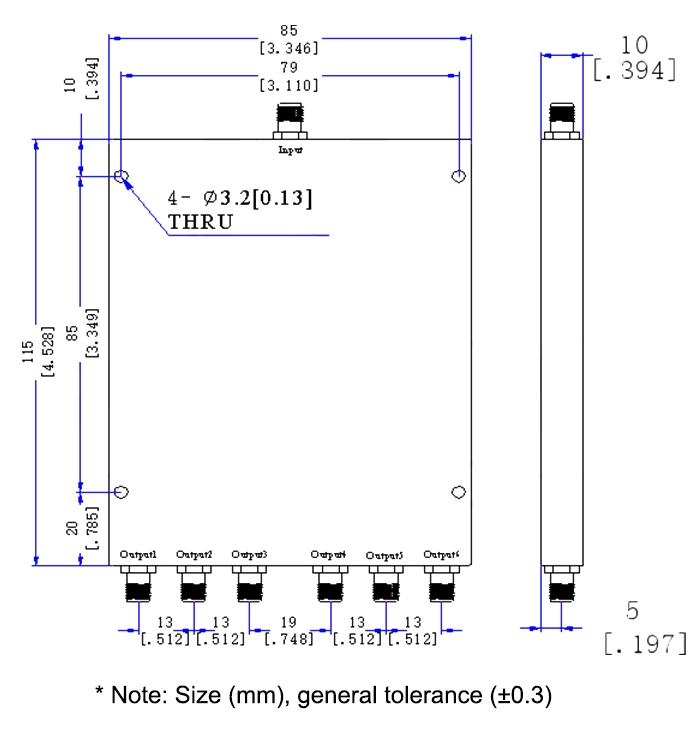

    Dimension (unit:mm)

    RF power divider 6 way dimension

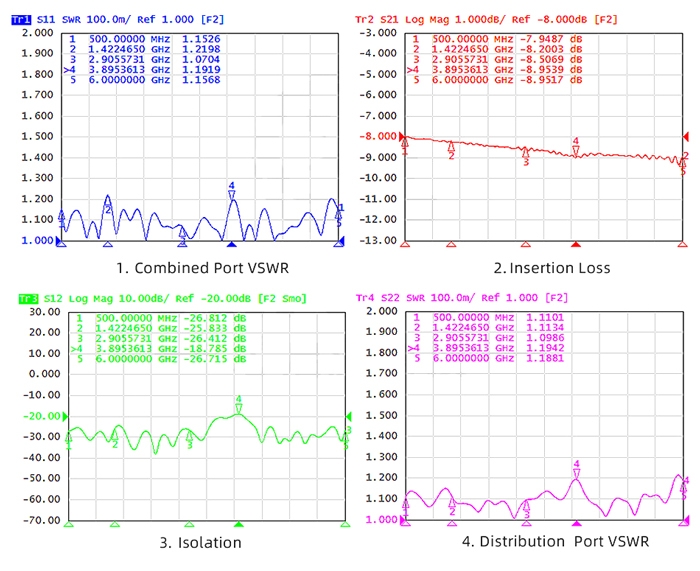

    Radio Frequency (RF) Parameter Diagram

    RF power divider 6 way parameter diagram

    Specs
    Frequency Range 0.5 ~ 6 GHz
    Insertion Loss ≤ 2.2 dB (Excluding 7.8 dB Theoretical Loss)
    Input VSWR Typ. 1.22 / Max. 1.30
    Output VSWR Typ. 1.20 / Max. 1.30
    Isolation Typ. 24 dB / Min. 18 dB
    Amplitude Balance ≤ 0.8 dB
    Phase Balance ± 8°
    Impedance 50 Ohms
    Port Connector SMA-Female
    Withstand Power 30W (Splitter) / 1W (Combiner)
    Working Temperature -35℃ ~ +75℃
    Dimension 110 x 85 x 10 mm
    Weight Approx. 220 g
    Application
      Mountaintop Radar Station

    Mountaintop Radar Station

    Rural Cellular Communication

    Rural Cellular Communication

    Urban Security Monitoring

    Urban Security Monitoring

    Residential Satellite Reception

    Residential Satellite Reception

    FAQ

    Q1: What is the typical insertion loss of an RF power divider?

    Insertion loss is a critical parameter that measures the reduction in signal strength as it passes through the divider. High-quality dividers aim for minimal loss to ensure efficient power distribution and preserve signal integrity. The specific value depends on the design, manufacturing, and frequency range.

    Q2: Can this device be used to combine signals as well as split them?

    Yes. This unit is designed to function bidirectionally. It can effectively split one input signal into six outputs or combine six input signals into a single output, making it a versatile component in RF systems.

    Q3: What applications is this power divider suitable for?

    It is a vital component in various microwave and RF communication systems. Typical applications include GPS systems, cellular base stations, wireless communication infrastructure, and any scenario requiring precise distribution or combination of high-frequency signals.
