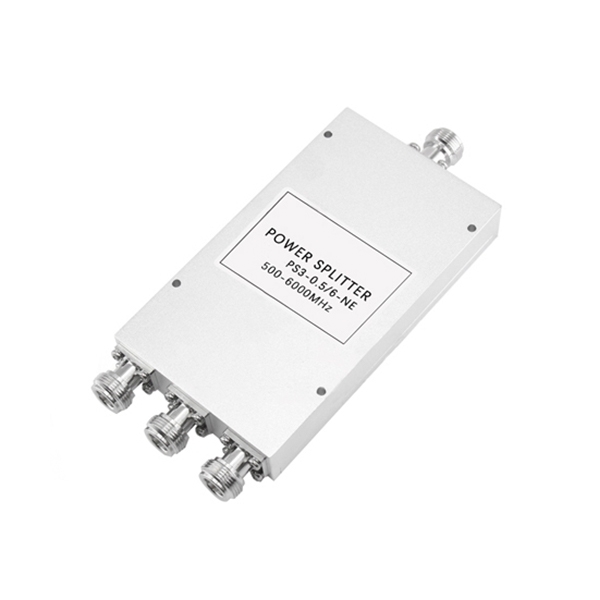

    Picture of RF Power Divider 3 Way, 0.5~6 GHz

    RF Power Divider 3 Way, 0.5~6 GHz

    0 review(s) | Add your review
    SKU: PH-PD-3W056GHZ
    $178.79
    ● 3-way RF power divider operates from 0.5 to 6 GHz. ● Uses low-loss microstrip technology for reliable RF/microwave performance. ● Functions as both a power splitter and combiner for system versatility. ● Handles up to 20W (splitter) and features a surface-mount design.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products
    Picture of RF Power Divider 12 Way, 2~8 GHz

    RF Power Divider 12 Way, 2~8 GHz

    ● 12-way coaxial power divider/combiner for 2-8 GHz applications. ● Efficiently distributes or combines high-power RF signals in microwave systems. ● Excellent phase and amplitude balance ensures precise signal integrity. ● Robust black painted design for reliable operation in demanding environments.
    $636.59
    Picture of RF Power Divider 10 Way, DC~3 GHz

    RF Power Divider 10 Way, DC~3 GHz

    ● Broad DC to 3 GHz operation with minimal signal loss. ● Compact microstrip design for space-constrained surface-mount applications. ● Excellent signal integrity with precise amplitude and phase balance across all ports. ● Ideal for GPS, communication systems, and test equipment.
    $763.49
    Picture of RF Power Divider 16 Way, 0.8~3 GHz

    RF Power Divider 16 Way, 0.8~3 GHz

    ● Precise 16-way RF signal splitter/combiner. ● Low loss and excellent balance for minimal signal degradation. ● SMA-Female connectors for reliable integration. ● Wide 0.8–3 GHz range, ideal for microwave and communication systems.
    $543.19
    Picture of GPS Power Divider 32 Way, 0.8~2.7 GHz

    GPS Power Divider 32 Way, 0.8~2.7 GHz

    ● Efficiently splits or combines high-power RF signals from 0.8 to 2.7 GHz. ● Uses microstrip and coaxial tech for minimal signal loss. ● Built-in fans ensure stable operation in high-power use. ● Robust design delivers excellent phase and amplitude balance for RF systems.
    $1,859.79
    Overview

    The PowerHome 3-Way RF Power Divider (0.5-6 GHz) utilizes an impedance-transforming network to overcome the matching complexities inherent in odd-numbered port configurations, splitting a single input into three symmetric channels. Featuring heavy-duty N-Female connectors for robust mechanical and electrical coupling, it provides high port isolation to suppress cross-talk between connected receivers. It is widely specified for industrial distributed antenna arrays, multi-channel RF measurement systems, and multi-sector wireless infrastructure deployments.

    Power divider 3 way 6 ghz feature

    Feature

    • Broad frequency range coverage from 0.5GHz to 6GHz for versatile applications.
    • Functions efficiently as both a power splitter and combiner.
    • Low insertion loss and excellent amplitude and phase balance for reliable signal distribution.
    • High isolation between output ports to minimize interference.


    Details

    1. Base Material: Using stainless steel as the base material, stainless steel passivation treatment is employed to enhance oxidation resistance and conductivity.
    2. Appearance & Material: The housing adopts an aluminum alloy sandblasting and anodizing process, providing strong oxidation resistance.

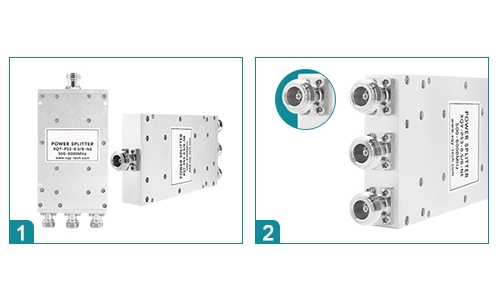

    Power divider 3 way 6 ghz details

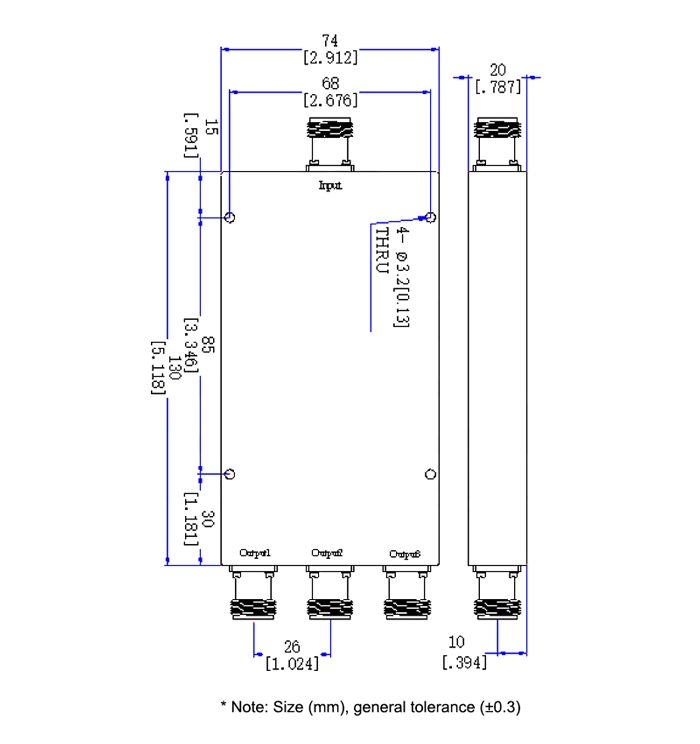

    Dimension (unit:mm)

    Power divider 3 way 6 ghz dimension

    Specs
    Frequency Range 0.5~6 GHz (500~6000 MHz)
    Insertion Loss ≤2.8dB (Excluding Theoretical Loss of 4.8dB)
    Input Standing Wave Typ.1.26 / Max.1.50
    Output Standing Wave Typ.1.18 / Max.1.40
    Isolation Typ.25dB / Min.18dB
    Amplitude Balance ±0.8dB
    Phase Balance ±8°
    Impedance 50 Ohms
    Port Connector N-Female
    Withstand Power 20W (Splitter), 1W (Combiner)
    Working Temperature -35℃ ~ +75℃
    Dimension 130*74*20mm
    Weight About 510g

    pdf downloadRF Power Divider 3 Way User Manual.PDF

    Application
    Military Radar 5G Communication

    Military Radar 5G Communication

    Mountaintop Radar Station

    Mountaintop Radar Station

    Urban Security Monitoring

    Urban Security Monitoring

    Commercial Mall 5G Coverage

    Commercial Mall 5G Coverage

    FAQ

    Q1: What are the main advantages of using a power divider?
    A power divider allows a single input signal to be distributed to multiple output paths with minimal loss, enabling simultaneous operation of several components. It maintains impedance matching to ensure signal integrity and is essential for efficient operation in RF and microwave systems like telecommunications and radar.

    Q2: What does the isolation specification mean?
    Isolation refers to the amount of signal leakage between the output ports. Higher isolation (measured in dB) means less unwanted signal coupling between the outputs, which is crucial for preventing interference in multi-channel systems.

    Q3: In which applications is this power divider commonly used?
    This component is widely used in RF communication systems, including base stations, GPS signal distribution, radar systems, and any microwave application that requires precise and efficient splitting or combining of signals within the 0.5-6 GHz band.
