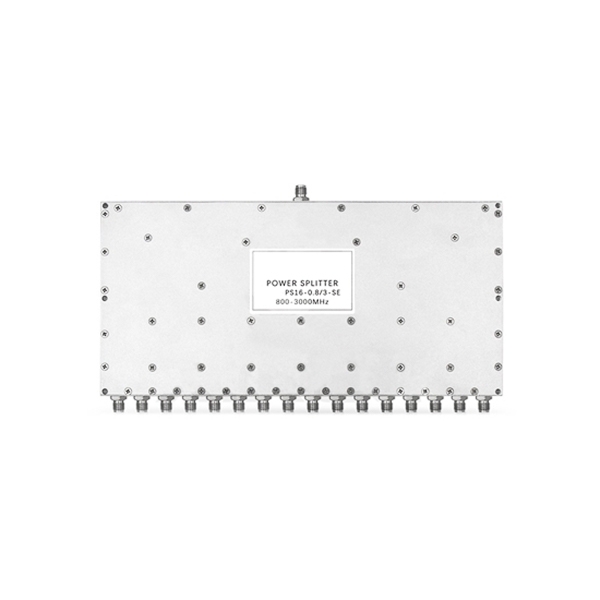

    Picture of RF Power Divider 16 Way, 0.8~3 GHz

    RF Power Divider 16 Way, 0.8~3 GHz

    0 review(s) | Add your review
    SKU: PH-PD-16W083GHZ
    $543.19
    ● Precise 16-way RF signal splitter/combiner. ● Low loss and excellent balance for minimal signal degradation. ● SMA-Female connectors for reliable integration. ● Wide 0.8–3 GHz range, ideal for microwave and communication systems.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products
    Picture of RF Power Divider 6 Way, 0.5~6 GHz

    RF Power Divider 6 Way, 0.5~6 GHz

    ● Efficient 0.5-6 GHz high-power RF signal distribution. ● Functions as both precision splitter and combiner with minimal loss. ● Fan-cooled robust design ensures stable performance. ● Compact with SMA-Female connectors for easy integration.
    $286.09
    Picture of Microstrip Power Divider 8 Way, 0.5~6 GHz

    Microstrip Power Divider 8 Way, 0.5~6 GHz

    ● Critical RF component for microwave applications like GPS. ● Divides input signals into eight equal outputs using microstrip technology. ● Handles high-power RF signals with reliable performance and signal integrity. ● Functions bidirectionally as both a power splitter and combiner.
    $204.19
    Picture of RF Power Divider 12 Way, 2~8 GHz

    RF Power Divider 12 Way, 2~8 GHz

    ● 12-way coaxial power divider/combiner for 2-8 GHz applications. ● Efficiently distributes or combines high-power RF signals in microwave systems. ● Excellent phase and amplitude balance ensures precise signal integrity. ● Robust black painted design for reliable operation in demanding environments.
    $636.59
    Picture of RF Power Divider 10 Way, DC~3 GHz

    RF Power Divider 10 Way, DC~3 GHz

    ● Broad DC to 3 GHz operation with minimal signal loss. ● Compact microstrip design for space-constrained surface-mount applications. ● Excellent signal integrity with precise amplitude and phase balance across all ports. ● Ideal for GPS, communication systems, and test equipment.
    $763.49
    Overview

    The high-capacity PowerHome 16-Way RF Power Divider (0.8-3 GHz) streamlines massive signal routing architectures by consolidating sixteen independent outputs into a single high-isolation chassis. By replacing complex, high-loss cascaded splitter chains, it drastically reduces cumulative insertion loss and system degradation across cellular and GNSS bands. This 16-port passive network is widely deployed in large-scale GPS distribution hubs, automated test infrastructure (ATE) racks, and multi-antenna wireless laboratory monitoring fields.

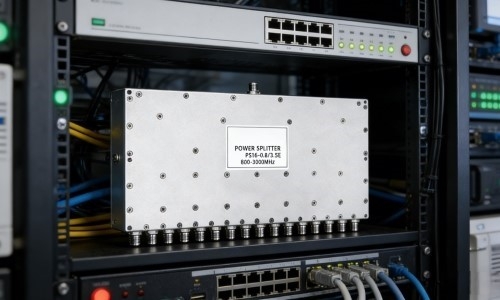

    RF power divider 16 way feature

    Feature

    • High Isolation & Balance: Provides excellent isolation between output ports and maintains superior amplitude and phase balance for consistent signal distribution.
    • Wide Frequency Range: Operates effectively from 0.8 GHz to 3 GHz, making it suitable for diverse RF and microwave applications.
    • Robust Construction: Features a compact, sandblasted housing and SMA-Female connectors for durability and reliable performance in various environments.
    • Dual-Functionality: Can be used effectively both as a power splitter to divide an input signal and as a combiner to merge multiple signals.


    Details

    1. Base Material: Using stainless steel as the base material, stainless steel passivation treatment is employed to enhance oxidation resistance and conductivity.
    2. Appearance & Material: The housing adopts an aluminum alloy sandblasting and anodizing process, providing strong oxidation resistance.

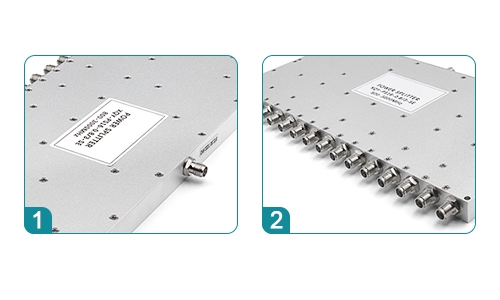

    RF power divider 16 way detail

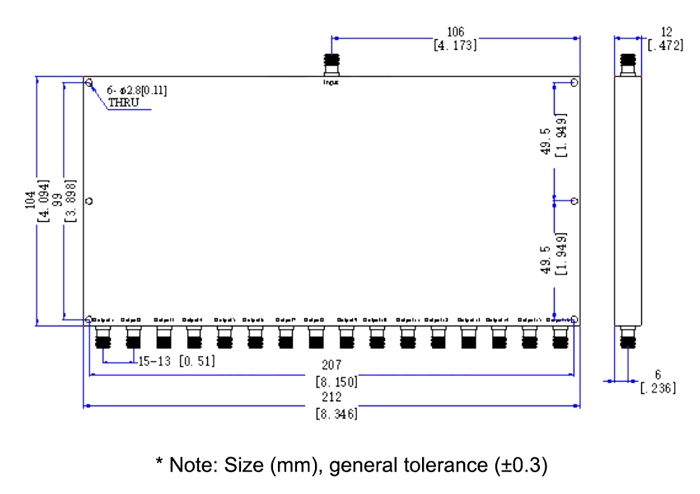

    Dimension (unit:mm)

    RF power divider 16 way dimension

    Specs
    Frequency Range 0.8 ~ 3 GHz
    Insertion Loss ≤ 1.4 dB (Excluding 12.0 dB Theoretical Loss)
    Input VSWR Typ. 1.18 / Max. 1.30
    Output VSWR Typ. 1.13 / Max. 1.20
    Isolation Typ. 26 dB / Min. 18 dB
    Amplitude Balance ≤ 0.3 dB
    Phase Balance ± 5°
    Impedance 50 Ohms
    Port Connector SMA-Female
    Withstand Power (Splitter) 30W
    Withstand Power (Combiner) 2W
    Operating Temperature -35°C ~ +75°C
    Dimensions (L*W*H) 212 * 104 * 12 mm
    Weight Approx. 545 g
    Application
      Military Radar 5G Communication

    Military Radar 5G Communication

    Commercial Mall 5G Coverage

    Commercial Mall 5G Coverage

    Urban Security Monitoring

    Urban Security Monitoring

    Astronomical Radio Telescope

    Astronomical Radio Telescope

    FAQ

    Q1: What is the primary function of this device?
    This device is primarily a 16-way power divider, designed to split one input RF signal into sixteen separate output signals with equal power and minimal loss. It can also function in reverse as a power combiner.

    Q2: Is this power divider suitable for use outside the 0.8-3 GHz range?
    For optimal performance regarding parameters like insertion loss and isolation, it is recommended to use the device within its specified 0.8 to 3 GHz frequency range. Performance may degrade outside these limits.

    Q3: What do the "Splitter" and "Combiner" power ratings mean?
    The device has two power handling ratings: a higher power (30W) for when it is used as a splitter, and a lower power (2W) for when it is used in reverse as a combiner. Do not exceed these ratings for the respective modes of operation.

    Q4: What types of connectors does it use?
    All input and output ports are equipped with standard SMA-Female connectors, ensuring compatibility with a wide range of RF cables and components.
