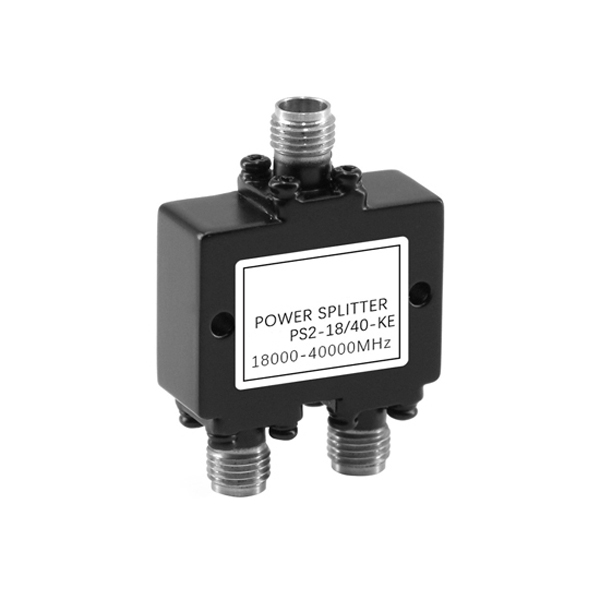

    Picture of Coaxial Power Divider 2 Way,18~40 GHz

    Coaxial Power Divider 2 Way,18~40 GHz

    0 review(s) | Add your review
    SKU: PH-PD-2W1840GHZ
    $505.09
    ● High-frequency 2-way coaxial power divider for 18–40 GHz signal splitting. ● Compact design with 2.92mm-Female connectors. ● Excellent amplitude and phase balance ensures consistent signal integrity for communications and GPS. ● Withstands operating temperatures from -45 ℃ to +85 ℃.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products
    Picture of Coaxial Power Divider 2 Way, 0.5~6 GHz

    Coaxial Power Divider 2 Way, 0.5~6 GHz

    ● A broad frequency range of 0.5 to 6 GHz. ● Low insertion loss and excellent isolation for minimal signal degradation and reduced interference between ports. ● Precision engineered with robust SMA-Female connectors. ● Compact and lightweight aluminum housing.
    $81.99
    Picture of GPS Power Divider 2 Way, 0.7~2.2 GHz

    GPS Power Divider 2 Way, 0.7~2.2 GHz

    ● Efficient two-way coaxial power divider/combiner for the 0.7-2.2 GHz range. ● Low insertion loss and high isolation for minimal signal degradation. ● Integrated cooling fan ensures stable operation in high-power applications. ● Essential for GPS and microwave systems, offering precise signal splitting/combining.
    $146.39
    Picture of Coaxial Power Divider 2 Way,18~40 GHz

    Coaxial Power Divider 2 Way,18~40 GHz

    ● High-frequency 2-way coaxial power divider for 18–40 GHz signal splitting. ● Compact design with 2.92mm-Female connectors. ● Excellent amplitude and phase balance ensures consistent signal integrity for communications and GPS. ● Withstands operating temperatures from -45 ℃ to +85 ℃.
    $505.09
    Picture of RF Power Divider 3 Way, 0.5~6 GHz

    RF Power Divider 3 Way, 0.5~6 GHz

    ● 3-way RF power divider operates from 0.5 to 6 GHz. ● Uses low-loss microstrip technology for reliable RF/microwave performance. ● Functions as both a power splitter and combiner for system versatility. ● Handles up to 20W (splitter) and features a surface-mount design.
    $178.79
    Overview

    This 2-Way Coaxial Power Divider is a high-performance component crafted for demanding microwave and RF environments. Operating seamlessly from 18 to 40 GHz, it is engineered to split an input signal into two output paths with exceptional precision and minimal insertion loss. Its microstrip design and compact form factor allow for easy integration into surface-mount applications where space is at a premium. Ideal for high-frequency systems such as advanced GPS and communication networks, this divider maintains signal integrity and offers reliable power handling, making it a cornerstone for efficient signal distribution.

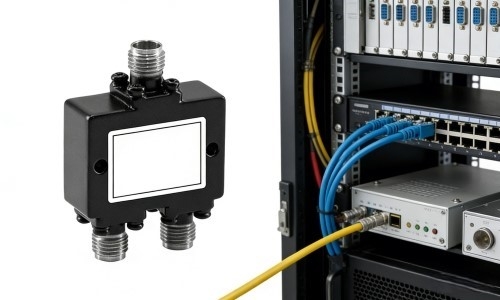

    power divider 2 way 40 ghz feature

    Feature

    • Operates across an ultra-wide high-frequency band from 18 GHz to 40 GHz.
    • Delivers superior signal fidelity with excellent amplitude and phase balance.
    • Compact and lightweight microstrip design for easy integration into space-constrained systems.
    • Features robust 2.92mm-Female connectors for secure and reliable connections.


    Details

    1. Base Material: Using stainless steel as the base material, stainless steel passivation treatment is employed to enhance oxidation resistance and conductivity.
    2. Appearance & Material: The housing adopts an aluminum alloy sandblasting and anodizing process, providing strong oxidation resistance.

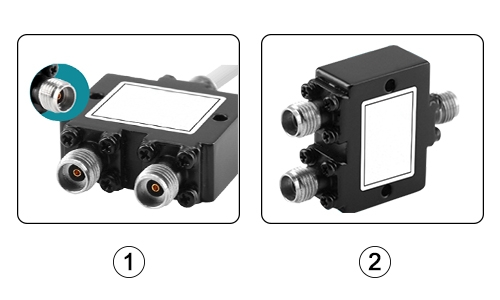

    power divider 2 way 40 ghz details

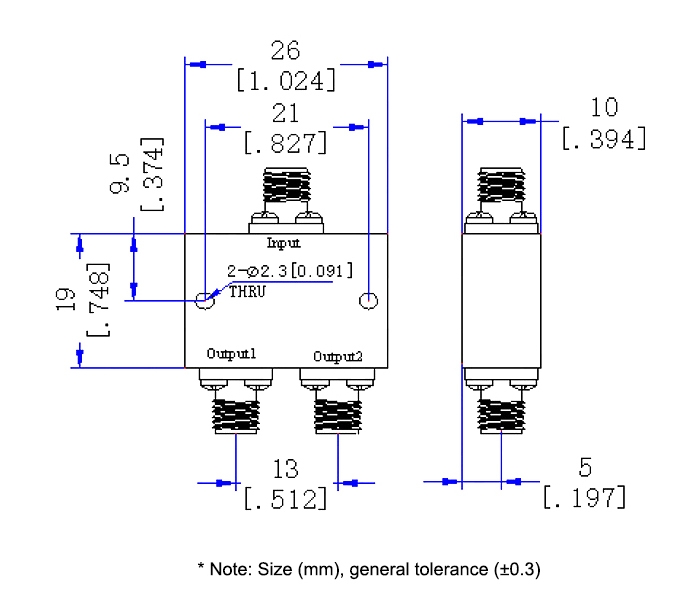

    Dimension (unit:mm)

    power divider 2 way 40 ghz details dimension

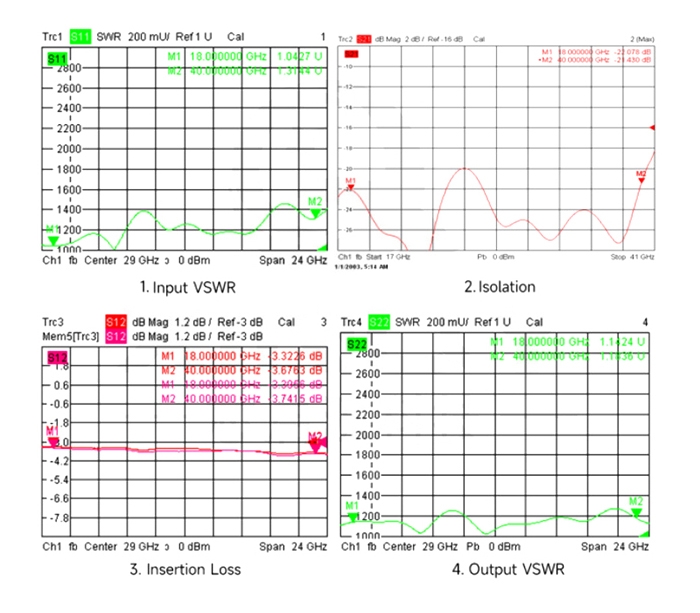

    Radio Frequency (RF) Parameter Diagram

    power divider 2 way 40 ghz details parameter diagram

    Specs
    Frequency Range 18 ~ 40 GHz
    Insertion Loss ≤ 1.0 dB (Excluding Theoretical 3.0 dB Loss)
    Input VSWR Typ. 1.28 / Max. 1.50
    Output VSWR Typ. 1.26 / Max. 1.50
    Isolation Typ. 22 dB / Min. 16 dB
    Amplitude Balance ± 0.4 dB
    Phase Balance ± 5°
    Impedance 50 Ohms
    Port Connector 2.92mm-Female
    Withstand Power 20W (Splitter), 1W (Combiner)
    Operating Temperature -45℃ ~ +85℃
    Dimension 26 x 19 x 10 mm
    Weight Approx. 21 g
    Application
    Astronomical Radio Telescope

    Astronomical Radio Telescope

    Rural Cellular Communication

    Rural Cellular Communication

    Urban Security Monitoring

    Urban Security Monitoring

    Commercial Mall 5G Coverage

    Commercial Mall 5G Coverage

    FAQ

    Q1: What is the primary function of this power divider?
    This component is designed to split a single high-frequency input signal into two separate output signals with minimal loss and high integrity, or conversely, to combine two signals into one.

    Q2: Can this power divider be used as a combiner?
    Yes, like most passive dividers, it is reciprocal and can be used in reverse as a power combiner. Please note the specified power handling is lower (1W) when used in combiner mode.

    Q3: How do I ensure optimal performance when installing it in my system?
    Ensure all connections are secure using proper coaxial cables rated for the frequency range. Maintain good impedance matching (50 Ohms) throughout your system and avoid sharp cable bends to minimize signal loss and reflections.
