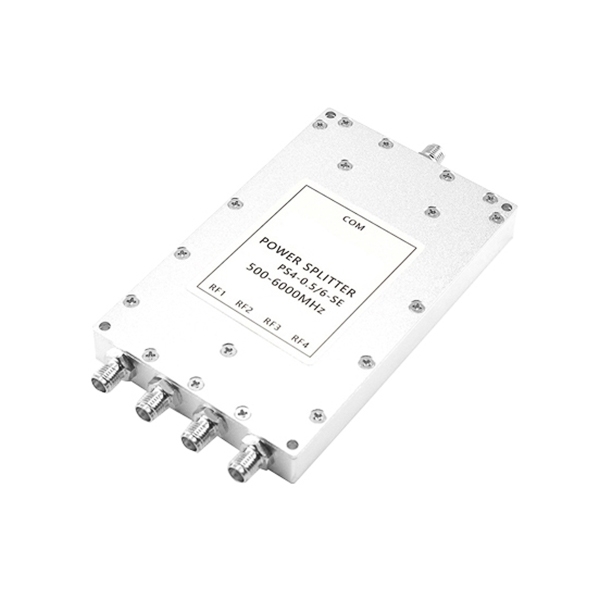

    Picture of Coaxial Power Divider 4 Way, 0.5~6 GHz

    Coaxial Power Divider 4 Way, 0.5~6 GHz

    0 review(s) | Add your review
    SKU: PH-PD-4W056GHZ
    $114.29
    ● Broadband 4-way coaxial power divider covering 0.5–6 GHz. ● Coaxial design ensures low-loss, high-isolation signal distribution. ● Dual-function: operates as both a splitter and combiner. ● Compact, surface-mount construction for easy integration.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products
    Picture of Coaxial Power Divider 2 Way, 0.5~6 GHz

    Coaxial Power Divider 2 Way, 0.5~6 GHz

    ● A broad frequency range of 0.5 to 6 GHz. ● Low insertion loss and excellent isolation for minimal signal degradation and reduced interference between ports. ● Precision engineered with robust SMA-Female connectors. ● Compact and lightweight aluminum housing.
    $81.99
    Picture of Coaxial Power Divider 2 Way, 0.5~8 GHz

    Coaxial Power Divider 2 Way, 0.5~8 GHz

    ● Designed to split a single high-power RF signal into two paths or combine two signals into one. ● Features a wide operating frequency range from 0.5 GHz to 8 GHz. ● Compact, lightweight design with robust SMA-Female connectors.
    $108.29
    Picture of GPS Power Divider 2 Way, 0.7~2.2 GHz

    GPS Power Divider 2 Way, 0.7~2.2 GHz

    ● Efficient two-way coaxial power divider/combiner for the 0.7-2.2 GHz range. ● Low insertion loss and high isolation for minimal signal degradation. ● Integrated cooling fan ensures stable operation in high-power applications. ● Essential for GPS and microwave systems, offering precise signal splitting/combining.
    $146.39
    Picture of Coaxial Power Divider 2 Way,18~40 GHz

    Coaxial Power Divider 2 Way,18~40 GHz

    ● High-frequency 2-way coaxial power divider for 18–40 GHz signal splitting. ● Compact design with 2.92mm-Female connectors. ● Excellent amplitude and phase balance ensures consistent signal integrity for communications and GPS. ● Withstands operating temperatures from -45 ℃ to +85 ℃.
    $505.09
    Overview

    The PowerHome 3-Way RF Power Divider (0.5-6 GHz) utilizes an impedance-transforming network to overcome the matching complexities inherent in odd-numbered port configurations, splitting a single input into three symmetric channels. Featuring heavy-duty N-Female connectors for robust mechanical and electrical coupling, it provides high port isolation to suppress cross-talk between connected receivers. It is widely specified for industrial distributed antenna arrays, multi-channel RF measurement systems, and multi-sector wireless infrastructure deployments.

    Coaxial power divider 4 way feature

    Feature

    • Broadband operation from 0.5 GHz to 6 GHz.
    • Low insertion loss and high isolation between ports.
    • Can be used as both a power splitter and a power combiner.
    • Compact size with surface-mount design for easy PCB integration.
    • Excellent amplitude and phase balance for consistent signal distribution.


    Details

    1. Connectors: The base material is stainless steel, processed with a passivation treatment to enhance its oxidation resistance and electrical conductivity.
    2. Appearance & Material: The housing adopts an aluminum alloy sandblasting and anodizing process, providing strong oxidation resistance.

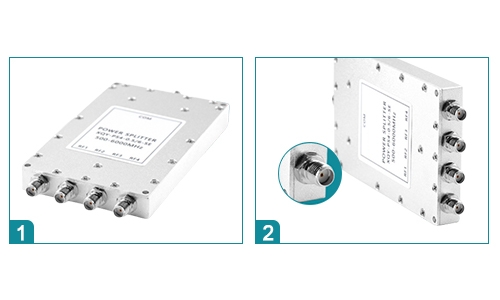

    Coaxial power divider 4 way details

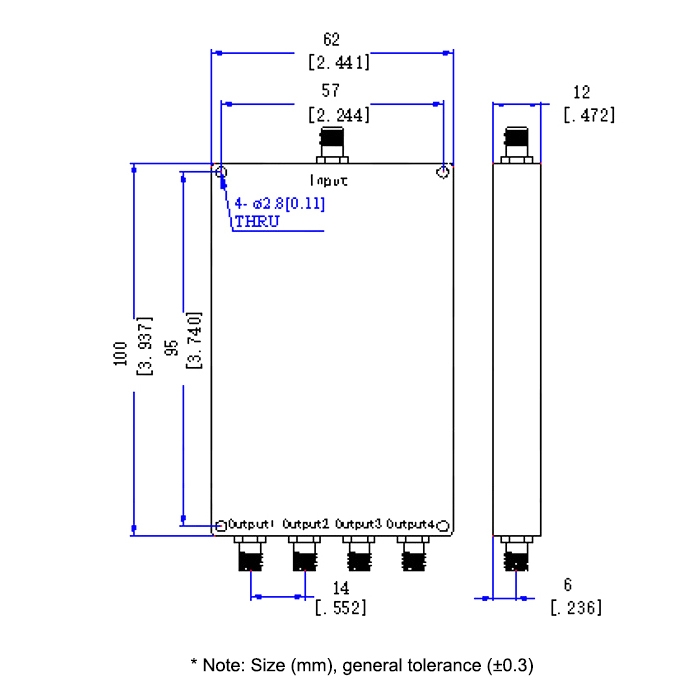

    Dimension (unit:mm)

    Coaxial power divider 4 way dimension

    Radio Frequency (RF) Parameter Diagram

    Coaxial power divider 4 way parameter diagram

    Specs
    Frequency Range 0.5 ~ 6 GHz
    Insertion Loss ≤ 1.8 dB (Excluding Theoretical 6.0 dB Loss)
    Input VSWR Typ. 1.16 / Max. 1.25
    Output VSWR Typ. 1.12 / Max. 1.20
    Isolation Typ. 28 dB / Min. 20 dB
    Amplitude Balance ± 0.3 dB
    Phase Balance ± 4°
    Impedance 50 Ohms
    Port Connector SMA-Female
    Withstand Power 30W (Splitter) / 2W (Combiner)
    Operating Temperature -35℃ ~ +75℃
    Dimensions 100 x 62 x 12 mm
    Weight Approx. 185 g
    Application
    Military Radar 5G Communication

    Military Radar 5G Communication

    Rural Cellular Communication

    Rural Cellular Communication

    Urban Security Monitoring

    Urban Security Monitoring

    Rural Agricultural Monitoring

    Rural Agricultural Monitoring

    FAQ

    Q1: What is the primary use of this power divider?
    This component is primarily used in RF and microwave systems to split one input signal into four output signals with minimal loss. It is commonly applied in wireless communications, GPS systems, radar, and test measurement setups.

    Q2: What do amplitude and phase balance mean for performance?
    Amplitude balance ensures the signal power is divided equally among all output ports. Phase balance ensures the signals at each output are in sync. Tight balances (±0.3 dB and ±4°) are crucial for system accuracy and performance.

    Q3: How do I integrate this divider into my system?
    The device features a compact, surface-mount design with standard SMA-female connectors. It can be easily integrated onto a circuit board or connected via coaxial cables within your RF system assembly.
