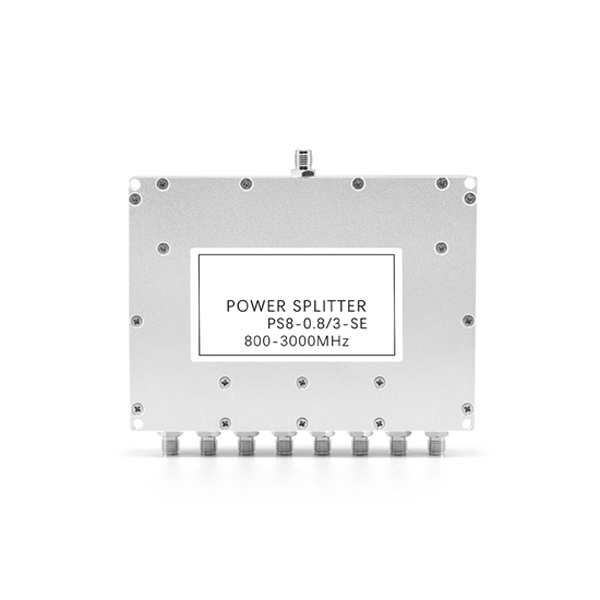

    Picture of Microstrip Power Divider 8 Way, 0.8~3 GHz

    Microstrip Power Divider 8 Way, 0.8~3 GHz

    0 review(s) | Add your review
    SKU: PH-PD-8W083GHZ
    $194.69
    ● Versatile 8-way power divider and combiner for precise RF signal distribution. ● Broad 0.8–3 GHz frequency range for diverse applications. ● Excellent signal balance ensures integrity across all ports. ● Compact robust design with reliable SMA connectors.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products
    Picture of Coaxial Power Divider 2 Way, 0.5~8 GHz

    Coaxial Power Divider 2 Way, 0.5~8 GHz

    ● Designed to split a single high-power RF signal into two paths or combine two signals into one. ● Features a wide operating frequency range from 0.5 GHz to 8 GHz. ● Compact, lightweight design with robust SMA-Female connectors.
    $108.29
    Picture of GPS Power Divider 4 Way, 0.6~2.2 GHz

    GPS Power Divider 4 Way, 0.6~2.2 GHz

    ● Efficiently splits one RF signal into four equal outputs from 0.6 to 2.2 GHz. ● Uses coaxial technology for low loss and precise 50Ω impedance matching. ● Built with robust N-female ports and an IP54 rating for reliable, versatile use. ● Ideal for GPS, base stations, and RF systems requiring accurate signal division.
    $393.89
    Picture of Microstrip Power Divider 8 Way, 0.5~6 GHz

    Microstrip Power Divider 8 Way, 0.5~6 GHz

    ● Critical RF component for microwave applications like GPS. ● Divides input signals into eight equal outputs using microstrip technology. ● Handles high-power RF signals with reliable performance and signal integrity. ● Functions bidirectionally as both a power splitter and combiner.
    $204.19
    Picture of RF Power Divider 10 Way, DC~3 GHz

    RF Power Divider 10 Way, DC~3 GHz

    ● Broad DC to 3 GHz operation with minimal signal loss. ● Compact microstrip design for space-constrained surface-mount applications. ● Excellent signal integrity with precise amplitude and phase balance across all ports. ● Ideal for GPS, communication systems, and test equipment.
    $763.49
    Overview

    This 8-way microstrip power divider is a high-performance component designed for efficient signal management in RF and microwave systems. Engineered to operate within a 0.8 to 3 GHz frequency range, it is ideal for applications requiring precise signal splitting or combining across multiple channels. Its microstrip design offers a compact footprint without compromising on electrical performance, featuring excellent isolation and low insertion loss. Built with durability in mind, it features high-quality SMA connectors and a sturdy housing, making it a reliable choice for both laboratory testing and integration into communication equipment.

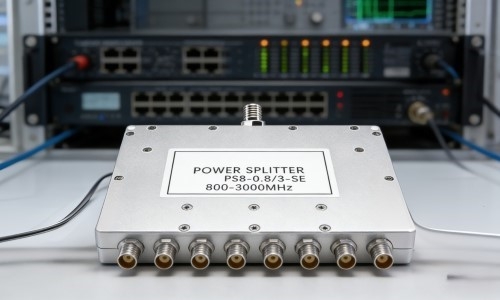

    microstrip power divider 3 ghz features

    Feature

    • Broadband Performance: Efficiently operates across a wide frequency spectrum from 0.8 GHz to 3 GHz.
    • High Signal Integrity: Provides excellent amplitude and phase balance for consistent output across all ports.
    • Superior Isolation: Minimizes interference between output channels to ensure clean signal distribution.
    • Compact Microstrip Design: Offers a space-saving solution that is easy to integrate into various system layouts.


    Details

    1. Base Material: Using stainless steel as the base material, stainless steel passivation treatment is employed to enhance oxidation resistance and conductivity.
    2. Appearance & Material: The housing adopts an aluminum alloy sandblasting and anodizing process, providing strong oxidation resistance.
    microstrip power divider 3 ghz detail

    Dimension (unit:mm)

    microstrip power divider 3 ghz dimension

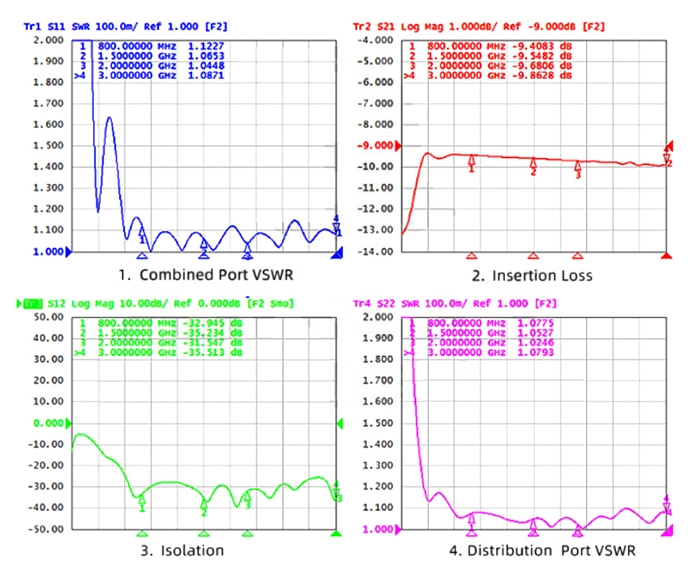

    Radio Frequency (RF) Parameter Diagram

    microstrip power divider 3 ghz parameter diagram

    Specs
    Frequency Range 0.8 ~ 3 GHz
    Insertion Loss ≤ 1.5 dB
    Amplitude Balance ±0.4 dB
    Phase Balance ±5°
    Isolation ≥ 20 dB
    Input VSWR ≤ 1.30
    Output VSWR ≤ 1.25
    Impedance 50 Ohms
    Input Power (Splitter) 30 W
    Connector Type SMA Female
    Operating Temperature -40 °C ~ +85 °C
    Dimensions 90 x 70 x 15 mm
    Weight 85 g
    Application
      Commercial Mall 5G Coverage

    Commercial Mall 5G Coverage

    Rural Cellular Communication

    Rural Cellular Communication

    Urban Security Monitoring

    Urban Security Monitoring

    Residential Satellite Reception

    Residential Satellite Reception

    FAQ

    Q1: What is the primary function of this 8-way power divider?
    This device is primarily used to split a single input RF signal into eight separate output signals with minimal loss, or conversely, to combine eight signals into one. It is essential for distributing signals in multi-antenna systems, test setups, and communication networks.

    Q2: How does the frequency range determine where I can use this divider?
    The 0.8~3 GHz range makes this divider suitable for many common RF applications, including cellular base stations (particularly for certain 2G/3G/4G bands), GPS, amateur radio, and various wireless communication links. Always ensure your system's operating frequency falls within this specified range.

    Q3: What does "amplitude balance" mean for my application?
    Amplitude balance refers to how evenly the power is distributed among all output ports. A good balance (indicated by a low ±dB value) ensures that each output receives nearly the same signal strength, which is critical for the consistent performance of systems like multi-antenna arrays.
