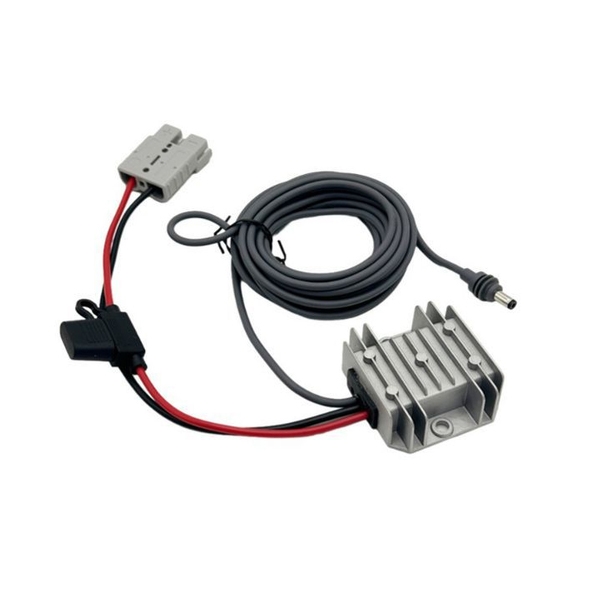

    12V-24V to 30V DC-DC Boost Converter, 105W with Anderson Connector

    0 review(s) | Add your review
    SKU: PH-DCDC-122430
    $0.00
    ● DC‑DC converter accepts 12‑24VDC wide‑range input and delivers stable 30V output for various DC equipment. ● Supports hole mounting design for quick and convenient installation in limited‑space scenarios. ● Rated up to 105W output power with 95% high working efficiency to cut energy waste. ● Built‑in multi‑layer safeguards and IP67‑IP68 waterproof rating adapt to harsh outdoor working conditions.
    *
    *
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    12V-24V to 57V DC-DC Boost Converter with Male Plug

    ● Accepts 12‑24VDC input and converts to stable 57VDC output. ● DC‑DC boost converter delivers maximum output power up to 256.5W. ● Compact size with IP67 rating for outdoor harsh‑condition use. ● Adopts self‑cooling design and supports wide‑range working temperature from ‑20℃ to 65℃.
    $79.15

    12V-24VDC to 30VDC Step Up Converter with Female Socket

    ● Delivers 105W rated output power with 30V steady output voltage. ● IP67 waterproof rating suits outdoor and vehicle‑based installation scenarios. ● Self‑cooling design enables stable operation across‑40℃ to 80℃ temperature range. ● Wide input voltage ranges from 9‑28DCV, commonly used for 12‑24V power sources for flexible compatibility.
    $75.38

    DC Boost Converter with Cigarette Lighter Plug, 12V-24V to 30V

    ● DC‑DC boost converter delivers 105W rated power with 30V output. ● Supports 12‑24V DC wide input, works within‑40℃ to 80℃ operating temperature range. ● IP67‑IP68 waterproof grade with multiple built‑in safety protection functions. ● Male plug and female socket for different connection demands optional.
    $66.31

    12V-24V to 48V DC-DC Boost Converter with Ring Terminals, 1.5A/3A

    ● DC‑DC boost converter accepts 12/24V DC input and delivers stable 48V output. ● Supports output current options of 1.5A and 3A and comes with ring terminals for wiring connection. ● Compact body measures 64*57*22mm and adopts hole‑mounting for convenient installation. ● Works reliably under wide temperature range from ‑40℃ to 80℃ for diverse deployment.
    $66.58

    12V to 30V DC Boost Converter, Mini Male Plug with Alligator Clips

    ● Supports a 9‑28V wide DC input range, with 12‑24V DC recommended for optimal performance. ● 3.5A rated current with 105W maximum output power and up to 90% conversion efficiency. ● Compact dimension weighs only 150g and adopts mini male plug for convenient connection. ● Built‑in multiple protections including short‑circuit, overload, overheat and over‑voltage safeguard connected devices.
    $72.46

    Automotive DC-DC Boost Converter, 12V-24V to 30V

    ● This DC‑DC converter accepts 12‑24VDC input and delivers steady 30V output at 105W power. ● Supports hole mounting for convenient fixed installation in different equipment. ● Runs with natural cooling and can operate within‑40℃ to 80℃ environment. ● Rated IP67‑IP68, this power converter is built to resist wet and dusty working conditions.
    $67.85
    Overview

    Versatile 30V DC‑DC step‑up converter is a practical power solution built for off‑grid, vehicle‑mounted and industrial deployment. Engineered with high‑efficiency circuitry and robust waterproof construction, it handles fluctuating 12‑24VDC input steadily while minimizing power loss. We supply multiple length options for Anderson cable and DC cable for your selection, to fit diverse wiring layout demands of your projects. Ideal for consumers and project buyers seeking dependable, fan‑free power conversion under demanding field environments.

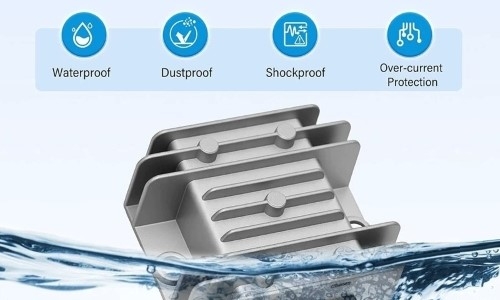

    12V-24V to 30V DC-DC Boost Converter Feature

    Feature

    • Durability: Adopts premium copper wire and PVC cable jacket to resist abrasion for long‑term service life.
    • Wide Compatibility: Works reliably within ‑40℃ to 80℃ ambient temperature, fit for industrial, new energy and mobile power projects.
    • Reliable Safety: Equipped with over‑current, over‑voltage and waterproof protection to shield connected loads.
    • Low‑maintenance: Natural cooling structure removes the need for fans, lowering noise and reducing potential failure points.

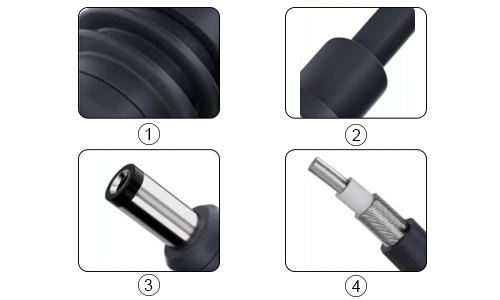

    Details

    1. Waterproof Gasket: Blocks moisture and dust for better sealing performance.
    2. PVC Jacket: Protects inner wire against wear‑and‑tear.
    3. DC Plug: Stable connector for DC power input and output.
    4. 18 AWG Copper Wire: High‑conductivity copper for reliable power transmission.

    12V-24V to 30V DC-DC Boost Converter Details

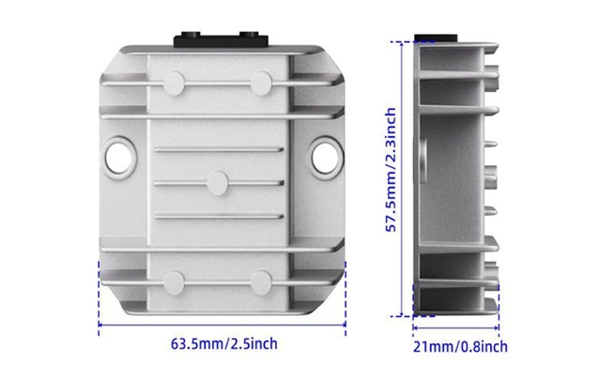

    Dimension

    12V-24V to 30V DC-DC Boost Converter Dimension

    Specs
    Input Voltage 12-24VDC
    Output Voltage 30V
    Output Power 105W
    Output Current 3.5A
    Working Efficiency 95%
    Product Certification CE
    Dimensions 64*57*22mm
    Installation Hole Mounting
    Protection Level IP67-IP68
    Protection Type Over-current Protection, Over-voltage Protection, Waterproof Protection
    Cooling Type Natural Cooling
    Operating Environment -40 to 80°C
    Application
    DC-DC Converter for Communication Base Station

    Aerospace

    DC-DC Converter for Medical

    Medical

    DC-DC Converter for New Energy

    New Energy

    DC-DC Converter for Communication Base Station

    Communication Base Station

    FAQ

    Q1: Can I run multiple small devices off one single converter?

    Yes, you may power multiple small devices simultaneously. The total combined power draw of all connected loads must not exceed the unit’s rated 105W maximum output power. Exceeding the power limit will trigger built‑in protection or cause abnormal operation.

    Q2: Do I need to add an extra cooling fan for this converter?

    No additional cooling fan is required. This converter adopts natural cooling design. Please reserve sufficient surrounding space for heat dissipation and do not seal it inside fully‑enclosed narrow chambers.
