    Picture of 12V-24V to 57V DC-DC Boost Converter with Male Plug
    Picture of 12V-24V to 57V DC-DC Boost Converter with Male Plug
    Picture of 12V-24V to 57V DC-DC Boost Converter with Male Plug

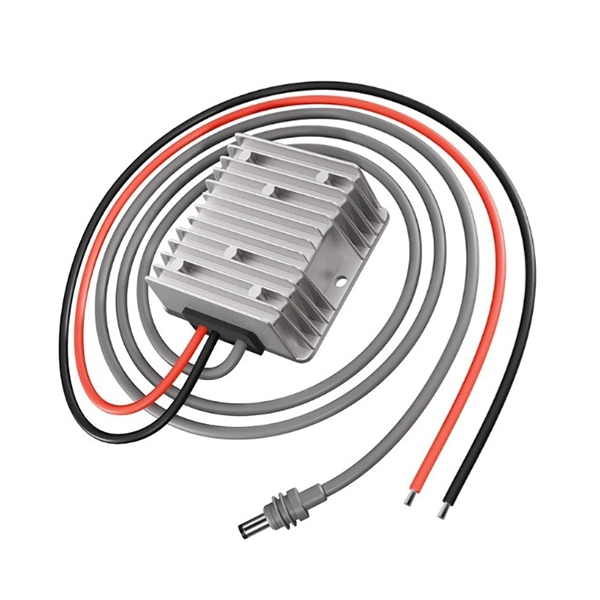

    12V-24V to 57V DC-DC Boost Converter with Male Plug

    0 review(s) | Add your review
    SKU: PH-DCDC-122457
    $79.15
    ● Accepts 12‑24VDC input and converts to stable 57VDC output. ● DC‑DC boost converter delivers maximum output power up to 256.5W. ● Compact size with IP67 rating for outdoor harsh‑condition use. ● Adopts self‑cooling design and supports wide‑range working temperature from ‑20℃ to 65℃.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    12V-24VDC to 30VDC Step Up Converter with Female Socket

    ● Delivers 105W rated output power with 30V steady output voltage. ● IP67 waterproof rating suits outdoor and vehicle‑based installation scenarios. ● Self‑cooling design enables stable operation across‑40℃ to 80℃ temperature range. ● Wide input voltage ranges from 9‑28DCV, commonly used for 12‑24V power sources for flexible compatibility.
    $75.38

    DC Boost Converter with Cigarette Lighter Plug, 12V-24V to 30V

    ● DC‑DC boost converter delivers 105W rated power with 30V output. ● Supports 12‑24V DC wide input, works within‑40℃ to 80℃ operating temperature range. ● IP67‑IP68 waterproof grade with multiple built‑in safety protection functions. ● Male plug and female socket for different connection demands optional.
    $66.31

    12V-24V to 48V DC-DC Boost Converter with Ring Terminals, 1.5A/3A

    ● DC‑DC boost converter accepts 12/24V DC input and delivers stable 48V output. ● Supports output current options of 1.5A and 3A and comes with ring terminals for wiring connection. ● Compact body measures 64*57*22mm and adopts hole‑mounting for convenient installation. ● Works reliably under wide temperature range from ‑40℃ to 80℃ for diverse deployment.
    $66.58

    12V to 30V DC Boost Converter, Mini Male Plug with Alligator Clips

    ● Supports a 9‑28V wide DC input range, with 12‑24V DC recommended for optimal performance. ● 3.5A rated current with 105W maximum output power and up to 90% conversion efficiency. ● Compact dimension weighs only 150g and adopts mini male plug for convenient connection. ● Built‑in multiple protections including short‑circuit, overload, overheat and over‑voltage safeguard connected devices.
    $72.46

    12V-24V to 30V DC-DC Boost Converter, 105W with Anderson Connector

    ● DC‑DC converter accepts 12‑24VDC wide‑range input and delivers stable 30V output for various DC equipment. ● Supports hole mounting design for quick and convenient installation in limited‑space scenarios. ● Rated up to 105W output power with 95% high working efficiency to cut energy waste. ● Built‑in multi‑layer safeguards and IP67‑IP68 waterproof rating adapt to harsh outdoor working conditions.
    $0.00

    Automotive DC-DC Boost Converter, 12V-24V to 30V

    ● This DC‑DC converter accepts 12‑24VDC input and delivers steady 30V output at 105W power. ● Supports hole mounting for convenient fixed installation in different equipment. ● Runs with natural cooling and can operate within‑40℃ to 80℃ environment. ● Rated IP67‑IP68, this power converter is built to resist wet and dusty working conditions.
    $67.85
    Overview

    Compact DC‑DC boost converter is engineered to turn 12‑24V direct current into steady 57V power supply, well‑suited for various power‑demanding applications. Thanks to its solid self‑cooling structure and wide temperature tolerance, it performs steadily even in tough field environments. Light‑weight and space‑saving, it helps you finish power upgrade without complicated modification, offering a cost‑effective and trustworthy power conversion solution for Starlink, communication base stations and different vehicle‑mounted devices.

    12V-24V to 57V DC-DC Boost Converter Features

    Feature

    • High Efficiency: Up to 95% working efficiency minimizes power loss during voltage conversion for long‑time operation.
    • Reliable Protection: Built‑in multi‑functional protection safeguards the unit against common electrical faults in field deployment.
    • Durable Construction: IP67‑rated shell improves dust and water resistance to adapt to vehicle‑mounted and base‑station scenarios.
    • Easy Installation: Mounting‑hole structure together with 1‑meter adapter cable enables quick and convenient on‑site wiring setup.

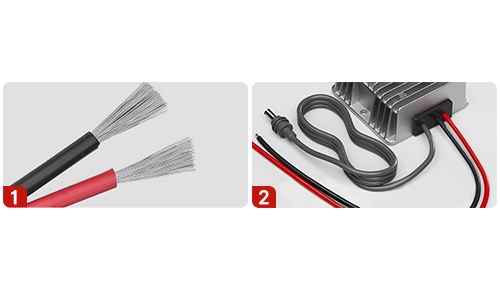

    Details

    1. Heavy‑duty 14 AWG Thick Wires: Comes with heavy‑duty 14 AWG thick gauge wires, which deliver stable current flow, reduce heat generation and voltage drop for reliable power transmission.
    2. Safe Integrated Wiring Layout: Adopts well‑integrated whole‑unit wiring layout. Optimized wire connection structure greatly lowers hidden risks of short‑circuit and loose contact for higher overall usage safety.
    12V-24V to 57V DC-DC Boost Converter Details

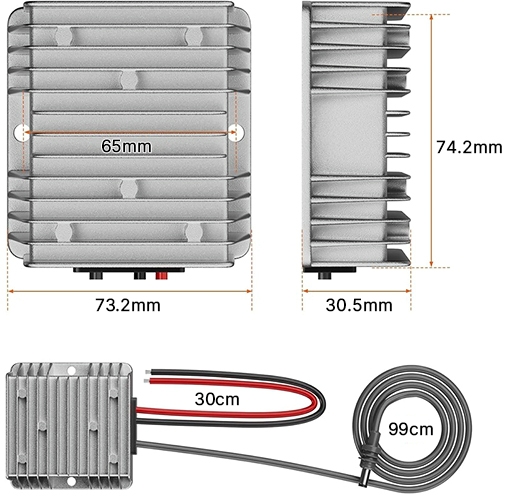

    Dimension

    12V-24V to 57V DC-DC Boost Converter Dimension

    Specs
    Output Current 4.5A
    Output Power 256.5W
    Output Voltage 57VDC
    Input Voltage 12-24VDC
    Working Efficiency 95%
    Overall Dimensions 74*74*32mm
    Installation Method Mounting hole installation
    Protection Class IP67
    Weight 260g
    Protection Type Functional protection
    Adapter Cable Length 1m
    Cooling Type Self-cooling
    Working Environment -20°~65°
    Application
    DC-DC Converter for Communication Base Station

    Communication Base Station

    DC-DC Converter for LED Screen

    LED Screen

    DC-DC Converter for Intelligent Robot

    Intelligent Robot

    DC-DC Converter for Vehicle Equipment

    Vehicle Equipment

    FAQ

    Q1: What devices can this 12‑24V to 57V DC‑DC boost converter work with?

    This step‑up converter outputs stable 57VDC power, it is widely compatible with Starlink, communication base station equipment and other onboard outdoor devices, please confirm your device’s voltage and power requirements before installation to avoid overload damage.

    Q2: Can this converter be used outdoors in bad weather?

    Featuring IP67 protection grade and wide‑range working temperature of ‑20℃~65℃, this unit can handle most outdoor harsh conditions, yet proper enclosure protection is still recommended for long‑term expose.
