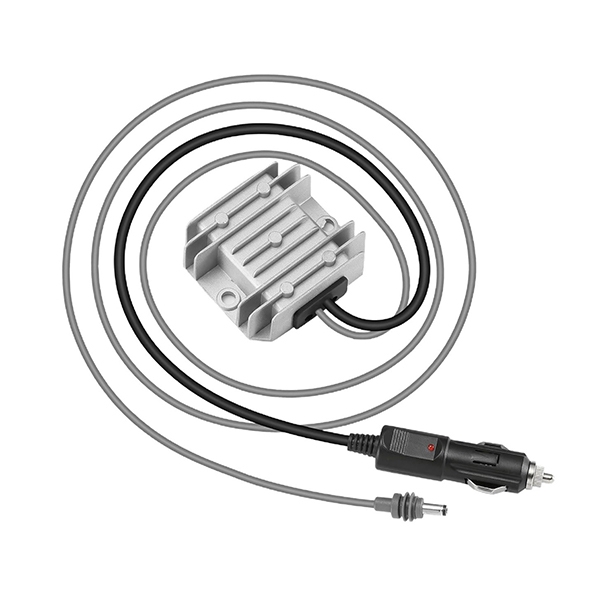

    Picture of DC Boost Converter with Cigarette Lighter Plug, 12V-24V to 30V
    Picture of DC Boost Converter with Cigarette Lighter Plug, 12V-24V to 30V
    Picture of DC Boost Converter with Cigarette Lighter Plug, 12V-24V to 30V

    DC Boost Converter with Cigarette Lighter Plug, 12V-24V to 30V

    0 review(s) | Add your review
    SKU: PH-DCDC-12302S4L
    $66.31
    ● DC‑DC boost converter delivers 105W rated power with 30V output. ● Supports 12‑24V DC wide input, works within‑40℃ to 80℃ operating temperature range. ● IP67‑IP68 waterproof grade with multiple built‑in safety protection functions. ● Male plug and female socket for different connection demands optional.
    *
    *
    *
    đźšš Free shipping
    ⏱️ Delivery: 6-12 days
    đź”™ 30-day Returns
    Related products

    12V-24V to 57V DC-DC Boost Converter with Male Plug

    ● Accepts 12‑24VDC input and converts to stable 57VDC output. ● DC‑DC boost converter delivers maximum output power up to 256.5W. ● Compact size with IP67 rating for outdoor harsh‑condition use. ● Adopts self‑cooling design and supports wide‑range working temperature from ‑20℃ to 65℃.
    $79.15

    12V-24VDC to 30VDC Step Up Converter with Female Socket

    ● Delivers 105W rated output power with 30V steady output voltage. ● IP67 waterproof rating suits outdoor and vehicle‑based installation scenarios. ● Self‑cooling design enables stable operation across‑40℃ to 80℃ temperature range. ● Wide input voltage ranges from 9‑28DCV, commonly used for 12‑24V power sources for flexible compatibility.
    $75.38

    12V-24V to 48V DC-DC Boost Converter with Ring Terminals, 1.5A/3A

    ● DC‑DC boost converter accepts 12/24V DC input and delivers stable 48V output. ● Supports output current options of 1.5A and 3A and comes with ring terminals for wiring connection. ● Compact body measures 64*57*22mm and adopts hole‑mounting for convenient installation. ● Works reliably under wide temperature range from ‑40℃ to 80℃ for diverse deployment.
    $66.58

    12V to 30V DC Boost Converter, Mini Male Plug with Alligator Clips

    ● Supports a 9‑28V wide DC input range, with 12‑24V DC recommended for optimal performance. ● 3.5A rated current with 105W maximum output power and up to 90% conversion efficiency. ● Compact dimension weighs only 150g and adopts mini male plug for convenient connection. ● Built‑in multiple protections including short‑circuit, overload, overheat and over‑voltage safeguard connected devices.
    $72.46

    12V-24V to 30V DC-DC Boost Converter, 105W with Anderson Connector

    ● DC‑DC converter accepts 12‑24VDC wide‑range input and delivers stable 30V output for various DC equipment. ● Supports hole mounting design for quick and convenient installation in limited‑space scenarios. ● Rated up to 105W output power with 95% high working efficiency to cut energy waste. ● Built‑in multi‑layer safeguards and IP67‑IP68 waterproof rating adapt to harsh outdoor working conditions.
    $0.00

    Automotive DC-DC Boost Converter, 12V-24V to 30V

    ● This DC‑DC converter accepts 12‑24VDC input and delivers steady 30V output at 105W power. ● Supports hole mounting for convenient fixed installation in different equipment. ● Runs with natural cooling and can operate within‑40℃ to 80℃ environment. ● Rated IP67‑IP68, this power converter is built to resist wet and dusty working conditions.
    $67.85
    Overview

    12V-24V to 30V DC‑DC boost converter comes with cigarette lighter style connectors, available in male plug and female socket variants to suit different wiring needs for vehicle‑mounted and off‑grid power systems. It delivers stable step‑up power output, featuring solid IP67‑IP68 waterproof performance and broad temperature adaptability. Compact in size and relying on natural cooling, it cuts down energy loss effectively, making it a handy ready‑to‑use power upgrade choice for your industrial, new‑energy and mobile power projects.

    DC Boost Converter Features

    Feature

    • High Efficiency: Achieves up to 95% conversion efficiency to minimize power loss during operation.
    • Rugged Build: Adopts premium copper wire and durable casing to resist wear in harsh working scenarios.
    • Comprehensive Safeguards: Equipped with over‑current, over‑voltage and waterproof protection for stable long‑term operation.
    • Dual‑form Factor: Comes in male plug and female socket variants to match diverse vehicle and off‑grid power setups.

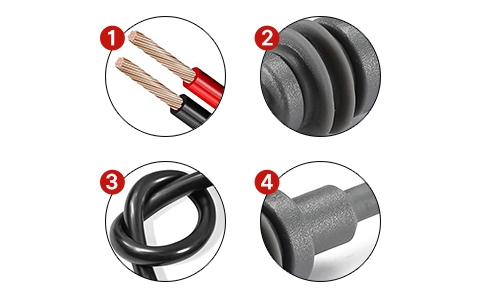

    Details

    1. Premium Copper Wire: High‑purity copper wire delivers stable current transmission and reduces heat generation.
    2. Water Resistant Gasket: Sealing gasket blocks water and dust ingress for reliable outdoor use.
    3. PVC Insulation Jacket: Flexible PVC outer layer provides good anti‑abrasion and insulation performance.
    4. PVC Jacket: Durable PVC outer casing protects internal wires against wear and tear.

    DC Boost Converter Details

    Dimension (unit: mm)

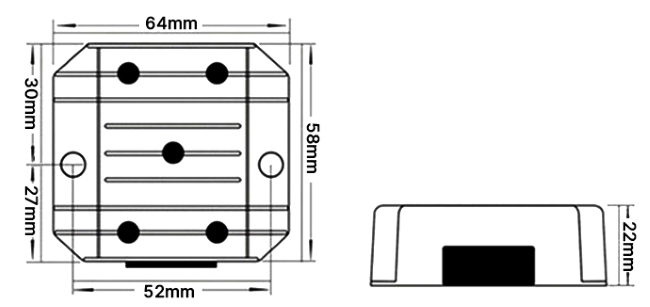

    • Male Plug DC Boost Converter

    Male Plug DC Boost Converter Dimension

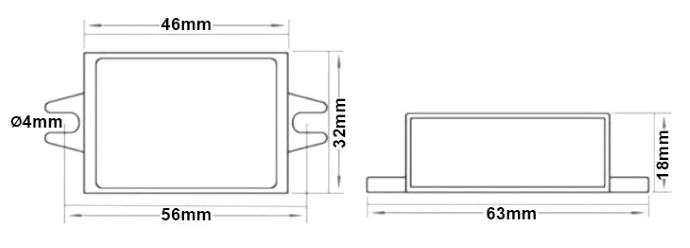

    • Female Socket DC Boost Converter

    Female Socket DC Boost Converter Dimension

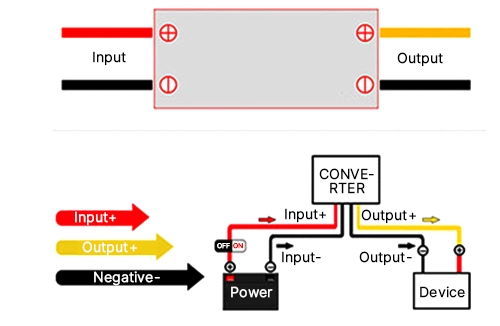

    Wiring Diagram

    DC Boost Converter Wiring

    Specs
    Interface Type Male Plug Female Socket
    Shell Material Aluminum Plastic
    Input Voltage 12‑24V DC
    Output Voltage 30V
    Output Power 105W
    Output Current 3.5A
    Certification CE
    Operating Temperature -40 to 80°C
    Efficiency 95%
    Protection Rating IP67‑IP68
    Protection Type Over‑current protection, over‑voltage protection, waterproof protection
    Cooling Type Natural cooling
    Dimensions 64*57*22mm 63*32*18mm
    Weight 255g 135g
    Application
    DC Boost Converter for Car

    DC Boost Converter for Car

    DC Boost Converter for Yacht

    DC Boost Converter for Yacht

    DC Boost Converter for Golf Cart

    DC Boost Converter for Golf Cart

    DC Boost Converter for RV

    RV

    FAQ

    Q1: Are male plug and female socket versions compatible with each other?

    Male plug and female socket are two separate variants built for different connection scenarios, you need to pick the matching interface according to your existing wiring setup.

    Q2: Do I need to install extra cooling fans for this power converter?

    You do not need to fit extra cooling fans. This unit adopts natural cooling design, you only need to leave adequate surrounding clearance so heat can disperse freely when the converter is under continuous working status.
