    Picture of 12V-24V to 48V DC-DC Boost Converter with Ring Terminals, 1.5A/3A
    Picture of 12V-24V to 48V DC-DC Boost Converter with Ring Terminals, 1.5A/3A
    Picture of 12V-24V to 48V DC-DC Boost Converter with Ring Terminals, 1.5A/3A

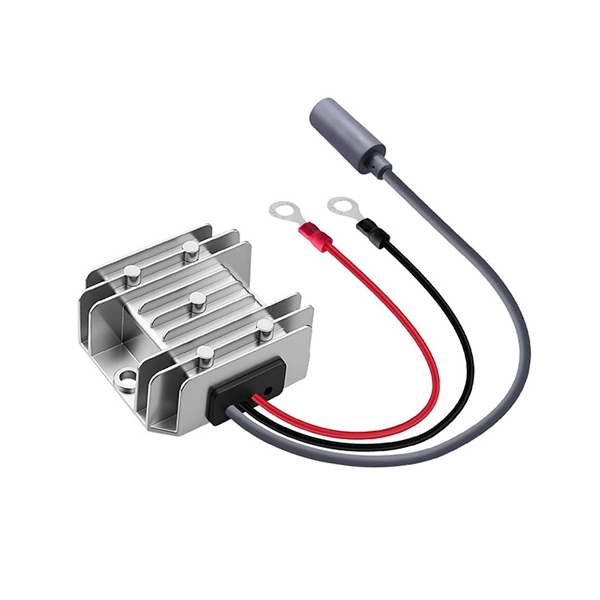

    12V-24V to 48V DC-DC Boost Converter with Ring Terminals, 1.5A/3A

    0 review(s) | Add your review
    SKU: PH-DCDC-122448
    $66.58
    ● DC‑DC boost converter accepts 12/24V DC input and delivers stable 48V output. ● Supports output current options of 1.5A and 3A and comes with ring terminals for wiring connection. ● Compact body measures 64*57*22mm and adopts hole‑mounting for convenient installation. ● Works reliably under wide temperature range from ‑40℃ to 80℃ for diverse deployment.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    12V-24V to 57V DC-DC Boost Converter with Male Plug

    ● Accepts 12‑24VDC input and converts to stable 57VDC output. ● DC‑DC boost converter delivers maximum output power up to 256.5W. ● Compact size with IP67 rating for outdoor harsh‑condition use. ● Adopts self‑cooling design and supports wide‑range working temperature from ‑20℃ to 65℃.
    $79.15

    12V-24VDC to 30VDC Step Up Converter with Female Socket

    ● Delivers 105W rated output power with 30V steady output voltage. ● IP67 waterproof rating suits outdoor and vehicle‑based installation scenarios. ● Self‑cooling design enables stable operation across‑40℃ to 80℃ temperature range. ● Wide input voltage ranges from 9‑28DCV, commonly used for 12‑24V power sources for flexible compatibility.
    $75.38

    DC Boost Converter with Cigarette Lighter Plug, 12V-24V to 30V

    ● DC‑DC boost converter delivers 105W rated power with 30V output. ● Supports 12‑24V DC wide input, works within‑40℃ to 80℃ operating temperature range. ● IP67‑IP68 waterproof grade with multiple built‑in safety protection functions. ● Male plug and female socket for different connection demands optional.
    $66.31

    12V to 30V DC Boost Converter, Mini Male Plug with Alligator Clips

    ● Supports a 9‑28V wide DC input range, with 12‑24V DC recommended for optimal performance. ● 3.5A rated current with 105W maximum output power and up to 90% conversion efficiency. ● Compact dimension weighs only 150g and adopts mini male plug for convenient connection. ● Built‑in multiple protections including short‑circuit, overload, overheat and over‑voltage safeguard connected devices.
    $72.46

    12V-24V to 30V DC-DC Boost Converter, 105W with Anderson Connector

    ● DC‑DC converter accepts 12‑24VDC wide‑range input and delivers stable 30V output for various DC equipment. ● Supports hole mounting design for quick and convenient installation in limited‑space scenarios. ● Rated up to 105W output power with 95% high working efficiency to cut energy waste. ● Built‑in multi‑layer safeguards and IP67‑IP68 waterproof rating adapt to harsh outdoor working conditions.
    $0.00

    Automotive DC-DC Boost Converter, 12V-24V to 30V

    ● This DC‑DC converter accepts 12‑24VDC input and delivers steady 30V output at 105W power. ● Supports hole mounting for convenient fixed installation in different equipment. ● Runs with natural cooling and can operate within‑40℃ to 80℃ environment. ● Rated IP67‑IP68, this power converter is built to resist wet and dusty working conditions.
    $67.85
    Overview

    Built as a rugged step‑up DC‑DC boost converter fitted with ring terminals, this converter turns 12‑24V direct current into steady 48V power output for your field devices. Thanks to excellent thermal adaptability and reliable sealing performance, it holds up well in complicated working conditions. CE‑certified and engineered with complete safety mechanisms, it is a practical, cost‑effective power upgrade solution for multiple industrial and commercial power‑supply scenarios.

    12V-24V to 48V DC-DC Boost Converter Feature

    Feature

    • High‑efficiency: Up to 95% working efficiency cuts power loss during voltage conversion.
    • Solid protection: Built‑in overcurrent, overvoltage and waterproof safeguards extend service life.
    • Strong sealing: IP67‑IP68 protection rating enables stable performance in damp and harsh surroundings.
    • Broad compatibility: Suitable for consumer electronics, industrial equipment, new‑energy and aerospace‑related projects.

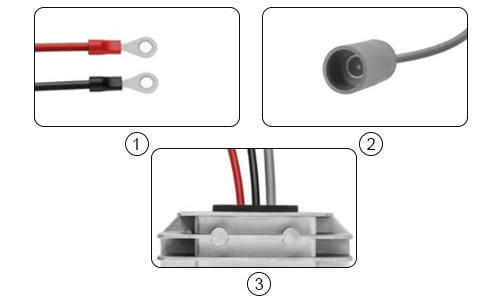

    Details

    1. Ring‑terminal Input: Standard ring lugs enable firm bolt‑down connection to battery terminals for steady power input.
    2. Female DC-jack Output: Standard DC female jack delivers stable plug‑in connection for matched DC male power plugs.
    3. Sealed Cable Joint: Potting‑sealed wire‑to‑housing connection blocks dust and moisture from penetrating internal circuit components.

    12V-24V to 48V DC-DC Boost Converter Details

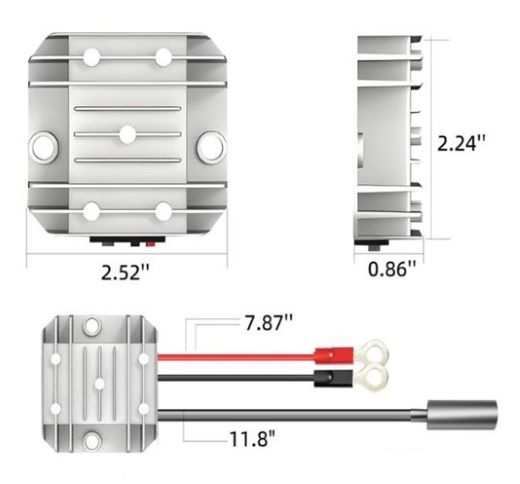

    Dimension (unit: inch)

    12V-24V to 48V DC-DC Boost Converter Dimension

    Specs
    Input Voltage 12/24V
    Output Voltage 48V
    Output Power 72W
    Output Current 1.5A/3A
    Efficiency 95%
    Dimensions 64*57*22mm
    Protection Rating IP67-IP68
    Certification CE
    Installation Method Hole Mounting
    Operating Environment -40~80℃
    Protection Type Overcurrent Protection, overvoltage protection, waterproof protection
    Application Consumer electronics, industrial, communication, new energy, medical, aerospace, etc.
    Application
    DC-DC Converter for Communication Base Station

    Aerospace

    DC-DC Converter for Medical

    Medical

    DC-DC Converter for New Energy

    New Energy

    DC-DC Converter for Communication Base Station

    Communication Base Station

    FAQ

    Q1: Can I mount this converter outdoors and is it fully waterproof?

    It adopts IP67‑IP68 grade sealed potting treatment at cable‑housing joints to defend against dust, spray and humid outdoor conditions, however it is not intended for continuous underwater submersion and proper shelter is still recommended for long‑term exposed installations.

    Q2: Can I connect this converter directly to my battery bank using the ring terminals?

    Yes, this power converter is pre‑fitted with ring‑terminal input cables, you may securely bolt these lugs onto battery terminals to establish solid, low‑resistance fixed wiring for long‑term stable operation.
