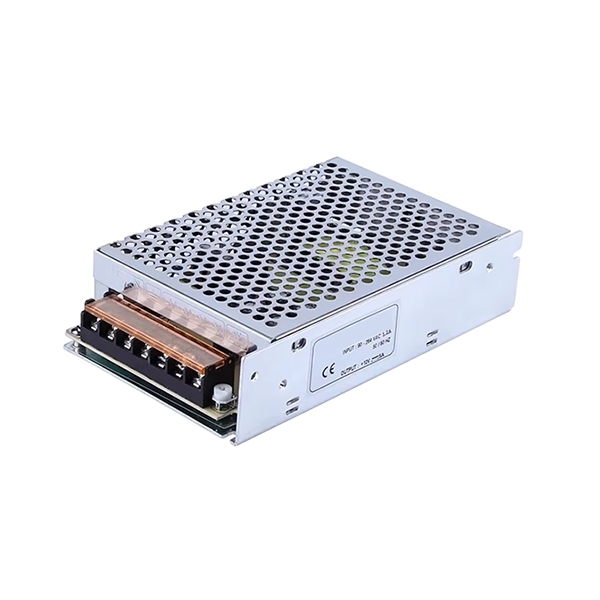

12V 5A 60W SMPS Switching Power Supply

SKU: PH-SMPS-60-12

$57.62

● Supports a full range of 110V/220V AC input, universally applicable worldwide. ● Industrial-grade quality at factory price, suitable for multiple scenarios such as industrial control, LED. ● Humanized design, equipped with a dust-proof terminal cover and clear wiring instructions. ● Pure copper coils and high-quality capacitors ensure low loss and low heat generation, making long-term operation more reliable.

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Powerhome 12V 5A switching power supply delivers reliable performance with a universal 110V/220V AC input and wide compatibility across industrial controls, LED lighting, and security devices. Backed by premium build quality at a budget-friendly price point, it offers exceptional value for long-term, stable power delivery—ideal for cost-conscious buyers seeking professional-grade reliability without the premium cost.

Feature

Multi-Scene Power Solution: This compact 60W switching power supply delivers steady performance for industrial controls, LED lighting, surveillance cameras, and small electronics alike.
Flip-type Dustproof Terminal Guard: The 90° hinged terminal cover delivers enhanced safety and longevity, while keeping wiring and operation straightforward.
Universal AC Input: Full-range 110V/220V AC input ensures global compatibility, no manual voltage adjustment needed.

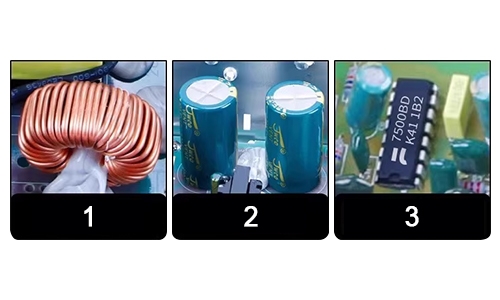

Details

High-Purity Copper Windings: Dense pure copper coils cut energy loss, boost power output, and reduce heat buildup for greater efficiency.
Dual Input Filter Capacitors: Dual high-temperature-resistant capacitors deliver robust filtering to ensure stable AC input performance.
Intelligent PWM Control IC: Smart PWM control chip enables precise voltage regulation.

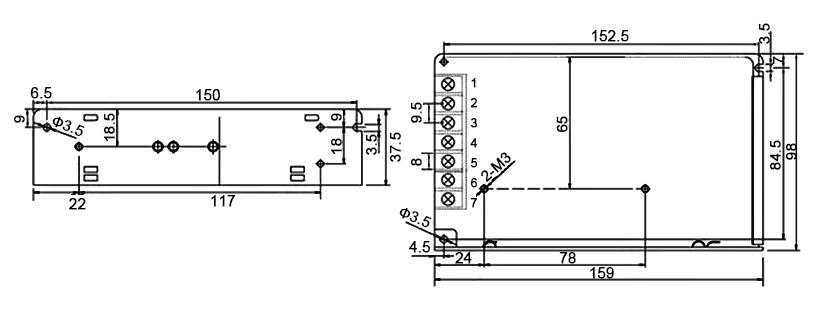

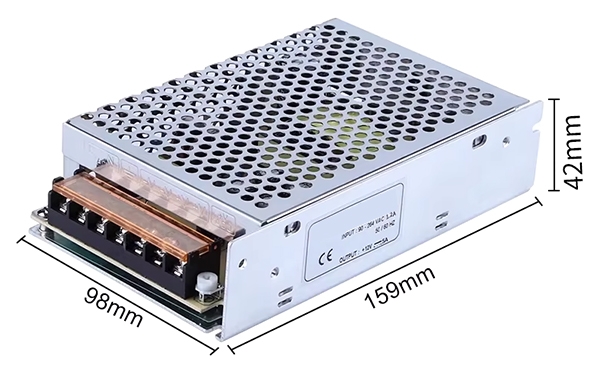

Dimension (Unit: mm)

12V 5A 60W SMPS Dimension

Wiring Definition

ADJ	+V	-V
Output Voltage Adjustment	Connect to Device Positive Terminal	Connect to Device Negative Terminal
⏚	L	N
Connect to Ground Wire	Live Wire Connection	Neutral Wire Connection

Specs

Model	PH-S-60-12
DC Output Voltage	12V
Output Voltage Tolerance	±1%
Wave & Noise	120mVp-p
Inlet Stability	±0.5%
Load Stability	±0.5%
DC Output Power	60W
Efficiency	76%
Adjustable Range for DC Voltage	±10%
AC Input Voltage Range	85-132VAC/170-264VAC selectable by switch, 47-63Hz, 240-370VDC
Input Current	2A/115VAC, 1A/230VAC
AC Inrush Current	Cold start current: 20A/115V, 40A/230V
Leakage Current	<3.5mA/240VAC
Overload Protection	105%~150%, shut off current, automatically restore
Over Voltage Protection	115%~135% of output voltage
Temperature Coefficient	±0.03%/°C (0~50°C)
Setup / Rise / Hold Up Time	800ms, 50ms, 10ms/115VAC; 30ms, 50ms, 80ms/230VAC
Vibration	10~500Hz, 2G, 10 minutes/cycle, X, Y, Z axes 60 minutes each
Withstand Voltage	Input to output: 1.5KVAC; Input to enclosure: 1.5KVAC; Output to enclosure: 0.5KVAC
Isolation Resistance	Input to output internal, input and enclosure, output and enclosure: 500VDC/100MΩ
Working Temperature and Humidity	-10°C~+60°C, 20%~90%RH
Store Temperature and Humidity	-20°C~+85°C, 10%~95%RH
Weight	0.5Kg

Application

Outdoor Monitoring

LED Strip

Automation Equipment

Road Sign Light

FAQ

Q1: Does this 60W SMPS have safety certifications?

This switching power supply is certified with CE, FCC, and RoHS, fully complying with relevant safety, electromagnetic compatibility, and environmental protection standards for reliable and safe use.

Q2: Is fan cooling or natural convection cooling used?

60W SMPS adopts natural convection cooling without a cooling fan, ensuring quiet operation, high reliability, and a long service life.
