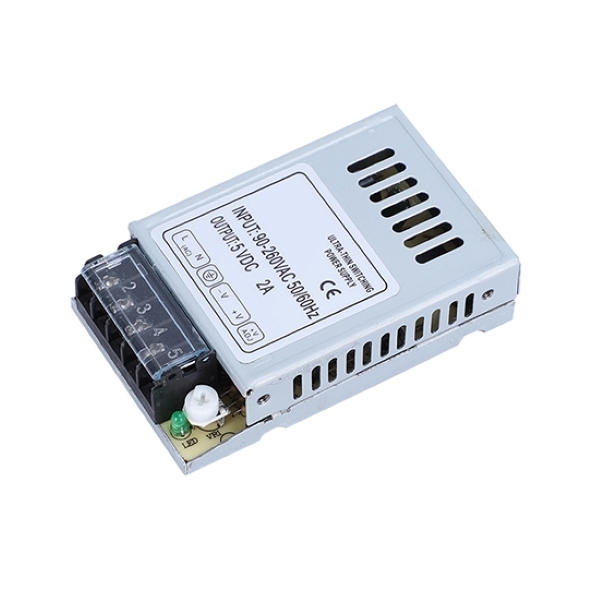

    Picture of 5V 2A 10W SMPS Switching Power Supply

    5V 2A 10W SMPS Switching Power Supply

    0 review(s) | Add your review
    SKU: PH-SMPS-10-5
    $54.15
    ● Delivers consistent 5V power with ultra-low ripple, ensuring reliable performance. ● Built with high-grade materials and imported chips to boost durability. ● Fully certified with CE, RoHS and FCC for safe, reliable and environmentally friendly global use.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    5V 10A 50W SMPS Switching Power Supply

    ● Delivers stable 5V DC / 10A / 50W for consistent device performance. ● 100% full load burn-in tested for long-term reliability. ● Fan-free natural convection cooling for quiet, maintenance-free operation. ● Ideal for LED strips, computers, printers, monitoring, and industrial control.
    $54.15

    5V 20A 100W SMPS Switching Power Supply

    ● Features a steady 5V/20A/100W output to provide dependable power for your equipment. ● Free air convection cooling provides reliable heat dissipation without noise. ● Rigorous 100% full load burn-in test guarantees reliable long-term operation. ● Low cost and high reliability make it an economical and trustworthy solution.
    $58.15
    Picture of 5V 30A 150W SMPS Switching Power Supply

    5V 30A 150W SMPS Switching Power Supply

    ● Supplies steady 5V 30A (150W) power to ensure continuous, reliable operation for all connected equipment. ● Quiet free air convection cooling maintains optimal operating temperatures without moving parts. ● 100% full load burn-in testing ensures consistent performance and long service life. ● Complies with strict EMC standards for stable, interference-free operation.
    $63.34
    Picture of 12V 2A 25W SMPS Switching Power Supply

    12V 2A 25W SMPS Switching Power Supply

    ● 12V 2.1A SMPS supports full-range 110V/220V AC input for global compatibility. ● Pure copper transformer ensures low loss, high efficiency, and stable power output. ● Built-in overload, overvoltage, and short-circuit protection guarantees safe operation. ● Widely applicable to industrial equipment, LED lighting, and security monitoring systems.
    $54.15

    12V 4A 50W SMPS Switching Power Supply

    ● Provides steady 50W 12V power to ensure consistent, dependable device operation. ● Passive free-air convection keeps the unit cool without noisy fans. ● 100% full-load burn-in tested for enhanced long-term reliability. ● Ideal for LED strips, computers, printers, security camera systems, and factory automation controllers.
    $54.15
    Picture of 12V 5A 60W SMPS Switching Power Supply

    12V 5A 60W SMPS Switching Power Supply

    ● Supports a full range of 110V/220V AC input, universally applicable worldwide. ● Industrial-grade quality at factory price, suitable for multiple scenarios such as industrial control, LED. ● Humanized design, equipped with a dust-proof terminal cover and clear wiring instructions. ● Pure copper coils and high-quality capacitors ensure low loss and low heat generation, making long-term operation more reliable.
    $57.62
    Overview

    Compact 10W switching power supply is your reliable workhorse for low-power electronics—built with premium components and imported chips to deliver rock-stable performance you can count on. It comes packed with efficient heat dissipation, ample power headroom, and full protection features to shield your devices from harm, while its hassle-free installation makes setup a breeze. Backed by strict quality assurance, it’s the smart, durable pick for everything from industrial controls to DIY projects, giving you total peace of mind for every use.

    5V 2A 10W SMPS Feature

    Feature

    • Easy Installation: Compact form factor and straightforward wiring enable quick, hassle-free setup for any project.
    • Efficient Heat Dissipation: Optimized design effectively manages temperature, supporting safe continuous operation even under load.
    • Comprehensive Protection: Equipped with overload and short-circuit safeguards to protect both the power supply and connected devices.

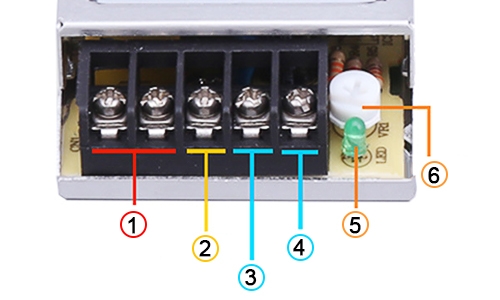

    Details

    1. Input 220V: Connect to 170–264VAC mains power.
    2. Ground Wire: Connect to protective earth for safety.
    3. Output Negative: DC negative terminal.
    4. Output Positive: DC positive terminal.
    5. Indicator Light: Shows power supply is working.
    6. Voltage Adjustment: Trim output voltage within ±10%.
    5V 2A 10W SMPS Details

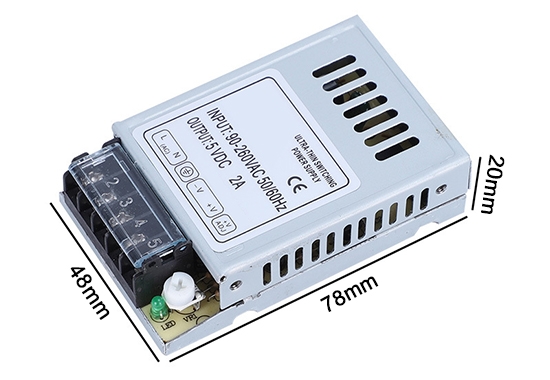

    Dimension (Unit: mm)

    5V 2A 10W SMPS Dimension

    Specs
    Model PH-MS-10-5
    Output DC Voltage 5V
    Rated Current 2A
    Rated Power 10W
    Ripple & Noise ① <50mV
    Voltage Accuracy ±2%
    Output Voltage Adjustment Range ±10%
    Load Regulation <±1.5%
    Line Regulation <±0.5%
    Input Voltage Range 170-264VAC 47Hz~63Hz (120VDC~370VDC)
    Efficiency (Typical) ② >78%
    Operating Current <0.3A 110VAC <0.15A 220VAC
    Inrush Current 110VAC 18A, 220VAC 36A
    Turn-on, Rise, Hold Time 200ms, 50ms, 20ms: 220VAC
    Protection Overload Protection ≥105%-150% Type: Constant current output +VO drops to undervoltage point, cut off output Reset: Power on again
    Short Circuit Protection +VO drops to undervoltage point, shut down output
    Environment Operating Temp. & Humidity -10℃~+50℃; 20%~90RH
    Storage Temp. & Humidity -20℃~+85℃; 10%~95RH
    Safety Withstand Voltage Input-Output: 1.5KVAC Input-Frame: 1.5KVAC Output-Frame: 0.5KVAC Duration:1min
    Leakage Current Input-Output 1.5KVAC <5mA
    Leakage Current Input-Output 220VAC <1mA
    Isolation Resistance Input-Output, Input-Frame, Output-Frame: 500VDC/100MΩ
    Others Dimension 78*48*20mm
    Weight 175g
    Application
    Household Appliances

    Household Appliances

    Factory Equipment

    Factory Equipment

    Monitoring Equipment

    Monitoring Equipment

    Power Tools

    Power Tools

    FAQ

    Q1: What devices can this 10W SMPS be used for?

    This 10W switching power supply is widely used in various low-power electronic equipment and industrial control scenarios. It is suitable for Arduino and other microcontroller systems, sensors, monitoring modules, LED lighting, small industrial control equipment, intelligent instruments, communication equipment, and electronic DIY projects. With stable output and high efficiency, it can provide safe and reliable power support for most small DC-powered devices.

    Q2: Does it have over-current protection?

    Yes, this 10W SMPS is equipped with over-current protection. When the output current exceeds the rated range, the power supply will automatically activate the protection function to avoid damage to the power supply itself and the load equipment. It also supports short-circuit protection, ensuring safe and stable operation under abnormal working conditions.
