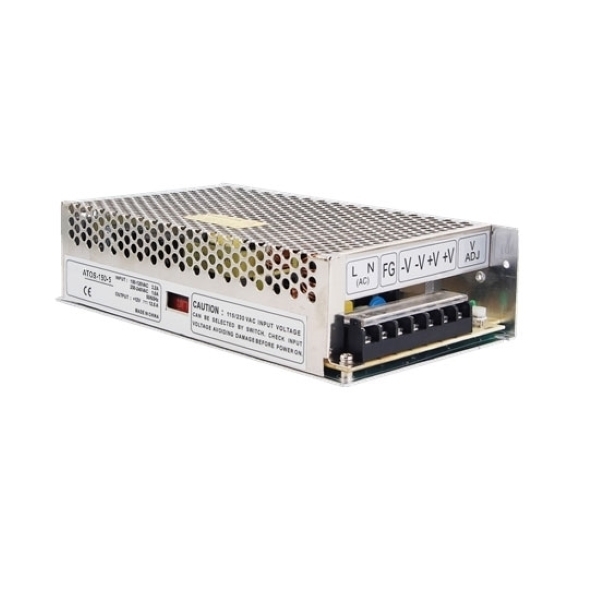

    Picture of 5V 30A 150W SMPS Switching Power Supply

    5V 30A 150W SMPS Switching Power Supply

    0 review(s) | Add your review
    SKU: PH-SMPS-150-5
    $63.34
    ● Supplies steady 5V 30A (150W) power to ensure continuous, reliable operation for all connected equipment. ● Quiet free air convection cooling maintains optimal operating temperatures without moving parts. ● 100% full load burn-in testing ensures consistent performance and long service life. ● Complies with strict EMC standards for stable, interference-free operation.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products
    Picture of 5V 2A 10W SMPS Switching Power Supply

    5V 2A 10W SMPS Switching Power Supply

    ● Delivers consistent 5V power with ultra-low ripple, ensuring reliable performance. ● Built with high-grade materials and imported chips to boost durability. ● Fully certified with CE, RoHS and FCC for safe, reliable and environmentally friendly global use.
    $54.15

    5V 10A 50W SMPS Switching Power Supply

    ● Delivers stable 5V DC / 10A / 50W for consistent device performance. ● 100% full load burn-in tested for long-term reliability. ● Fan-free natural convection cooling for quiet, maintenance-free operation. ● Ideal for LED strips, computers, printers, monitoring, and industrial control.
    $54.15

    5V 20A 100W SMPS Switching Power Supply

    ● Features a steady 5V/20A/100W output to provide dependable power for your equipment. ● Free air convection cooling provides reliable heat dissipation without noise. ● Rigorous 100% full load burn-in test guarantees reliable long-term operation. ● Low cost and high reliability make it an economical and trustworthy solution.
    $58.15
    Picture of 12V 2A 25W SMPS Switching Power Supply

    12V 2A 25W SMPS Switching Power Supply

    ● 12V 2.1A SMPS supports full-range 110V/220V AC input for global compatibility. ● Pure copper transformer ensures low loss, high efficiency, and stable power output. ● Built-in overload, overvoltage, and short-circuit protection guarantees safe operation. ● Widely applicable to industrial equipment, LED lighting, and security monitoring systems.
    $54.15

    12V 4A 50W SMPS Switching Power Supply

    ● Provides steady 50W 12V power to ensure consistent, dependable device operation. ● Passive free-air convection keeps the unit cool without noisy fans. ● 100% full-load burn-in tested for enhanced long-term reliability. ● Ideal for LED strips, computers, printers, security camera systems, and factory automation controllers.
    $54.15
    Picture of 12V 5A 60W SMPS Switching Power Supply

    12V 5A 60W SMPS Switching Power Supply

    ● Supports a full range of 110V/220V AC input, universally applicable worldwide. ● Industrial-grade quality at factory price, suitable for multiple scenarios such as industrial control, LED. ● Humanized design, equipped with a dust-proof terminal cover and clear wiring instructions. ● Pure copper coils and high-quality capacitors ensure low loss and low heat generation, making long-term operation more reliable.
    $57.62
    Overview

    Powerhome 150W 5V switching power supply delivers stable output and reliable performance for your monitoring and industrial equipment. With high efficiency, safe protection, and long-term durability, it’s the ideal choice to keep your system running smoothly. Stock is limited—order now to get the best value and fast delivery!

    150W SMPS Features

    Feature

    • Multi-layer Safety Shield: Integrated short-circuit, overvoltage, and overload protection keeps your devices safe from electrical hazards.
    • Budget-friendly Performance: High reliability paired with an accessible price point delivers exceptional long-term value for your projects.
    • Flexible Voltage Compatibility: Switch-selectable universal AC input range works seamlessly across global power grids for versatile use.


    Details

    1. Input: Connects to the AC power source to supply power to the unit.
    2. Ground Wire: Provides a safety ground connection to prevent electric shock.
    3. Output Negative Terminal: Serves as the negative pole of the DC output.
    4. Output Positive Terminal: Delivers the positive pole of the regulated DC output.
    5. Voltage Regulation: Allows precise adjustment of the output voltage to meet your needs.
    6. Indicator Light: Shows the power supply’s operating status at a glance.
    150W SMPS Details

    Dimension (Unit: mm)

    150W SMPS Dimension

    150W SMPS Terminal Pin Number Assignment

    Specs
    Model PH-S-150-5
    Output DC Voltage 5V
    Rated Current 30A
    Current Range 0 ~ 30A
    Rated Power 150W
    Ripple & Noise (Max.)(Note 2) 150mVp-p
    Voltage Adjust Range 4.5 ~ 5.5V
    Voltage Tolerance (Note 3) ±2.0%
    Line Regulation ±0.5%
    Load Regulation ±0.5%
    Setup, Rise, Holdup Time 100ms, 50ms, 20ms at full load
    Input Voltage Range 88 ~ 132VAC/176V~264VAC (selected by a switch) or 248 ~ 370VDC
    Frequency Range 47~63Hz
    Efficiency (Typ.) 78%
    AC Current (Typ.) 3.2A/115V AC 1.6A/230V AC
    Inrush Current (Typ.) Cold start: 35A
    Leakage Current <3.5mA/240V AC
    Protection Overload 105~150% rated output power
    Protection type: Shut down output voltage, re-power on to recover.
    Overvoltage 5.75V ~ 6.75V
    Protection type: Shut down output voltage, re-power on to recover.
    Environment Working Temperature -10 ~ +60℃
    Working Humidity 20~90% RH non-condensing
    Storage Temperature -20~+85℃
    Storage Humidity 10~95% RH non-condensing
    Temperature Coefficient ±0.03%/℃ (0~50℃)
    Vibration 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
    Safety & EMC (Note 4) Safety Standards UL1012 UL60950-1, TUV EN60950-1, CCC GB4943 Approved
    Withstand Voltage I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
    Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH
    EMC Emission Compliance to EN55022 (CISPR22) Class B, EN61000-3-2, -3
    EMC Immunity Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, light industry level, criteria A
    Others MTBF ≥286.7K hrs MIN. MIL-HDBK-217F (25℃)
    Dimension 199*110*50mm (L*W*H)
    Weight 0.8kg
    Note 1. All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25°C of ambient temperature.
    2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
    3. Tolerance includes set up tolerance, line regulation and load regulation.
    4. The switching power supply is considered a component which will be installed into final equipment. Please make sure that the final equipment still meets EMC directives.
    Application
    Household Appliances

    Household Appliances

    Factory Equipment

    Factory Equipment

    Monitoring Equipment

    Monitoring Equipment

    Power Tools

    Power Tools

    FAQ

    Q1: What basic safety and connection checks should I do before using smps?

    Before use, confirm that your input and output voltage specifications match the power supply’s rated values. Check that input and output leads are correctly connected to avoid equipment damage, ensure all components are securely fastened, and verify no screws are touching electrical parts on the power panel. Also measure the insulation resistance between the housing and input/output leads to prevent electric shock, and make sure the ground terminal is properly connected for safety and lower noise.

    Q2: What usage tips help extend the life and ensure stable performance of smps?

    For multiplexed output models, the primary output (usually the higher-current one) needs at least 10% load to maintain regulation and dynamic performance; if only using the secondary output, add a dummy load to the primary output as directed in the product specs. Avoid frequent power cycling, as this shortens service life. Also note that operating environment conditions and load level directly affect the lifespan and reliability of the switching power supply.
