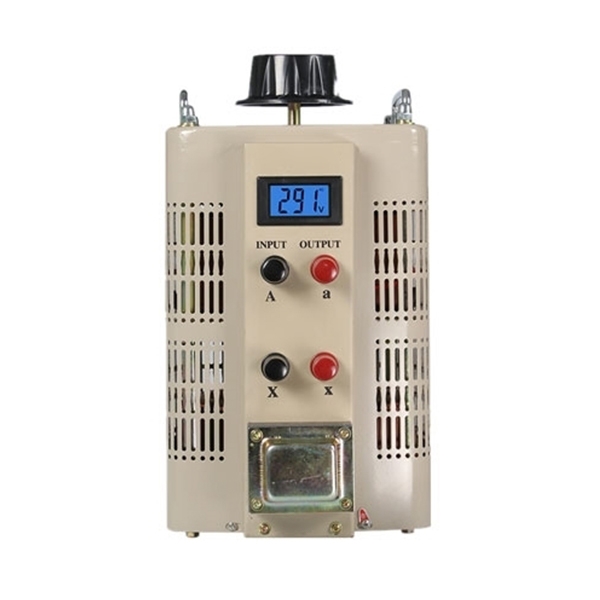

    30 kVA Variac Transformer, Single Phase

    0 review(s) | Add your review
    SKU: PH-VT-30K
    $3,365.19
    ● Single-phase variac transformer, 30 kVA power rating, direct from the manufacturer at wholesale price. ● Rated input voltage 220V; output voltage continuously adjustable from 0 to 250V. ● Max output current 96A for high-load industrial use. ● Supports voltage regulation, temperature control, speed adjustment, light modulation, and power control.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    1 kVA Variac Transformer, Single Phase

    ● Delivers 1000VA of continuous clean power. ● Engineered for high-inrush loads like motors and compressors. ● Field-selectable 110V or 220V AC input. Output continuously adjustable from 0-250V AC. ● Universal compatibility with global 50/60Hz power grids. ● Perfect for juicers, commercial TV displays, large refrigerators, and CNC printing systems.
    $256.32

    2 kVA Variac Transformer, Single Phase

    ● Robust 2000VA maximum rated power. Rated output current 6.4A. ● Built-in LCD for real-time voltage monitoring. ● Factory-integrated overload protection system. ● Wider voltage regulation range than standard 0-250V models. Output continuously variable from 0~300V AC. ● Engineered for heavy-duty industrial testing, scientific research, and high-draw commercial equipment.
    $2,156.79

    3 kVA Variac Transformer, Single Phase

    ● 3kVA variac variable transformer, industrial AC voltage regulator. ● Supports both 50Hz and 60Hz working frequencies. ● Input voltage selectable between 110V and 220V. ● Protective metal shell construction enhances durability and dissipates heat efficiently. ● Designed for high efficiency, long operational life, and excellent electrical conductivity.
    $446.38

    5 kVA Variac Transformer, Single Phase

    ● Substantial 5000VA rated capacity with 16A rated output current. ● Built with all-copper coils throughout. ● Specifically configured for 220V rated input voltage and 50Hz working frequency. ● Ideal for regulating output from standby generators, providing stable, adjustable AC to connected equipment. ● Maximizes electrical conductivity, minimizes energy losses, and ensures cooler operation under sustained 5kVA continuous load.
    $758.65

    10 kVA Variac Transformer, Single Phase

    ● Substantial 10000VA rated capacity with 32A rated output current. ● Delivers 32A rated output current across the 0~250V adjustment range. ● Features a porous heat dissipation shell design for superior airflow. ● Integrated an accurate scale meter for direct voltage readout. ● Engineered for heavy industrial infrastructure, large-scale motor control, and whole-facility AC voltage testing.
    $1,485.36

    15 kVA Variac Transformer, Single Phase

    ● Substantial 15kVA-rated capacity with 48A output current. ● Specifically configured for 220V rated input voltage and 50Hz working frequency. ● Delivers 48A rated output current across the 0-250V adjustment range. ● Direct sale by the factory eliminates intermediaries. ● Good performance at accessible pricing with streamlined ordering and support.
    $2,079.09
    Overview

    Providing smooth and stepless adjustment from 0–250V, this 30 kVA single-phase variac transformer ensures precise control in industrial environments requiring accurate voltage regulation. Its optimized copper winding structure enhances conductivity and supports reliable performance under continuous heavy load conditions. The reinforced metal housing improves durability and heat dissipation, making it suitable for harsh industrial environments. As a manufacturer-direct supply model, this industrial adjustable voltage regulator offers both premium quality and competitive wholesale pricing.

    30 kVA single-phase variac transformer feature

    Feature

    • Continuously Adjustable 0–250V Output: This 30 kVA variac transformer offers a smooth, continuously variable output from 0 to 250V against a 220V rated input.
    • High Output Current — 96A Rated: With a 96A max output current, this variac voltage regulator is built to handle demanding, high-load applications with confidence.
    • Multi-Function Voltage Regulation Capability: Beyond basic voltage adjustment, this variable transformer supports a wide range of control functions, including temperature regulation, motor speed adjustment, light modulation, and power control.
    • High-Capacity 30 kVA Single-Phase Design: With a 30 kVA power rating, this single-phase variac voltage regulator is built to handle heavy-load industrial environments while maintaining output stability.

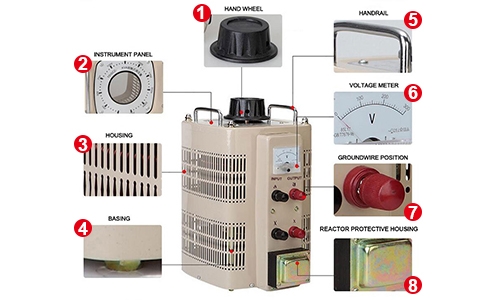

    Details

    1. Hand wheel
    2. Instrument panel
    3. Housing
    4. Basing
    5. Handrail
    6. Voltage meter
    7. Groundwire position
    8. Reactor protective housing
    30 kVA single-phase variac transformer details
    Specs
    Phase 1-Phase
    Rated Capacity 30 kVA
    Rated Input Voltage 220V
    Rated Output Voltage 0~250V
    Frequency 50/60Hz
    Max Output Current 96A
    Usage SVC
    Current Type AC
    Type Contact Type Regulators
    Actual Output Current (Actual output voltage * rated current) / maximum output voltage
    Dimension (L×W×H) (370*310*1100) mm
    Weight 100 kg



    Note: Support the split phase (L1, L2+N, G). Please contact us.

    Application
    Variac voltage regulator for machine speed control

    Machine Speed Control

    Variac voltage regulator for mechanical voltage boost

    Mechanical Voltage Boost

    Variac voltage regulator for current control

    Current Control

    Variac voltage regulator for withstand voltage test

    Withstand Voltage Test

    FAQ

    Q1: What is the rated output current of this 30 kVA variac transformer?

    This single-phase variac voltage regulator has a max output current of 96A, making it well-suited for high-load industrial and commercial applications that require both high capacity and precise voltage control.

    Q2: What control functions can this 30 kVA variac transformer support beyond voltage regulation?

    In addition to standard AC voltage regulation, this variable transformer is widely used for temperature control, motor speed adjustment, light modulation, and overall power control — making it suitable for a broad range of industrial and process automation applications.
