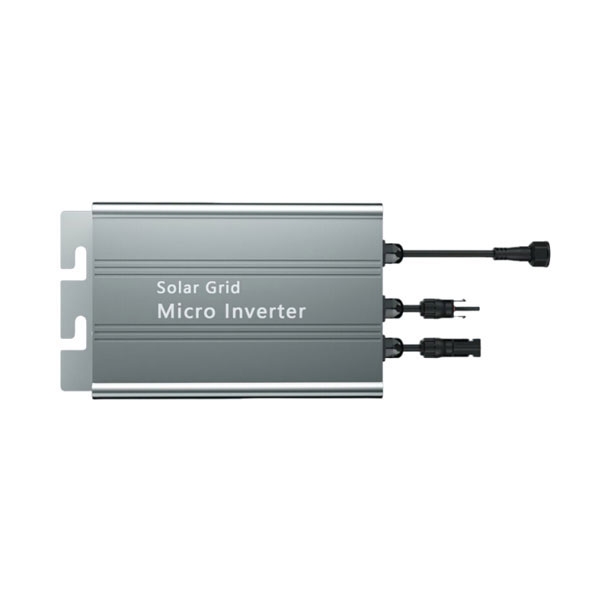

    Picture of 300W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase
    Picture of 300W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase
    Picture of 300W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase
    Picture of 300W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    300W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    0 review(s) | Add your review
    SKU: PH-MI-300
    $166.77
    ● 300W grid tie micro inverter with MPPT, 0.99 tracking efficiency, switchable single/3‑phase output. ● 80‑160V adaptive AC output, THD < 5% pure sine wave, 18‑50V DC input for 36V solar panels. ● IP65 waterproof & self‑cooling, full safety protection, ultra‑low <0.5W night standby loss. ● Maximum input power 300W, operating temperature -20~65℃, maximum output efficiency 93%.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    350W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    ● 350W grid tie micro inverter with MPPT, 180-280VAC output voltage, switchable single‑phase /3‑phase. ● 350W peak & 320W rated output, high‑efficiency MPPT of 20‑50V with tracking efficiency up to 0.99. ● Clean sine wave output, THD＜5% and PF＞95%, ultra‑low night standby power below 0.5W. ● Stable performance from ‑20℃ to 65℃, passive self‑cooling structure, IP65 waterproof for outdoor installation.
    $178.85

    550w Grid Tie Micro Inverter with Limiter

    ● 550W grid tie micro inverter with limiter, 16‑50V DC input, 110/230V AC output and CT backflow preventer. ● Built‑in MPPT with 25‑35V tracking voltage, 48‑60Hz frequency and 550W rated output power. ● IP66 waterproof for outdoor mounting; Bluetooth & WIFI‑TUTA APP enables power generation monitoring. ● Compact lightweight unit (310×185×44mm, 2kg), delivered with a 2‑meter AC cable for simple installation.
    $267.89

    700W Grid Tie Micro Inverter with MPPT

    ● 700W grid tie micro inverter with MPPT supports 22–60V DC input and 120V/230V AC output. ● Stable grid-connected power delivers 700VA output with >0.99 power factor and <5% THD. ● Outdoor-ready design features IP65 protection and passive cooling for -20°C to +50°C operation. ● Dual independent MPPT optimizes two solar panels separately for 50/60Hz home PV systems.
    $308.65

    800W Grid Tie Micro Inverter with MPPT

    ● 800W grid tie micro inverter with MPPT supports two solar panel inputs up to 2×500W, with a 30–60V MPPT range. ● It delivers 800VA AC output with automatic 120V/230V and 50/60Hz grid adaptation, with PF >0.99 and THD <5%. ● With 99.8% MPPT tracking efficiency and 92.7% peak conversion efficiency, zero nighttime standby power. ● IP65/NEMA 3R outdoor protection and fanless natural cooling support operation from -20°C to +50°C.
    $329.67

    2400W Grid Tie Micro Inverter, IP65 Waterproof

    ● 2400W grid tie micro inverter, 4 MC4 interfaces, 22–48V MPPT range, 2400W DC input per unit. ● Supports 120V/230V single-phase grid. Power factor >0.99 and THD＜5%, producing stable AC power. ● IP65 waterproof housing, fanless natural cooling. Wide working temperature from -40℃ to +65℃. ● 95% peak efficiency, 99.5% MPPT efficiency, night consumption <1W, with multiple protections.
    $519.31

    1600W Single Phase/3 Phase Micro Inverter

    ● This 1600W micro inverter supports up to 4 × 500W solar panels with single-phase/3-phase switching. ● It outputs 1600VA AC power and works with 120V or 230V grid at 50/60Hz, delivering clean electricity for home solar systems. ● It reaches 92.7% peak efficiency and 99.8% MPPT tracking efficiency, consuming zero power standby during nights. ● Fanless natural cooling and IP65 NEMA 3R, operating temperature -20℃ ~ +50℃, with a 30–60V MPPT voltage window.
    $443.69
    Overview

    The PowerHome 300W grid tie micro inverter supports single-phase and three-phase connections for flexible solar system setups. It accepts 18–50V DC input and works with 36V solar panels, offering 0.99 MPPT efficiency and up to 93% conversion efficiency. IP65 protection, self-cooling and a wide 80–160V AC range support reliable outdoor operation. With less than 0.5W nighttime power consumption, series connection support and compact wiring, it suits residential and small commercial rooftop solar projects.

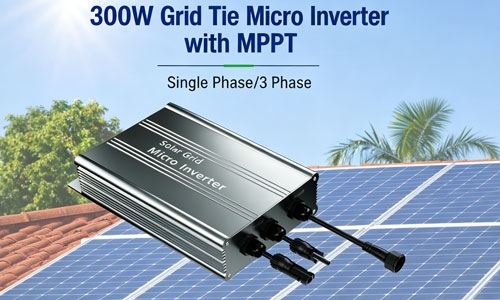

    300w micro inverter feature

    Feature

    • High-Efficiency MPPT: Uses advanced MPPT technology to maximize solar power output and improve overall system efficiency.
    • Grid-Tied Design: Designed for grid-connected solar systems, offering simple installation, reduced system costs and reliable long-term operation.
    • Wide Grid Compatibility: Automatically adapts to 80–280V AC grid voltage and supports both 50Hz and 60Hz frequencies for flexible use.
    • Durable Outdoor Design: Built with a sturdy aluminum alloy housing, passive self-cooling and neatly arranged connectors for reliable outdoor operation.

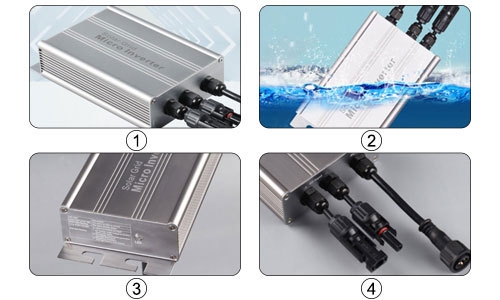

    Details

    1. High-Quality Aluminum Housing: Durable aluminum alloy with oxidation treatment provides acid, alkali and oxidation resistance for long-term outdoor use.
    2. IP65 Waterproof Design: IP65 protection helps resist rain, dust and moisture, while passive cooling supports stable outdoor operation.
    3. Secure Mounting Structure: Integrated mounting bracket enables stable, convenient installation on solar panels and photovoltaic equipment.
    4. Neat Waterproof Connections: Side-mounted waterproof connectors keep wiring organized and support easy connection of multiple micro inverters.
    300w micro inverter details

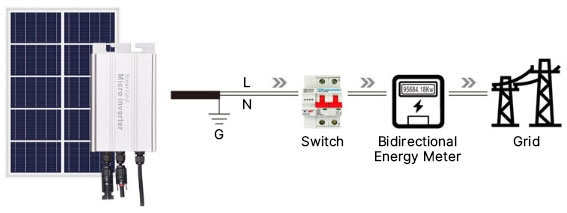

    System Diagram

    300w micro inverter system diagram

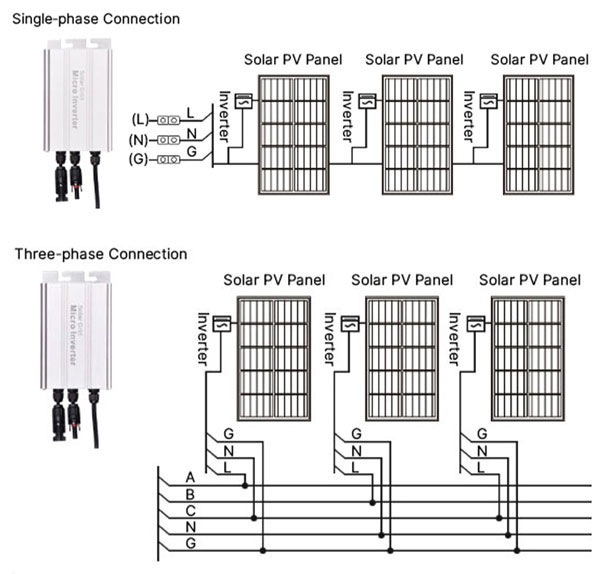

    Wiring Diagram

    300w micro inverter wiring diagram

    Specs
    Operating Voltage Range 18–50V
    Starting Voltage Range 20–50V
    Starting Voltage 18V
    Maximum Input Power 300W
    Maximum Working Current 11A
    Maximum PV Panel Input Power 300W
    Recommended PV Panel 36V @ 300W
    Output Parameters @120VAC
    Peak Output Power 300W
    Rated Output Power 280W
    AC Voltage Range 80–160VAC
    Output Current 2.3A
    AC Frequency Range @50Hz: 47Hz–53Hz; @60Hz: 57Hz–63Hz
    Power Factor >95%
    Number of Branch Connections 6PCS (single @120VAC); 12PCS (single @230VAC)
    Output Efficiency
    Static MPPT Efficiency 0.99
    Maximum Output Efficiency 93%
    Total Current Harmonics THD <5%
    Nighttime Power Consumption <0.5W
    Appearance and Technical Features
    Operating Temperature −20°C to +65°C
    Storage Temperature −40°C to +75°C
    Waterproof Rating IP65
    Cooling Method Self-cooling
    Communication None
    Monitoring System None
    Power Transmission Mode Reverse transmission, load priority
    Net Weight 0.65kg
    Dimensions 148 × 110 × 45mm
    EMC EN50081 Part 1, EN50082 Part 1, CSA STD.C22.2 No.107.1
    Grid Disturbance EN61000-3-2, EN62109, UL STD.1741
    Grid Detection DIN VDE 0126, IEEE STD.1547, 1547.1 and 1547.A
    Certificates CE, patented technology

    PDF computingGrid Tie Micro Inverter with MPPT Single Phase/3 Phase User Manual

    Application

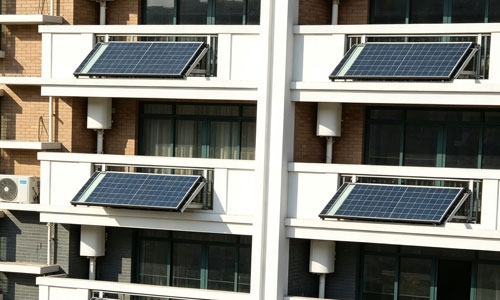

    300w micro inverter for balcony

    Balcony

    300w micro inverter for camping

    Camping

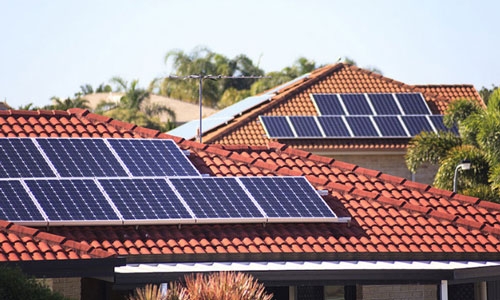

    300w micro inverter for roof

    Roof

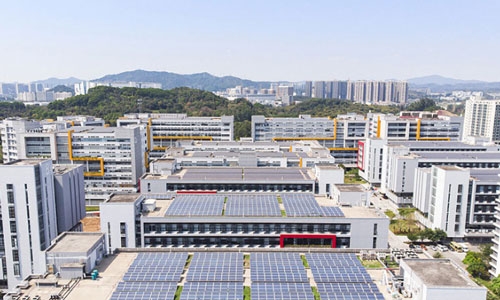

    300w micro inverter for shopping mall

    Shopping Mall

    FAQ

    Q1: What solar panel matches this 300W grid‑tie micro inverter and what is its DC input range?

    The MPPT voltage ranges from 20‑50V and startup voltage is 18V, maximum PV input power reaches 300W. A 36V 300W solar panel is recommended. It is only for grid‑tied use and cannot be directly connected to batteries.

    Q2: Does the 300W micro inverter consume much standby power at night and perform stably under high outdoor temperature?

    Night standby power consumption is less than 0.5W with tiny energy loss. It adopts aluminum alloy passive self‑cooling and works between ‑20℃ and 65℃. It will automatically derate power for self‑protection under extreme heat.
