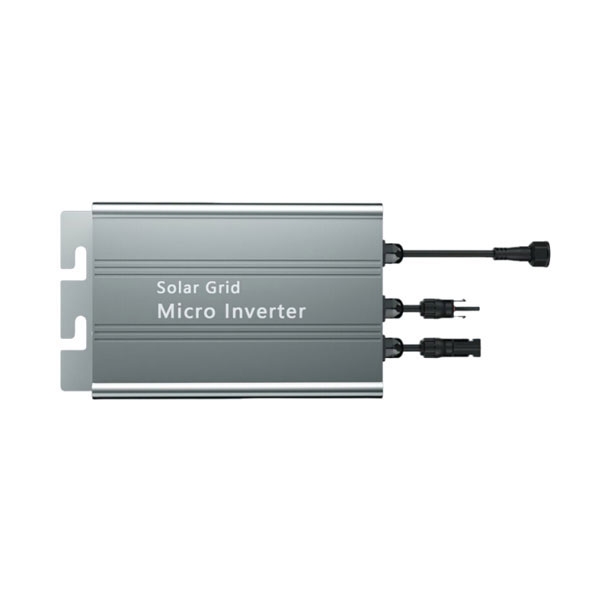

    Picture of 350W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase
    Picture of 350W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase
    Picture of 350W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase
    Picture of 350W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    350W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    0 review(s) | Add your review
    SKU: PH-MI-350
    $178.85
    ● 350W grid tie micro inverter with MPPT, 180-280VAC output voltage, switchable single‑phase /3‑phase. ● 350W peak & 320W rated output, high‑efficiency MPPT of 20‑50V with tracking efficiency up to 0.99. ● Clean sine wave output, THD＜5% and PF＞95%, ultra‑low night standby power below 0.5W. ● Stable performance from ‑20℃ to 65℃, passive self‑cooling structure, IP65 waterproof for outdoor installation.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    180W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    ● 180W grid‑tie micro inverter with MPPT, 80–160VAC output, switchable single/3‑phase output, 12‑30V MPPT voltage. ● Peak 180W & rated 170W output, up to 93% conversion efficiency, low THD for premium AC power. ● IP65 waterproof and self‑cooling, compact lightweight design, reliable outdoor operation at ‑20℃~65℃. ● Reverse power transmission and load‑priority supply, night loss＜0.5W, equipped with grid protection and CE certification.
    $140.97

    260W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    ● 260W grid‑tie micro inverter with MPPT, input DC 18-50V, switchable single/3‑phase output, 20‑50V MPPT voltage. ● MPPT tracking efficiency 0.99, maximum conversion efficiency 93%, THD < 5%, nighttime power consumption < 0.5W. ● Peak power 260W, rated output 250W, output AC 80-160V, power factor >95%, supports multiple units in series. ● IP65 waterproof, self-cooling, operating temperature -20℃~65℃, and compliant with international power grid standards.
    $144.93

    550w Grid Tie Micro Inverter with Limiter

    ● 550W grid tie micro inverter with limiter, 16‑50V DC input, 110/230V AC output and CT backflow preventer. ● Built‑in MPPT with 25‑35V tracking voltage, 48‑60Hz frequency and 550W rated output power. ● IP66 waterproof for outdoor mounting; Bluetooth & WIFI‑TUTA APP enables power generation monitoring. ● Compact lightweight unit (310×185×44mm, 2kg), delivered with a 2‑meter AC cable for simple installation.
    $267.89

    700W Grid Tie Micro Inverter with MPPT

    ● 700W grid tie micro inverter with MPPT supports 22–60V DC input and 120V/230V AC output. ● Stable grid-connected power delivers 700VA output with >0.99 power factor and <5% THD. ● Outdoor-ready design features IP65 protection and passive cooling for -20°C to +50°C operation. ● Dual independent MPPT optimizes two solar panels separately for 50/60Hz home PV systems.
    $308.65

    800W Grid Tie Micro Inverter with MPPT

    ● 800W grid tie micro inverter with MPPT supports two solar panel inputs up to 2×500W, with a 30–60V MPPT range. ● It delivers 800VA AC output with automatic 120V/230V and 50/60Hz grid adaptation, with PF >0.99 and THD <5%. ● With 99.8% MPPT tracking efficiency and 92.7% peak conversion efficiency, zero nighttime standby power. ● IP65/NEMA 3R outdoor protection and fanless natural cooling support operation from -20°C to +50°C.
    $329.67

    2000w Grid Tie Micro Inverter, IP65 Waterproof

    ● 2000W grid tie micro inverter, 4 MC4 connectors, Individual panel power tracking for 2000W solar arrays. ● 22–48V MPPT range, 120V/230V single-phase output, PF＞0.99 and THD＜5%, delivering clean grid-compliant AC power. ● IP65 waterproof, fanless natural cooling, operating from -40℃ to +65℃ for rooftop and balcony solar projects. ● Real-time cloud monitoring with galvanic isolation, anti-islanding, and overheat protection.
    $456.77
    Overview

    The PowerHome 350W grid-tie micro inverter uses high-efficiency MPPT for stable solar power conversion. It supports single-phase or 3-phase operation with auto-adaptive 180-280VAC output at 50/60Hz. Pure sine wave output with THD <5% ensures clean power, while night standby consumption is below 0.5W. With passive cooling and IP65 protection, it is suitable for outdoor solar installations from -20°C to 65°C. It requires grid power and cannot operate off-grid.

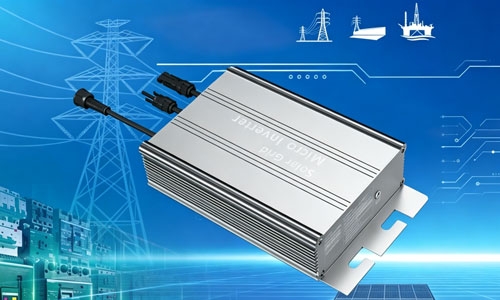

    350w micro inverter feature

    Feature

    • High-Efficiency MPPT: Uses advanced MPPT technology with up to 0.99 tracking efficiency, helping capture more available solar power and improve overall system performance.
    • Grid-Tied Design: Designed for grid-connected solar systems, offering simple installation, reduced system costs and reliable long-term operation.
    • Wide Grid Compatibility: Automatically adapts to 80–280V AC grid voltage and supports both 50Hz and 60Hz frequencies for flexible use.
    • Durable Outdoor Design: Built with a sturdy aluminum alloy housing, passive self-cooling and neatly arranged connectors for reliable outdoor operation.

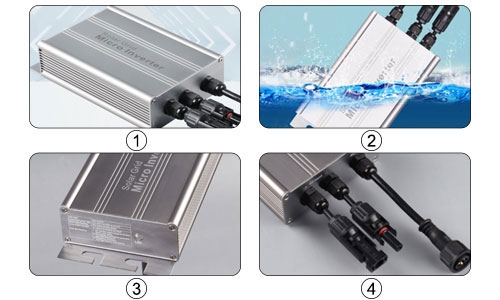

    Details

    1. High-Quality Aluminum Housing: Durable aluminum alloy with oxidation treatment provides acid, alkali and oxidation resistance for long-term outdoor use.
    2. IP65 Waterproof Design: IP65 protection helps resist rain, dust and moisture, while passive cooling supports stable outdoor operation.
    3. Secure Mounting Structure: Integrated mounting bracket enables stable, convenient installation on solar panels and photovoltaic equipment.
    4. Neat Waterproof Connections: Side-mounted waterproof connectors keep wiring organized and support easy connection of multiple micro inverters.
    350w micro inverter details

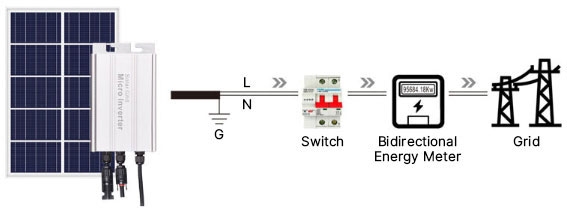

    System Diagram

    350w micro inverter system diagram

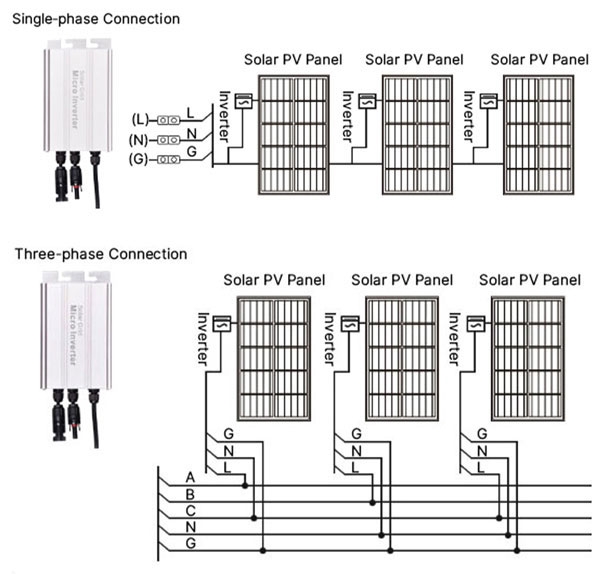

    Wiring Diagram

    350w micro inverter wiring diagram

    Specs
    Operating Voltage Range 18–50V
    Starting Voltage Range 20–50V
    Starting Voltage 18V
    Maximum Input Power 350W
    Maximum Working Current 12A
    Maximum PV Panel Input Power 350W
    Recommended PV Panel 36V @ 350W
    Output Parameters @230VAC
    Peak Output Power 350W
    Rated Output Power 320W
    AC Voltage Range 180–280VAC
    Output Current 1.3A
    AC Frequency Range @50Hz: 47Hz–53Hz; @60Hz: 57Hz–63Hz
    Power Factor >95%
    Number of Branch Connections 6PCS (single @120VAC); 12PCS (single @230VAC)
    Output Efficiency
    Static MPPT Efficiency 0.99
    Maximum Output Efficiency 93%
    Total Current Harmonics THD <5%
    Nighttime Power Consumption <0.5W
    Appearance and Technical Features
    Operating Temperature −20°C to +65°C
    Storage Temperature −40°C to +75°C
    Waterproof Rating IP65
    Cooling Method Self-cooling
    Communication None
    Monitoring System None
    Power Transmission Mode Reverse transmission, load priority
    Net Weight 0.65kg
    Dimensions 148 × 110 × 45mm
    EMC EN50081 Part 1, EN50082 Part 1, CSA STD.C22.2 No.107.1
    Grid Disturbance EN61000-3-2, EN62109, UL STD.1741
    Grid Detection DIN VDE 0126, IEEE STD.1547, 1547.1 and 1547.A
    Certificates CE, patented technology

    PDF computingGrid Tie Micro Inverter with MPPT Single Phase/3 Phase User Manual

    Application

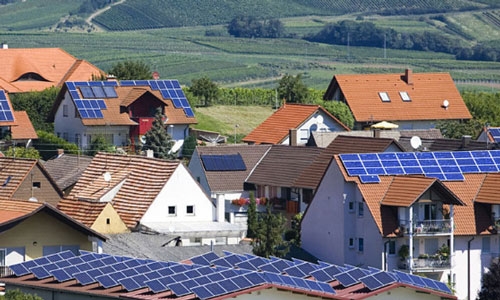

    350w micro inverter for roof

    Roof

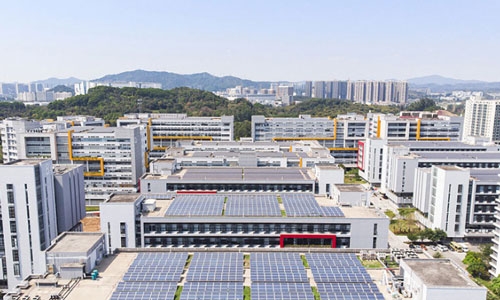

    350w micro inverter for shopping mall

    Shopping Mall

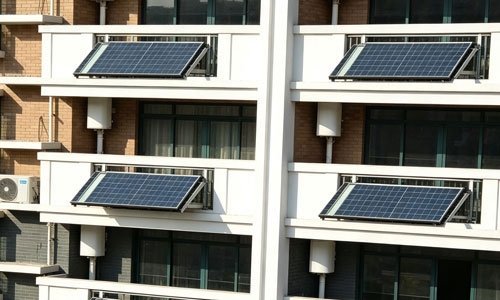

    350w micro inverter for balcony

    Balcony

    350w micro inverter for camping

    Camping

    FAQ

    Q1: What solar panel is compatible with a 350W micro inverter?

    This 350W micro inverter is designed for solar panels with an operating voltage of 18–50V DC and an MPPT voltage range of 20–50V DC. A 36V, 350W solar panel is the recommended matching configuration shown in the specifications. The maximum input power is 350W.

    Q2: What is the MPPT efficiency of this 350W micro inverter?

    The micro inverter has an MPPT tracking efficiency of 0.99, or 99%. This means its MPPT system can efficiently track the solar panel's maximum power point and capture available PV power under changing sunlight conditions.
