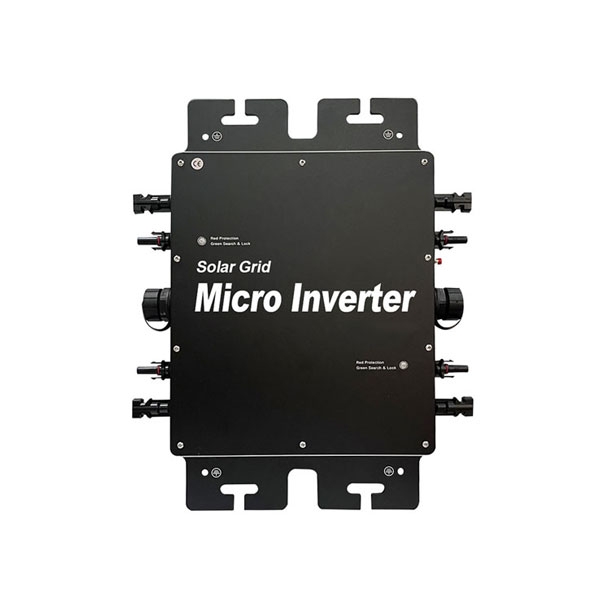

    Picture of 2000w Grid Tie Micro Inverter, IP65 Waterproof
    Picture of 2000w Grid Tie Micro Inverter, IP65 Waterproof
    Picture of 2000w Grid Tie Micro Inverter, IP65 Waterproof

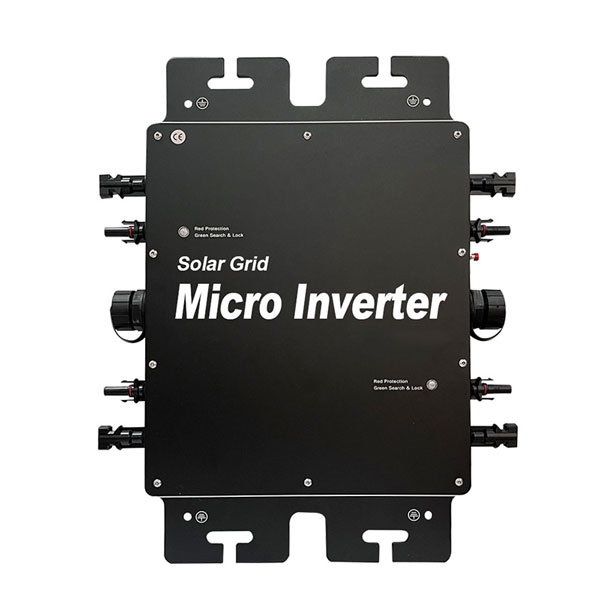

    2000w Grid Tie Micro Inverter, IP65 Waterproof

    1 review(s) | Add your review
    SKU: PH-MI-2000
    $456.77
    ● 2000W grid tie micro inverter, 4 MC4 connectors, Individual panel power tracking for 2000W solar arrays. ● 22–48V MPPT range, 120V/230V single-phase output, PF＞0.99 and THD＜5%, delivering clean grid-compliant AC power. ● IP65 waterproof, fanless natural cooling, operating from -40℃ to +65℃ for rooftop and balcony solar projects. ● Real-time cloud monitoring with galvanic isolation, anti-islanding, and overheat protection.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    The PowerHome 2000W grid tie micro inverter is designed for residential rooftop and balcony solar systems, supporting up to 2000W PV input with individual panel power tracking. Its 22–48V MPPT range helps optimize energy production from each connected solar panel. The 120V/230V single-phase AC output delivers clean grid-tied power with PF＞0.99 and THD＜5%. With IP65 protection, fanless natural cooling, and a -40℃ to +65℃ operating range, it is suitable for outdoor solar installations. WiFi cloud monitoring provides real-time power data, while galvanic isolation, anti-islanding, and overheat protection add multiple layers of system safety.

    Specification

    DC Input (PV)
    Max Number of PV Strings 4 sets
    MPPT Voltage Range 22–48 V
    Operating Voltage Range 20–50 V
    Max Input Voltage 50 V
    Startup Voltage 22 V
    Max Input Power 2000 W
    Max Input Current 10.5 A
    AC Output
    Phase Single phase
    Nominal Voltage 120 V & 230 V AC
    Rated Output Power 2000 W
    Max Output Power 2000 W
    Rated Output Current @120 VAC: 12 A / @230 VAC: 7 A
    Nominal Output Voltage 120 VAC / 230 VAC
    Default Output Voltage Range @120 VAC: 80–160 V / @230 VAC: 180–270 V
    Rated Frequency 50 Hz / 60 Hz
    Default Frequency Range @50 Hz: 48 Hz–51 Hz / @60 Hz: 58 Hz–61 Hz
    Efficiency
    Power Factor >0.99
    Total Harmonic Distortion (THD) <5%
    Max Units Per Branch @120 VAC: 2 units / @230 VAC: 3 units
    Peak Efficiency 95%
    Nominal MPPT Efficiency 99.5%
    Night-Time Power Consumption <1 W
    Mechanical Data
    Operating Temperature -40 °C to +65 °C
    Storage Temperature -40 °C to +85 °C
    Product Certification CE, VDE, RoHS
    Adapter Cable Length 2 m
    Dimensions (W × H × D) 230 × 365 × 40 mm
    Weight 1.2 kg
    Max AC Cable Current 30 A
    Protection Rating IP65
    Cooling Method Fanless natural convection
    Communication Interface WiFi (cloud monitoring)
    Installation High-altitude operation, fanless design
    Grounding Method PE grounding is provided through the AC power cable; additional grounding is not required
    Safety Protections Anti-islanding, overvoltage, overfrequency, overtemperature, overcurrent
    Standards EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A2:2019+A2:2021; EN IEC 55014-2:2021; IEC 61508-2:2021; IEC 62109-1:2010

    PDF computingMicro Inverter User Manual

    Details

    2000w micro inverter icon

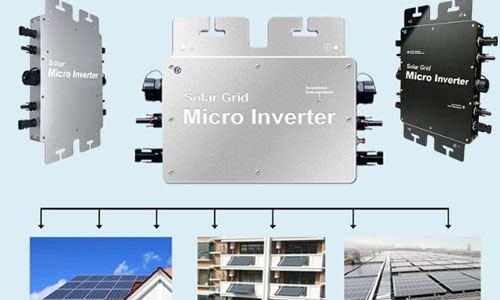

    2000w micro inverter feature

    Feature

    • Low-Voltage Safety: Designed for safer low-voltage solar power applications with reliable electrical performance.
    • WiFi Smart Monitoring: Supports WiFi connectivity for convenient remote monitoring and system management.
    • Intelligent Networking: Enables smart communication and real-time system monitoring for easier operation.
    • Wide Temperature Range: Built to withstand both high and low temperatures for stable outdoor operation.
    • Multiple Safety Protections: Provides multiple protection functions to help ensure safe and reliable operation.
    • IP65 Waterproof Design: IP65-rated construction offers effective protection against water and dust for outdoor installations.




    • Plug-and-Play Connectors: Designed with dedicated DC input terminals, a secure AC output connector, and pre-drilled mounting slots for quick, safe installation.
    • Durable Aluminum Alloy Casing: Crafted with a heavy-duty aluminum alloy housing that ensures efficient heat dissipation and long-lasting outdoor durability.
    • IP65 Waterproof Protection: Fully sealed with glued joints to achieve IP65-grade waterproofing, effectively preventing rain penetration even during severe weather.
    • Smart App Remote Control: Equipped with an integrated WiFi button and clear LED indicators for seamless pairing, enabling real-time status and yield tracking via smartphone.

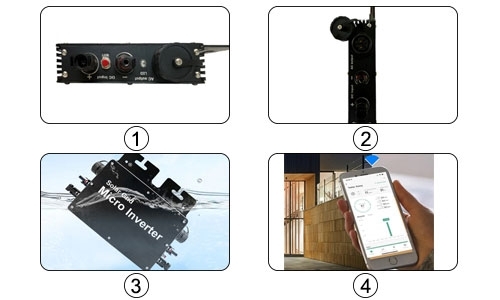

    2000w micro inverter details

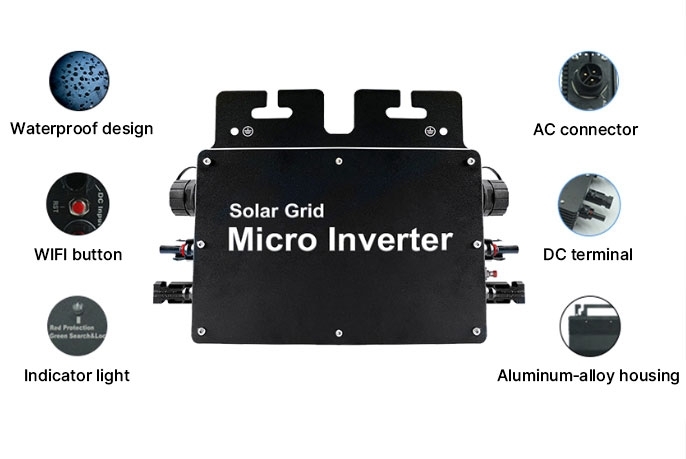

    Structure

    2000w micro inverter structure

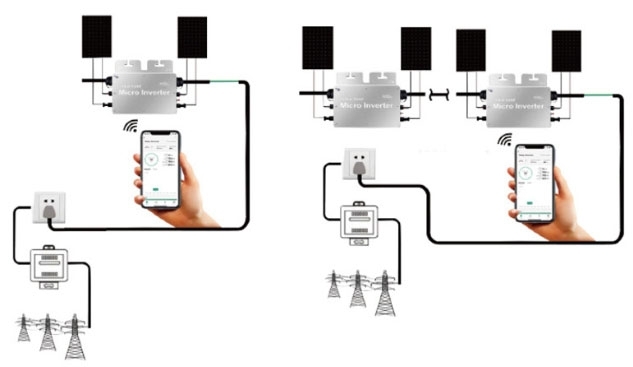

    System Installation Diagram

    2000w micro inverter system installation diagram


    Application

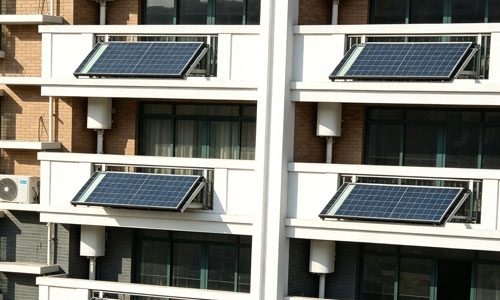

    2000w micro inverter for balcony

    Balcony

    2000w micro inverter for camping

    Camping

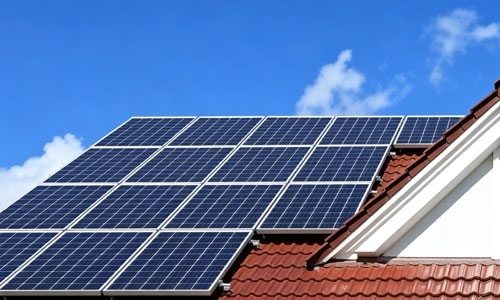

    2000w micro inverter for roof

    Roof

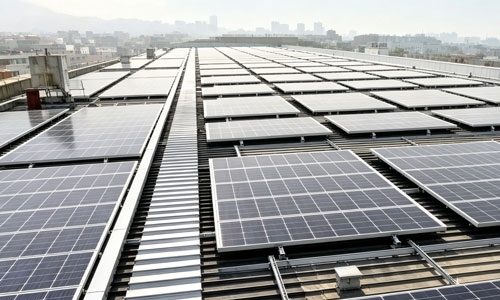

    2000w micro inverter for small shopping mall

    Small Shopping Mall

    FAQ

    Q1: Is it suitable for outdoor rooftop installation?

    Absolutely. IP65 waterproof grade, fanless natural cooling, wide operating temperature of -40℃ ~ +65℃. No fan means less noise and fewer maintenance issues.

    Q2: What safety and monitoring features are included?

    Built-in WiFi for cloud real-time generation monitoring. Galvanic isolation design, with anti-islanding, overvoltage, overcurrent and overtemperature multi-protection functions.
