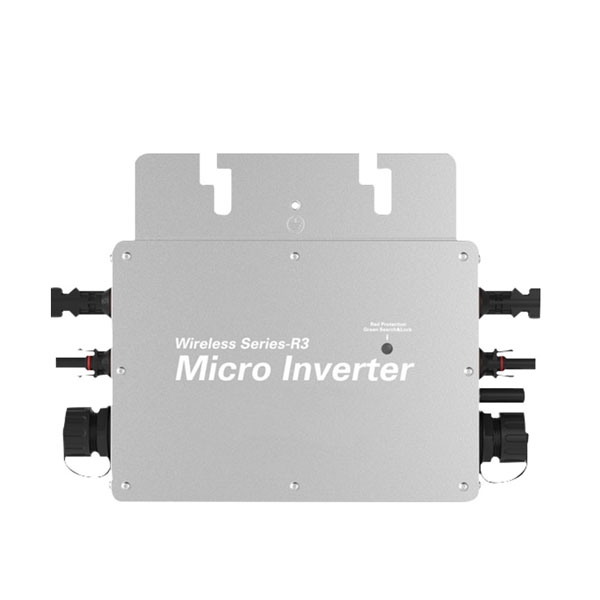

    Picture of 600W Grid Tie Micro Inverter with MPPT
    Picture of 600W Grid Tie Micro Inverter with MPPT
    Picture of 600W Grid Tie Micro Inverter with MPPT
    Picture of 600W Grid Tie Micro Inverter with MPPT
    Picture of 600W Grid Tie Micro Inverter with MPPT

    600W Grid Tie Micro Inverter with MPPT

    1 review(s) | Add your review
    SKU: PH-MI-600
    $289.77
    ● 600W grid tie micro inverter with MPPT, max input power 2×375W, 22‑60V DC working voltage and dual 120V/230V AC output. ● 92.70% peak efficiency & 99.80% MPPT efficiency, power factor above 0.99, output current THD below 5%. ● Nema 3r (IP65) outdoor waterproof grade, fanless natural cooling, operating temperature -20℃ ~ +50℃. ● Dual DC input channels for two solar panels, 50/60Hz grid frequency, complete protection for grid-tied solar projects.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    The PowerHome 600w grid tie micro inverter features advanced reverse power transmission technology with load priority, delivering overall operating efficiency up to 93.7% or higher. Designed with automatic voltage identification across a wide 85–265V output range, it supports flexible, unlimited daisy-chain parallel stacking and multi-unit mixing. Advanced Low Light Power Locking (APL) ensures reliable performance even in poor weather, while encrypted cloud storage enables secure real-time App tracking. With pure sine wave output, anti-islanding protection, solar panel leakage alerts, and an IP65 waterproof enclosure, it delivers exceptionally safe and stable clean energy generation.

    600w micro inverter icon

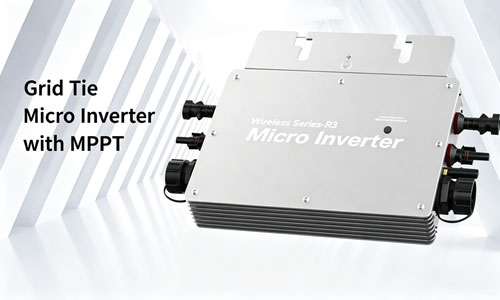

    600w micro inverter feature

    Feature

    • Smart Control & Energy Monitoring: Built-in Wi-Fi enables Smart Life App integration for remote control, real-time power statistics, and status tracking.
    • High Compatibility & Load Priority: Features reverse transmission technology with load priority, supporting a wide 22–60V DC input and adjustable output power to suit various load conditions.
    • Comprehensive Safety Protection: Equipped with anti-islanding protection (output restriction during grid failure), solar panel leakage detection/alarm, and over-temperature power derating.
    • Stable & High-Quality Power: Delivers a pure sine wave output with automatic voltage conversion, power factor compensation, and constant voltage/current output to safeguard connected electronics.

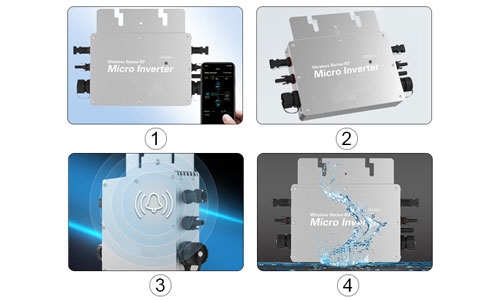

    Details

    1. Plug-and-Play & App Control: Plugs into a household socket, starts within 30 seconds, and offers "Smart Life" App remote monitoring over WiFi.
    2. Reverse Polarity Protection: Prevents damage if battery poles are swapped, automatically resuming normal function once connected correctly.
    3. Audible Low-Voltage Warning: Features an internal buzzer that beeps during low power/voltage to prevent connected appliances from damage.
    4. IP65 Heavy-Duty Design: Built with anti-oxidation aluminum, PPO waterproof joints, and low-resistance copper cores for durable outdoor use.
    600w micro inverter details

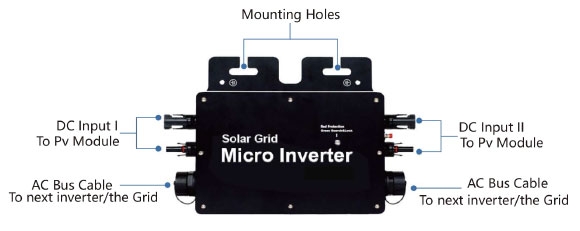

    Structure

    600w micro inverter structure

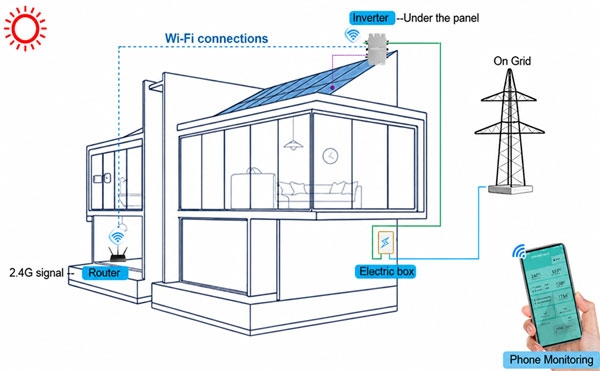

    Wiring Diagram

    600w micro inverter wiring diagram

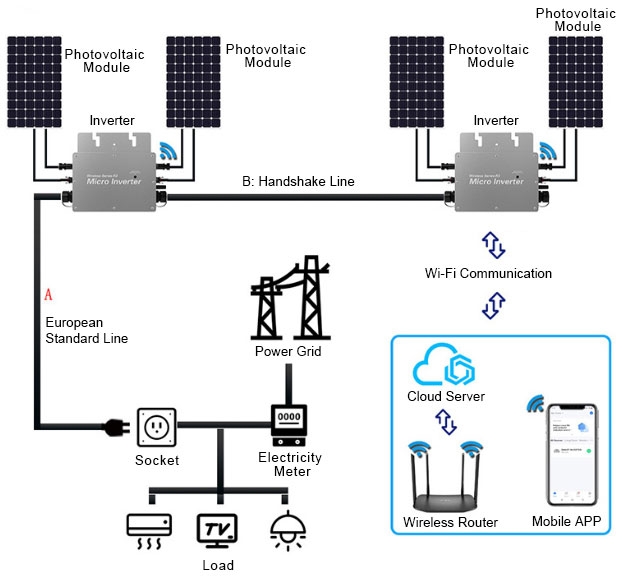

    System Diagram

    600w micro inverter system diagram

    Specs
    Basic Information
    Rated Power 600 W
    Load Regulation 90%
    Operating Efficiency 93.7%
    Display LED
    Adapter Cable Length 3 m
    Protection Type NA integrated
    Applications Balcony, rooftop, garden, etc.
    Operating Temperature -20°C to +50°C
    Storage Temperature -20°C to +50°C
    Dimensions (L × W × H) 280 × 200 × 41.6 mm
    Weight 2 kg
    Protection Rating Outdoor NEMA 3R, IP65
    Cooling Natural cooling, fanless
    Pollution Degree PD3
    DC Input
    Maximum Input Power Max 2 × 375 W
    MPPT Voltage Range 30–60 VDC
    Start Up Voltage >22 VDC
    Operating Voltage Range 22–60 VDC
    Maximum Input Current 2 × 14 A
    Maximum Short-Circuit Current 2 × 16 A
    Maximum Array Backfeed Current 0 A
    AC Output
    Maximum Output Power 600 VA
    Rated Output Current @120 VAC: 5 A, @230 VAC: 2.6 A
    Nominal Output Voltage 120 VAC / 230 VAC
    Frequency Range 50/60 Hz
    Power Factor >0.99 default, 0.95 leading to 0.95 lagging
    Output Current THD <5%
    Maximum Units Per Branch 120 VAC: 6 units, 230 VAC: 12 units
    Efficiency & Protection
    Peak Efficiency 92.70%
    CEC Weighted Efficiency 92.50%
    Nominal MPPT Efficiency 99.80%
    Nighttime Power Consumption 0 mW
    Features & Communication
    Power Transmission Mode Reverse transmission, load priority
    Communication Wi-Fi
    Rated Transmit Power 802.11 b:+17 dBm±1.5 dBm(@11 Mbps）
    802.11 g:+15 dBm±1.5 dBm(@54 Mbps)
    802.11 n:+14 dBm±1.5 dBm(@HT20,MCS7)
    Monitoring System Smart Life
    Bluetooth 2402–2480 MHz, Max EIRP: 7.89 dBm
    2.4G Wireless Transmission 2412–2472 MHz, Max EIRP: 18.08 dBm
    Electrical Standards EN 55011, CISPR 11, EN IEC 61000-3-2, EN IEC 62311, EN 301 489-1/-17, EN 300 328, IEC 62109-1/-2, UL 1741, CSA C22.2 #107.1, VDE-AR-N 4105, DIN VDE 0126-1-1, ABNT NBR 16149/16150, ABNT NBR IEC 62116, VFR 2019, and related standards

    PDF computingMicro Inverter User Manual

    Application
    600w micro inverter for balcony

    Balcony

    600w micro inverter for camping

    Camping

    600w micro inverter for garden

    Garden

    600w micro inverter for roof

    Roof

    FAQ

    Q1: Can I connect multiple grid tie micro inverters together to expand my system?

    Yes, multiple units can be daisy-chained in parallel on the same AC branch circuit. For 120V AC systems, you can connect up to 6 units per branch. For 230V AC systems, you can connect up to 12 units per branch.

    Q2: Is it normal for the grid tie micro inverter to heat up during operation?

    Yes. The unit uses a fanless, natural convection cooling design with a heavy-duty aluminum casing for silent operation. The exterior body will warm up when operating at full power; ensure sufficient air circulation space around the inverter during installation.
