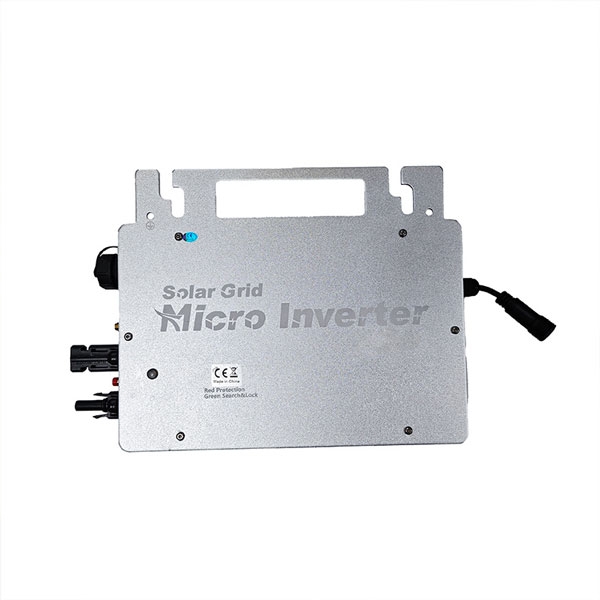

    Picture of 500W Grid Tie Micro Inverter with Limiter
    Picture of 500W Grid Tie Micro Inverter with Limiter
    Picture of 500W Grid Tie Micro Inverter with Limiter
    Picture of 500W Grid Tie Micro Inverter with Limiter

    500W Grid Tie Micro Inverter with Limiter

    1 review(s) | Add your review
    SKU: PH-MI-500
    $249.84
    ● 500W grid tie micro inverter with limiter, optional CT anti‑reverse function for zero export. ● 16‑50VDC input, MPPT 25‑35V, connects to one solar panel, 110V/230V & 48‑60Hz auto‑adaptable. ● IP66 outdoor waterproof, pre‑wired 2m 3*1.5mm² AC cable, compact size for rooftop mounting. ● Bluetooth & WIFI with TUTA APP, real‑time generation monitoring via smartphone.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    The PowerHome high-efficiency 500W grid tie micro inverter with limiter delivers reliable solar power generation with 16–50V DC input, MPPT tracking (25–35V), and flexible 110V/230V AC output (48–60Hz). Featuring CT anti-reverse flow technology for zero-export control, smart Bluetooth/Wi-Fi (TUTA APP) monitoring, and an IP66 waterproof rating, it enables safe low-voltage operation and easy plug-and-play parallel expansion for effortless installation.

    Specification

    Rated Power 500 W
    DC Input 16–50 VDC
    AC Output 110 V / 230 V
    MPPT Voltage Range 25–35 V
    IP Rating IP66
    AC Cable Length/Spec 2 m / 3 × 1.5 mm²
    Output Frequency 48–60 Hz
    Solar Panel Input 1 panel
    Communication/App Bluetooth / Wi-Fi (TUTA)
    Dimensions 310 × 185 × 44 mm
    Net Weight 2 kg

    PDF computingMicro Inverter User Manual

    Details

    500w micro inverter icon

    500w micro inverter feature

    Feature

    • High Compatibility: Works seamlessly across a wide range of solar panel setups and grid systems with flexible 110V/230V AC output.
    • CT Anti-Reverse Solution: Integrated Current Transformer (CT) enables real-time power monitoring to prevent zero-export grid feed-in.
    • Smart App Control: Built-in Bluetooth and Wi-Fi allow real-time monitoring and management via the TUTA app.
    • High-Efficiency Power Generation: Features advanced MPPT tracking (25–35V) to optimize energy harvest from connected solar panels.
    • Stable & Reliable Performance: Low-voltage operation eliminates high-voltage DC arcing risks while offering comprehensive circuit protection.
    • High Protection Rating: Built with an IP66 waterproof and dustproof housing for durable long-term outdoor operation.




    • Easy Daisy-Chaining: Plug-and-play parallel expansion without extra distribution boxes for lower installation barriers.
    • CT Zero-Export Control: Real-time current monitoring via CT sensors to prevent power feed-in.
    • Low-Voltage Safety: Operates without high-voltage DC arcing risks, featuring overvoltage, overcurrent, overload, and anti-islanding protections.
    500w micro inverter details

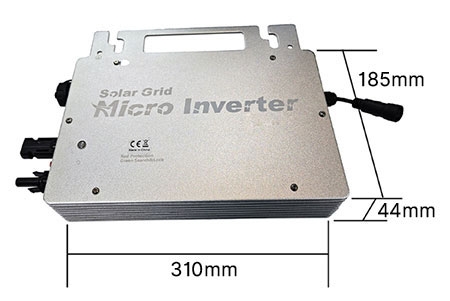

    Dimension (unit: mm)

    500w micro inverter dimensions

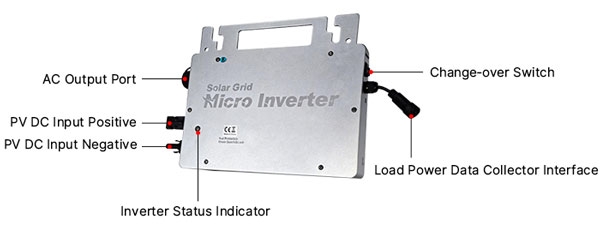

    Structure

    500w micro inverter structure


    Application

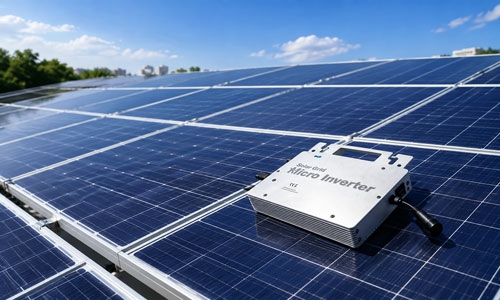

    500w micro inverter for roof

    Roof

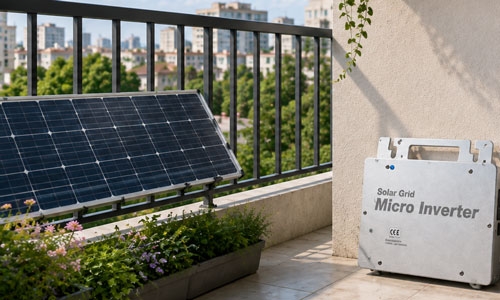

    500w micro inverter for balcony

    Balcony

    500w micro inverter for camping

    Camping

    500w micro inverter for garden

    Garden

    FAQ

    Q1: Can I connect multiple 500W micro inverters together?

    Yes. The system features a plug-and-play AC daisy-chain design, allowing you to connect multiple grid tie micro inverters in parallel to scale up your system capacity without requiring additional distribution boxes.

    Q2: What solar panel specifications work with this 500W micro inverter?

    It supports a DC 16–50V input range with an optimal MPPT tracking voltage of 25–35V. Each grid tie micro inverter connects directly to 1 solar panel matching these voltage parameters.

    Related products

    600W Grid Tie Micro Inverter with MPPT

    ● 600W grid tie micro inverter with MPPT, max input power 2×375W, 22‑60V DC working voltage and dual 120V/230V AC output. ● 92.70% peak efficiency & 99.80% MPPT efficiency, power factor above 0.99, output current THD below 5%. ● Nema 3r (IP65) outdoor waterproof grade, fanless natural cooling, operating temperature -20℃ ~ +50℃. ● Dual DC input channels for two solar panels, 50/60Hz grid frequency, complete protection for grid-tied solar projects.
    $289.77

    400W WiFi Grid Tie Micro Inverter with MPPT

    ● 400W grid tie micro inverter with MPPT, operating voltage 22-60V DC, 99.80% MPPT efficiency. ● Supports up to 500W DC input and 400W AC output, with 85–265V AC grid compatibility. ● Built-in 2.4G WiFi and Bluetooth for mobile app monitoring, supporting up to 25 units per branch. ● IP65 protection, fanless cooling, and -20°C to +50°C operating temperature range.
    $282.92

    1200w Grid Tie Micro Inverter, IP65 Waterproof

    ● 1200W grid tie micro inverter, 95% peak efficiency, 99.5% MPPT efficiency, night consumption <1W. ● 4 MC4 PV inputs, 22–48V MPPT range, independent panel optimization for rooftop & balcony solar. ● 120V/230V AC output, PF>0.99, THD<5%. IP65 waterproof, fanless natural cooling. ● WiFi cloud monitoring, galvanic isolation, full protections including anti-islanding safety.
    $387.54

    1400W Single Phase/3 Phase Micro Inverter

    ● This 1400W micro inverter connects up to 4 solar panels, with 30–60V MPPT range, switchable single‑phase/3‑phase. ● Rated 1400VA AC output, supports 120V/230V grid, 50/60Hz, low THD＜5% and power factor over 0.99. ● Features 92.7% peak efficiency and 99.8% MPPT efficiency; zero standby power draw at night. ● IP65 (NEMA 3R) outdoor rating, fanless natural cooling, operating temperature -20℃ ~ +50℃.
    $429.87

    350W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    ● 350W grid tie micro inverter with MPPT, 180-280VAC output voltage, switchable single‑phase /3‑phase. ● 350W peak & 320W rated output, high‑efficiency MPPT of 20‑50V with tracking efficiency up to 0.99. ● Clean sine wave output, THD＜5% and PF＞95%, ultra‑low night standby power below 0.5W. ● Stable performance from ‑20℃ to 65℃, passive self‑cooling structure, IP65 waterproof for outdoor installation.
    $178.85

    700W Grid Tie Micro Inverter with MPPT

    ● 700W grid tie micro inverter with MPPT supports 22–60V DC input and 120V/230V AC output. ● Stable grid-connected power delivers 700VA output with >0.99 power factor and <5% THD. ● Outdoor-ready design features IP65 protection and passive cooling for -20°C to +50°C operation. ● Dual independent MPPT optimizes two solar panels separately for 50/60Hz home PV systems.
    $308.65
    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Cirillo | 9/30/2026 8:40 AM
    Great 500W Grid Tie Micro Inverter for a Balcony Solar Setup
    Hooked up this 500W grid tie micro inverter with limiter to my balcony solar setup last weekend, and installation was quick and straightforward. The CT anti-reverse function helps keep power from feeding back into the grid, which is exactly what I needed. Wi-Fi pairing with the TUTA app was easy, and I can check system performance in real time. The IP66 housing also feels well built for outdoor use. Great little inverter for a DIY solar setup.
