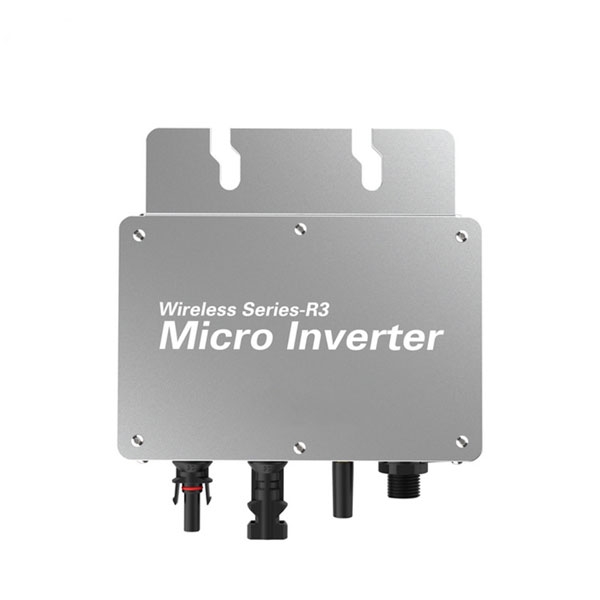

    Picture of 400W WiFi Grid Tie Micro Inverter with MPPT
    Picture of 400W WiFi Grid Tie Micro Inverter with MPPT
    Picture of 400W WiFi Grid Tie Micro Inverter with MPPT
    Picture of 400W WiFi Grid Tie Micro Inverter with MPPT
    Picture of 400W WiFi Grid Tie Micro Inverter with MPPT

    400W WiFi Grid Tie Micro Inverter with MPPT

    2 review(s) | Add your review
    SKU: PH-MI-400
    $282.92
    ● 400W grid tie micro inverter with MPPT, operating voltage 22-60V DC, 99.80% MPPT efficiency. ● Supports up to 500W DC input and 400W AC output, with 85–265V AC grid compatibility. ● Built-in 2.4G WiFi and Bluetooth for mobile app monitoring, supporting up to 25 units per branch. ● IP65 protection, fanless cooling, and -20°C to +50°C operating temperature range.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    The PowerHome 400W WIFI grid tie micro inverter with MPPT delivers a max 400W output with 93.7% working efficiency across an 85–265V AC grid range (50/60Hz). Engineered with DC 22–60V input, built-in WiFi monitoring, IP65 weatherproofing, and fanless natural cooling (-20°C to 50°C), it ensures reliable, high-performance solar generation for residential setups.

    Specification

    Basic Information
    Rated Power 400W
    Working Efficiency 93.7%
    Protection Rating IP65
    Cooling Type Natural cooling
    Ambient Temperature Range -20 to +50°C
    Storage Temperature Range -20 to +50°C
    Display Type LED
    Load Regulation 99%
    Continuous Output Power 350W
    Pollution Degree PD3
    Dimensions (L × W × H) 210 × 150 × 38mm
    Weight 0.82kg
    DC Input
    Max Input Power Max 500W
    MPPT Voltage Range 30–60V
    Startup Voltage >22V DC
    Operating Voltage Range 22–60V DC
    Max Input Current 18A
    Max Input Short-Circuit Current 20A
    Max Array Reverse Current 0A
    AC Output
    Max Output Power 400VA
    Rated Output Current @120V: 3.3A / @230V: 1.7A
    Standard Output Voltage Range @120V AC (Japan, North America, etc.) / @230V AC (China, Europe, etc.)
    Standard Frequency Range 50Hz / 60Hz
    Power Factor >0.99 default (0.95 leading to 0.95 lagging)
    Total Harmonic Distortion (THD) <5%
    Max Units per Branch @120V: 15 units / @230V: 25 units
    Efficiency & Safety
    Microinverter Peak Efficiency 92.70%
    CEC Weighted Efficiency 92.50%
    Nominal MPPT Efficiency 99.80%
    Nighttime Power Consumption 0mW
    Features & Communications
    Power Transmission Mode Reverse transmission, load priority
    Communication Method Wi-Fi
    Rated Transmit Power

    802.11b: +17dBm ± 1.5dBm (@11Mbps)
    802.11g: +15dBm ± 1.5dBm (@54Mbps)
    802.11n: +14dBm ± 1.5dBm (@HT20, MCS7)
    Monitoring System Smart life App
    Bluetooth 2402–2480MHz, Bluetooth EIRP Power (Max): 7.89dBm
    Wireless Transmission (2.4G) 2412–2472MHz, Wi-Fi 2.4G EIRP Power (Max): 18.08dBm

    PDF computingMicro Inverter User Manual

    Details

    400w micro inverter icon

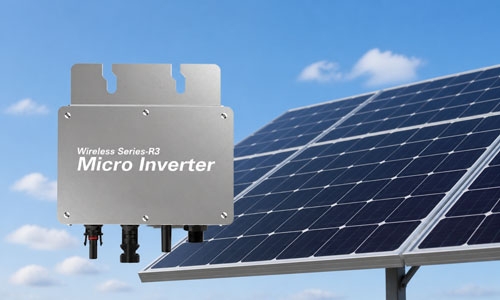

    400w micro inverter feature

    Feature

    • Smart WiFi Control: Built-in WiFi communication supports mobile app monitoring and control for convenient operation.
    • Wide MPPT Input: Supports a 22–60V DC input range with adjustable output power for flexible solar system configuration.
    • Pure Sine Wave Output: Delivers stable pure sine wave AC output with power factor adaptation, constant power output, and current limiting for reliable grid connection.
    • APL & Comprehensive Protection: Equipped with APL anti-islanding protection, over-temperature derating, leakage detection and alarm, DC detection, and other safety functions for secure operation.




    • Plug-and-Play & Smart App Control: Simply connect the terminals to a household outlet for automatic startup in 30 seconds, with real-time remote monitoring via the "Smart Life" App under Wi-Fi coverage.
    • Reverse Polarity Protection: Features built-in battery polarity protection that safely shuts down the unit if connected improperly without causing damage, resuming normal operation once corrected.
    • Low-Voltage Buzzer Alarm: Automatically emits a beeping warning when battery power or voltage drops too low, preventing connected electronics from low-voltage damage.
    • IP65 Waterproof & Premium Materials: Built with an IP65 waterproof aluminum alloy casing, anti-oxidation brushed finish, PPO connectors, and low-resistance copper cores for long-lasting durability.

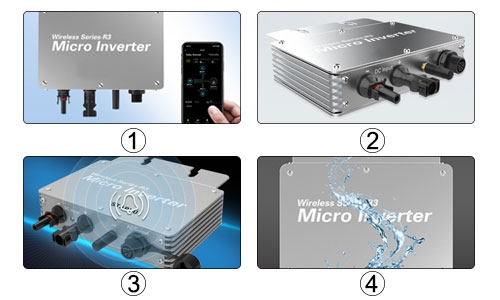

    400w micro inverter details

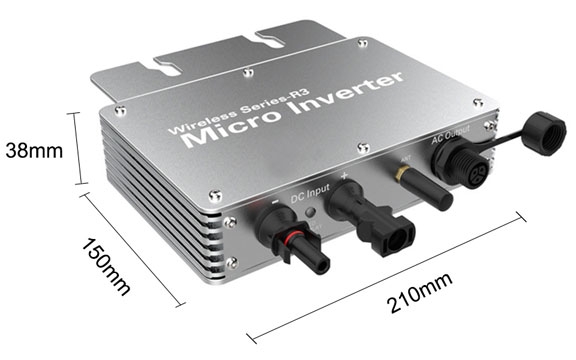

    Dimension (unit: mm)

    400w micro inverter dimension

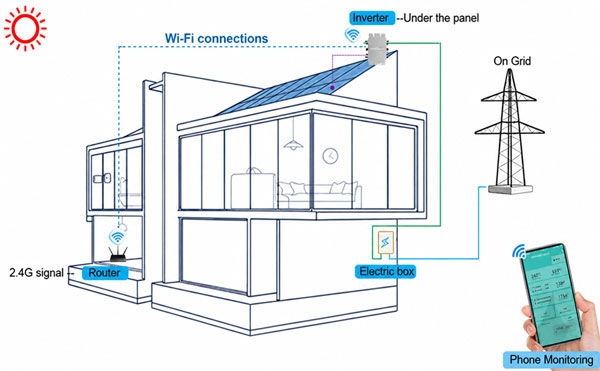

    Wiring Diagram

    400w micro inverter wiring diagram

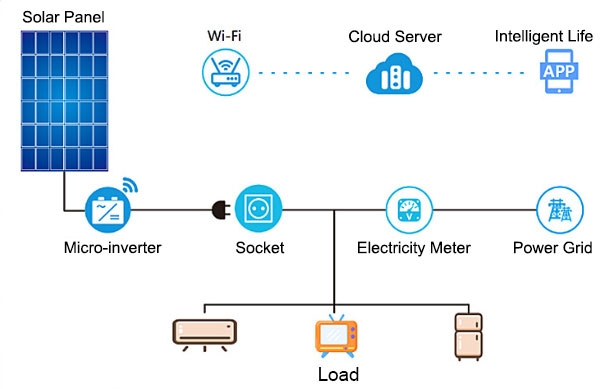

    System Diagram

    400w micro inverter system diagram


    Application

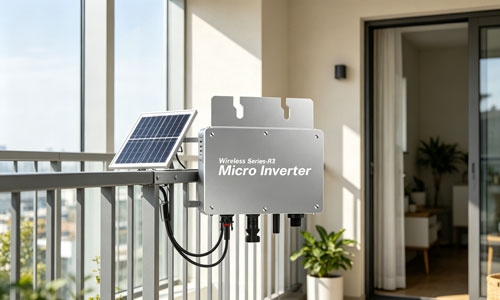

    400w micro inverter for balcony

    Balcony

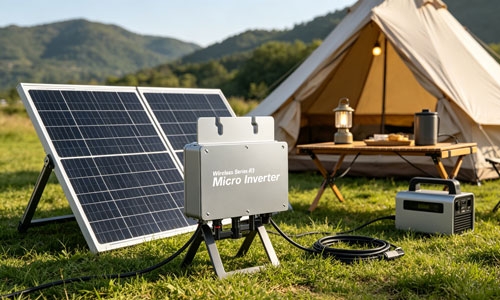

    400w micro inverter for camping

    Camping

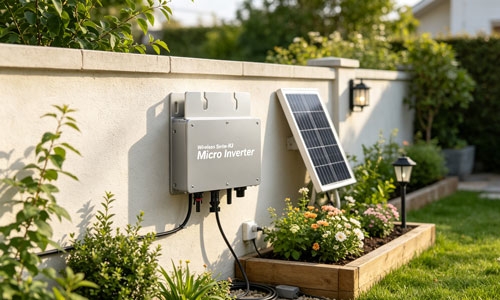

    400w micro inverter for garden

    Garden

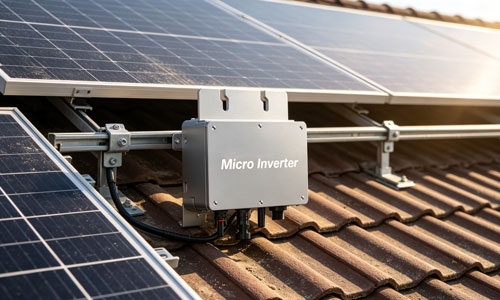

    400w micro inverter for roof

    Roof

    FAQ

    Q1: Can I plug this 400W micro inverter directly into a regular household socket?

    Yes. As a grid-tie micro inverter, simply connect your solar panels to the DC input terminals and plug the AC output into a wall outlet using the provided adapter cable. It will feed solar power directly into your home grid.

    Q2: Will this 400W micro inverter provide power during a grid blackout?

    No. As a grid-tied inverter, it requires active grid voltage and frequency to function. In a power outage, it automatically shuts down (anti-islanding protection) to ensure safety for grid repair workers.

    Related products

    600W Grid Tie Micro Inverter with MPPT

    ● 600W grid tie micro inverter with MPPT, max input power 2×375W, 22‑60V DC working voltage and dual 120V/230V AC output. ● 92.70% peak efficiency & 99.80% MPPT efficiency, power factor above 0.99, output current THD below 5%. ● Nema 3r (IP65) outdoor waterproof grade, fanless natural cooling, operating temperature -20℃ ~ +50℃. ● Dual DC input channels for two solar panels, 50/60Hz grid frequency, complete protection for grid-tied solar projects.
    $289.77

    500W Grid Tie Micro Inverter with Limiter

    ● 500W grid tie micro inverter with limiter, optional CT anti‑reverse function for zero export. ● 16‑50VDC input, MPPT 25‑35V, connects to one solar panel, 110V/230V & 48‑60Hz auto‑adaptable. ● IP66 outdoor waterproof, pre‑wired 2m 3*1.5mm² AC cable, compact size for rooftop mounting. ● Bluetooth & WIFI with TUTA APP, real‑time generation monitoring via smartphone.
    $249.84

    1200w Grid Tie Micro Inverter, IP65 Waterproof

    ● 1200W grid tie micro inverter, 95% peak efficiency, 99.5% MPPT efficiency, night consumption <1W. ● 4 MC4 PV inputs, 22–48V MPPT range, independent panel optimization for rooftop & balcony solar. ● 120V/230V AC output, PF>0.99, THD<5%. IP65 waterproof, fanless natural cooling. ● WiFi cloud monitoring, galvanic isolation, full protections including anti-islanding safety.
    $387.54

    1400W Single Phase/3 Phase Micro Inverter

    ● This 1400W micro inverter connects up to 4 solar panels, with 30–60V MPPT range, switchable single‑phase/3‑phase. ● Rated 1400VA AC output, supports 120V/230V grid, 50/60Hz, low THD＜5% and power factor over 0.99. ● Features 92.7% peak efficiency and 99.8% MPPT efficiency; zero standby power draw at night. ● IP65 (NEMA 3R) outdoor rating, fanless natural cooling, operating temperature -20℃ ~ +50℃.
    $429.87

    260W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    ● 260W grid‑tie micro inverter with MPPT, input DC 18-50V, switchable single/3‑phase output, 20‑50V MPPT voltage. ● MPPT tracking efficiency 0.99, maximum conversion efficiency 93%, THD < 5%, nighttime power consumption < 0.5W. ● Peak power 260W, rated output 250W, output AC 80-160V, power factor >95%, supports multiple units in series. ● IP65 waterproof, self-cooling, operating temperature -20℃~65℃, and compliant with international power grid standards.
    $144.93

    300W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    ● 300W grid tie micro inverter with MPPT, 0.99 tracking efficiency, switchable single/3‑phase output. ● 80‑160V adaptive AC output, THD < 5% pure sine wave, 18‑50V DC input for 36V solar panels. ● IP65 waterproof & self‑cooling, full safety protection, ultra‑low <0.5W night standby loss. ● Maximum input power 300W, operating temperature -20~65℃, maximum output efficiency 93%.
    $166.77
    2 review(s)
    5.0 2
    Write your own review Close
    *
    *
    Jax | 10/21/2026 1:43 AM
    Easy Setup with This 400W Grid Tie Micro Inverter
    Hooked up this 400W grid tie micro inverter to my DIY solar setup, and the MPPT tracking works great across the 22–60V DC range. WiFi monitoring connected easily to the mobile app, and the fanless design runs quietly. The IP65-rated aluminum housing feels sturdy, making it a solid choice for my solar setup.
    Edo | 10/15/2026 1:33 AM
    Easy-to-Use 400W Micro Inverter with WiFi Monitoring
    I’m happy with how this 400W WiFi grid-tie micro inverter works with my DIY solar setup. Installation was straightforward, and getting it up and running didn’t take much time. The MPPT tracking helps make good use of the power from my solar panel, and the WiFi/Bluetooth app lets me check daily energy production right from my phone. The IP65-rated enclosure is also a plus for outdoor installation. A good fit for a small residential solar project.
