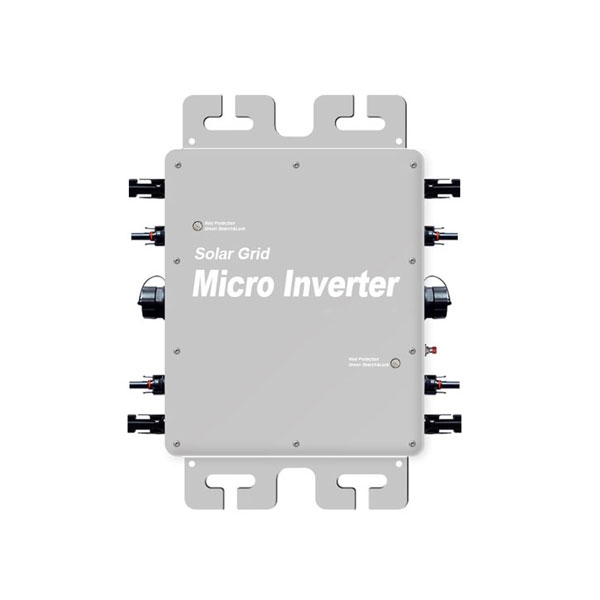

    Picture of 1200w Grid Tie Micro Inverter, IP65 Waterproof
    Picture of 1200w Grid Tie Micro Inverter, IP65 Waterproof
    Picture of 1200w Grid Tie Micro Inverter, IP65 Waterproof

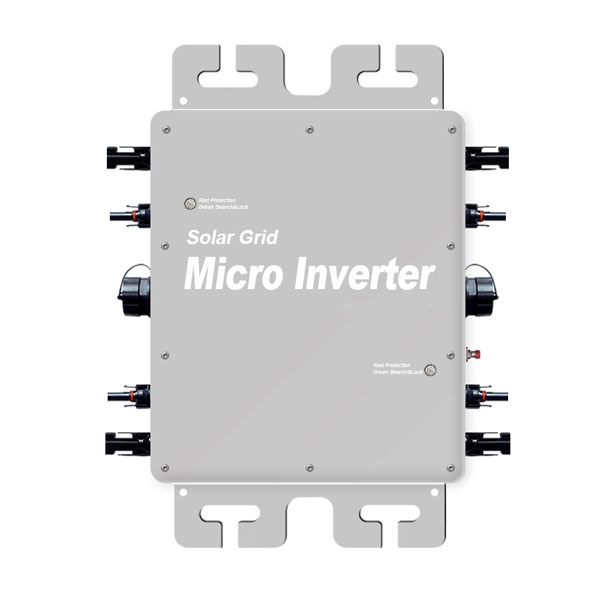

    1200w Grid Tie Micro Inverter, IP65 Waterproof

    1 review(s) | Add your review
    SKU: PH-MI-1200
    $387.54
    ● 1200W grid tie micro inverter, 95% peak efficiency, 99.5% MPPT efficiency, night consumption <1W. ● 4 MC4 PV inputs, 22–48V MPPT range, independent panel optimization for rooftop & balcony solar. ● 120V/230V AC output, PF>0.99, THD<5%. IP65 waterproof, fanless natural cooling. ● WiFi cloud monitoring, galvanic isolation, full protections including anti-islanding safety.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    The PowerHome 1200w grid tie micro inverter is designed for residential and small-scale solar power systems, compatibility with 120V/230V single-phase grids. With up to 99.5% MPPT efficiency, it helps maximize solar energy conversion while keeping night-time power consumption below 1W. Built-in WiFi and cloud monitoring enable convenient system performance tracking, while Bluetooth provides flexible local communication. The IP65-rated fanless design supports reliable outdoor operation from -40°C to +65°C, with comprehensive protection against islanding, abnormal voltage, frequency, current, and temperature conditions.

    Specification

    DC Input (PV)
    Max Number of PV Strings 4 sets
    MPPT Voltage Range 22–48 V
    Operating Voltage Range 20–50 V
    Max Input Voltage 50 V
    Startup Voltage 22 V
    Max Input Power 1200 W
    Max Input Current 10.5 A
    AC Output
    Phase Single phase
    Nominal Voltage 120 V & 230 V AC
    Rated Output Power 1200 W
    Max Output Power 1200 W
    Rated Output Current @120 VAC: 12 A / @230 VAC: 7 A
    Nominal Output Voltage 120 VAC / 230 VAC
    Default Output Voltage Range @120 VAC: 80–160 V / @230 VAC: 180–270 V
    Rated Frequency 50 Hz / 60 Hz
    Default Frequency Range @50 Hz: 48 Hz–51 Hz / @60 Hz: 58 Hz–61 Hz
    Efficiency
    Power Factor >0.99
    Total Harmonic Distortion (THD) <5%
    Max Units Per Branch @120 VAC: 2 units / @230 VAC: 3 units
    Peak Efficiency 95%
    Nominal MPPT Efficiency 99.5%
    Night-Time Power Consumption <1 W
    Mechanical Data
    Operating Temperature -40 °C to +65 °C
    Storage Temperature -40 °C to +85 °C
    Product Certification CE, VDE, RoHS
    Adapter Cable Length 2 m
    Dimensions (W × H × D) 230 × 365 × 40 mm
    Weight 1.2 kg
    Max AC Cable Current 30 A
    Protection Rating IP65
    Cooling Method Fanless natural convection
    Communication Interface WiFi (cloud monitoring)
    Installation High-altitude operation, fanless design
    Grounding Method PE grounding is provided through the AC power cable; additional grounding is not required
    Safety Protections Anti-islanding, overvoltage, overfrequency, overtemperature, overcurrent
    Standards EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A2:2019+A2:2021; EN IEC 55014-2:2021; IEC 61508-2:2021; IEC 62109-1:2010

    PDF computingMicro Inverter User Manual

    Details

    1200w micro inverter icon

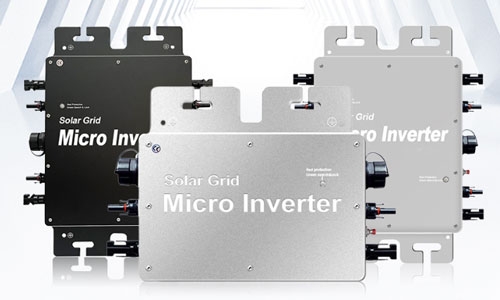

    1200w micro inverter feature

    Feature

    • Low-Voltage Safety: Designed for safer low-voltage solar power applications with reliable electrical performance.
    • WiFi Smart Monitoring: Supports WiFi connectivity for convenient remote monitoring and system management.
    • Intelligent Networking: Enables smart communication and real-time system monitoring for easier operation.
    • Wide Temperature Range: Built to withstand both high and low temperatures for stable outdoor operation.
    • Multiple Safety Protections: Provides multiple protection functions to help ensure safe and reliable operation.
    • IP65 Waterproof Design: IP65-rated construction offers effective protection against water and dust for outdoor installations.




    • Plug-and-Play Connectors: Designed with dedicated DC input terminals, a secure AC output connector, and pre-drilled mounting slots for quick, safe installation.
    • Durable Aluminum Alloy Casing: Crafted with a heavy-duty aluminum alloy housing that ensures efficient heat dissipation and long-lasting outdoor durability.
    • IP65 Waterproof Protection: Fully sealed with glued joints to achieve IP65-grade waterproofing, effectively preventing rain penetration even during severe weather.
    • Smart App Remote Control: Equipped with an integrated WiFi button and clear LED indicators for seamless pairing, enabling real-time status and yield tracking via smartphone.

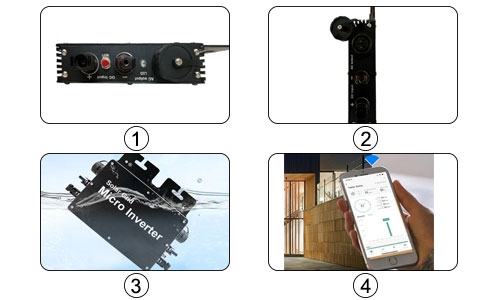

    1200w micro inverter details

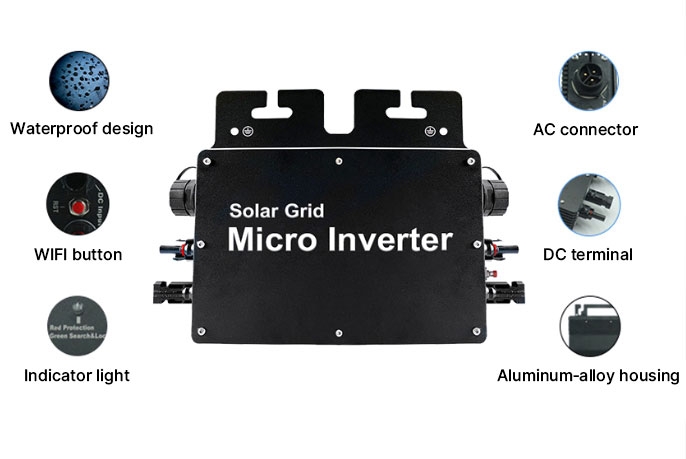

    Structure

    1200w micro inverter structure

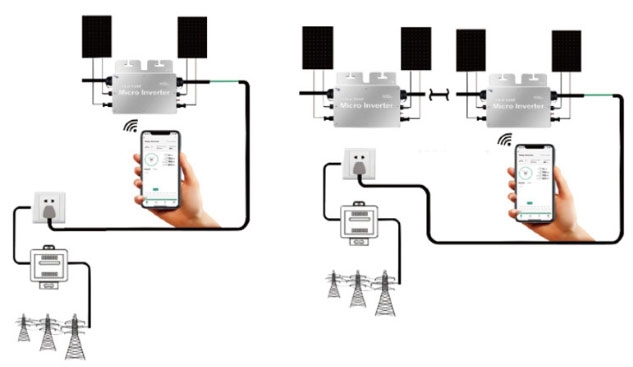

    System Installation Diagram

    1200w micro inverter system installation diagram


    Application

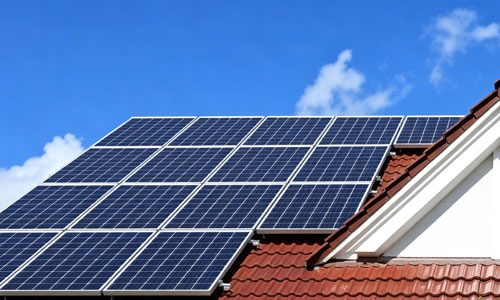

    1200w micro inverter for roof

    Roof

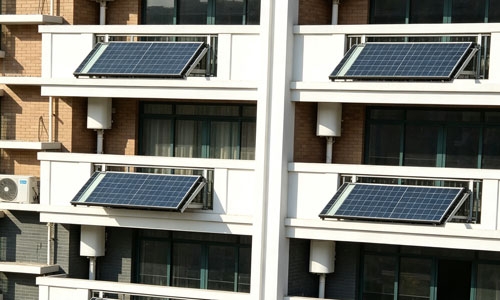

    1200w micro inverter for balcony

    Balcony

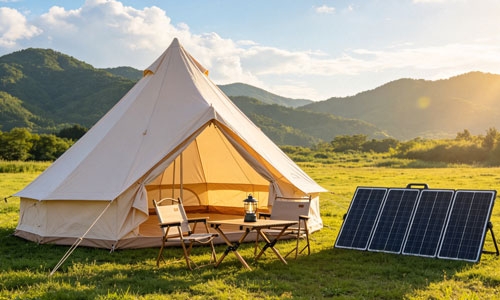

    1200w micro inverter for camping

    Camping

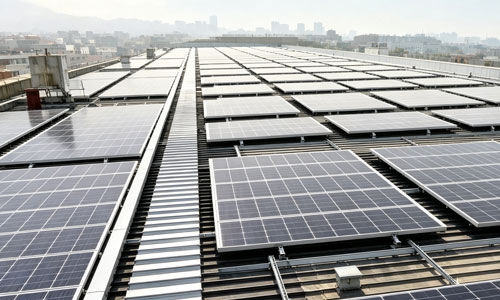

    1200w micro inverter for small shopping mall

    Small Shopping Mall

    FAQ

    Q1: How should I match solar panels with this 1200w micro inverter?

    The panel Voc must be below 50V, while Vmp should be within the 22–48V MPPT range. Total PV power must not exceed the micro inverter's rated input capacity. Compatible panels connect through the 4 standard MC4 connectors.

    Q2: Can this 1200w micro inverter work during a power outage?

    No. This is a grid-tied micro inverter that requires a 120V or 230V AC grid to operate. Its anti-islanding protection automatically stops output when the grid fails, so it cannot directly power home appliances during an outage.
