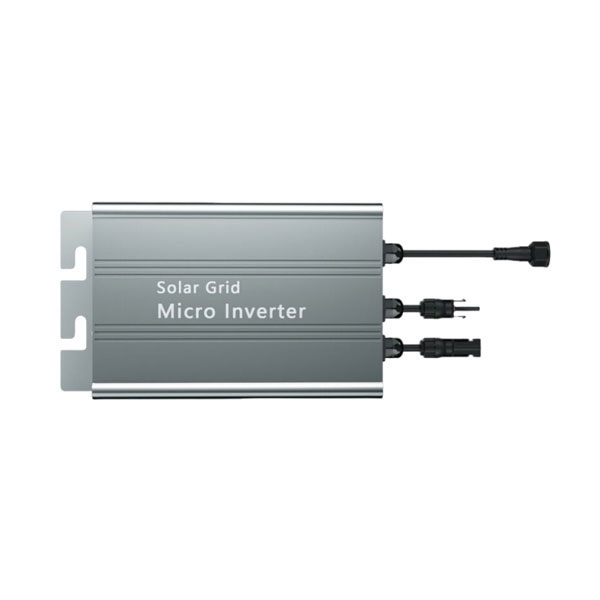

    Picture of 260W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase
    Picture of 260W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase
    Picture of 260W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase
    Picture of 260W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    260W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    0 review(s) | Add your review
    SKU: PH-MI-260
    $144.93
    ● 260W grid‑tie micro inverter with MPPT, input DC 18-50V, switchable single/3‑phase output, 20‑50V MPPT voltage. ● MPPT tracking efficiency 0.99, maximum conversion efficiency 93%, THD < 5%, nighttime power consumption < 0.5W. ● Peak power 260W, rated output 250W, output AC 80-160V, power factor >95%, supports multiple units in series. ● IP65 waterproof, self-cooling, operating temperature -20℃~65℃, and compliant with international power grid standards.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    400W WiFi Grid Tie Micro Inverter with MPPT

    ● 400W grid tie micro inverter with MPPT, operating voltage 22-60V DC, 99.80% MPPT efficiency. ● Supports up to 500W DC input and 400W AC output, with 85–265V AC grid compatibility. ● Built-in 2.4G WiFi and Bluetooth for mobile app monitoring, supporting up to 25 units per branch. ● IP65 protection, fanless cooling, and -20°C to +50°C operating temperature range.
    $282.92

    500W Grid Tie Micro Inverter with Limiter

    ● 500W grid tie micro inverter with limiter, optional CT anti‑reverse function for zero export. ● 16‑50VDC input, MPPT 25‑35V, connects to one solar panel, 110V/230V & 48‑60Hz auto‑adaptable. ● IP66 outdoor waterproof, pre‑wired 2m 3*1.5mm² AC cable, compact size for rooftop mounting. ● Bluetooth & WIFI with TUTA APP, real‑time generation monitoring via smartphone.
    $249.84

    1200w Grid Tie Micro Inverter, IP65 Waterproof

    ● 1200W grid tie micro inverter, 95% peak efficiency, 99.5% MPPT efficiency, night consumption <1W. ● 4 MC4 PV inputs, 22–48V MPPT range, independent panel optimization for rooftop & balcony solar. ● 120V/230V AC output, PF>0.99, THD<5%. IP65 waterproof, fanless natural cooling. ● WiFi cloud monitoring, galvanic isolation, full protections including anti-islanding safety.
    $387.54

    1400W Single Phase/3 Phase Micro Inverter

    ● This 1400W micro inverter connects up to 4 solar panels, with 30–60V MPPT range, switchable single‑phase/3‑phase. ● Rated 1400VA AC output, supports 120V/230V grid, 50/60Hz, low THD＜5% and power factor over 0.99. ● Features 92.7% peak efficiency and 99.8% MPPT efficiency; zero standby power draw at night. ● IP65 (NEMA 3R) outdoor rating, fanless natural cooling, operating temperature -20℃ ~ +50℃.
    $429.87

    120W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    ● This 120W grid tie micro inverter with MPPT can be paralleled to build single‑phase or three‑phase solar power systems. ● It delivers 99% MPPT tracking efficiency and 93% maximum output efficiency, with night standby power below 0.5W. ● Automatically adapts to grid voltage from 80V‑160V and recognizes 50Hz/60Hz frequency intelligently. ● IP65 waterproof, self‑cooling design, works stably at ‑20℃~65℃ for outdoor solar installations.
    $134.82

    150W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    ● 150W grid-tie micro inverter with MPPT, 12–30V input, single/three-phase switching, and 18V solar panel compatibility. ● 140W rated output, 80–160VAC output, 93% peak efficiency, PF >95%, and THD <5% for clean sine wave AC power. ● IP65 waterproof, natural cooling, lightweight design, and -20°C to 65°C operating range. ● Load-priority power supply, <0.5W nighttime consumption, reverse power protection, and multiple certifications.
    $137.85
    Overview

    The PowerHome 260W grid‑tie micro inverter with MPPT is designed to make small solar systems easier to use, efficiently converting power from a 36V solar panel into grid-ready AC electricity. Its MPPT technology helps capture available solar energy as sunlight changes, while load priority supports practical household power use. The compact IP65 aluminum housing and self-cooling design make it suitable for outdoor rooftop, balcony, and residential PV installations.

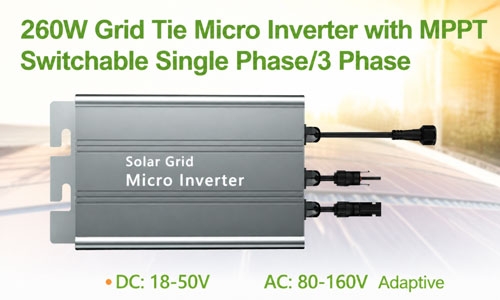

    260w micro inverter feature

    Feature

    • Wide Grid Compatibility: Supports 80–160V and 50Hz/60Hz with automatic voltage recognition, making it suitable for different grid standards and international solar installations.
    • Intelligent MPPT Tracking: Built-in MPPT technology continuously tracks the maximum power point to optimize solar energy harvesting and improve system efficiency.
    • Single-Phase & Three-Phase Output: Switchable single-phase and three-phase output modes provide flexible power options for residential and small commercial PV systems.
    • Scalable & Durable Design: Supports expansion into larger solar arrays while offering simple installation, low maintenance requirements, and reliable long-term outdoor operation.

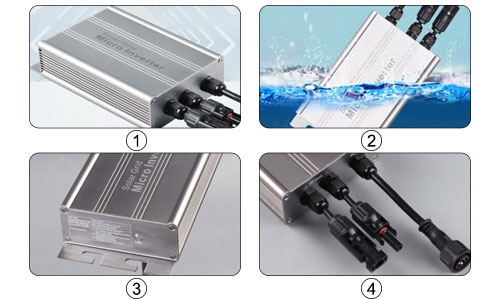

    Details

    1. High-Quality Aluminum Alloy Housing: Compact and durable aluminum alloy housing with standard terminals for neat wiring and easy PV module connection.
    2. IP65 Waterproof Protection: IP65-rated sealing protects internal components from rain and water splashes for reliable outdoor operation.
    3. Oxidized Surface Treatment: The aluminum housing features an oxidation treatment for improved resistance to oxidation, acids, and alkalis, enhancing durability for long-term outdoor use.
    4. PV Cables & Waterproof Connectors: Secure PV cables and waterproof connectors provide reliable sealing and simplify installation in larger solar systems.
    260w micro inverter details

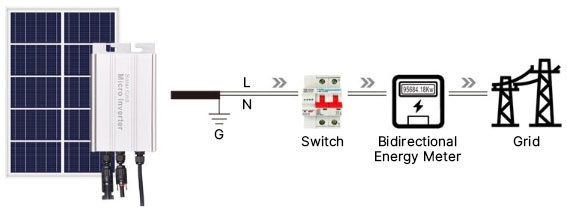

    System Diagram

    260w micro inverter system diagram

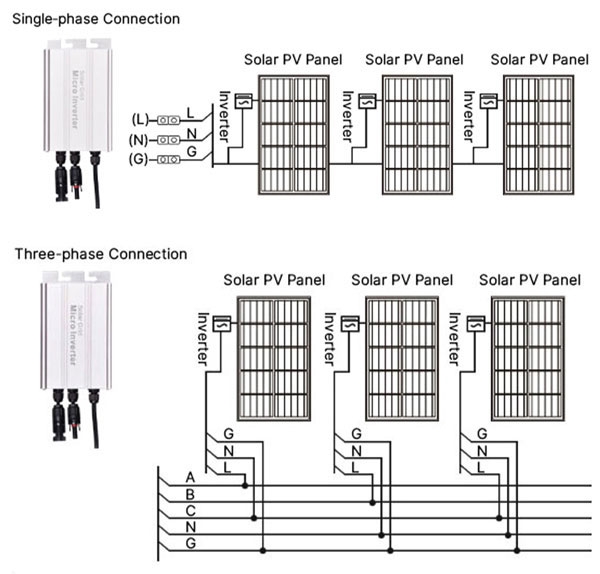

    Wiring Diagram

    260w micro inverter wiring diagram

    Specs
    Operating Voltage Range 18–50V
    Starting Voltage Range 20–50V
    Starting Voltage 18V
    Maximum Input Power 260W
    Maximum Working Current 10.5A
    Maximum PV Panel Input Power 260W
    Recommended PV Panel 36V @ 260W
    Output Parameters @120VAC
    Peak Output Power 260W
    Rated Output Power 250W
    AC Voltage Range 80–160VAC
    Output Current 2.08A
    AC Frequency Range @50Hz: 47Hz–53Hz; @60Hz: 57Hz–63Hz
    Power Factor >95%
    Number of Branch Connections 6PCS (single @120VAC); 12PCS (single @230VAC)
    Output Efficiency
    Static MPPT Efficiency 0.99
    Maximum Output Efficiency 93%
    Total Current Harmonics THD <5%
    Nighttime Power Consumption <0.5W
    Appearance and Technical Features
    Operating Temperature −20°C to +65°C
    Storage Temperature −40°C to +75°C
    Waterproof Rating IP65
    Cooling Method Self-cooling
    Communication None
    Monitoring System None
    Power Transmission Mode Reverse transmission, load priority
    Net Weight 0.65kg
    Dimensions 148 × 110 × 45mm
    EMC EN50081 Part 1, EN50082 Part 1, CSA STD.C22.2 No.107.1
    Grid Disturbance EN61000-3-2, EN62109, UL STD.1741
    Grid Detection DIN VDE 0126, IEEE STD.1547, 1547.1 and 1547.A
    Certificates CE, patented technology

    PDF computingGrid Tie Micro Inverter with MPPT Single Phase/3 Phase User Manual

    Application

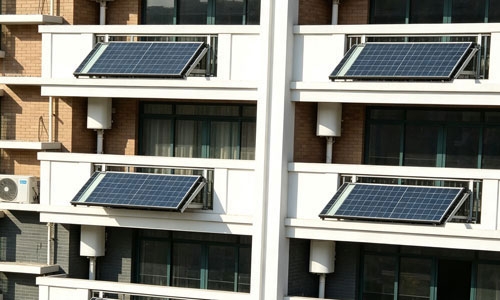

    260w micro inverter for balcony

    Balcony

    260w micro inverter for camping

    Camping

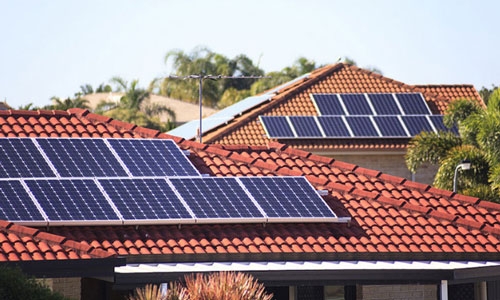

    260w micro inverter for roof

    Roof

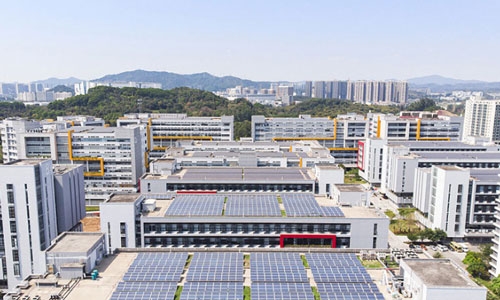

    260w micro inverter for shopping mall

    Shopping Mall

    FAQ

    Q1: What size solar panel is compatible with this 260W micro inverter?

    This 260W micro inverter has an MPPT voltage range of 20-50V and a startup voltage of 10.8V. It is recommended to use a 36V, 260W photovoltaic panel. The open-circuit voltage of the photovoltaic panel should not exceed 50V. Series connection of multiple panels is not recommended, as excessive voltage will trigger protection.

    Q2: How do I understand the 260W micro inverter rated power of 250W and peak power of 260W?

    The 260W micro inverter has a continuous and stable output power of 250W. Under optimal sunlight conditions, it may briefly reach a peak power of 260W, but it cannot maintain full-load operation at 260W for extended periods.
