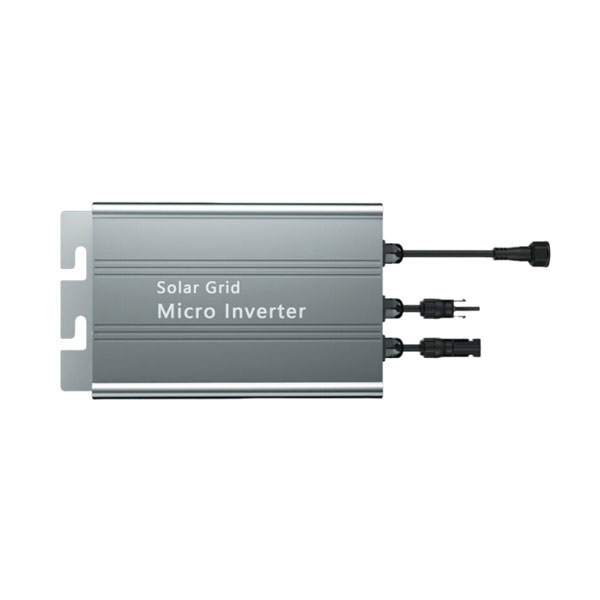

    Picture of 180W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase
    Picture of 180W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase
    Picture of 180W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase
    Picture of 180W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    180W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    0 review(s) | Add your review
    SKU: PH-MI-180
    $140.97
    ● 180W grid‑tie micro inverter with MPPT, 80–160VAC output, switchable single/3‑phase output, 12‑30V MPPT voltage. ● Peak 180W & rated 170W output, up to 93% conversion efficiency, low THD for premium AC power. ● IP65 waterproof and self‑cooling, compact lightweight design, reliable outdoor operation at ‑20℃~65℃. ● Reverse power transmission and load‑priority supply, night loss＜0.5W, equipped with grid protection and CE certification.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    600W Grid Tie Micro Inverter with MPPT

    ● 600W grid tie micro inverter with MPPT, max input power 2×375W, 22‑60V DC working voltage and dual 120V/230V AC output. ● 92.70% peak efficiency & 99.80% MPPT efficiency, power factor above 0.99, output current THD below 5%. ● Nema 3r (IP65) outdoor waterproof grade, fanless natural cooling, operating temperature -20℃ ~ +50℃. ● Dual DC input channels for two solar panels, 50/60Hz grid frequency, complete protection for grid-tied solar projects.
    $289.77

    400W WiFi Grid Tie Micro Inverter with MPPT

    ● 400W grid tie micro inverter with MPPT, operating voltage 22-60V DC, 99.80% MPPT efficiency. ● Supports up to 500W DC input and 400W AC output, with 85–265V AC grid compatibility. ● Built-in 2.4G WiFi and Bluetooth for mobile app monitoring, supporting up to 25 units per branch. ● IP65 protection, fanless cooling, and -20°C to +50°C operating temperature range.
    $282.92

    500W Grid Tie Micro Inverter with Limiter

    ● 500W grid tie micro inverter with limiter, optional CT anti‑reverse function for zero export. ● 16‑50VDC input, MPPT 25‑35V, connects to one solar panel, 110V/230V & 48‑60Hz auto‑adaptable. ● IP66 outdoor waterproof, pre‑wired 2m 3*1.5mm² AC cable, compact size for rooftop mounting. ● Bluetooth & WIFI with TUTA APP, real‑time generation monitoring via smartphone.
    $249.84

    1200w Grid Tie Micro Inverter, IP65 Waterproof

    ● 1200W grid tie micro inverter, 95% peak efficiency, 99.5% MPPT efficiency, night consumption <1W. ● 4 MC4 PV inputs, 22–48V MPPT range, independent panel optimization for rooftop & balcony solar. ● 120V/230V AC output, PF>0.99, THD<5%. IP65 waterproof, fanless natural cooling. ● WiFi cloud monitoring, galvanic isolation, full protections including anti-islanding safety.
    $387.54

    1400W Single Phase/3 Phase Micro Inverter

    ● This 1400W micro inverter connects up to 4 solar panels, with 30–60V MPPT range, switchable single‑phase/3‑phase. ● Rated 1400VA AC output, supports 120V/230V grid, 50/60Hz, low THD＜5% and power factor over 0.99. ● Features 92.7% peak efficiency and 99.8% MPPT efficiency; zero standby power draw at night. ● IP65 (NEMA 3R) outdoor rating, fanless natural cooling, operating temperature -20℃ ~ +50℃.
    $429.87

    120W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    ● This 120W grid tie micro inverter with MPPT can be paralleled to build single‑phase or three‑phase solar power systems. ● It delivers 99% MPPT tracking efficiency and 93% maximum output efficiency, with night standby power below 0.5W. ● Automatically adapts to grid voltage from 80V‑160V and recognizes 50Hz/60Hz frequency intelligently. ● IP65 waterproof, self‑cooling design, works stably at ‑20℃~65℃ for outdoor solar installations.
    $134.82
    Overview

    The PowerHome 180W grid-tie micro inverter features MPPT technology and switchable single/3-phase output, compatible with 18V solar panels. It delivers stable, grid-ready AC power with low harmonic distortion. The IP65 waterproof casing and passive cooling ensure reliable outdoor operation in a compact, lightweight design. With load-priority power supply, grid protection, and CE certification, it is well suited for residential grid-tied solar systems.

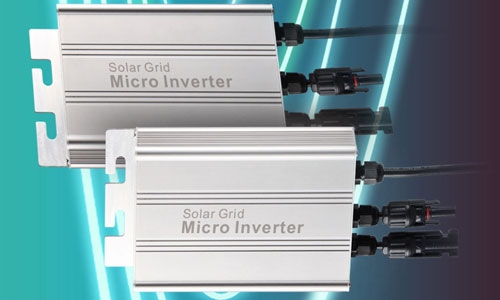

    180w micro inverter feature

    Feature

    • Intelligent grid automatic recognition, with wide 80–280V voltage compatibility and automatic 50Hz/60Hz switching, suitable for grid standards in various countries.
    • Supports multi-unit parallel connection for larger solar power systems, helping reduce installation costs and extend system service life.
    • Built-in MPPT technology maximizes solar power generation and helps reduce overall system costs.
    • Switchable single-phase and 3-phase output modes meet diverse residential and small commercial grid-tied requirements.

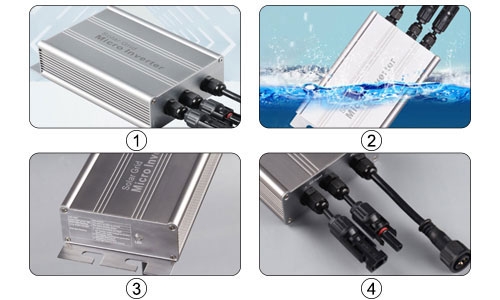

    Details

    1. High-quality aluminum alloy housing with standard waterproof connectors for easy wiring and installation.
    2. IP65 waterproof design, splash-proof and suitable for stable operation in humid outdoor conditions.
    3. High-pressure oxidation treatment, offering acid, alkali, and oxidation resistance for long-term outdoor use.
    4. Dedicated waterproof PV cables with secure, well-sealed connectors, supporting parallel connection for large solar systems.
    180w micro inverter details

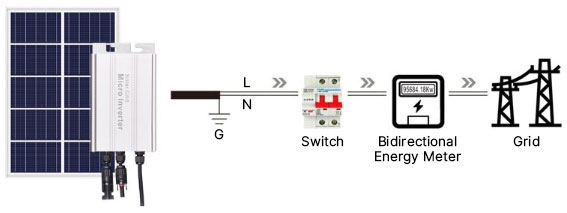

    System Diagram

    180w micro inverter system diagram

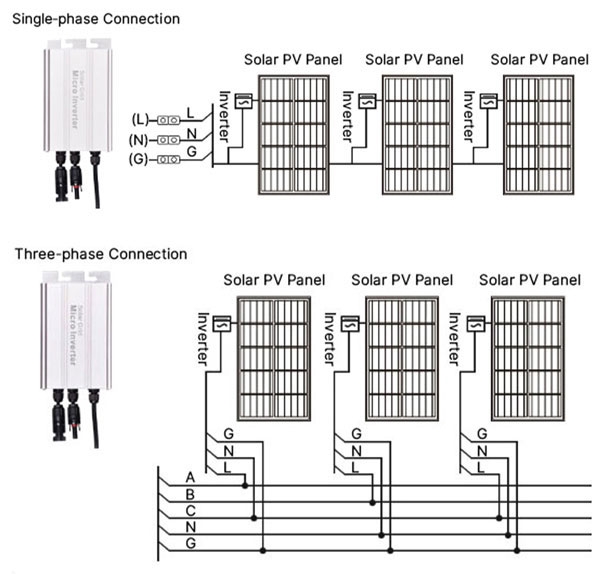

    Wiring Diagram

    180w micro inverter wiring diagram

    Specs
    Operating Voltage Range 10.8–30V
    Starting Voltage Range 12–30V
    Starting Voltage 10.8V
    Maximum Input Power 180W
    Maximum Working Current 11A
    Maximum PV Panel Input Power 180W
    Recommended PV Panel 18V @ 180W
    Output Parameters @120VAC
    Peak Output Power 180W
    Rated Output Power 170W
    AC Voltage Range 80–160VAC
    Output Current 1.25A
    AC Frequency Range @50Hz: 47Hz–53Hz; @60Hz: 57Hz–63Hz
    Power Factor >95%
    Number of Branch Connections 6PCS (single @120VAC); 12PCS (single @230VAC)
    Output Efficiency
    Static MPPT Efficiency 0.99
    Maximum Output Efficiency 93%
    Total Current Harmonics THD <5%
    Nighttime Power Consumption <0.5W
    Appearance and Technical Features
    Operating Temperature −20°C to +65°C
    Storage Temperature −40°C to +75°C
    Waterproof Rating IP65
    Cooling Method Self-cooling
    Communication None
    Monitoring System None
    Power Transmission Mode Reverse transmission, load priority
    Net Weight 0.45kg
    Dimensions 108 × 110 × 45mm
    EMC EN50081 Part 1, EN50082 Part 1, CSA STD.C22.2 No.107.1
    Grid Disturbance EN61000-3-2, EN62109, UL STD.1741
    Grid Detection DIN VDE 0126, IEEE STD.1547, 1547.1 and 1547.A
    Certificates CE, patented technology

    PDF computingGrid Tie Micro Inverter with MPPT Single Phase/3 Phase User Manual

    Application

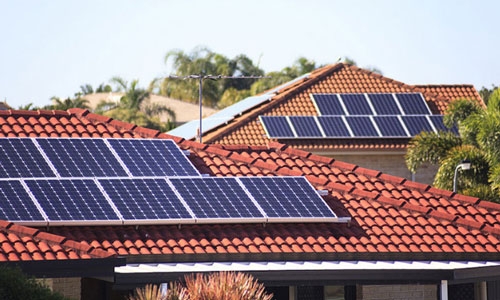

    180w micro inverter for roof

    Roof

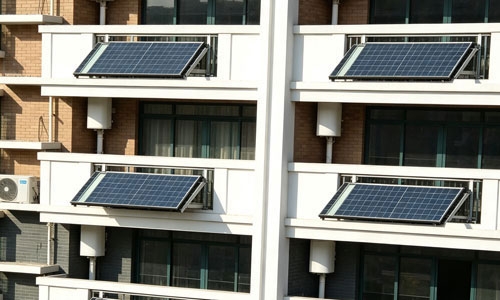

    180w micro inverter for balcony

    Balcony

    180w micro inverter for camping

    Camping

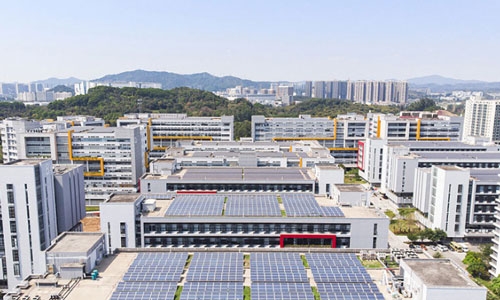

    180w micro inverter for shopping mall

    Shopping Mall

    FAQ

    Q1: What solar panel is compatible with the 180W micro inverter?

    The solar panel should match the inverter's DC input voltage, current and power requirements. For this 180W model, the DC input voltage is 18–50V. Always check the panel's operating voltage and maximum open-circuit voltage before connection.

    Q2: How do I install a 180W micro solar inverter?

    A typical installation involves mounting the micro inverter securely, connecting the AC side according to the wiring requirements, connecting the compatible PV module, grounding where required, and verifying the grid voltage before operation. Electrical installation should follow the product manual and applicable local codes.
