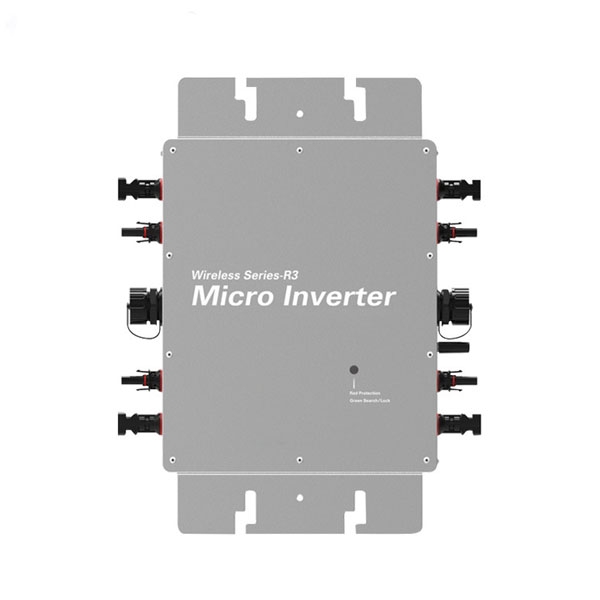

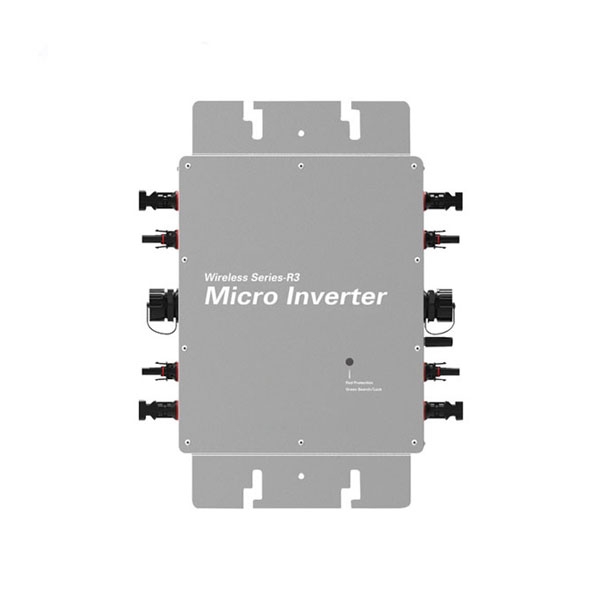

    1600W Single Phase/3 Phase Micro Inverter

    0 review(s) | Add your review
    SKU: PH-MI-1600
    $443.69
    ● This 1600W micro inverter supports up to 4 × 500W solar panels with single-phase/3-phase switching. ● It outputs 1600VA AC power and works with 120V or 230V grid at 50/60Hz, delivering clean electricity for home solar systems. ● It reaches 92.7% peak efficiency and 99.8% MPPT tracking efficiency, consuming zero power standby during nights. ● Fanless natural cooling and IP65 NEMA 3R, operating temperature -20℃ ~ +50℃, with a 30–60V MPPT voltage window.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    400W WiFi Grid Tie Micro Inverter with MPPT

    ● 400W grid tie micro inverter with MPPT, operating voltage 22-60V DC, 99.80% MPPT efficiency. ● Supports up to 500W DC input and 400W AC output, with 85–265V AC grid compatibility. ● Built-in 2.4G WiFi and Bluetooth for mobile app monitoring, supporting up to 25 units per branch. ● IP65 protection, fanless cooling, and -20°C to +50°C operating temperature range.
    $282.92

    500W Grid Tie Micro Inverter with Limiter

    ● 500W grid tie micro inverter with limiter, optional CT anti‑reverse function for zero export. ● 16‑50VDC input, MPPT 25‑35V, connects to one solar panel, 110V/230V & 48‑60Hz auto‑adaptable. ● IP66 outdoor waterproof, pre‑wired 2m 3*1.5mm² AC cable, compact size for rooftop mounting. ● Bluetooth & WIFI with TUTA APP, real‑time generation monitoring via smartphone.
    $249.84

    1200w Grid Tie Micro Inverter, IP65 Waterproof

    ● 1200W grid tie micro inverter, 95% peak efficiency, 99.5% MPPT efficiency, night consumption <1W. ● 4 MC4 PV inputs, 22–48V MPPT range, independent panel optimization for rooftop & balcony solar. ● 120V/230V AC output, PF>0.99, THD<5%. IP65 waterproof, fanless natural cooling. ● WiFi cloud monitoring, galvanic isolation, full protections including anti-islanding safety.
    $387.54

    1400W Single Phase/3 Phase Micro Inverter

    ● This 1400W micro inverter connects up to 4 solar panels, with 30–60V MPPT range, switchable single‑phase/3‑phase. ● Rated 1400VA AC output, supports 120V/230V grid, 50/60Hz, low THD＜5% and power factor over 0.99. ● Features 92.7% peak efficiency and 99.8% MPPT efficiency; zero standby power draw at night. ● IP65 (NEMA 3R) outdoor rating, fanless natural cooling, operating temperature -20℃ ~ +50℃.
    $429.87

    120W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    ● This 120W grid tie micro inverter with MPPT can be paralleled to build single‑phase or three‑phase solar power systems. ● It delivers 99% MPPT tracking efficiency and 93% maximum output efficiency, with night standby power below 0.5W. ● Automatically adapts to grid voltage from 80V‑160V and recognizes 50Hz/60Hz frequency intelligently. ● IP65 waterproof, self‑cooling design, works stably at ‑20℃~65℃ for outdoor solar installations.
    $134.82

    150W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    ● 150W grid-tie micro inverter with MPPT, 12–30V input, single/three-phase switching, and 18V solar panel compatibility. ● 140W rated output, 80–160VAC output, 93% peak efficiency, PF >95%, and THD <5% for clean sine wave AC power. ● IP65 waterproof, natural cooling, lightweight design, and -20°C to 65°C operating range. ● Load-priority power supply, <0.5W nighttime consumption, reverse power protection, and multiple certifications.
    $137.85
    Overview

    The PowerHome 1600W micro inverter supports up to 4 × 500W solar panels, with a 30–60V MPPT range and 22–60V DC operating window. It delivers 1600VA AC output for 120V/230V grids at 50/60Hz, with switchable single-phase and 3-phase operation. With 99.8% MPPT tracking efficiency and 92.7% peak efficiency, it uses zero standby power at night. Fanless cooling, IP65 NEMA 3R protection, and -20°C to +50°C operation make it suitable for outdoor residential solar systems.

    1600w micro inverter icon

    1600w micro inverter feature

    Feature

    • Smart WiFi Monitoring: Built-in WiFi and mobile app support remote monitoring, power generation tracking, and multi-inverter management.
    • Wide Grid Compatibility: Supports 22–60V DC input, wide AC output voltage, pure sine wave output, automatic power factor correction, and anti-islanding protection.
    • Flexible Power Modes: Supports reverse power transmission, load priority, adjustable output power, and multi-unit parallel operation for various PV layouts.
    • Multiple Safety Protections: Features NA protection, current limiting, over-temperature derating, PV leakage detection, over-voltage, overload, and anti-islanding protection.
    • Convenient Outdoor Design: Includes AC zero-phase detection, APL, automatic load matching, natural cooling, and IP65 protection for outdoor installation.

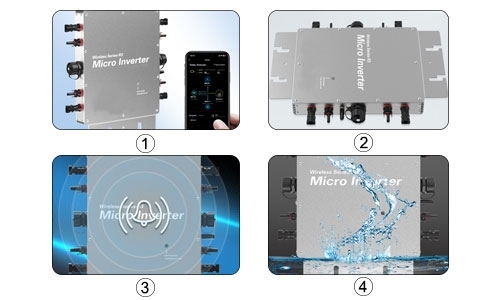

    Details

    1. Plug-and-Play with App Control: Connect the inverter to the PV input and AC output, then plug it into a home outlet. It automatically starts after about 30 seconds, while WiFi and the Smart Life app enable remote monitoring and control.
    2. Battery Reverse-Polarity Protection: All models prevent operation when battery polarity is reversed, helping avoid damage. The inverter resumes normal operation after correct reconnection.
    3. Low-Voltage Audible Alarm: A built-in buzzer alerts users with warning beeps when the supply voltage is too low, helping protect connected appliances.
    4. IP65 Outdoor Protection: The aluminum alloy housing features an oxidation-resistant brushed finish, PPO waterproof connectors, and low-resistance copper conductors for reliable outdoor use.
    1600w micro inverter details

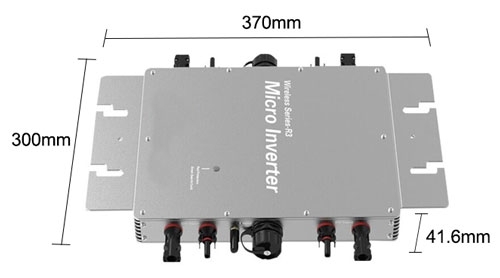

    Dimension (unit: mm)

    1600w micro inverter dimension

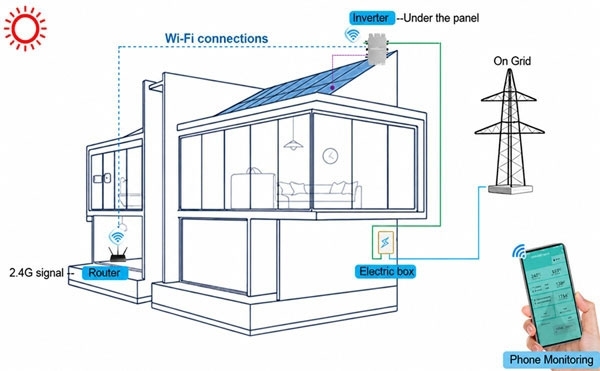

    Wiring Diagram

    1600w micro inverter wiring diagram

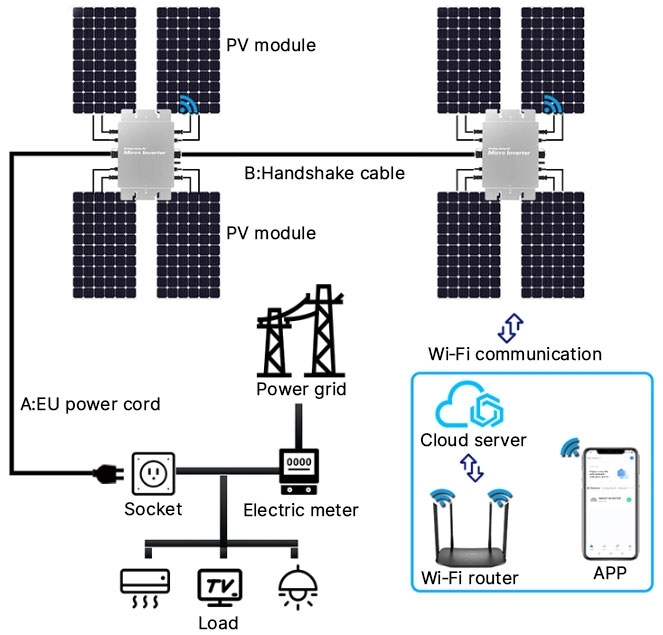

    System Diagram

    1600w micro inverter system diagram

    Specs
    DC Input
    Max DC Input Power  4 × 500W
    MPPT Voltage Range 30–60V DC
    Startup Voltage >22V DC
    Operating Voltage Range 22–60V DC
    Max Input Current  4 × 16A
    Max Short-Circuit Current  4 × 18A
    Max Reverse Feed Current Per String 0
    AC Output
    Max AC Output Power 1600VA
    Rated Output Current @120V 13.3A, @230V 6.95A
    Standard Output Voltage @120V AC (regions: Japan, North America)
    @230V AC (regions: China, Europe, etc.)
    Rated Frequency 50 / 60Hz
    Power Factor >0.99 default, 0.95 leading–0.95 lagging
    Output Current THD <5%
    Max Units Per Branch @120V 3 units, @230V 6 units
    Efficiency
    Peak Inverter Efficiency 92.70%
    CEC Weighted Efficiency 92.50%
    MPPT Efficiency 99.80%
    Nighttime Consumption 0W
    Mechanical Data
    Operating Temperature  -20 to +50°C
    Storage Temperature  -20 to +50°C
    Dimensions (L × W × H) 370 × 300 × 41.6mm
    Weight 2.52kg
    Protection Rating Outdoor NEMA 3R (IP65)
    Cooling Natural cooling (Fanless)
    Pollution Degree PD3
    Power Transmission Mode Reverse transmission, zero export
    Communication WiFi
    Rated Surge Power 802.11b: +17dBm ± 1.5dBm (@11Mbps)
    802.11g: +15dBm ± 1.5dBm (@54Mbps)
    802.11n: +14dBm ± 1.5dBm (@HT20, MCS7)
    Monitoring System Smart life
    Bluetooth 2402–2480MHz, Bluetooth EIRP Power (Max.) 7.98dBm
    Wireless (2.4G) 2412–2472MHz, WiFi 2.4G EIRP Power (Max.) 18.00dBm
    Electrical Standards EN 55011:2016+A2:2021; BS EN 55011:2016+A2:2021
    CISPR 11:2015/AMD2:2019;
    EN IEC 61000-3-2:2019+A1:2021; EN IEC 62311:2020
    BS EN IEC 61000-3-2:2019+A1:2021;
    EN 301 489-1 V2.2.3 (2019-11); IEEE 1547A:2014
    EN 301 489-17 V3.2.4 (2020-09);EN 300 328 V2.2.2 (2019-07);
    DIN VDE 0126-1-1 (VDE V 0126-1-1):2013-08;
    VDE-AR-N 4105 (VDE-AR-N 4105):2011-08;
    DIN VDE V 0124-100 (VDE V 0124-100):2012-07;
    IEC 62109-1:2010; IEC 62109-2:2011;
    UL 1741-SB:2016/09/09 (126-1):2013-08 VFR 2019UL 1741:2010 (Ed. 2);
    IEEE 1547:2020
    CSA C22.2#107.1:2016 Ed. 4
    AENT NBR 16149:2013; ABNT NBR 16150:2013
    ABNT NBR IEC 62116:2012
    ANEXO III – parte 2, Portaria n.° 357, de 01 de agosto de 2014

    PDF computingMicro Inverter User Manual

    Application

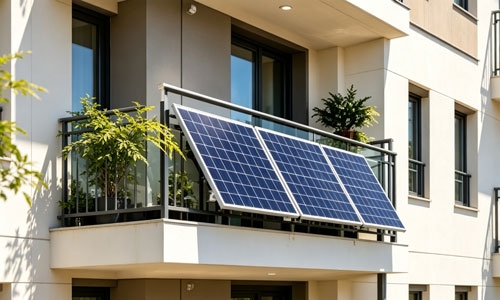

    1600w micro inverter for balcony solar

    Balcony Solar

    1600w micro inverter for residential rooftop

    Residential Rooftop

    1600w micro inverter for small commercial

    Small Commercial

    1600w micro inverter for villa installation

    Villa Installation

    FAQ

    Q1: What is the efficiency of the 1600W micro inverter?

    The 1600W micro inverter provides up to 92.7% peak inverter efficiency and 99.8% MPPT tracking efficiency. High MPPT tracking efficiency helps the system extract available power from the solar panels under changing sunlight conditions.

    Q2: Does the 1600W micro inverter consume power at night?

    No. Its specified night-time power consumption is 0 mW when there is no solar input. This eliminates standby power consumption during nighttime and allows the micro inverter to remain inactive until solar generation resumes.
