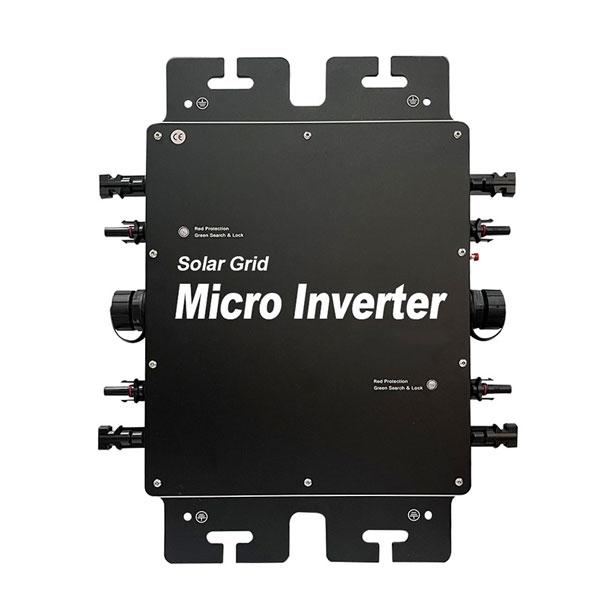

    Picture of 2400W Grid Tie Micro Inverter, IP65 Waterproof
    Picture of 2400W Grid Tie Micro Inverter, IP65 Waterproof
    Picture of 2400W Grid Tie Micro Inverter, IP65 Waterproof

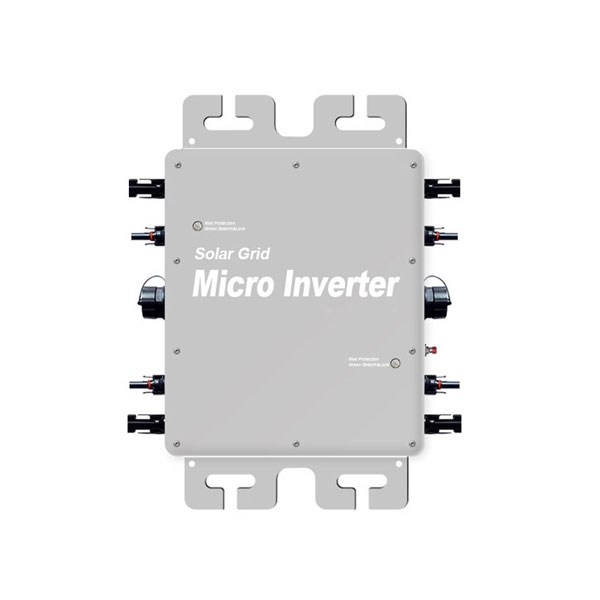

    2400W Grid Tie Micro Inverter, IP65 Waterproof

    1 review(s) | Add your review
    SKU: PH-MI-2400
    $519.31
    ● 2400W grid tie micro inverter, 4 MC4 interfaces, 22–48V MPPT range, 2400W DC input per unit. ● Supports 120V/230V single-phase grid. Power factor >0.99 and THD＜5%, producing stable AC power. ● IP65 waterproof housing, fanless natural cooling. Wide working temperature from -40℃ to +65℃. ● 95% peak efficiency, 99.5% MPPT efficiency, night consumption <1W, with multiple protections.
    *
    šŸšš Free shipping
    ā±ļø Delivery: 6-12 days
    šŸ”™ 30-day Returns
    Overview

    The PowerHome 2400W micro inverter is designed for 2400W solar arrays, with a 22ā€“48V MPPT voltage range for independent power tracking of each solar panel. It supports 120V/230V single-phase grid connections, delivering clean AC output with a power factor above 0.99 and THD below 5%. IP65 protection, fanless natural cooling, and a -40ā„ƒ to +65ā„ƒ operating range make it suitable for outdoor rooftop and balcony solar installations. Built-in WiFi enables real-time cloud monitoring of power generation. Galvanic isolation and multiple protections, including anti-islanding, overvoltage, and overtemperature protection, support safe and stable grid-tied operation.

    2400w micro inverter icon

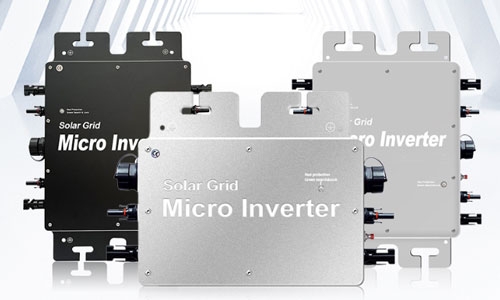

    2400w micro inverter feature

    Feature

    • Low-Voltage Safety: Designed for safer low-voltage solar power applications with reliable electrical performance.
    • WiFi Smart Monitoring: Supports WiFi connectivity for convenient remote monitoring and system management.
    • Intelligent Networking: Enables smart communication and real-time system monitoring for easier operation.
    • Wide Temperature Range: Built to withstand both high and low temperatures for stable outdoor operation.
    • Multiple Safety Protections: Provides multiple protection functions to help ensure safe and reliable operation.
    • IP65 Waterproof Design: IP65-rated construction offers effective protection against water and dust for outdoor installations.

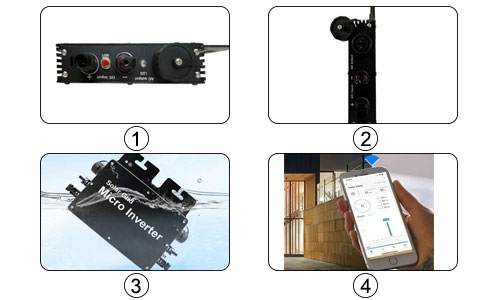

    Details

    1. Plug-and-Play Connectors: Designed with dedicated DC input terminals, a secure AC output connector, and pre-drilled mounting slots for quick, safe installation.
    2. Durable Aluminum Alloy Casing: Crafted with a heavy-duty aluminum alloy housing that ensures efficient heat dissipation and long-lasting outdoor durability.
    3. IP65 Waterproof Protection: Fully sealed with glued joints to achieve IP65-grade waterproofing, effectively preventing rain penetration even during severe weather.
    4. Smart App Remote Control: Equipped with an integrated WiFi button and clear LED indicators for seamless pairing, enabling real-time status and yield tracking via smartphone.
    2400w micro inverter details

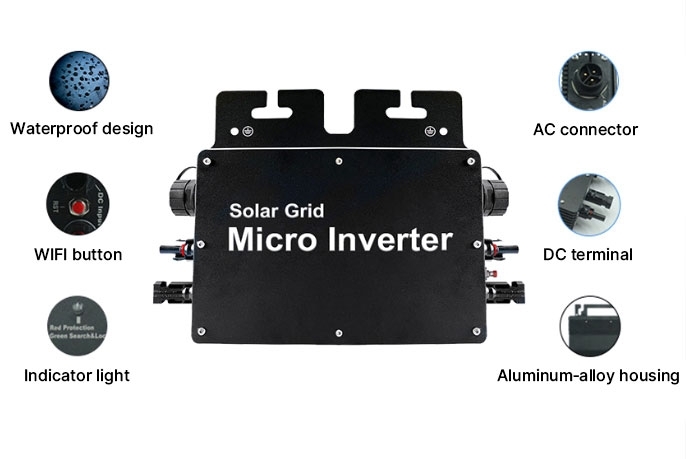

    Structure

    2400w micro inverter structure

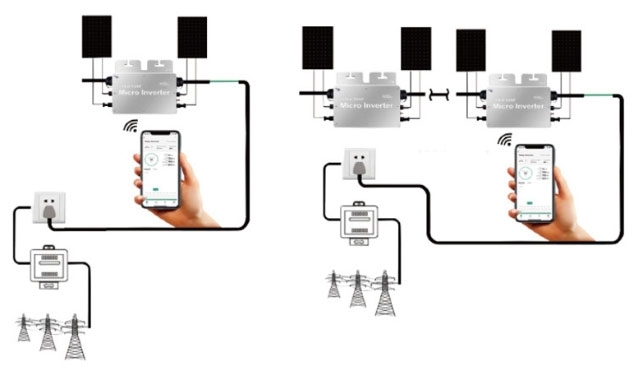

    System Installation Diagram

    2400w micro inverter system installation diagram

    Specs
    DC Input (PV)
    Max Number of PV Strings 4 sets
    MPPT Voltage Range 22ā€“48 V
    Operating Voltage Range 20ā€“50 V
    Max Input Voltage 50 V
    Startup Voltage 22 V
    Max Input Power 2400 W
    Max Input Current 10.5 A
    AC Output
    Phase Single phase
    Nominal Voltage 120 V & 230 V AC
    Rated Output Power 2400 W
    Max Output Power 2400 W
    Rated Output Current @120 VAC: 12 A / @230 VAC: 7 A
    Nominal Output Voltage 120 VAC / 230 VAC
    Default Output Voltage Range @120 VAC: 80ā€“160 V / @230 VAC: 180ā€“270 V
    Rated Frequency 50 Hz / 60 Hz
    Default Frequency Range @50 Hz: 48 Hzā€“51 Hz / @60 Hz: 58 Hzā€“61 Hz
    Efficiency
    Power Factor >0.99
    Total Harmonic Distortion (THD) <5%
    Max Units Per Branch @120 VAC: 2 units / @230 VAC: 3 units
    Peak Efficiency 95%
    Nominal MPPT Efficiency 99.5%
    Night-Time Power Consumption <1 W
    Mechanical Data
    Operating Temperature -40 Ā°C to +65 Ā°C
    Storage Temperature -40 Ā°C to +85 Ā°C
    Product Certification CE, VDE, RoHS
    Adapter Cable Length 2 m
    Dimensions (W Ɨ H Ɨ D) 230 Ɨ 365 Ɨ 40 mm
    Weight 1.2 kg
    Max AC Cable Current 30 A
    Protection Rating IP65
    Cooling Method Fanless natural convection
    Communication Interface WiFi (cloud monitoring)
    Installation High-altitude operation, fanless design
    Grounding Method PE grounding is provided through the AC power cable; additional grounding is not required
    Safety Protections Anti-islanding, overvoltage, overfrequency, overtemperature, overcurrent
    Standards EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A2:2019+A2:2021; EN IEC 55014-2:2021; IEC 61508-2:2021; IEC 62109-1:2010

    PDF computingMicro Inverter User Manual

    Application

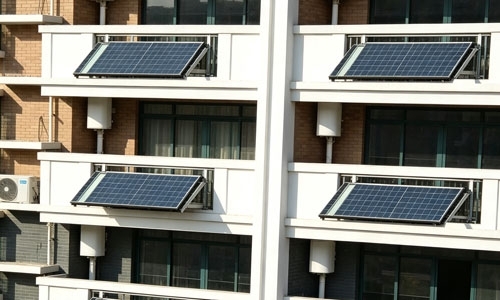

    2400w micro inverter for balcony

    Balcony

    2400w micro inverter for camping

    Camping

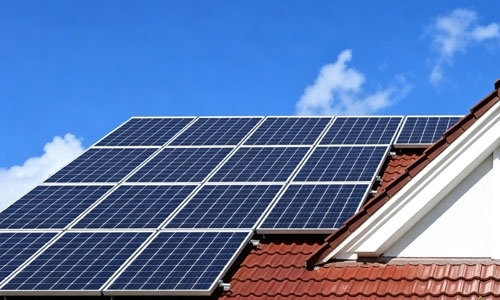

    2400w micro inverter for roof

    Roof

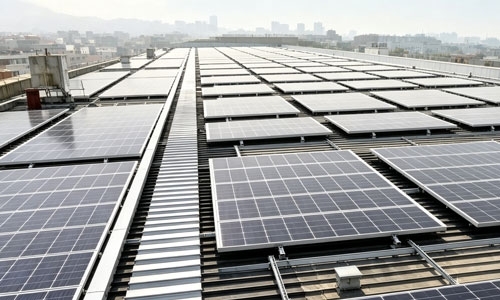

    2400w micro inverter for small shopping mall

    Shopping Mall

    FAQ

    Q1: What is the maximum PV input for this 2400W micro inverter?

    This 2400W micro inverter features 4 MC4 connectors and supports up to 2400W of PV input power. Its MPPT voltage range is 22ā€“48V, with a maximum input current of 10.5A.

    Q2: What protection features does this 2400W micro inverter have?

    This 2400W micro inverter provides anti-islanding, over/under-voltage, over/under-frequency, over-current, and over-temperature protection. A galvanically isolated high-frequency transformer adds electrical isolation for safer operation.

    Related products

    600W Grid Tie Micro Inverter with MPPT

    ● 600W grid tie micro inverter with MPPT, max input power 2×375W, 22‑60V DC working voltage and dual 120V/230V AC output. ● 92.70% peak efficiency & 99.80% MPPT efficiency, power factor above 0.99, output current THD below 5%. ● Nema 3r (IP65) outdoor waterproof grade, fanless natural cooling, operating temperature -20℃ ~ +50℃. ● Dual DC input channels for two solar panels, 50/60Hz grid frequency, complete protection for grid-tied solar projects.
    $289.77

    400W WiFi Grid Tie Micro Inverter with MPPT

    ● 400W grid tie micro inverter with MPPT, operating voltage 22-60V DC, 99.80% MPPT efficiency. ● Supports up to 500W DC input and 400W AC output, with 85–265V AC grid compatibility. ● Built-in 2.4G WiFi and Bluetooth for mobile app monitoring, supporting up to 25 units per branch. ● IP65 protection, fanless cooling, and -20°C to +50°C operating temperature range.
    $282.92

    500W Grid Tie Micro Inverter with Limiter

    ● 500W grid tie micro inverter with limiter, optional CT anti‑reverse function for zero export. ● 16‑50VDC input, MPPT 25‑35V, connects to one solar panel, 110V/230V & 48‑60Hz auto‑adaptable. ● IP66 outdoor waterproof, pre‑wired 2m 3*1.5mm² AC cable, compact size for rooftop mounting. ● Bluetooth & WIFI with TUTA APP, real‑time generation monitoring via smartphone.
    $249.84

    1200w Grid Tie Micro Inverter, IP65 Waterproof

    ● 1200W grid tie micro inverter, 95% peak efficiency, 99.5% MPPT efficiency, night consumption <1W. ● 4 MC4 PV inputs, 22–48V MPPT range, independent panel optimization for rooftop & balcony solar. ● 120V/230V AC output, PF>0.99, THD<5%. IP65 waterproof, fanless natural cooling. ● WiFi cloud monitoring, galvanic isolation, full protections including anti-islanding safety.
    $387.54

    1400W Single Phase/3 Phase Micro Inverter

    ● This 1400W micro inverter connects up to 4 solar panels, with 30–60V MPPT range, switchable single‑phase/3‑phase. ● Rated 1400VA AC output, supports 120V/230V grid, 50/60Hz, low THD＜5% and power factor over 0.99. ● Features 92.7% peak efficiency and 99.8% MPPT efficiency; zero standby power draw at night. ● IP65 (NEMA 3R) outdoor rating, fanless natural cooling, operating temperature -20℃ ~ +50℃.
    $429.87

    150W Grid Tie Micro Inverter with MPPT, Single Phase/3 Phase

    ● 150W grid-tie micro inverter with MPPT, 12–30V input, single/three-phase switching, and 18V solar panel compatibility. ● 140W rated output, 80–160VAC output, 93% peak efficiency, PF >95%, and THD <5% for clean sine wave AC power. ● IP65 waterproof, natural cooling, lightweight design, and -20°C to 65°C operating range. ● Load-priority power supply, <0.5W nighttime consumption, reverse power protection, and multiple certifications.
    $137.85
    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Tancredi | 9/29/2026 1:39 AM
    Awesome 2400W Grid Tie Micro Inverter for DIY Solar!
    Installed this 2400W grid tie micro inverter on my rooftop setup. The 4 MC4 inputs made hookup super easy, and MPPT efficiency is top-notch. Love the IP65 waterproof casing and real-time WiFi smart monitoring. Great IP65 waterproof solar inverter for cuts on electric bills!
