3 Phase AC Line Reactor, 7.5 HP Output

SKU: PH-OLR-5d5

$299.36

● Supporting wide voltage and 50/60Hz universal operation for global industrial use. ● Delivering superior insulation, long service life and harsh-environment durability. ● Available in optional copper or aluminum windings, featuring only 2% voltage drop. ● Factory direct sales with cost-effective, backed by strict Class F/H insulation.

Output Voltage (AC) *
Material *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

7.5HP 3-phase VFD output line reactor, rated 15A with 220V-480V voltage options, operates reliably at 50/60Hz. Featuring vacuum impregnation for enhanced insulation, high-temperature winding wires for longevity, and epoxy resin casting for harsh-environment durability, it’s available in copper or aluminum. Enjoy factory-direct pricing, exceptional quality, and cost-effective performance tailored for industrial applications.

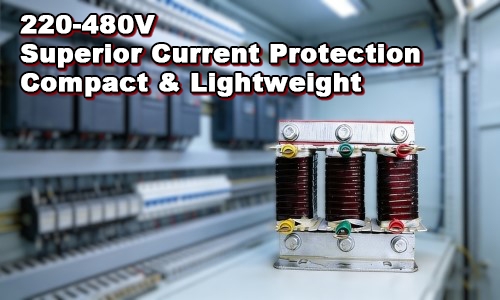

Feature

Robust Protection Design: Offers IP00-IP22 protection class, effectively preventing dust and foreign object intrusion, extending service life in industrial scenarios.
Lightweight & Compact Design: Weighs only 3kg, making installation, transportation and space-saving layout much easier without compromising performance.
Broad Operating Adaptability: Works reliably in -10℃~+45℃ operating temperature, ≤90% non-condensing humidity, and altitudes up to 2000m, suitable for harsh industrial sites.

Details

Vacuum Impregnation Technology: Delivers exceptional insulation performance, with outstanding moisture and impact resistance.
Premium Winding Wire: High-temperature resistant, ensuring a long service life and stable operation.
Epoxy Resin Casting: Provides fully sealed protection, making it highly durable even in harsh operating environments.

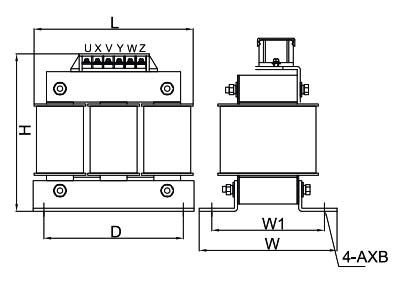

7.5 HP Output Line Reactor Dimension

7.5 HP Output AC Line Reactor Dimension

Dimension (±5mm)
L	D	W	W1	H	A×B
110mm	90mm	95mm	70mm	130mm	6×11

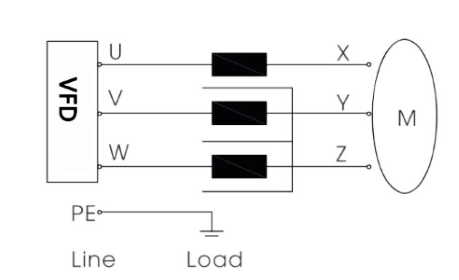

7.5 HP Output Line Reactor Circuit Diagram

7.5 HP Output AC Line Reactor Circuit Diagram

Specs

Model		PH-OCR-0015-0M47-0.4SC
Basic	Phase	3 Phase
	Power	7.5 hp (5.5 kW)
	Weight	3 kg
Technical Parameters	Work Voltage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50 Hz/60 Hz
	Rated Current	15A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.94 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altitude	≤2000m

Application

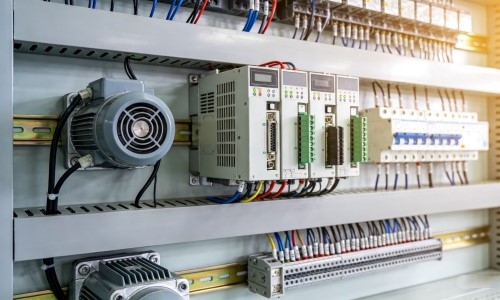

Servo Drive System

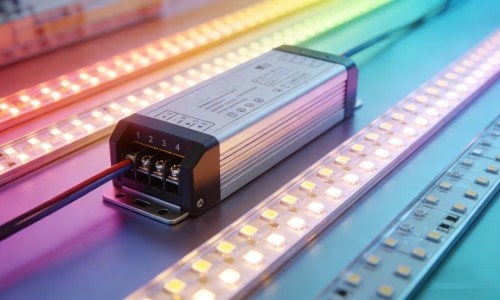

High-power LED Drive

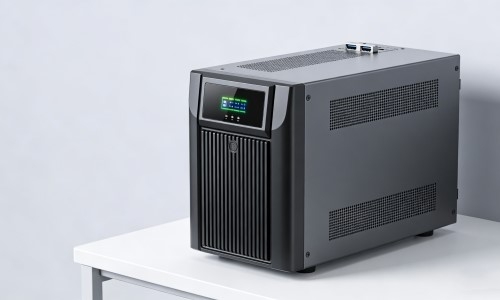

UPS

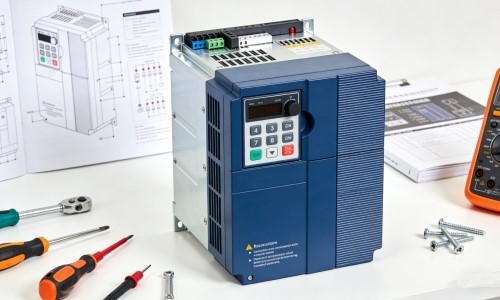

Variable Frequency Drive

FAQ

Q1: Do small-power VFDs also need an AC input reactor?

For small-power drives below 10kW, it is usually optional under stable grid conditions. However, it is still recommended in weak grids, noisy environments, or where strict power quality and EMC requirements apply.

Q2: Can an AC input reactor replace an EMI filter?

No, it cannot fully replace an EMI filter. The reactor mainly suppresses low-to-medium frequency harmonics and surges, while an EMI filter targets high-frequency electromagnetic interference. They are often used together for better performance.
