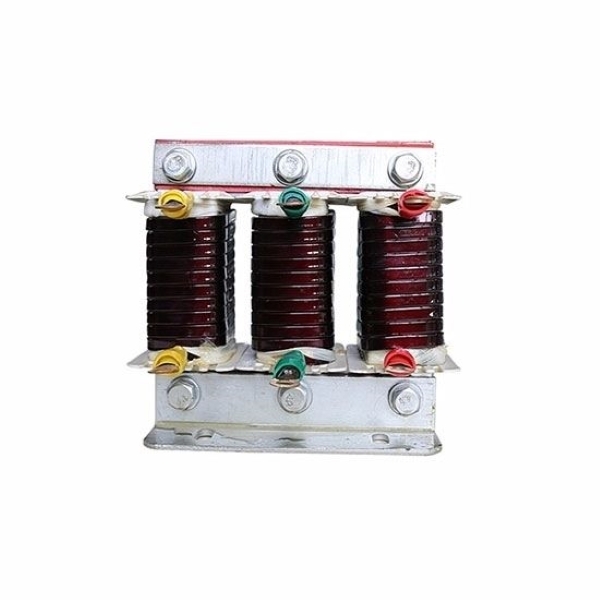

3 Phase AC Line Reactor, 15 HP Input

SKU: PH-ILR-011

$314.89

● 3-phase AC reactor rated 30A/15HP with 0.47mH inductance, ideal for VFD systems. ● Features advanced vacuum impregnation for superior insulation and durability. ● Equipped with Class F/H winding wire, delivering excellent heat resistance. ● Low 2% voltage drop, wide voltage compatibility, and robust construction for stable industrial operation.

Voltage *
Material *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Our 3-phase AC line reactor, rated 30A/15HP (11kW), delivers reliable harmonic suppression and surge protection for VFD systems. With F/H class insulated coils, low 2% voltage drop, and durable construction, it boosts equipment longevity and operational stability—cost-effective, high-performance solution for industrial automation.

Feature

Durable & Safe Construction: Features IP00-IP22 protection, ≤65dB low noise, and ≥100MΩ insulation resistance, ensuring stable, safe operation with minimal interference.
Efficient Harmonic Suppression: Delivers 0.47mH inductance and only 2% voltage drop, effectively reducing harmonics and surges to protect VFD systems and extend equipment lifespan.
Wide Operating Adaptability: Works reliably in -25℃~+45℃ ambient temperature, ≤90%RH non-condensing humidity, and altitudes up to 2000m, suitable for diverse industrial scenarios.

Details

Superior Vacuum Impregnation Process: Boosts insulation reliability, moisture resistance, and mechanical shock tolerance for consistent long-term performance in industrial applications.
High-Grade Class H Insulated Wire: Delivers exceptional heat resistance and thermal stability, extending service life even under continuous heavy-duty industrial operation.
Durable Epoxy Resin Casting: Creates a fully sealed, corrosion-proof barrier, ensuring unwavering performance in harsh industrial environments and extreme operating conditions.

15 HP Input Line Reactor Dimension

Dimension (±5mm)
L	D	W	W1	H	A×B
155mm	95mm	130mm	63mm	135mm	6×15

15 HP Input Line Reactor Circuit Diagram

Specs

Model		PH-ACR-0030-0M47-0.4SC
Basic	Phase	3 Phase
	Power	15 hp (11 kW)
	Weight	5 kg
Technical Parameters	Work Voltage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50 Hz/60 Hz
	Rated Current	30A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.47 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altitude	≤2000m

Application

Servo Drive System

High-power LED Drive

UPS

Variable Frequency Drive

FAQ

Q1: Will an AC input reactor affect system starting torque?

It causes a small input voltage drop, which may slightly reduce maximum starting torque under full load. In most applications, this effect is minimal and does not affect normal motor startup and operation.

Q2: Does an AC input reactor require regular maintenance?

Generally, no regular maintenance is needed. It is a static component with no moving parts. You only need to ensure good ventilation, keep it clean and dry, and avoid overheating or physical damage.
