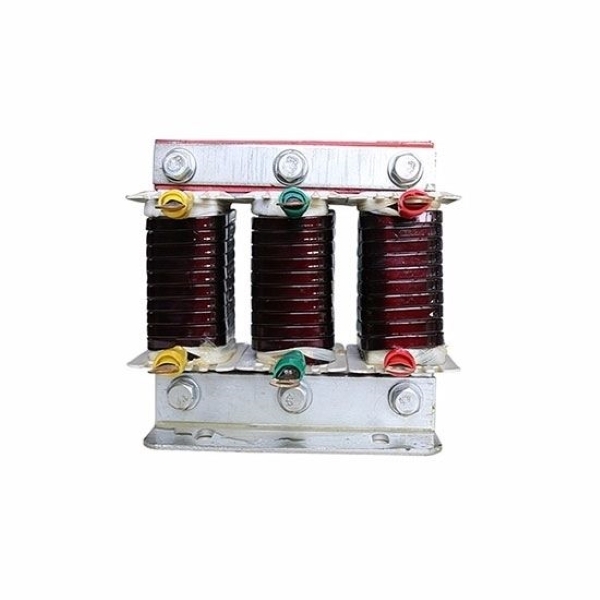

3 Phase AC Line Reactor, 25 HP Input

SKU: PH-ILR-020

$497.54

● 25HP VFD input line reactor supporting 50Hz/60Hz frequencies for versatile use. ● Features Class F/H insulation and advanced vacuum impregnation. ● The low 2% voltage drop minimizes energy loss. ● With a lightweight design and wide voltage compatibility, adapts to global power grids.

Voltage *
Material *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Designed for 20kW (25hp) three-phase VFD systems, this input line reactor connects seamlessly to the inverter load side, operating reliably at 50A with 50Hz/60Hz compatibility. Featuring robust Class F/H insulation and premium construction, it enhances system stability, safeguards against electrical stress, and guarantees consistent long-term performance, making it an ideal choice for demanding industrial environments.

Feature

Low Noise Operation: Operates at ≤65dB, creating a quieter working environment and reducing acoustic interference.
Temperature Stability: Limits temperature rise to ≤85K, preventing overheating and extending the product's service life.
Versatile Protection Levels: Available in IP00-IP22 protection classes, catering to different safety and environmental protection requirements.

Details

Precision Vacuum Impregnation: Boosts insulation reliability and moisture resistance, protecting your equipment from damage and ensuring long-lasting performance.
Class H Winding: Delivers exceptional heat resistance for heavy-duty use, extending reactor service life and reducing maintenance costs.
Corrosion-proof Epoxy Encapsulation: Fully seals the reactor against corrosion, enabling reliable operation even in the harshest industrial environments.

25 HP Input Line Reactor Dimension

25 HP Input AC Line Reactor Dimension

Dimension (±5mm)
L	D	W	W1	H	A×B
155mm	95mm	140mm	76mm	135mm	6×15

25 HP Input Line Reactor Circuit Diagram

Specs

Model		PH-ACR-0050-0M28-0.4SC
Basic	Phase	3 Phase
	Power	25 hp (20 kW)
	Weight	11 kg
Technical Parameters	Work Voltage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50 Hz/60 Hz
	Rated Current	50A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.28 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altitude	≤2000m

Application

Wind Power Converter

Solar Photovoltaic Inverter

Power Distribution System

Variable Frequency Drive (VFD)

FAQ

Q1: Can AC input reactors be used with soft starters?

Yes, they work well with soft starters. They limit inrush current, reduce harmonic interference, stabilize grid voltage, and protect both the soft starter and the motor during acceleration and operation.

Q2: What materials are used in high-quality AC input reactors?

High-grade AC input reactors use high-purity silicon steel sheets for low core loss, H-class insulated copper windings, and vacuum impregnation with epoxy resin. These materials ensure low heat generation, high reliability, and long service life.
