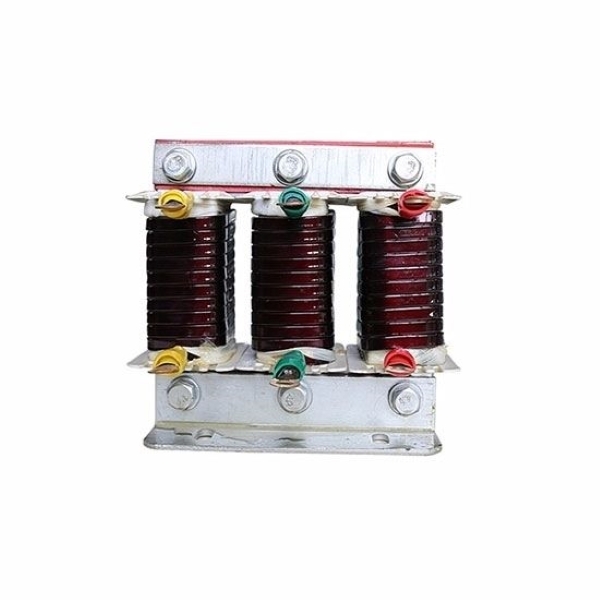

3 Phase AC Line Reactor, 15 HP Output

SKU: PH-OLR-011

$314.89

● 3-phase 15HP (11kW) rated, 30A current with 220V-480V global voltages. ● Optional copper or aluminum windings for superior performance and longevity. ● Class F/H insulation, IP00-IP22 protection, and wide -25℃~+45℃ operating range. ● 0.23mH inductance deliver stable harmonic suppression and motor protection.

Output Voltage (AC) *
Material *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Supercharge your VFD system with our heavy-duty 15HP 3-phase output line reactor. This 30A industrial workhorse delivers rock-solid harmonic suppression, motor protection, and power quality optimization for load-side VFD connections, supporting 220V–480V global voltages with copper/aluminum winding options. Direct factory pricing, unbeatable value, and zero-compromise performance—your ultimate upgrade for reliable, efficient operations.

Feature

Superior Electrical Performance: Boasts a 30A rated current with 1.5x overload capacity and 0.23mH inductance, ensuring stable harmonic suppression and reliable motor protection.
Strict Quality Assurance: Tested to meet ≥100MΩ insulation resistance and ≤85K temperature rise standards, guaranteeing consistent performance, safety, and compliance with industrial electrical requirements.
Robust Power Compatibility: Designed for 3-phase 15HP (11kW) VFD systems, supporting 380V standard operation with optional global voltages and 50/60Hz frequency for worldwide industrial applications.

Details

Vacuum Impregnation: Boosts insulation, moisture resistance, and shock tolerance for reliable long-term use.
Class H Wire: Provides excellent heat stability, prolonging service life in heavy-duty operations.
Epoxy Resin Casting: Seals against corrosion, ensuring consistent performance in harsh industrial conditions.

15 HP Output Line Reactor Dimension

Dimension (±5mm)
L	D	W	W1	H	A×B
155mm	95mm	90mm	70mm	130mm	6×15

15 HP Output Line Reactor Circuit Diagram

15 HP Output AC Line Reactor Circuit Diagram

Specs

Model		PH-OCR-0030-0M23-0.4SC
Basic	Phase	3 Phase
	Power	15 hp (11 kW)
	Weight	4 kg
Technical Parameters	Work Voltage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50 Hz/60 Hz
	Rated Current	30A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.23 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altitude	≤2000m

Application

Wind Power Converter

Solar Photovoltaic Inverter

Power Distribution System

Variable Frequency Drive (VFD)
