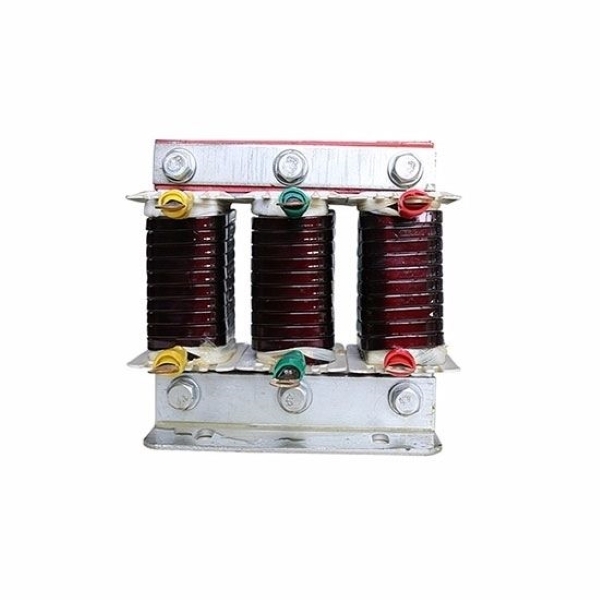

3 Phase AC Line Reactor, 20 HP Output

SKU: PH-OLR-015

$332.25

● Supports 220V–480V wide voltage range for diverse industrial applications. ● Operates reliably in temperatures from -25°C to +45°C and altitudes up to 2000m, adapting to challenging working conditions. ● Lightweight 10kg design with IP00–IP22 protection class, enabling easy installation and flexible integration into various systems.

Output Voltage (AC) *
Material *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Elevate your industrial power systems with our 20hp 3-phase output line reactor—where premium quality meets affordability. Designed for 220V–480V compatibility and 50/60Hz operation, this 40A reactor offers the flexibility of copper or aluminum construction. Backed by rigorous safety testing and a budget-friendly price, it safeguards your equipment while maximizing operational efficiency, making it a smart investment for any application.

Feature

Precise Inductance Control: Maintains a stable 0.18mH inductance value, effectively filtering harmonics and extending the lifespan of connected VFDs and motors.
Flexible Material Options: Offers a choice between aluminum and copper construction, balancing cost efficiency and performance to meet specific application needs.
Low Noise & Loss Design: Operates at ≤65dB noise level with only 2% voltage drop, minimizing energy waste and ensuring quiet, efficient system operation.

Details

Moisture & Damage Protection: Reliable vacuum impregnation reinforces insulation reliability, preventing equipment damage and ensuring years of dependable service.
Longevity & Cost Savings: High-temp Class H wire offers superior heat resistance, extending reactor lifespan and reducing costly maintenance downtime.
Corrosion-Proof Sealing: Epoxy casting forms a complete corrosion barrier, standing up to severe industrial conditions and delivering consistent performance in any scenario.

20 HP Output Line Reactor Dimension

Dimension (±5mm)
L	D	W	W1	H	A×B
155mm	95mm	130mm	78mm	135mm	6×15

20 HP Output Line Reactor Circuit Diagram

Specs

Model		PH-OCR-0040-0M23-0.4SC
Basic	Phase	3 Phase
	Power	20 hp (15 kW)
	Weight	10 kg
Technical Parameters	Work Voltage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50 Hz/60 Hz
	Rated Current	40A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.18 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altitude	≤2000m

Application

Wind Power Converter

Solar Photovoltaic Inverter

Power Distribution System

Variable Frequency Drive (VFD)

FAQ

Q1: Do AC input reactors affect the braking performance of a VFD?

They have almost no negative effect on dynamic braking performance. The small voltage drop is negligible in normal braking conditions, and they still help maintain stable power quality during load changes.

Q2: Can an AC input reactor reduce noise from a VFD system?

Yes, by smoothing current waveform and reducing harmonic distortion, it lowers electromagnetic vibration and acoustic noise in the drive, transformer, and motor, creating a quieter operating environment.
