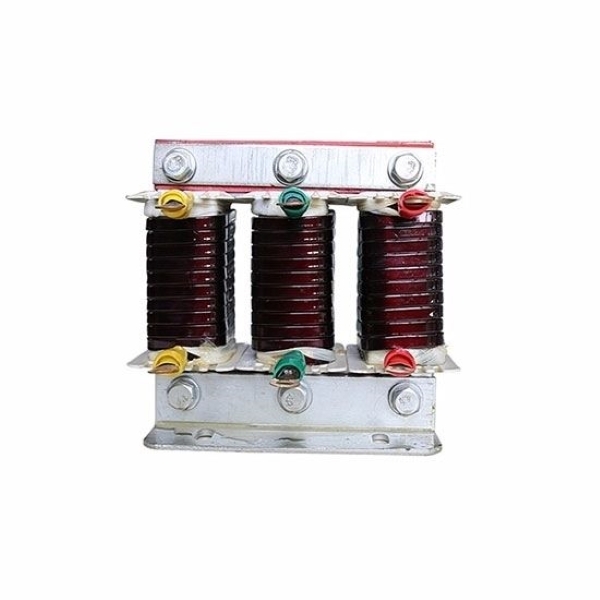

    3 Phase AC Line Reactor, 20 HP Input

    0 review(s) | Add your review
    SKU: PH-ILR-015
    $332.25
    ● 15kW (20HP) 3-phase design supports 220V–480V optional voltages and 50/60Hz universal frequency for global industrial compatibility. ● Compact structure with IP00-IP22 protection grade saves installation space while ensuring durable operation. ● Boasts only ≤2% voltage drop to minimize power loss and maximize overall system energy efficiency.
    *
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    3 Phase AC Line Reactor, 10 HP Input

    ● Delivers 3-phase 7.5kW (10HP) power, supporting 220V-480V wide voltage compatibility for universal VFD system integration. ● Withstands -25℃~+45℃ temperatures and up to 2000m altitude, operating quietly at ≤65dB for harsh industrial environments. ● Features superior insulation, moisture resistance, and long service life. ● Suppresses harmonic interference and surge damage, boosting system efficiency.
    $295.86

    3 Phase AC Line Reactor, 10 HP Output

    ● 10hp (7.5kW) 3-phase design with 20A rated current, ideal for VFD systems. ● Delivers ≤65dB low noise and only 2% voltage drop for smooth, efficient operation. ● Lightweight 3.7kg design for easy installation and space-saving in industrial setups. ● Premium Class H winding wire extends service life under heavy industrial loads.
    $295.86

    3 Phase AC Line Reactor, 15 HP Input

    ● 3-phase AC reactor rated 30A/15HP with 0.47mH inductance, ideal for VFD systems. ● Features advanced vacuum impregnation for superior insulation and durability. ● Equipped with Class F/H winding wire, delivering excellent heat resistance. ● Low 2% voltage drop, wide voltage compatibility, and robust construction for stable industrial operation.
    $314.89

    3 Phase AC Line Reactor, 15 HP Output

    ● 3-phase 15HP (11kW) rated, 30A current with 220V-480V global voltages. ● Optional copper or aluminum windings for superior performance and longevity. ● Class F/H insulation, IP00-IP22 protection, and wide -25℃~+45℃ operating range. ● 0.23mH inductance deliver stable harmonic suppression and motor protection.
    $314.89

    3 Phase AC Line Reactor, 20 HP Output

    ● Supports 220V–480V wide voltage range for diverse industrial applications. ● Operates reliably in temperatures from -25°C to +45°C and altitudes up to 2000m, adapting to challenging working conditions. ● Lightweight 10kg design with IP00–IP22 protection class, enabling easy installation and flexible integration into various systems.
    $332.25

    3 Phase AC Line Reactor, 25 HP Input

    ● 25HP VFD input line reactor supporting 50Hz/60Hz frequencies for versatile use. ● Features Class F/H insulation and advanced vacuum impregnation. ● The low 2% voltage drop minimizes energy loss. ● With a lightweight design and wide voltage compatibility, adapts to global power grids.
    $497.54
    Overview

    Cost-effective 20HP 15kW 3-phase line reactor for VFD, 20HP, 40A, compatible with 220-480V, 50/60Hz. Built with vacuum impregnation and high-temp curing, it delivers excellent insulation, anti-moisture and safe running. A top choice to reduce harmonics, cut energy loss and secure reliable VFD operation.

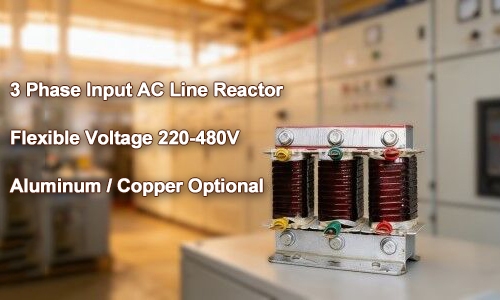

    20 HP Input Line Reactor Features

    Feature

    • Robust Environmental Adaptability: Operates reliably in -25℃~+45℃ ambient, ≤90% non-condensing humidity and ≤2000m altitude, with low noise ≤65dB for quiet industrial use.
    • Low Loss Design: Features only ≤2% voltage drop, minimizing power wastage and maximizing overall system energy efficiency.
    • Strong Overload: Boasts 1.5 times rated current continuous overload capacity for 60s, ensuring reliable performance during transient surges.


    Details

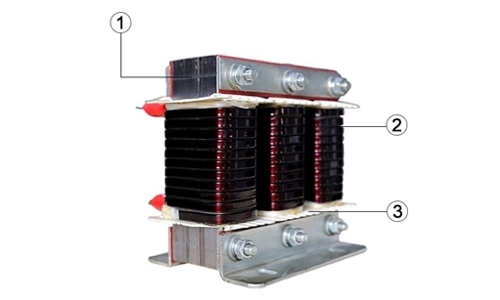

    1. Reliable Vacuum Impregnation: Boosts insulation reliability and moisture resistance, protecting your equipment from damage and ensuring long-lasting.
    2. High-temp Class H Wire: Provides exceptional heat resistance for heavy-duty use, extending the service life of your reactor and reducing maintenance costs.
    3. Corrosion-resistant Epoxy Casting: Seals the reactor fully against corrosion, even in the harshest industrial environments, no matter the operating conditions.
    20 HP Input Line Reactor Details

    20 HP Input Line Reactor Dimension

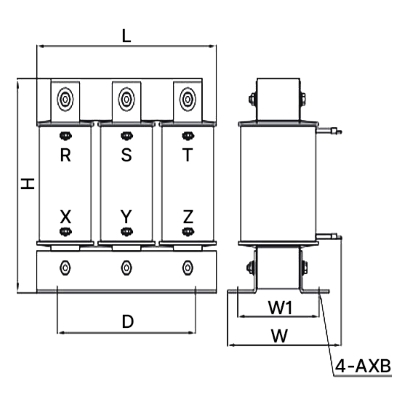

    20 HP Input AC Line Reactor Dimension

    Dimension (±5mm)
    L D W W1 H A×B
    155mm 95mm 140mm 76mm 135mm 6×15

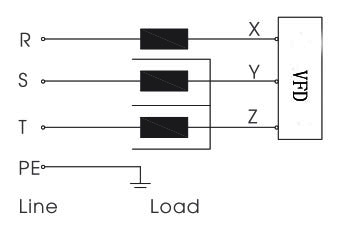

    20 HP Input Line Reactor Circuit Diagram

    20 HP Input Line Reactor Circuit Diagram

    Specs
    Model PH-ACR-0040-0M36-0.4SC
    Basic Phase 3 Phase
    Power 20 hp (15 kW)
    Weight 10 kg
    Technical Parameters Work Voltage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50 Hz/60 Hz
    Rated Current 40A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 0.36 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altitude ≤2000m
    Application

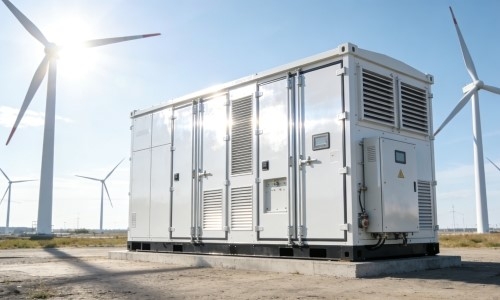

    Wind Power Converter

    Wind Power Converter

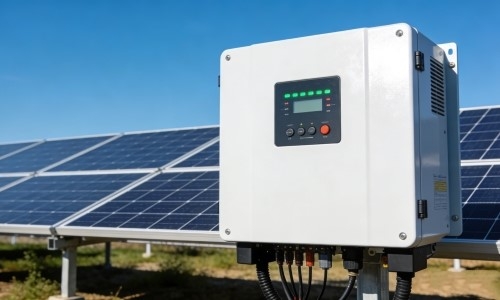

    Solar Photovoltaic Inverter

    Solar Photovoltaic Inverter

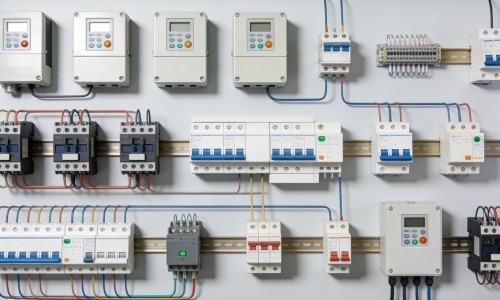

    Power Distribution System

    Power Distribution System

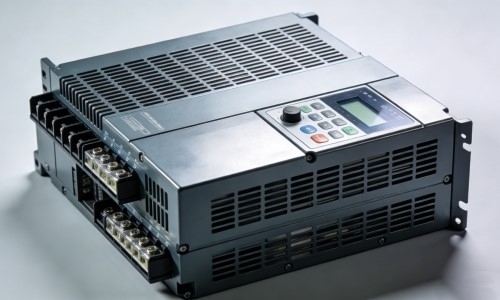

    Variable Frequency Drive (VFD)

    Variable Frequency Drive (VFD)
