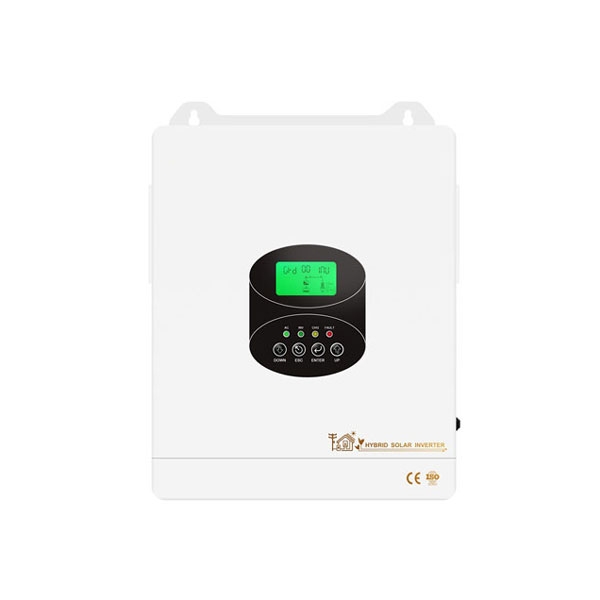

    Picture of 8kW WiFi Dual Output Hybrid Inverter
    Picture of 8kW WiFi Dual Output Hybrid Inverter
    Picture of 8kW WiFi Dual Output Hybrid Inverter
    Picture of 8kW WiFi Dual Output Hybrid Inverter
    Picture of 8kW WiFi Dual Output Hybrid Inverter

    8kW WiFi Dual Output Hybrid Inverter

    0 review(s) | Add your review
    SKU: PH-HI-HFP-S-83248
    $1,231.85
    ● 8kW hybrid inverter supports on-grid, off-grid, and hybrid modes, with 8300W output power and 48V battery systems. ● Features dual MPPT inputs, 500VDC max PV voltage, and up to 99.9% MPPT efficiency. ● Provides pure sine wave output at 220/230/240VAC, dual output ports, and IP20 protection. ● Supports an optional WiFi module for APP remote monitoring, multiple protections, and -10°C to 50°C operation.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    The 8kW WiFi dual output hybrid inverter delivers 220/230/240V AC power for residential solar storage systems. Featuring built-in WiFi for remote monitoring and dual AC outputs, it integrates solar, battery, and grid power to ensure a reliable home power supply, with backup power during grid outages and multiple protection functions for safe operation.

    Specification

    Solar PV
    Max PV Input Power 4500W * 2
    MPPT Voltage Range 80VDC – 450VDC
    Rated Input Voltage 280VDC
    Max PV Input Voltage Voc (Lowest Temp) 500VDC
    Max PV Input Current 18A * 2
    Number of MPPT Trackers (Input Channels) 2 channel
    Battery & Charger
    Battery Type VRLA lead-acid / lithium (Customizable via front panel settings)
    Rated Battery Voltage 48VDC
    Battery Voltage Range 42 – 60VDC (Default)
    Max PV Charging Current 150A
    Max AC Charging Current 100A
    Max Total Charging Current 150A
    AC Output (Grid)
    Rated Output Power 8300W
    Rated Output Voltage 220VAC / 230VAC / 240VAC
    Output Voltage Range 187VAC – 264VAC
    Rated Output Frequency 50Hz / 60Hz
    Output Frequency Range 47Hz – 52Hz (50Hz), 57Hz – 62Hz (60Hz)
    Rated Output Current 37.7A / 36.1A / 34.6A
    Power Factor > 0.98 (At rated power)
    AC Input (Off-Grid)
    Rated Input Voltage 220V / 230V / 240V
    Utility Voltage Range 165VAC – 280VAC / 120VAC – 280VAC (Selectable)
    Rated Input Frequency 50Hz / 60Hz
    Input Frequency Range 45Hz – 55Hz (50Hz), 55Hz – 65Hz (60Hz)
    AC Output (Off-Grid)
    Rated Output Power 8300W
    Rated Output Voltage 220V / 230V / 240V
    Output Voltage Accuracy ±2%
    Rated Output Frequency 50Hz / 60Hz
    Output Frequency Accuracy ±1%
    Waveform Pure sine wave
    AC Input (Hybrid)
    Rated Input Voltage 220V / 230V / 240V
    Utility Voltage Range 187VAC – 264VAC
    Rated Input Frequency 50Hz / 60Hz
    Input Frequency Range 47Hz – 52Hz (50Hz), 57Hz – 62Hz (60Hz)
    AC Output (Hybrid)
    Rated Output Power 8300W
    Rated Output Voltage 220VAC / 230VAC / 240VAC
    Rated Output Current 37.7A / 36.1A / 34.6A
    General Specs
    Max Efficiency (Battery Discharge) 94% (Peak)
    MPPT Tracking Efficiency ≥ 99.9%
    Transfer Time 10ms (Typical)
    Display Panel LCD + LED
    Cooling Method Smart fan cooling
    Communication Interface RS485 / mobile app (Wi-Fi or GPRS) (Optional)
    Ingress Protection Rating IP20
    Installation Method Wall-mounted
    Protections
    Battery Under-Voltage Alarm 44VDC (Default)
    Battery Under-Voltage Cutoff 42VDC (Default)
    Anti-Islanding Protection ≤ 2s
    Overload Protection Auto-protection (Battery mode); breaker/fuse (Grid mode)
    Short Circuit Protection Auto-protection (Battery mode); breaker/fuse (Grid mode)
    Over-Temperature Protection > 90°C (Shutdown inverter & charger)
    Environment
    Operating Temperature -10°C to 50°C
    Storage Temperature -15°C to 60°C
    Noise Level ≤ 55dB
    Operating Altitude 2000m (Derating required above 2000m)
    Relative Humidity 0% – 95% (Non-condensing)
    Dimensions & Weight
    Product Dimensions 515 * 365 * 117 mm
    Package Dimensions 615 * 460 * 212 mm
    Net Weight 13 kg
    Gross Weight 15 kg

    PDF computingWiFi Dual Output Hybrid Inverter User Manual

    Details

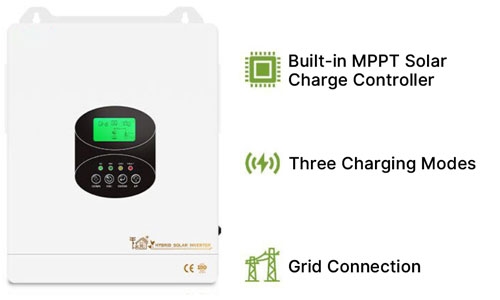

    8kw hybrid inverter feature

    Feature

    • Built-in MPPT solar controller supports battery-free operation powered by grid or solar energy.
    • Three charging sources including solar, AC grid and generator ensure continuous power supply.
    • It can connect to the grid and feed surplus electricity back to the public power network.
    • It supports remote monitoring via RS485 port or mobile APP over WiFi/4G connection.




    1. It adopts dual-output intelligent load management, where primary and secondary outputs connect separate loads for flexible power distribution.
    2. It supports battery-free operation to supply power via solar or grid, greatly cutting the total system cost.
    3. Lithium BMS communication is available, enabling the inverter to communicate with lithium batteries for efficient battery management.
    4. An optional WiFi module can be installed to connect to a mobile app, allowing for remote monitoring of the entire solar energy system's status at any time.

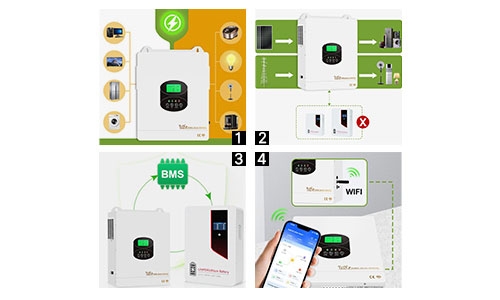

    8kw hybrid inverter details

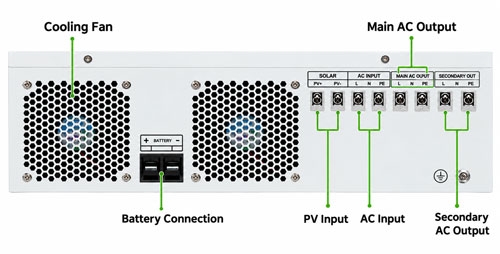

    Structure

    8kw hybrid inverter structure

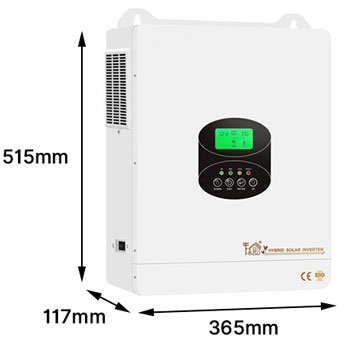

    Dimension (unit: mm)

    8kw hybrid inverter dimensions

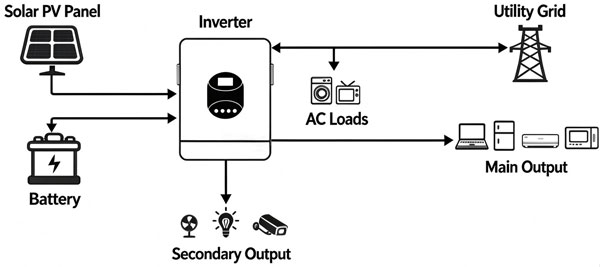

    Grid Connection Mode

    8kw hybrid inverter grid connection mode

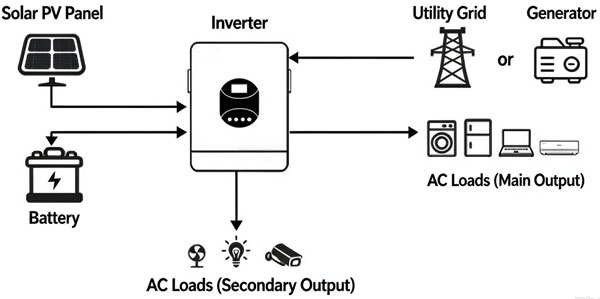

    Off Grid Mode / Hybrid Mode

    8kw hybrid inverter off grid hybrid mode

    Application

    8kw hybrid inverter for home appliances

    Home Appliances

    8kw hybrid inverter for outdoor

    Outdoor

    8kw hybrid inverter for small factory

    Small Factory

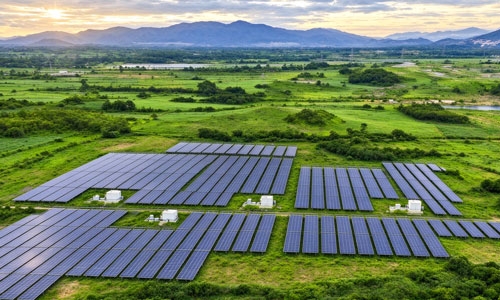

    8kw hybrid inverter for agriculture

    Agriculture

    FAQ

    Q1: What operating modes does the 8kw hybrid inverter support?

    It supports grid-tied, off-grid, and hybrid operating modes. The inverter can manage solar, battery, and grid power according to system settings. Grid export and dual-output load management depend on the installation and configuration.

    Q2: What AC output voltage and frequency does the 8kw hybrid inverter provide?

    The inverter provides single-phase 220V, 230V, or 240V AC output at 50Hz or 60Hz, with pure sine wave power for compatible household and commercial electrical loads.
