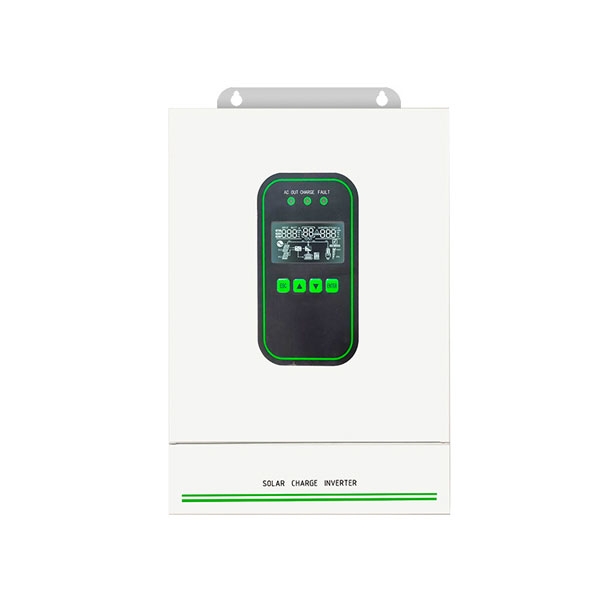

    Picture of 7kW Split Phase Hybrid Inverter
    Picture of 7kW Split Phase Hybrid Inverter
    Picture of 7kW Split Phase Hybrid Inverter

    7kW Split Phase Hybrid Inverter

    0 review(s) | Add your review
    SKU: PH-HI-JN-HK4872-150-500S-B
    $1,581.77
    ● 7kW hybrid inverter supports 120V/240V split-phase output, 7.2kW rated power, 10.8kVA peak power, and up to 4HP motors. ● Dual MPPT channels with up to 9000W total input (4500W + 4500W); max PV open-circuit voltage of 500V DC. ● Designed for 51.2V battery systems; max AC charging current of 120A and max combined charging current (PV+AC) of 150A. ● Fast transfer time of 10ms (typical); supports parallel expansion of 1–6 units and USB/RS485/WiFi/GPRS monitoring.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    The PowerHome 7kW split phase hybrid inverter provides 120/240V pure sine wave output, rated at 7.2kW in split-phase mode and 6kW in single-phase mode, with 10,800VA peak power and support for up to 4HP motor loads. It features dual MPPTs, up to 9kW PV input, 500V DC max PV voltage, MPPT voltage range 90V–450V DC, and supports 51.2V batteries. With 10ms transfer time, 1–6 unit parallel operation, -10°C to 55°C working temperature, and IP20 protection, it suits residential solar and energy storage systems.

    Specification

    Model PH-HI-JN-HK4872-150-500S-B
    Parallel Mode
    Parallel Capacity 1~6
    Utility/Grid Mode
    Rated Input Voltage 120 (L1/N, L2/N)/240V AC (L1/L2)
    Input Voltage Range (85V AC~140V AC)±2%
    Frequency 50Hz/60Hz (Auto detection)
    Frequency Range 47±0.3Hz~55±0.3Hz (50Hz); 57±0.3Hz~65±0.3Hz
    Overload/Short Circuit Protection Circuit breaker
    Max Efficiency >95%
    Transfer Time (Bypass & Inverter) 10ms (Typical)
    AC Backfeed Protection Yes
    Max Bypass Overload Current 2pole, 50A/50A (L1/L2)
    Inverter Mode
    Output Waveform Pure sine wave
    Rated Output Power (VA) Split-phase: 7200
    Single-phase: 6000 (Limited by terminal connection)
    Rated Output Power (W) Split-phase: 7200
    Single-phase: 6000 (Limited by terminal connection)
    Power Factor 1
    Rated Output Voltage (Vac) 120V AC (L1/N, L2/N)/240V AC (L1/L2)
    Output Voltage Error ±5%
    Output Frequency Range (Hz) 50Hz±0.3Hz/60Hz±0.3Hz
    Max Efficiency >91%
    Overload Protection (105% < Load < 110%) ±5%: Alarm and shutdown after 5 minutes;
    (110% < Load < 125%) ±5%: Alarm and shutdown after 10 seconds;
    (Load > 125%) ±5%: Alarm and shutdown after 5 seconds
    Peak Power Split-phase: 10800VA
    Single-phase: 10800VA
    Motor Load Capacity 4HP
    Output Short Circuit Protection Short circuit after continuous short circuit for 1s
    Bypass Circuit Breaker Spec 50A/50A (L1/L2)
    Rated Battery Input Voltage 51.2V (Min start voltage 44V)
    Battery Voltage Range 40.0V DC~58.6V DC±0.6V DC (Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery... settable via screen)
    Power Saving Mode Enters power saving mode when load per phase is zero or <25W
    AC Charging
    Battery Type Lead-acid or lithium battery
    Max Charging Current (Settable) 120A
    Charging Current Error ±5A DC
    Charging Voltage Range 40 - 58.6V DC
    Short Circuit Protection Circuit breaker & fuse
    Circuit Breaker Spec 2pole, 50A/50A (L1/L2)
    Solar Charging
    MPPT Channels 2
    Max PV Open Circuit Voltage 500V DC
    PV Operating Voltage Range 90V DC~485V DC
    MPPT Voltage Range 90V DC~450V DC
    MPPT Voltage Range 40-58.6V DC
    Charging Voltage Range 4500W+4500W
    Max PV Input Current 16A+16A
    Solar Charging Current Range (Settable) 150A
    Charging Short Circuit Protection Fuse
    Wiring Protection Reverse polarity protection
    Max Hybrid Charging Current (PV+AC)
    Max Hybrid Charging Current (Settable) 0-150A
    Operating Temperature Range -10°C to 55°C (>45°C derating)
    Storage Temperature Range -25°C ~ 60°C
    Humidity Range 5% to 95% (Conformal coating protection)
    Noise ≤60dB
    Cooling Forced air cooling, adjustable fan speed
    Communication Interface USB/RS485/dry contact control/(Wi-Fi/GPRS optional)
    Dimensions (L*W*H) 580mm*359mm*127mm
    Weight (kg) 15.9kg

    PDF computing7kW Split Phase Hybrid Inverter User Manual

    Details

    7kw hybrid inverter icons

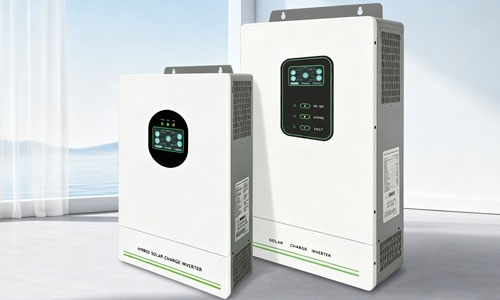

    7kw hybrid inverter feature

    Feature

    • Smart Cooling & Directed Airflow: Intelligent temperature control and optimized air ducts improve ventilation and heat dissipation for stable operation.
    • Large Display & Easy Controls: A clear large screen with intuitive buttons makes status monitoring and operation simple.
    • Dual PV & Battery Power: Combines solar and battery energy with seamless grid-tied/off-grid switching for flexible power management.
    • US Split-Phase Hybrid Design: Supports 120/240V split-phase output for North American residential grid and backup power systems.




    1. Pure sine wave output, high-efficiency and stable power conversion to reduce load loss.
    2. Uninterruptible power supply. 4 charging modes and 2 charging methods keep your appliances running during blackouts.
    3. Optional WIFI/GPRS module. Monitor real-time generation and storage data remotely via mobile phone.
    4. Multiple built-in protections, actively detect electrical hazards to safeguard inverter and connected loads.
    5. MPPT efficiency up to 99.9%, providing efficient and stable output, reducing wear and tear on electrical equipment.
    6. Compatible with various batteries with strong charging current. Battery parameters can be customized freely.
    7kw hybrid inverter details

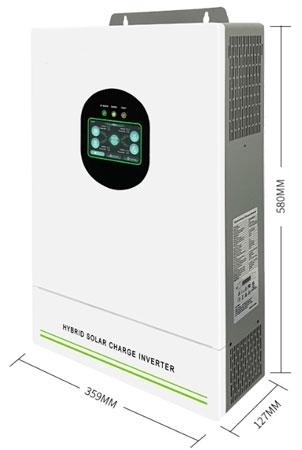

    Dimension (unit: mm)

    7kw hybrid inverter dimension

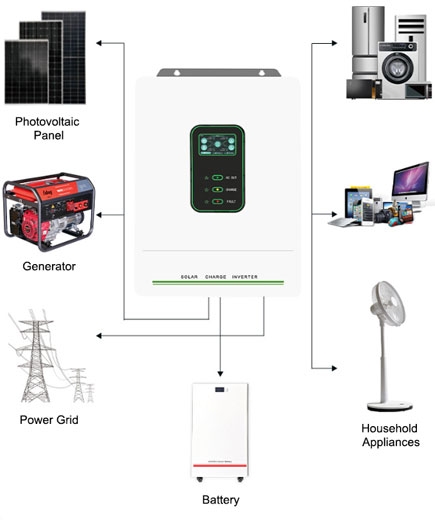

    Wiring Diagram

    7kw hybrid inverter wiring diagram


    Application

    7kw hybrid inverter for small shops

    Small Shops

    7kw hybrid inverter for small factory

    Small Factory

    7kw hybrid inverter for remote areas

    Remote Areas

    7kw hybrid inverter for portable power supply

    Portable Power Supply

    FAQ

    Q1: What is the difference in output power between the single-phase and split-phase versions of this 7kW hybrid inverter?

    With split-phase output, the rated power is 7200W/7200VA; with single-phase output, due to physical limitations of the wiring terminals, the maximum rated power is 6000W/6000VA.

    Q2: How many MPPTs does this 7kW hybrid inverter support? What is the maximum PV input voltage?

    It is equipped with 2 independent MPPTs. The maximum PV open-circuit voltage (Voc) is 500V DC, and the MPPT operating voltage range is 90V DC~450V DC.
