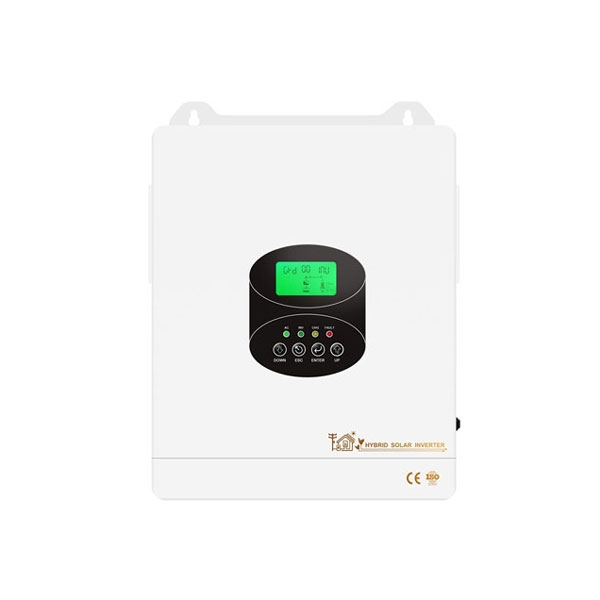

10kW WiFi Dual Output Hybrid Inverter

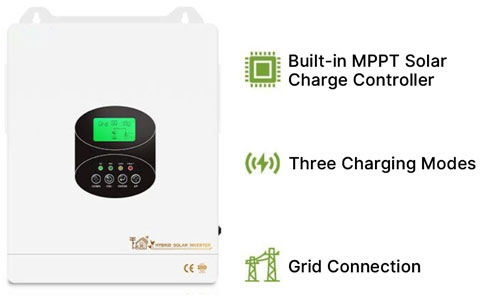

Feature

• It features a built-in MPPT solar charge controller and supports battery-less startup using solar or grid power.
• It supports three charging sources: solar PV, utility grid, and generator, providing flexible power management.
• It supports grid-tied operation, allowing surplus solar power to be fed back into the utility grid.
• It supports remote monitoring via the RS485 port or a mobile app using an optional WiFi or 4G module.

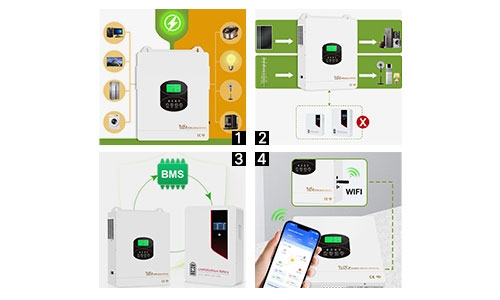

1. It features dual AC outputs for flexible load management, allowing separate control of main and secondary loads.
2. It supports battery-less operation, reducing installation costs and simplifying system setup.
3. It supports lithium battery BMS communication for smarter battery management.
4. It supports an optional WiFi module for real-time system monitoring via a mobile app.

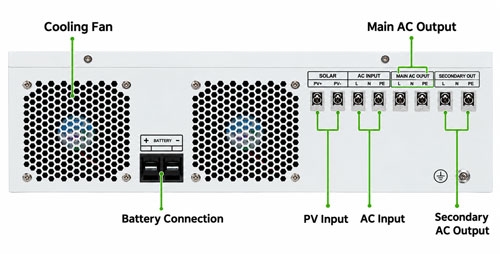

Structure

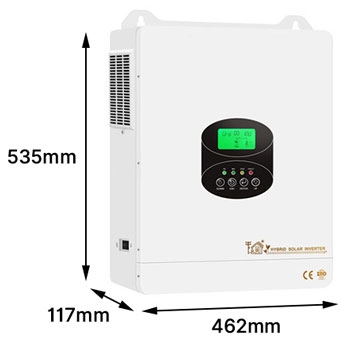

Dimension (unit: mm)

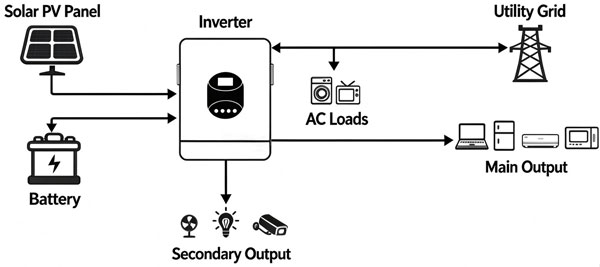

Grid Connection Mode

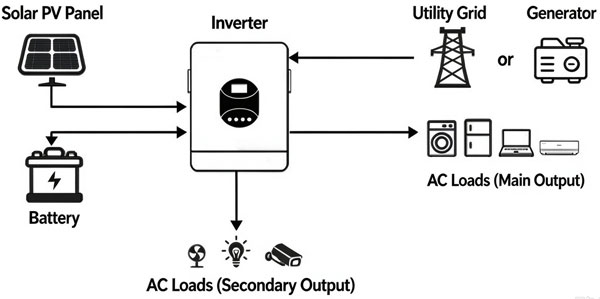

Off Grid Mode / Hybrid Mode

Application

Agriculture

Home Appliances

Outdoor

Small Factory

Q1: What are the advantages of dual AC outputs on a 10kW hybrid inverter?

The 10kW hybrid inverter features dual independent AC outputs for smart load management. It can prioritize critical loads and automatically disconnect non-essential loads when solar power is insufficient, helping distribute available power efficiently and prevent overload shutdowns.

Q2: What working modes does the 10kW hybrid solar inverter support?

It supports three operating modes: grid-tied, off-grid, and hybrid.

• Grid-tied mode: Feeds surplus solar power back to the utility grid when permitted and properly configured.
• Off-grid mode: Supplies power independently of the utility grid during outages.
• Hybrid mode: Combines solar, battery, and grid power, managing energy sources according to solar generation, battery level, and grid availability.
