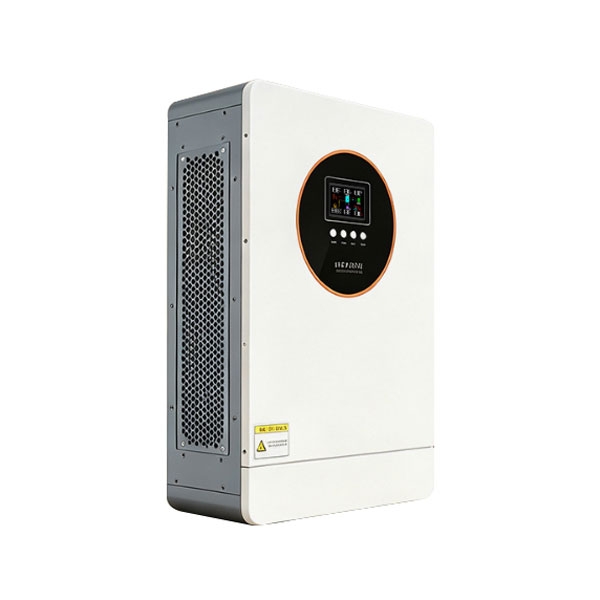

2.5kW Single Phase Hybrid Inverter

Feature

• All-in-One Solar Energy Storage: Supports solar self-consumption and surplus energy export for efficient home energy management.
• Seamless Backup Power: Automatically switches to battery power during grid outages to keep essential appliances running.
• High Efficiency with MPPT: Minimizes energy loss and optimizes solar power generation with advanced MPPT technology.
• Smart Grid Integration: Ensures synchronized grid operation and stable power output for reliable equipment performance.

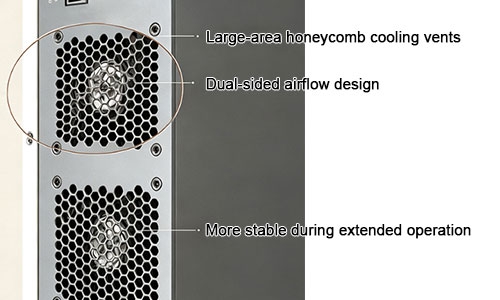

• Efficient Cooling for Stable Operation: Dedicated ventilation openings improve heat dissipation, ensuring stable output even under heavy loads.
• Overheat Protection for Longer Service Life: Effective thermal management reduces overheating risks and supports long-term inverter reliability.
• Clear Wiring Labels and Tool-Free Connections: Clearly marked terminals and interfaces simplify wiring and enable quick, tool-free connections.
• Easy Installation and Setup: A user-friendly design simplifies installation and commissioning, saving time and labor costs.

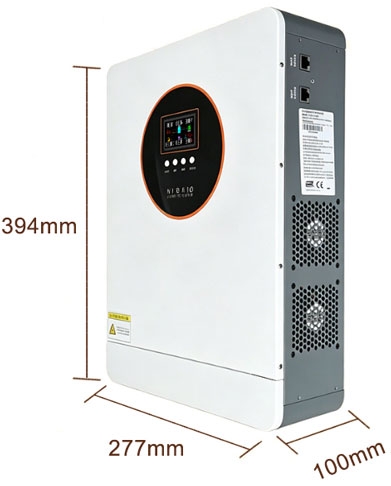

Dimension (unit: mm)

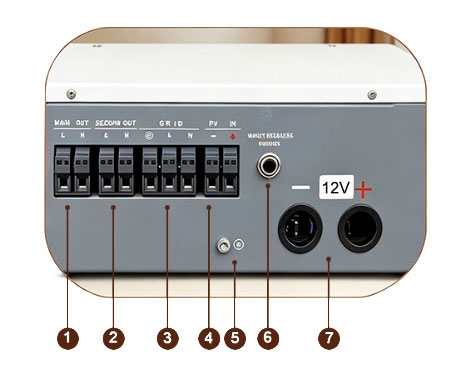

Structural Diagram

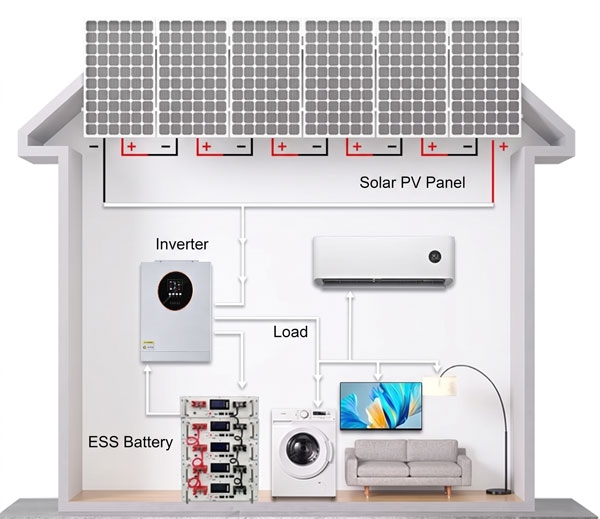

Working Principle Diagram

Application

Agriculture

Home Appliances

Housing

Outdoor

Q1: What power modes does this 2.5kw hybrid inverter support?

It supports self-consumption with grid feed-in as well as backup power mode. Solar power is prioritized for household loads, while surplus power can charge the storage battery or be fed into the grid. During sudden power outages, it seamlessly switches to battery power to keep essential appliances running.

Q2: What capacity of PV panels and batteries can the 2.5kw hybrid inverter support?

• Solar Input: Rated PV input power is 3600W (maximum array power up to 6500W), with an MPPT operating voltage range of 60–450VDC.
• Battery Compatibility: Supports 24VDC residential lithium battery packs with 3000W capacity, offering a maximum charging/discharging current of up to 100A.
