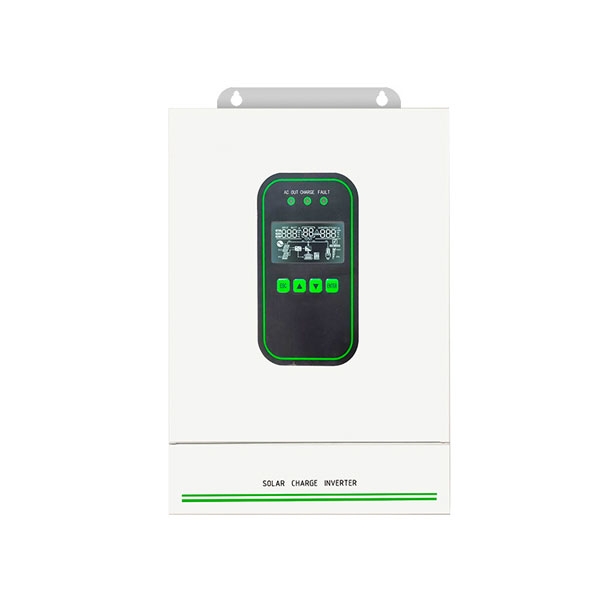

    6.2kW Off Grid Hybrid Inverter

    0 review(s) | Add your review
    SKU: PH-HI-JN-HK4862-100-500-B
    $796.77
    ● 6.2kW off grid hybrid inverter, rated output power 6.2kW, 230V AC output, 50/60Hz frequency, 170–280V AC input. ● 99.9% MPPT efficiency, IP20 protection, air cooling, -10°C to 55°C operating temperature, with derating above 45°C. ● Multiple protection functions, compatibility with various battery types, and a clear LCD display for system status. ● RS485 communication with optional CT and WiFi modules for export control and remote monitoring.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    The PowerHome 6.2kW hybrid inverter is designed for residential and commercial energy storage systems, featuring a 6.2kW rated output, 230V AC output, 50/60Hz frequency, and 170–280V AC input. It supports various battery types and uses advanced MPPT technology with up to 99.9% MPPT efficiency for effective solar energy conversion. An LCD display provides clear system status, while built-in short-circuit, over/under-voltage, overload, and reverse-power protection help safeguard the system. It supports RS485 communication and an optional anti-reflux CT for power backflow control. With air cooling and an operating temperature range of -10°C to 55°C, it is suitable for a range of hybrid energy storage applications.

    Specification

    Model PH-HI-JN-HK4862-100-500-B
    Parallel Mode
    Parallel Capacity NO/1-6
    Line Mode (AC Mode)
    Rated Input Voltage 220/230V AC
    Input Voltage Range (170V AC~280V AC) ±2% (UPS mode); (90V AC-280V AC) ±2% (APL mode)
    Frequency 50Hz/60Hz (Auto sensing)
    Frequency Range 47±0.3Hz~55±0.3Hz (50Hz); 57±0.3Hz~65±0.3Hz (60Hz)
    Overload / Short Circuit Protection Circuit breaker
    Max Efficiency > 95%
    Transfer Time (Bypass & Inverter) 10ms (Typical)
    Backfeed Protection Yes
    Max Bypass Overload Current 40A
    Inverter Mode
    Output Voltage Waveform Pure sine wave
    Rated Output Power 6200VA / 6200W
    Power Factor 1
    Rated Output Voltage (Vac) 230V AC
    Output Voltage Error ±5%
    Output Frequency Range (Hz) 50Hz±0.3Hz / 60Hz±0.3Hz
    Max Efficiency > 92%
    Overload Protection (102%<load<125%)±10%: & 5 error after min;(125%<load<150%)±10%: & 10 error after output sec; load>150%±10%: error & shutdown output after 5 sec
    Peak Power 12000VA
    Motor Capacity 4HP
    Output Short Circuit Protection Circuit breaker
    Bypass Breaker Specification 40A
    Rated Battery Input Voltage 48V (Min startup voltage 44V)
    Battery Voltage Range 40.0V DC~60V DC±0.6V DC
    (Low voltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery configurable via LCD)
    Power Saving Mode Load ≤ 25W enters power saving mode
    AC Charging
    Battery Type Lead-acid or lithium battery
    Max Charge Current (Configurable) 80A
    Charge Current Error ±5A DC
    Charge Voltage Range 40 - 60V DC
    Short Circuit Protection Circuit breaker & fuse
    Breaker Specification 40A
    Solar Charging (PV)
    MPPT Tracker Quantity \
    Max PV Open Circuit Voltage 500V DC
    PV Operating Voltage Range 120-500V DC
    MPPT Voltage Range 90-450V DC
    Battery Voltage Range 40-60V DC
    Max PV Input Power 6000W
    Max PV Input Current 22A
    Solar Charge Current Range (Configurable) 0-100A
    Charge Short Circuit Protection Fuse
    Reverse Polarity Protection Yes
    Max Combined Charge Current (PV+AC)
    Max Combined Charge Current (Configurable) 0-100A
    Operating Temperature Range -10°C to 55°C (>45°C derating)
    Storage Temperature Range -25°C - 60°C
    Humidity Range 5% to 95% (Conformal coating protection)
    Noise ≤ 60dB
    Cooling Forced air cooling, variable fan speed
    Communication Interface USB/RS485/dry contact control/(Wi-Fi/GPRS optional)
    Protection Level IP20
    Dimensions (L*W*D) 428mm*280mm*110mm
    Weight (kg) 8.75kg

    PDF computingOff Grid Hybrid Inverter User Manual

    Details

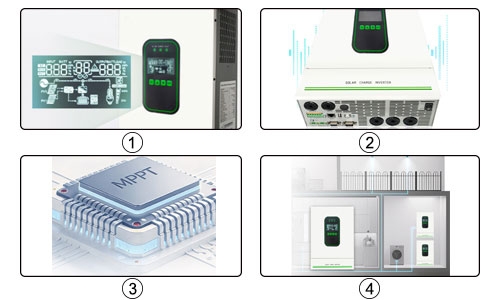

    6.2kw hybrid inverter feature

    Feature

    • User-Friendly Operation: Features an intuitive LCD screen for real-time status and parameter monitoring, with support for remote monitoring.
    • Stable & Reliable: Employs fully digital dual closed-loop voltage and current control with advanced SPWM technology for pure sine wave output.
    • High Efficiency & Energy Saving: Equipped with MPPT technology achieving up to 99.9% charging efficiency and minimized no-load power loss.
    • Flexible Expansion: Supports both on-grid and off-grid modes, with parallel capability for up to 6 units to scale power capacity as needed.




    • Efficient Cooling System: Features smart temperature control combined with a directional air duct design for high-efficiency ventilation.
    • Flexible Parallel Expansion: Supports parallel connection of 1 to 6 units to scale power capacity easily.
    • User-Friendly Interface: Equipped with a large LCD screen and intuitive control buttons for quick status monitoring and setting adjustments.
    • Uninterruptible Power Supply (UPS): Built-in UPS function provides seamless, continuous power to keep critical loads running.
    • Comprehensive Safety Protection: Integrated multi-layer protection mechanisms ensure overall system safety and operational reliability.
    • Smart Charge & Discharge Management: Offers multiple charge/discharge management modes tailored for energy saving and power supplement scenarios.

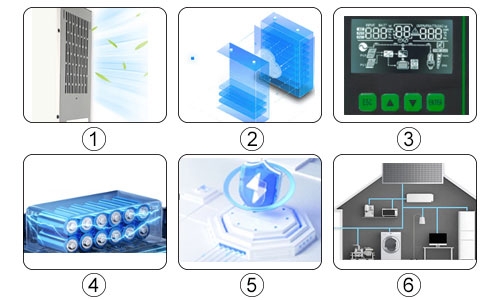

    6.2kw hybrid inverter details

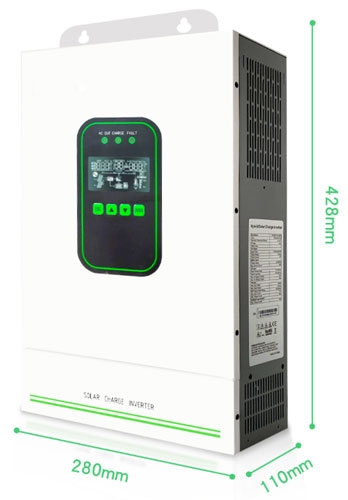

    Dimension (unit: mm)

    6.2kw hybrid inverter dimensions

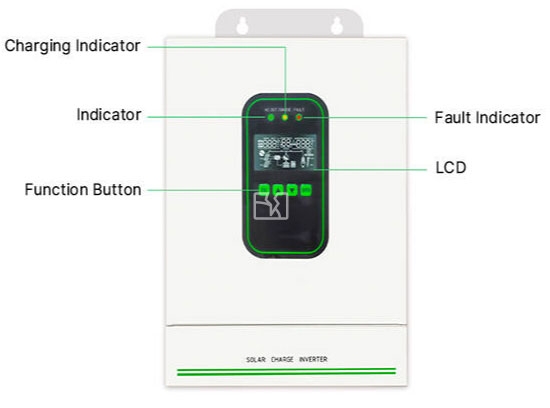

    Structure

    6.2kw hybrid inverter structure

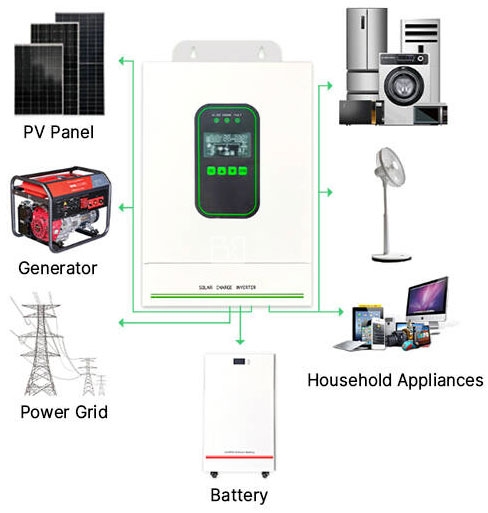

    Wiring Diagram

    6.2kw hybrid inverter wiring diagram


    Application

    6.2kw hybrid inverter for home power supply

    Home Power Supply

    6.2kw hybrid inverter for photovoltaic energy storage

    Photovoltaic Energy Storage

    6.2kw hybrid inverter for remote power supply

    Remote Power Supply

    6.2kw hybrid inverter for small commercial office

    Small Commercial Office

    FAQ

    Q1: What battery types are compatible with this 6.2kW hybrid inverter?

    It supports Lithium Iron Phosphate (LiFePO4), Lead-acid, Ternary Lithium, and other common battery types. Charging and discharging parameters can be easily customized via the LCD screen.

    Q2: What wire size and circuit breaker are recommended for the 6.2kW hybrid inverter?

    For the 6.2kW hybrid inverter, the recommended AC output cable size is 3.31mm² / 12AWG, and the recommended circuit breaker is 2P-40A.
