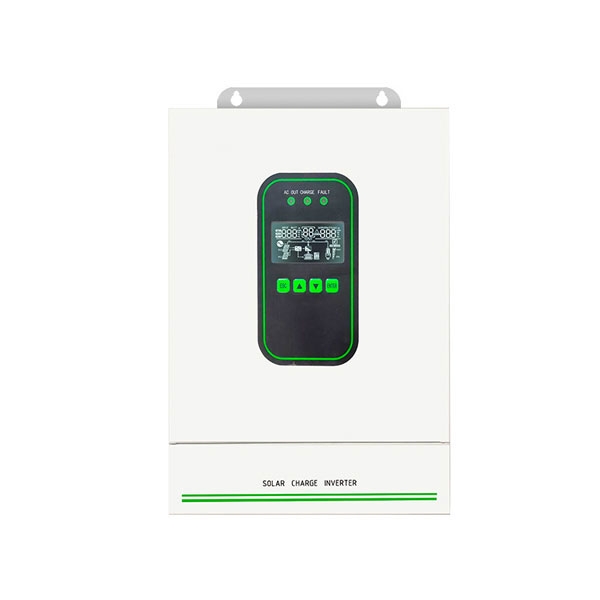

    Picture of 6.5kW 48V Hybrid Inverter
    Picture of 6.5kW 48V Hybrid Inverter
    Picture of 6.5kW 48V Hybrid Inverter
    Picture of 6.5kW 48V Hybrid Inverter

    6.5kW 48V Hybrid Inverter

    0 review(s) | Add your review
    SKU: PH-HI-JN-HK4865-150-300-B
    $1,420.62
    ● 6.5kW 48V hybrid inverter with 12kW surge capacity, pure sine wave 120VAC output, and 5HP motor starting capability. ● Dual MPPT supports up to 9000W PV input, 150A combined charging, and lithium or lead-acid batteries. ● Supports up to 6 units in parallel, 10ms UPS switching, plus short-circuit, overload, and reverse-flow protection. ● USB/RS485/WiFi/GPRS monitoring, temperature-controlled cooling, ≤60dB operation, and -10~55℃ working range.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    This 6.5kW hybrid solar inverter features a 48V system, 120VAC pure sine wave output, 6.5kW rated power, and 12kW peak power, supporting loads up to 5HP. Dual MPPT supports up to 9000W PV input and 150A charging, with compatibility for 48V lithium and lead-acid batteries. It supports 1–6 unit parallel operation and a typical 10ms UPS transfer time. USB, RS485, WiFi, and GPRS enable remote monitoring, while overload, short-circuit, and reverse-flow protection ensure safe operation. Intelligent cooling supports -10~55℃ operation with noise levels ≤60dB.

    Specification

    Model PH-HI-JN-HK4865-150-300-B
    Parallel Mode
    Parallel Capacity NO/1-6
    Line Mode (AC Mode)
    Rated Input Voltage 120V AC ± 5%
    Input Voltage Range (90V AC~140V AC) ±2%
    Frequency 50Hz/60Hz (Auto sensing)
    Frequency Range 47±0.3Hz~55±0.3Hz (50Hz); 57±0.3Hz~65±0.3Hz (60Hz)
    Overload / Short Circuit Protection Circuit breaker
    Max Efficiency > 95%
    Transfer Time (Bypass & Inverter) 10ms (Typical)
    Backfeed Protection Yes
    Max Bypass Overload Current 60A
    Inverter Mode
    Output Voltage Waveform Pure sine wave
    Rated Output Power 6500VA / 6500W
    Power Factor 1
    Rated Output Voltage (Vac) 120V AC
    Output Voltage Error ±5%
    Output Frequency Range (Hz) 57Hz±0.3Hz / 65Hz±0.3Hz
    Max Efficiency > 91%
    Overload Protection (102%<load<110%)±10%: & 5 error after min;(102%<load<110%)±10%: & 5 error after output sec; load>125%±10%: error & shutdown output after 5 sec
    Peak Power 12000VA
    Motor Capacity 5HP
    Output Short Circuit Protection Circuit breaker
    Bypass Breaker Specification 63A
    Rated Battery Input Voltage 48V (Min startup voltage 44V)
    Battery Voltage Range 40.0V DC~60V DC±0.6V DC
    (Low voltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery configurable via LCD)
    Power Saving Mode Load ≤ 50W enters power saving mode
    AC Charging
    Battery Type Lead-acid or lithium battery
    Max Charge Current (Configurable) 120A
    Charge Current Error ±5A DC
    Charge Voltage Range 40 - 60V DC
    Short Circuit Protection Circuit breaker & fuse
    Breaker Specification 63A
    Solar Charging (PV)
    MPPT Tracker Quantity 2
    Max PV Open Circuit Voltage 300V DC
    PV Operating Voltage Range 120-300V DC
    MPPT Voltage Range 90-260V DC
    Battery Voltage Range 40-60V DC
    Max PV Input Power 4500W+4500W
    Max PV Input Current 22A+22A
    Solar Charge Current Range (Configurable) 0-150A
    Charge Short Circuit Protection Fuse
    Reverse Polarity Protection Yes
    Max Combined Charge Current (PV+AC)
    Max Combined Charge Current (Configurable) 0-150A
    Operating Temperature Range -10°C to 55°C (>45°C derating)
    Storage Temperature Range -25°C - 60°C
    Humidity Range 5% to 95% (Conformal coating protection)
    Noise ≤ 60dB
    Cooling Forced air cooling, variable fan speed
    Communication Interface USB/RS485/dry contact control/(Wi-Fi/GPRS optional)
    Protection Level IP20
    Dimensions (L*W*D) 540mm*350mm*120mm
    Weight (kg) 18.5kg

    PDF computing48V Hybrid Inverter User Manual

    Details

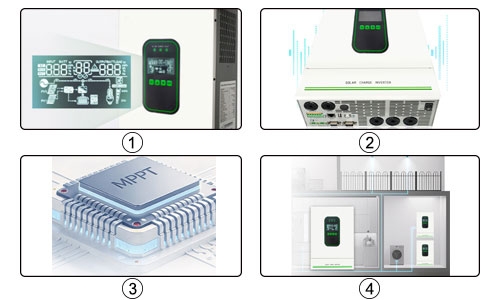

    6.5kw hybrid inverter feature

    Feature

    • Intuitive Operation: Features an easy-to-read LCD display for real-time operation status and parameters, with support for remote monitoring.
    • Stable & Reliable: Employs full-digital voltage and current double closed-loop control alongside advanced SPWM technology to deliver high-quality pure sine wave power.
    • High Efficiency & Energy Saving: Delivers an MPPT charging efficiency of up to 99.9% while significantly reducing no-load losses.
    • Flexible Expansion: Supports both off-grid and grid-tied capabilities, allowing parallel expansion of up to 6 units to meet growing power demands.




    • Intelligent Cooling: Speed-adjustable fans and directional air ducts optimize airflow for stable full-load operation.
    • Flexible Parallel Expansion: Supports 1–6 units in parallel to increase power capacity for higher energy demands.
    • LCD Display & Buttons: Monitor PV, battery, and load data and easily configure settings.
    • Uninterruptible Power: Fast grid-to-battery switching keeps critical appliances powered during outages.
    • Comprehensive Protection: Provides overload, short-circuit, overvoltage, undervoltage, and AC anti-backflow protection.
    • Flexible Energy Management: Multiple charging and discharging modes support self-consumption, backup, and residential solar applications.
    6.5kw hybrid inverter details

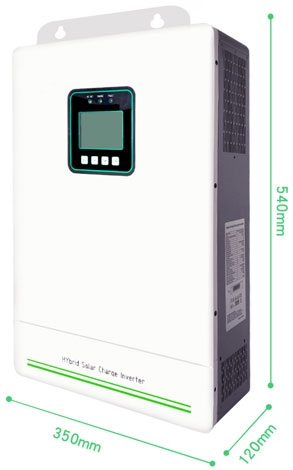

    Dimension (unit: mm)

    6.5kw hybrid inverter dimension

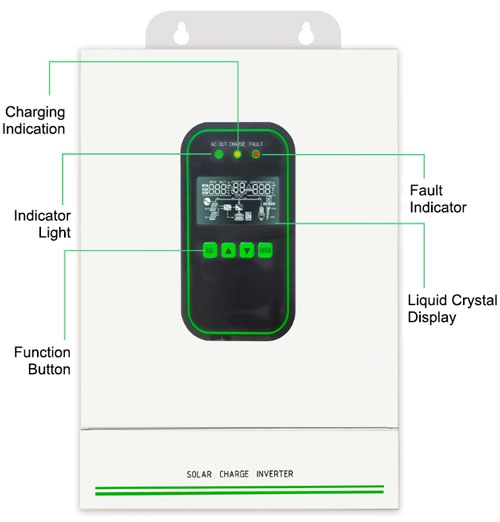

    Structure

    6.5kw hybrid inverter structure

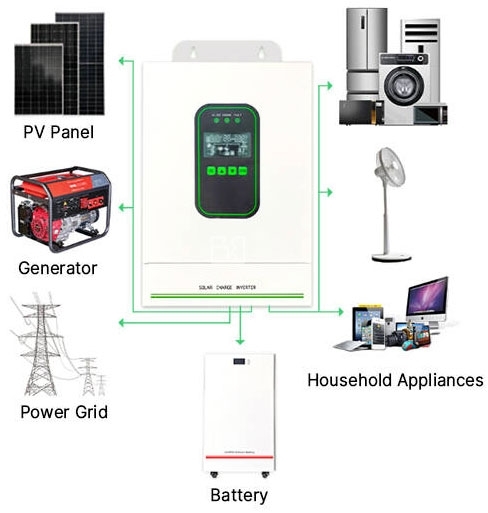

    Wiring Diagram

    6.5kw hybrid inverter wiring diagram


    Application

    6.5kw hybrid inverter for home power supply

    Home Power Supply

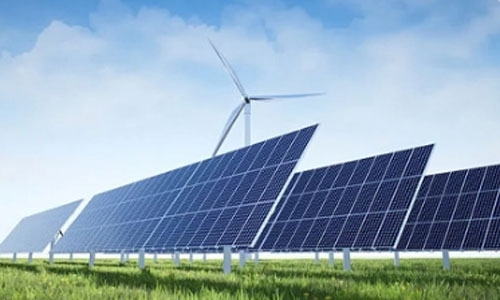

    6.5kw hybrid inverter for photovoltaic energy storage

    Photovoltaic Energy Storage

    6.5kw hybrid inverter for remote power supply

    Remote Power Supply

    6.5kw hybrid inverter for small commercial office

    Small Commercial Office

    FAQ

    Q1: What are the standards for the output voltage and waveform of this 6.5kW hybrid inverter? Which regions is it suitable for?

    The output waveform is a pure sine wave. The rated output voltage is 120Vac (±5%), and the frequency is 57±0.3Hz / 65Hz±0.3Hz. It conforms to the US standard and is suitable for US voltage systems (110V/120V systems).

    Q2: What is the switching time for this 6.5kW grid-connected inverter when switching from AC power to inverter power? Will it cause a power outage?

    The typical switching time is 10ms. This allows for seamless switching for most household appliances, computers, and servers, preventing power outages.
