    Picture of 6kW WiFi Dual Output Hybrid Inverter
    Picture of 6kW WiFi Dual Output Hybrid Inverter
    Picture of 6kW WiFi Dual Output Hybrid Inverter
    Picture of 6kW WiFi Dual Output Hybrid Inverter
    Picture of 6kW WiFi Dual Output Hybrid Inverter

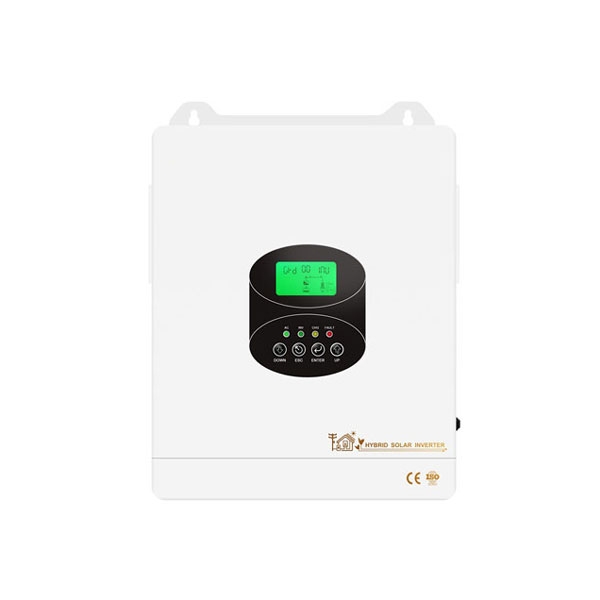

    6kW WiFi Dual Output Hybrid Inverter

    0 review(s) | Add your review
    SKU: PH-HI-HFP-S-63248
    $786.77
    ● 6kW WiFi dual output hybrid inverter supplies 6300W pure sine power at 220/230/240V (50/60Hz). ● Supports 7000W PV input with MPPT, 48V batteries, and 120A max charge current. ● Features 94% peak efficiency, ≥99.9% MPPT accuracy, and rapid 10ms transfer time. ● Equipped with full system protections and an IP20 enclosure (-10°C to 50°C).
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    The 6.3kW hybrid solar inverter features a 7000W MPPT solar input and a 48V battery system. It supports battery-less operation, three charging modes (solar, grid, and generator), grid-tie power feedback, and dual-output load management. With lithium battery BMS communication and WiFi/RS485 monitoring, it provides flexible and efficient power management for residential and commercial solar systems.

    Specification

    Solar PV
    Max PV Input Power 7000W
    MPPT Voltage Range 80VDC – 450VDC
    Rated Input Voltage 280VDC
    Max PV Input Voltage Voc (Lowest Temp) 500VDC
    Max PV Input Current 27A
    Number of MPPT Trackers (Input Channels) 1 channel
    Battery & Charger
    Battery Type VRLA lead-acid / lithium (Customizable via front panel settings)
    Rated Battery Voltage 48VDC
    Battery Voltage Range 42 – 60VDC (Default)
    Max PV Charging Current 120A
    Max AC Charging Current 80A
    Max Total Charging Current 120A
    AC Output (Grid)
    Rated Output Power 6300W
    Rated Output Voltage 220VAC / 230VAC / 240VAC
    Output Voltage Range 187VAC – 264VAC
    Rated Output Frequency 50Hz / 60Hz
    Output Frequency Range 47Hz – 52Hz (50Hz), 57Hz – 62Hz (60Hz)
    Rated Output Current 28.6A / 27.4A / 26.2A
    Power Factor > 0.98 (At rated power)
    AC Input (Off-Grid)
    Rated Input Voltage 220V / 230V / 240V
    Utility Voltage Range 165VAC – 280VAC / 120VAC – 280VAC (Selectable)
    Rated Input Frequency 50Hz / 60Hz
    Input Frequency Range 45Hz – 55Hz (50Hz), 55Hz – 65Hz (60Hz)
    AC Output (Off-Grid)
    Rated Output Power 6300W
    Rated Output Voltage 220V / 230V / 240V
    Output Voltage Accuracy ±2%
    Rated Output Frequency 50Hz / 60Hz
    Output Frequency Accuracy ±1%
    Waveform Pure sine wave
    AC Input (Hybrid)
    Rated Input Voltage 220V / 230V / 240V
    Utility Voltage Range 187VAC – 264VAC
    Rated Input Frequency 50Hz / 60Hz
    Input Frequency Range 47Hz – 52Hz (50Hz), 57Hz – 62Hz (60Hz)
    AC Output (Hybrid)
    Rated Output Power 6300W
    Rated Output Voltage 220VAC / 230VAC / 240VAC
    Rated Output Current 28.6A / 27.4A / 26.2A
    General Specs
    Max Efficiency (Battery Discharge) 94% (Peak)
    MPPT Tracking Efficiency ≥ 99.9%
    Transfer Time 10ms (Typical)
    Display Panel LCD + LED
    Cooling Method Smart fan cooling
    Communication Interface RS485 / mobile app (Wi-Fi or GPRS) (Optional)
    Ingress Protection Rating IP20
    Installation Method Wall-mounted
    Protections
    Battery Under-Voltage Alarm 44VDC (Default)
    Battery Under-Voltage Cutoff 42VDC (Default)
    Anti-Islanding Protection ≤ 2s
    Overload Protection Auto-protection (Battery mode); breaker/fuse (Grid mode)
    Short Circuit Protection Auto-protection (Battery mode); breaker/fuse (Grid mode)
    Over-Temperature Protection > 90°C (Shutdown inverter & charger)
    Environment
    Operating Temperature -10°C to 50°C
    Storage Temperature -15°C to 60°C
    Noise Level ≤ 55dB
    Operating Altitude 2000m (Derating required above 2000m)
    Relative Humidity 0% – 95% (Non-condensing)
    Dimensions & Weight
    Product Dimensions 390 * 320 * 112 mm
    Package Dimensions 465 * 375 * 187 mm
    Net Weight 8 kg
    Gross Weight 9.3 kg

    PDF computingWiFi Dual Output Hybrid Inverter User Manual

    Details
    6kw hybrid inverter feature

    Feature

    • Built-in MPPT Solar Controller: Maximizes solar harvesting with integrated MPPT. Supports battery-less operation when grid or solar power is adequate.
    • 3 Flexible Charging Modes: Supports solar, utility grid, and generator charging to adapt seamlessly to any power scenario.
    • Grid-Tie Power Feedback: Feeds excess solar energy back into the utility grid to increase system efficiency and lower energy costs.
    • Remote Operation & Monitoring: Supports real-time tracking via RS485 or Mobile App (WiFi/4G) to manage system status anytime, anywhere.




    1. Dual Output Management: Features independent main and secondary outputs for smart load prioritization.
    2. Battery-Less Operation: Runs efficiently without batteries, reducing setup costs.
    3. BMS Communication: Direct lithium battery connectivity for smart management.
    4. WiFi App Access: Connects via optional WiFi module for instant status updates on phone.

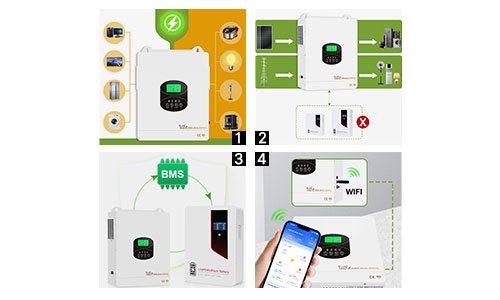

    6kw hybrid inverter details

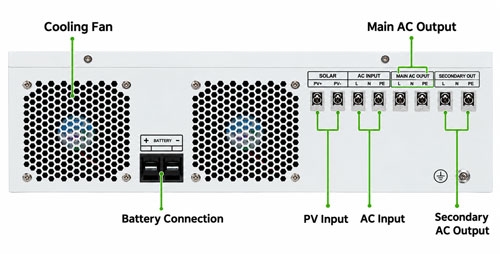

    Structure

    6kw hybrid inverter structure

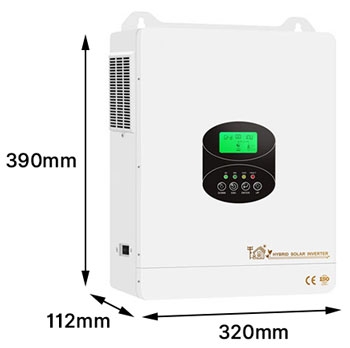

    Dimension (unit: mm)

    6kw hybrid inverter dimensions

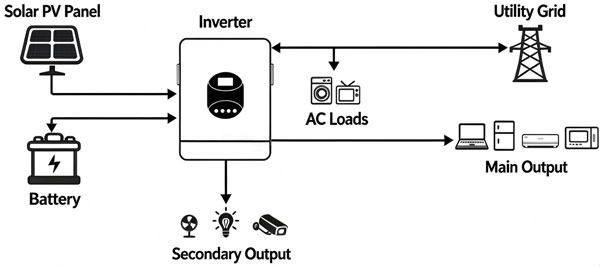

    Grid Connection Mode

    6kw hybrid inverter grid connection mode

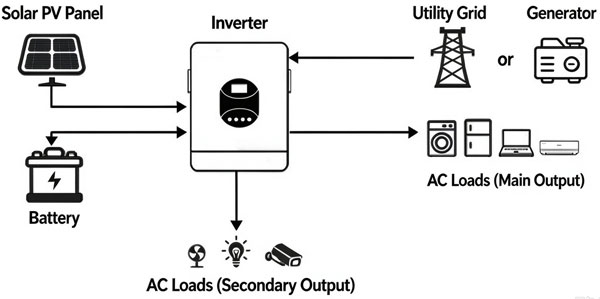

    Off Grid Mode / Hybrid Mode

    6kw hybrid inverter off grid hybrid mode

    Application

    6kw hybrid inverter for small factory

    Small Factory

    6kw hybrid inverter for emergency backup power

    Emergency Backup Power

    6kw hybrid inverter for home appliances

    Home Appliances

    6kw hybrid inverter for outdoor

    Outdoor

    FAQ

    Q1: Does this 6kW hybrid inverter support lithium batteries and BMS communication?

    Yes. It is fully compatible with lead-acid and lithium batteries (customizable via the operation panel) and features direct BMS communication for smarter, more efficient battery management.

    Q2: What is dual-output load management on this 6kW hybrid inverter?

    It features independent main and secondary outputs, allowing you to prioritize power delivery to essential loads and manage energy distribution more efficiently.
