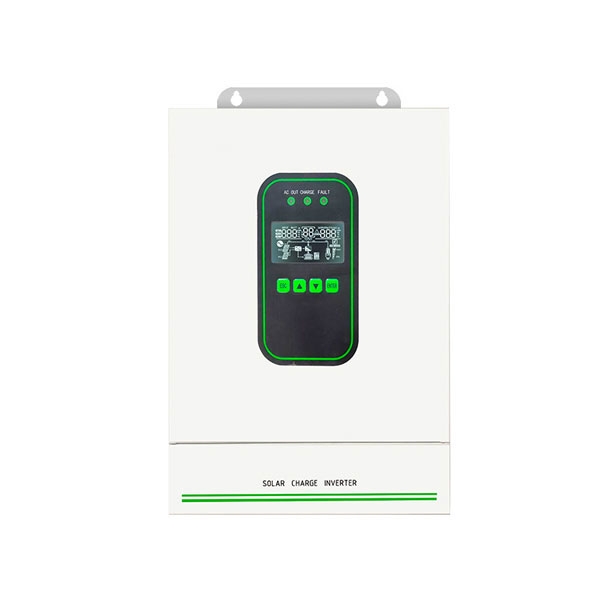

    3.6kW 48V Hybrid Inverter

    0 review(s) | Add your review
    SKU: PH-HI-JN-HK4836-80-300-B
    $848.31
    ● 3.6kW 48V hybrid inverter with 7.2kW peak power, 48V battery design, and 120VAC pure sine wave output for loads up to 2HP. ● Dual MPPT trackers, max 4500W PV input, supports solar + utility dual charging, compatible with lead-acid and lithium batteries. ● Up to 6 units parallelable, 10ms typical transfer time, built-in overload, short-circuit and AC anti-backflow protection. ● Multiple communication ports (USB/RS485/WiFi/GPRS), adjustable-speed fan cooling, works at -10~55℃ with noise ≤60dB.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    The PowerHome 3.6kW 48V hybrid inverter provides 120VAC pure sine wave output with 7,200VA peak power and up to 2HP motor support. It features dual MPPT controllers with up to 4,500W PV input, 10ms transfer time, and parallel operation for up to 6 units. Compatible with 48V Lead-Acid and Lithium batteries, it supports USB, RS485, WiFi, and GPRS monitoring, with built-in protection and forced-air cooling for residential solar storage and off-grid systems.

    Specification

    Model PH-HI-JN-HK4836-80-300-B
    Parallel Mode
    Parallel Capacity NO/1-6
    Line Mode (AC Mode)
    Rated Input Voltage 120V AC ± 5%
    Input Voltage Range (90V AC~140V AC) ±2%
    Frequency 50Hz/60Hz (Auto sensing)
    Frequency Range 47±0.3Hz~55±0.3Hz (50Hz); 57±0.3Hz~65±0.3Hz (60Hz)
    Overload / Short Circuit Protection Circuit breaker
    Max Efficiency > 95%
    Transfer Time (Bypass & Inverter) 10ms (Typical)
    Backfeed Protection Yes
    Max Bypass Overload Current 40A
    Inverter Mode
    Output Voltage Waveform Pure sine wave
    Rated Output Power 3600VA / 3600W
    Power Factor 1
    Rated Output Voltage (Vac) 120V AC
    Output Voltage Error ±5%
    Output Frequency Range (Hz) 57Hz±0.3Hz / 65Hz±0.3Hz
    Max Efficiency > 91%
    Overload Protection (102%<load<110%)±10%: & 5 error after min;(102%<load<110%)±10%: & 5 error after output sec; load>125%±10%: error & shutdown output after 5 sec
    Peak Power 7200VA
    Motor Capacity 2HP
    Output Short Circuit Protection Circuit breaker
    Bypass Breaker Specification 40A
    Rated Battery Input Voltage 48V (Min startup voltage 44V)
    Battery Voltage Range 40.0V DC~60V DC±0.6V DC
    (Low voltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery configurable via LCD)
    Power Saving Mode Load ≤ 50W enters power saving mode
    AC Charging
    Battery Type Lead-acid or lithium battery
    Max Charge Current (Configurable) 40A
    Charge Current Error ±5A DC
    Charge Voltage Range 40 - 60V DC
    Short Circuit Protection Circuit breaker & fuse
    Breaker Specification 40A
    Solar Charging (PV)
    MPPT Tracker Quantity 2
    Max PV Open Circuit Voltage 300V DC
    PV Operating Voltage Range 120-300V DC
    MPPT Voltage Range 90-260V DC
    Battery Voltage Range 40-60V DC
    Max PV Input Power 4500W
    Max PV Input Current 27A
    Solar Charge Current Range (Configurable) 0-80A
    Charge Short Circuit Protection Fuse
    Reverse Polarity Protection Yes
    Max Combined Charge Current (PV+AC)
    Max Combined Charge Current (Configurable) 0-80A
    Operating Temperature Range -10°C to 55°C (>45°C derating)
    Storage Temperature Range -25°C - 60°C
    Humidity Range 5% to 95% (Conformal coating protection)
    Noise ≤ 60dB
    Cooling Forced air cooling, variable fan speed
    Communication Interface USB/RS485/dry contact control/(Wi-Fi/GPRS optional)
    Protection Level IP20
    Dimensions (L*W*D) 428mm*280mm*110mm
    Weight (kg) 7.8kg

    PDF computing48V Hybrid Inverter User Manual

    Details

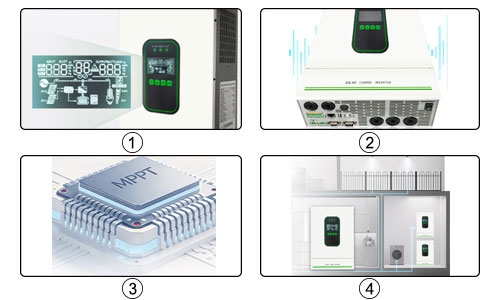

    3.6kw hybrid inverter feature

    Feature

    • Intuitive Operation: Features an easy-to-read LCD display for real-time operation status and parameters, with support for remote monitoring.
    • Stable & Reliable: Employs full-digital voltage and current double closed-loop control alongside advanced SPWM technology to deliver high-quality pure sine wave power.
    • High Efficiency & Energy Saving: Delivers an MPPT charging efficiency of up to 99.9% while significantly reducing no-load losses.
    • Flexible Expansion: Supports both off-grid and grid-tied capabilities, allowing parallel expansion of up to 6 units to meet growing power demands.




    • Intelligent Cooling: Speed-adjustable fans and directional air ducts optimize airflow for stable full-load operation.
    • Flexible Parallel Expansion: Supports 1–6 units in parallel to increase power capacity for higher energy demands.
    • LCD Display & Buttons: Monitor PV, battery, and load data and easily configure settings.
    • Uninterruptible Power: Fast grid-to-battery switching keeps critical appliances powered during outages.
    • Comprehensive Protection: Provides overload, short-circuit, overvoltage, undervoltage, and AC anti-backflow protection.
    • Flexible Energy Management: Multiple charging and discharging modes support self-consumption, backup, and residential solar applications.

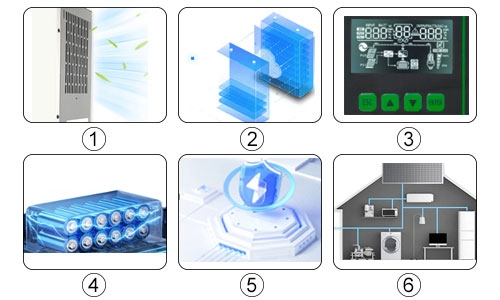

    3.6kw hybrid inverter details

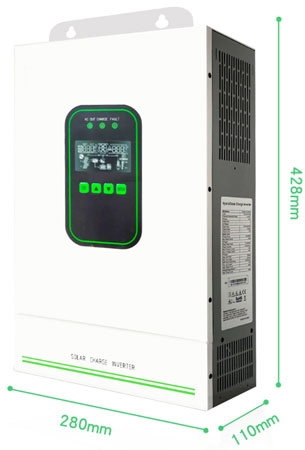

    Dimension (unit: mm)

    3.6kw hybrid inverter dimension

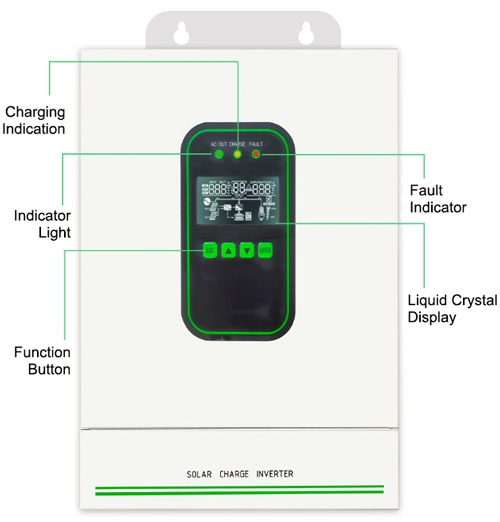

    Structure

    3.6kw hybrid inverter structure

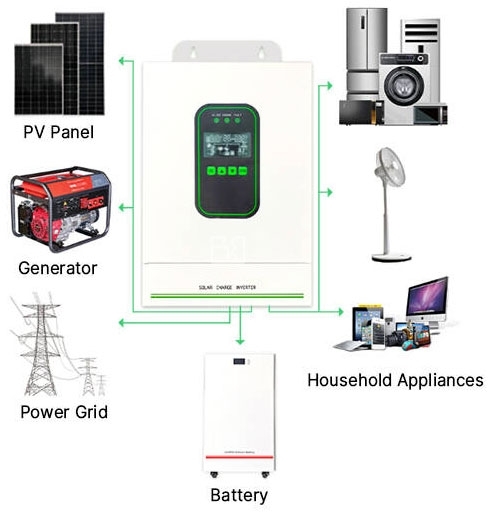

    Wiring Diagram

    3.6kw hybrid inverter wiring diagram


    Application

    3.6kw hybrid inverter for home power supply

    Home Power Supply

    3.6kw hybrid inverter for photovoltaic energy storage

    Photovoltaic Energy Storage

    3.6kw hybrid inverter for remote power supply

    Remote Power Supply

    3.6kw hybrid inverter for small commercial office

    Small Commercial Office

    FAQ

    Q1: How much solar power can the 3.6kW hybrid inverter handle?

    The inverter supports up to 4,500W of PV input, with a 120–300Vdc operating voltage range and 300Vdc maximum PV voltage.

    Q2: Can a 3.6kW hybrid inverter run a 2HP motor?

    Yes. With up to 7,200VA peak power, it can support motor loads up to 2HP, depending on the motor's starting current and overall system configuration.
