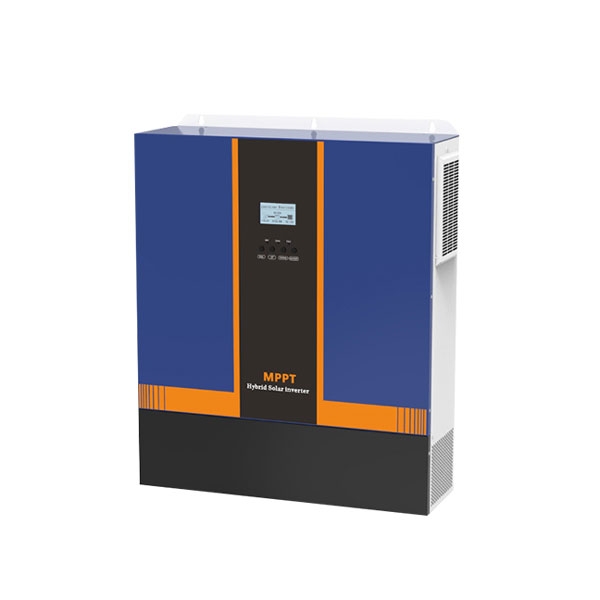

    Picture of 11kW WiFi Dual Output Hybrid Inverter

    11kW WiFi Dual Output Hybrid Inverter

    0 review(s) | Add your review
    SKU: PH-HI-NKH-11k
    $1,357.23
    ● 11kw hybrid inverter with a 22kW peak surge capacity, featuring IP20 protection and dual AC output (220/230/240V). ● Supports dual PV panel inputs (5000W*2) with a wide 60–500VDC MPPT range and up to 160A PV charging current. ● Compatible with 48V battery systems offering up to 160A combined AC+PV charging and a 10ms seamless UPS transfer time. ● Optional WiFi for remote app monitoring alongside an LCD screen and USB/RS232/RS485 communication ports.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    Designed for high-capacity power needs, the 11kW smart hybrid solar inverter delivers 11kW continuous power with a 22kW peak surge, IP20 protection, and dual AC outputs (220/230/240V). It features dual MPPT inputs supporting up to 5000W*2 solar arrays (60–500VDC), 160A rapid charging for 48V batteries, a 10ms UPS transfer time, and integrated LCD with WiFi remote control for seamless, reliable energy management.

    Specification

    Input
    Rated Power 11000W
    Input Voltage 220VAC / 230VAC / 240VAC
    Selectable Voltage Range 170–280VAC (For PC) / 90–280VAC (For Home Appliances)
    Frequency Range 50Hz / 60Hz (Auto Sensing)
    Output
    AC Voltage Regulation (Battery Mode) 220VAC / 230VAC / 240VAC
    Surge Power 22KW
    Peak Efficiency (PV to INV) 95%
    Peak Efficiency (Battery to INV) 94%
    Transfer Time 10 ms
    Overload Protection 1min @ 102%–110%, 10s @ 110%–130%, 3s @ 130%–150%, 0.2s @ >150% load
    Battery & AC Charger
    Battery Voltage 48VDC
    Floating Charge Voltage 54VDC
    Overcharge Protection 64VDC
    Maximum AC Charge Current 120A
    PV Charger
    Max PV Array Power 5000W * 2
    MPPT Operating Voltage Range 60–500VDC
    Max PV Array Open Circuit Voltage 500VDC
    Max PV Charge Current 160A
    Max Efficiency 99%
    Hybrid Charger
    Max AC + PV Charge Current 160A
    Environment
    Operating Humidity 5% to 95% Relative Humidity (Non-condensing)
    Operating Temperature 0°C to 55°C
    Storage Temperature -15°C to 60°C
    Protection Level IP20
    Physical Specs
    Communication Interface USB / RS232 / RS485
    Dimension (D×W×H) 540 × 403 × 122 mm
    Net Weight 15.5 kg
    Details

    11kw hybrid inverter icon

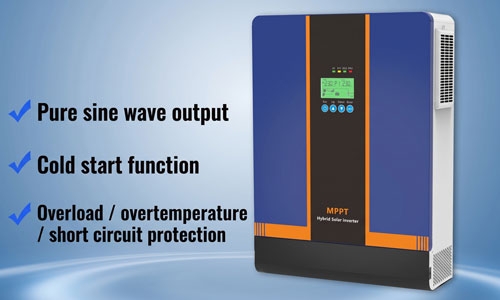

    11kw hybrid inverter feature

    Feature

    • Pure Sine Wave Output: Provides clean, low-distortion power for sensitive electronics and inductive loads.
    • Cold Start Function: Supports DC startup without grid power for backup and off-grid applications.
    • Grid and Generator Compatibility: Supports utility grid and compatible generator inputs for flexible power supply.
    • Automatic Restart: Automatically resumes operation after certain faults are cleared, reducing manual intervention.




    • Multiple Protection Mechanisms: Built-in circuit, overload, surge, short-circuit, low-voltage, and high-voltage protection helps ensure safe and reliable operation.
    • Wi-Fi Remote Monitoring: Monitor operating status, power data, and fault alerts remotely through a mobile app.
    • MPPT Optimization and LCD Display: The integrated MPPT controller optimizes solar power conversion, while the LCD displays input/output voltage and operating modes for easy monitoring.
    • Durable Design and Efficient Cooling: The rugged housing and optimized side and bottom ventilation help dissipate heat and maintain stable operation under high loads.
    11kw hybrid inverter details

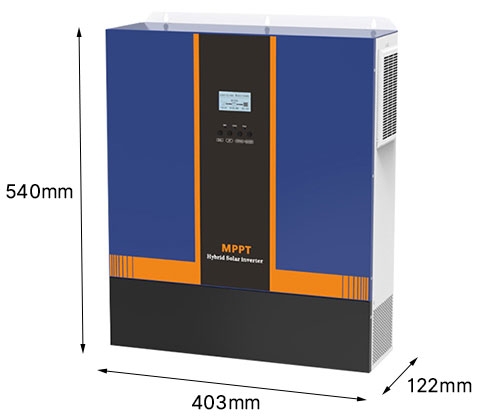

    Dimension (unit: mm)

    11kw hybrid inverter dimension

    Application

    11kw hybrid inverter for home appliances

    Home Appliances

    11kw hybrid inverter for emergency backup power

    Emergency Backup Power

    11kw hybrid inverter for outdoor

    Outdoor

    11kw hybrid inverter for small factory

    Small Factory

    FAQ

    Q1: What communication interfaces are available on the 11kw hybrid inverter?

    The unit comes equipped with USB, RS232, and RS485 ports. These interfaces allow you to connect monitoring software/devices for real-time status tracking, parameter configuration, and integration with BMS-enabled lithium batteries.

    Q2: How fast is the transfer time during a power grid outage? Will connected PCs reboot?

    The transfer time is 10 ms (milliseconds). This UPS-grade switching speed ensures seamless transition to battery power without causing computers, servers, routers, or home electronics to shut down or restart.
