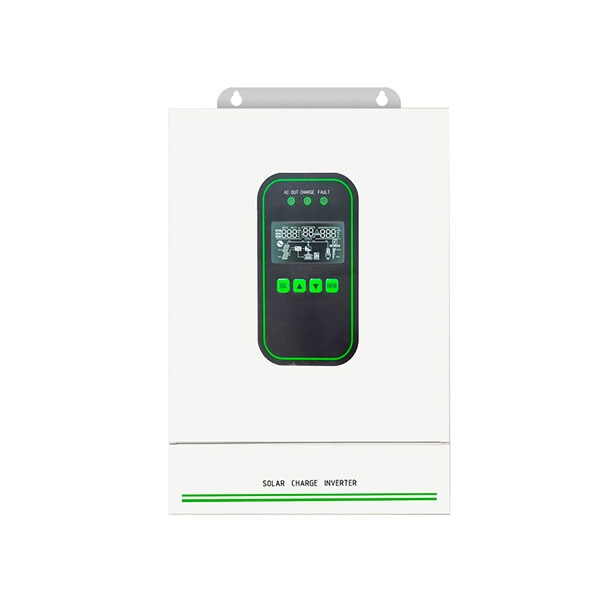

    12kW Off Grid Hybrid Inverter

    0 review(s) | Add your review
    SKU: PH-HI-JN-HK481200-150-500-B
    $1,458.66
    ● 12kW off grid hybrid inverter delivers pure sine wave 230V AC output, 12kW rated power, 24kVA surge power. ● Features 2 MPPT trackers, up to 500V DC PV voltage, 12kW total solar input (6kW+6kW), and 8HP motor capacity. ● Supports 48V lead-acid/lithium batteries with up to 150A AC/hybrid charging current and >93% efficiency. ● Supports 1–6 units in parallel, IP20 protection, with circuit breaker/fuse protection and USB/RS485/WiFi monitoring.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    The PowerHome 12kW hybrid inverter is designed for high-demand residential energy storage and commercial applications, delivering 230V AC pure sine wave power with a 24kVA surge capacity. It features dual MPPTs supporting up to 500Vdc PV input and up to 150A charging for 48V lithium or lead-acid batteries. With IP20 protection, conformal coating, and forced-air cooling, it operates from -10°C to 55°C, with derating above 45°C. The inverter supports parallel expansion of 1–6 units, USB/RS485 communication, optional Wi-Fi for remote monitoring, and an optional anti-reflux CT for power export control.

    Specification

    Model PH-HI-JN-HK481200-150-500-B
    Parallel Mode
    Parallel Capacity NO/1-6
    Line Mode (AC Mode)
    Rated Input Voltage 220/230V AC
    Input Voltage Range (170V AC~280V AC) ±2% (UPS mode); (90V AC-280V AC) ±2% (APL mode)
    Frequency 50Hz/60Hz (Auto sensing)
    Frequency Range 47±0.3Hz~55±0.3Hz (50Hz); 57±0.3Hz~65±0.3Hz (60Hz)
    Overload / Short Circuit Protection Circuit breaker
    Max Efficiency > 95%
    Transfer Time (Bypass & Inverter) 10ms (Typical)
    Backfeed Protection Yes
    Max Bypass Overload Current 60A
    Inverter Mode
    Output Voltage Waveform Pure sine wave
    Rated Output Power 12000VA / 12000W
    Power Factor 1
    Rated Output Voltage (Vac) 230V AC
    Output Voltage Error ±5%
    Output Frequency Range (Hz) 50Hz±0.3Hz / 60Hz±0.3Hz
    Max Efficiency > 93%
    Overload Protection (102%<load<125%)±10%: error & output shutdown after 5 min; (125%<load<150%)±10%: error & output shutdown after 10 sec; load≥150%±10%: error & output shutdown after 5 sec.
    Peak Power 24000VA
    Motor Capacity 8HP
    Output Short Circuit Protection Circuit breaker
    Bypass Breaker Specification 63A
    Rated Battery Input Voltage 48V (Min startup voltage 44V)
    Battery Voltage Range 40.0V DC~60V DC±0.6V DC
    (Low voltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery configurable via LCD)
    Power Saving Mode Load ≤ 50W enters power saving mode
    AC Charging
    Battery Type Lead-acid or lithium battery
    Max Charge Current (Configurable) 150A
    Charge Current Error ±5A DC
    Charge Voltage Range 40 - 60V DC
    Short Circuit Protection Circuit breaker & fuse
    Breaker Specification 63A
    Solar Charging (PV)
    MPPT Tracker Quantity 2
    Max PV Open Circuit Voltage 500V DC
    PV Operating Voltage Range 120-500V DC
    MPPT Voltage Range 90-450V DC
    Battery Voltage Range 40-60V DC
    Max PV Input Power 6000W+6000W
    Max PV Input Current 22A+22A
    Solar Charge Current Range (Configurable) 0-150A
    Charge Short Circuit Protection Fuse
    Reverse Polarity Protection Yes
    Max Combined Charge Current (PV+AC)
    Max Combined Charge Current (Configurable) 0-150A
    Operating Temperature Range -10°C to 55°C (>45°C derating)
    Storage Temperature Range -25°C - 60°C
    Humidity Range 5% to 95% (Conformal coating protection)
    Noise ≤ 60dB
    Cooling Forced air cooling, variable fan speed
    Communication Interface USB/RS485/dry contact control/(Wi-Fi/GPRS optional)
    Protection Level IP20
    Dimensions (L*W*D) 580mm*365mm*130mm
    Weight (kg) 19.2kg

    PDF computingOff Grid Hybrid Inverter User Manual

    Details
    12kw hybrid inverter feature

    Feature

    • User-Friendly Operation: Features an intuitive LCD screen for real-time status and parameter monitoring, with support for remote monitoring.
    • Stable & Reliable: Employs fully digital dual closed-loop voltage and current control with advanced SPWM technology for pure sine wave output.
    • High Efficiency & Energy Saving: Equipped with MPPT technology achieving up to 99.9% charging efficiency and minimized no-load power loss.
    • Flexible Expansion: Supports both on-grid and off-grid modes, with parallel capability for up to 6 units to scale power capacity as needed.




    • Efficient Cooling System: Features smart temperature control combined with a directional air duct design for high-efficiency ventilation.
    • Flexible Parallel Expansion: Supports parallel connection of 1 to 6 units to scale power capacity easily.
    • User-Friendly Interface: Equipped with a large LCD screen and intuitive control buttons for quick status monitoring and setting adjustments.
    • Uninterruptible Power Supply (UPS): Built-in UPS function provides seamless, continuous power to keep critical loads running.
    • Comprehensive Safety Protection: Integrated multi-layer protection mechanisms ensure overall system safety and operational reliability.
    • Smart Charge & Discharge Management: Offers multiple charge/discharge management modes tailored for energy saving and power supplement scenarios.
    12kw hybrid inverter details

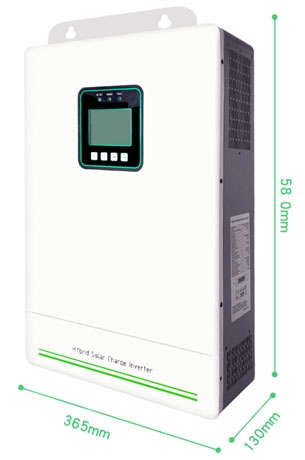

    Dimension (unit: mm)

    12kw hybrid inverter dimension

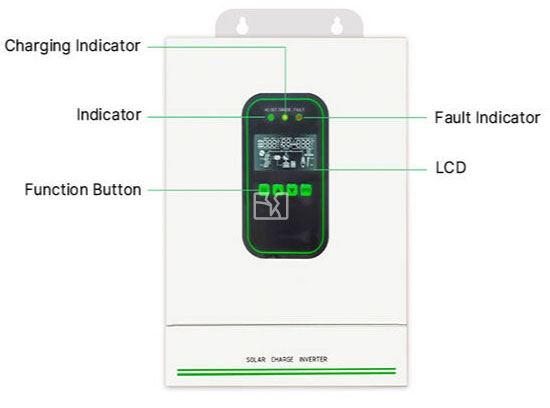

    Structure

    12kw hybrid inverter structure

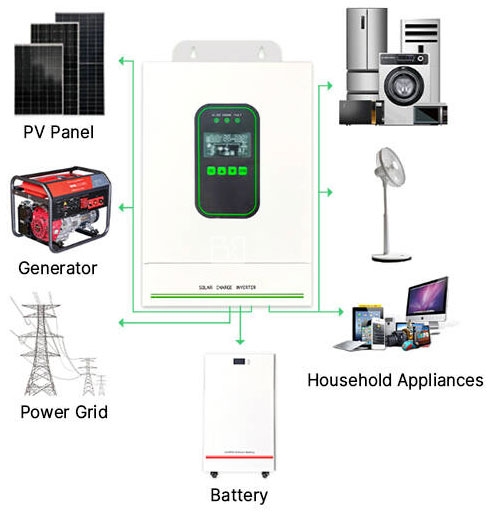

    Wiring Diagram

    12kw hybrid inverter wiring diagram


    Application

    12kw hybrid inverter for home power supply

    Home Power Supply

    12kw hybrid inverter for photovoltaic energy storage

    Photovoltaic Energy Storage

    12kw hybrid inverter for remote power supply

    Remote Power Supply

    12kw hybrid inverter for small commercial office

    Small Commercial Office

    FAQ

    Q1: Can the 12kW hybrid inverter charge the battery from the grid?

    The inverter supports hybrid energy management, allowing AC grid power and solar power to participate in battery charging according to the configured system settings and compatible battery requirements.

    Q2: Is the 12kW hybrid inverter suitable for home energy storage?

    Yes. Its 48V battery architecture, 12kW output capacity, solar MPPT control, grid integration, and parallel capability make it suitable for residential energy storage and backup power systems.
