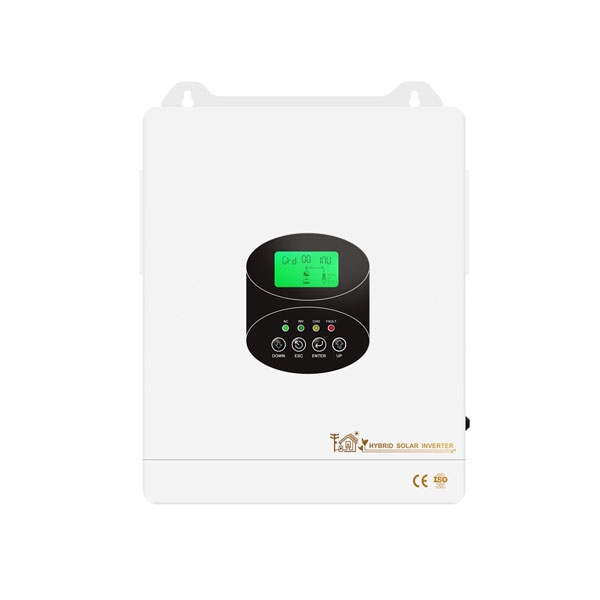

    4kW WiFi Dual Output Hybrid Inverter

    0 review(s) | Add your review
    SKU: PH-HI-HFP-S-43224
    $626.77
    ● 4kW WiFi dual output hybrid inverter delivers 4300W pure sine AC power at 220/230/240V, 50/60Hz. ● Handles 5000W solar input via 1 MPPT, works with 24V batteries, and offers 150A max charging. ● Achieves 94% peak efficiency and ≥99.9% MPPT accuracy, featuring 10ms switching and dual load outputs. ● Built with full safety protections, IP20 casing, and operates reliably from -10°C to 50°C.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    The 4kW WiFi dual output hybrid inverter delivers 4300W pure sine wave AC output at 220/230/240V for residential and commercial solar systems. With a built-in MPPT controller supporting up to 5000W PV input and 150A max charging current, it offers efficient solar power management. Key features include battery-less operation, three charging modes (Solar/Grid/Generator), grid-tie power feedback, lithium battery BMS communication, and dual AC outputs for smart load management. WiFi and RS485 enable convenient remote monitoring.

    Specification

    Solar PV
    Max PV Input Power 5000W
    MPPT Voltage Range 40VDC – 450VDC
    Rated Input Voltage 240VDC
    Max PV Input Voltage Voc (Lowest Temp) 500VDC
    Max PV Input Current 18A
    Number of MPPT Trackers (Input Channels) 1 channel
    Battery & Charger
    Battery Type VRLA lead-acid / lithium (Customizable via front panel settings)
    Rated Battery Voltage 24VDC
    Battery Voltage Range 21 – 30VDC (Default)
    Max PV Charging Current 150A
    Max AC Charging Current 100A
    Max Total Charging Current 150A
    AC Output (Grid)
    Rated Output Power 4300W
    Rated Output Voltage 220VAC / 230VAC / 240VAC
    Output Voltage Range 187VAC – 264VAC
    Rated Output Frequency 50Hz / 60Hz
    Output Frequency Range 47Hz – 52Hz (50Hz), 57Hz – 62Hz (60Hz)
    Rated Output Current 19.5A / 18.7A / 17.9A
    Power Factor > 0.98 (At rated power)
    AC Input (Off-Grid)
    Rated Input Voltage 220V / 230V / 240V
    Utility Voltage Range 165VAC – 280VAC / 120VAC – 280VAC (Selectable)
    Rated Input Frequency 50Hz / 60Hz
    Input Frequency Range 45Hz – 55Hz (50Hz), 55Hz – 65Hz (60Hz)
    AC Output (Off-Grid)
    Rated Output Power 4300W
    Rated Output Voltage 220V / 230V / 240V
    Output Voltage Accuracy ±2%
    Rated Output Frequency 50Hz / 60Hz
    Output Frequency Accuracy ±1%
    Waveform Pure sine wave
    AC Input (Hybrid)
    Rated Input Voltage 220V / 230V / 240V
    Utility Voltage Range 187VAC – 264VAC
    Rated Input Frequency 50Hz / 60Hz
    Input Frequency Range 47Hz – 52Hz (50Hz), 57Hz – 62Hz (60Hz)
    AC Output (Hybrid)
    Rated Output Power 4300W
    Rated Output Voltage 220VAC / 230VAC / 240VAC
    Rated Output Current 19.5A / 18.7A / 17.9A
    General Specs
    Max Efficiency (Battery Discharge) 94% (Peak)
    MPPT Tracking Efficiency ≥ 99.9%
    Transfer Time 10ms (Typical)
    Display Panel LCD + LED
    Cooling Method Smart fan cooling
    Communication Interface RS485 / mobile app (Wi-Fi or GPRS) (Optional)
    Ingress Protection Rating IP20
    Installation Method Wall-mounted
    Protections
    Battery Under-Voltage Alarm 22VDC (Default)
    Battery Under-Voltage Cutoff 21VDC (Default)
    Anti-Islanding Protection ≤ 2s
    Overload Protection Auto-protection (Battery mode); breaker/fuse (Grid mode)
    Short Circuit Protection Auto-protection (Battery mode); breaker/fuse (Grid mode)
    Over-Temperature Protection > 90°C (Shutdown inverter & charger)
    Environment
    Operating Temperature -10°C to 50°C
    Storage Temperature -15°C to 60°C
    Noise Level ≤ 55dB
    Operating Altitude 2000m (Derating required above 2000m)
    Relative Humidity 0% – 95% (Non-condensing)
    Dimensions & Weight
    Product Dimensions 375 * 297 * 102 mm
    Package Dimensions 450 * 352 * 167 mm
    Net Weight 6.6 kg
    Gross Weight 7.6 kg

    PDF computingWiFi Dual Output Hybrid Inverter User Manual

    Details
    4kw hybrid inverter feature

    Feature

    • Built-in MPPT Controller & Battery-Less Operation: Integrates an MPPT solar charge controller and supports battery-free operation with solar or grid power.
    • Flexible Multi-Source Charging: Offers 3 charging modes and supports solar, grid, and generator inputs.
    • Grid-Tie Power Feedback: Feeds surplus solar energy back into the grid.
    • Smart Remote Monitoring: Monitors operating status remotely via RS485 or the WiFi/4G mobile app.




    1. Dual Output Smart Load Management: Provides Main and Second AC outputs for flexible load distribution.
    2. Battery-Less Operation: Operates without batteries, reducing setup costs and simplifying installation.
    3. Lithium Battery BMS Communication: Enables direct communication with lithium batteries for smarter battery management.
    4. Optional WiFi Connectivity: Connects to a mobile app for remote system monitoring.

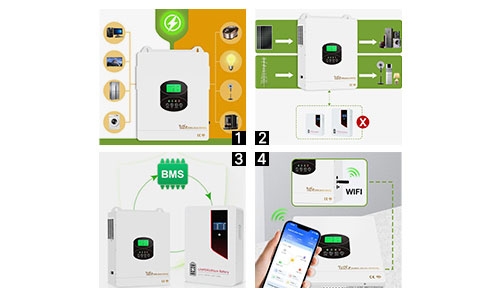

    4kw hybrid inverter details

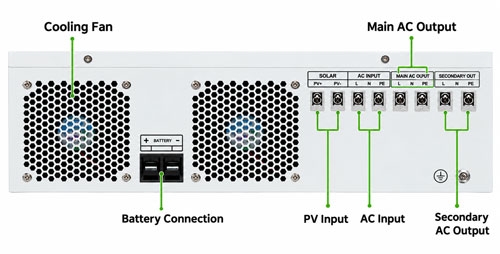

    Structure

    4kw hybrid inverter structure

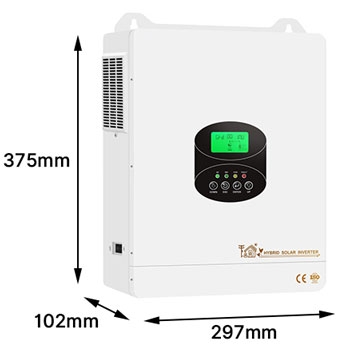

    Dimension (unit: mm)

    4kw hybrid inverter dimensions

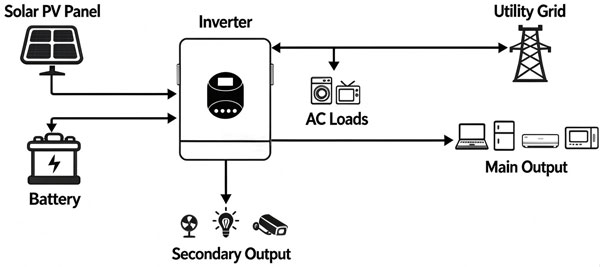

    Grid Connection Mode

    4kw hybrid inverter grid connection mode

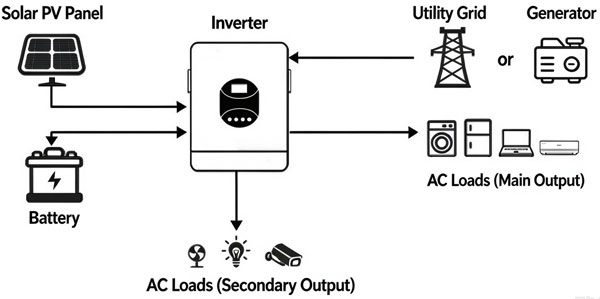

    Off Grid Mode / Hybrid Mode

    4kw hybrid inverter off grid hybrid mode

    Application

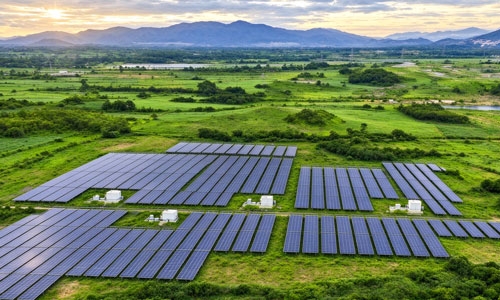

    4kw hybrid inverter for agriculture

    Agriculture

    4kw hybrid inverter for emergency backup power

    Emergency Backup Power

    4kw hybrid inverter for home appliances

    Home Appliances

    4kw hybrid inverter for outdoor

    Outdoor

    FAQ

    Q1: What battery system is compatible with this 4kW hybrid inverter?

    • Voltage: Designed for 24VDC battery systems (voltage range: 21–30VDC).
    • Battery Types: Compatible with both Lithium and Lead-Acid batteries. You can customize charging/discharging parameters for different battery types directly on the control panel.

    Q2: What power source options are supported for charging and operation?

    The 4kW hybrid inverter supports three charging modes for continuous power supply.

    • Solar PV: High-efficiency charging via the built-in MPPT controller.
    • AC Grid: Charges batteries and supplies loads directly from utility power.
    • Generator: Connects to a backup generator to ensure uninterrupted power during prolonged grid outages.
