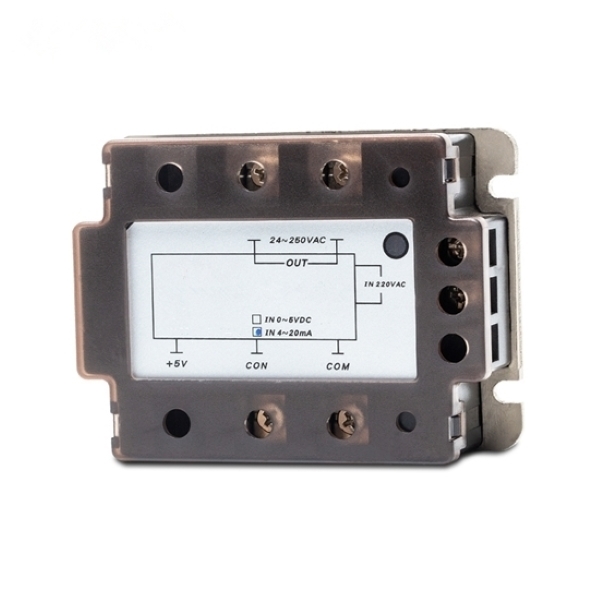

    AC Voltage Regulator Module, 1 Phase/2 Phase

    0 review(s) | Add your review
    SKU: PH-VRGM-20
    $84.23
    ● Provides load current options of 25A/40A//75A/90A/120A. ● Adopts phase-shifting output technology to achieve precise and stable power regulation. ● Equipped with a contactless AI intelligent chip, ensuring high stability and precision in voltage control. ● 4-20mA and 0-5VDC control modes are optional, enabling seamless integration with various control systems..
    *
    *
    šŸšš Free shipping
    ā±ļø Delivery: 6-12 days
    šŸ”™ 30-day Returns
    Related products

    SCR Power Regulator, 1-Phase, 0-5V/0-10V/4-20mA

    ● Universally adapt to 220V and 380V voltages, simplifying the installation process. ● Supports 4–20mA, 0–5VDC, 0–10VDC signals as well as manual potentiometer signals, facilitating flexible integration. ● Linear phase-shift control circuit is adopted to ensure high stability and precise temperature regulation. ● Equipped with a quick-acting fuse to provide overcurrent protection, featuring safety and durability.
    $130.89

    3-Wire 3 Phase Thyristor Power Regulator, 75-250A

    ● 380V thyristor power regulator offers rated current options ranging from 75A to 250A. ● Supports 4-20mA/0-5V/0-10V, compatible with mainstream automation systems. ● Built-in cooling fan, dual protection against overcurrent and overtemperature. ● Linear phase-shifting for precise temperature control, offering high cost performance for the whole machine.
    $332.69

    Digital SCR Voltage Regulator, 220VAC

    ● Supports wide range adjustment of 0–220VAC, and achieves precise continuous voltage regulation through advanced phase-shift triggering. ● Adopting voltage negative feedback technology, provides precision and high anti-interference ability. ● 3 types of control output, can be selected to adapt to different loads. ● ABS shell and anti-oxidation tinned circuit board are sturdy and durable.
    $82.81
    Overview

    AC voltage regulator module is a high-performance single-phase (220V) or two-phase (380V) SCR power regulator, engineered for seamless phase-shifted output control. It supports flexible input options, including DC 0-5V or 4-20mA control modes, making it ideal for a wide range of industrial electric needs. With load current ratings available in 25A, 40A, 75A, 90A, and 120A, this module delivers reliable, precise power regulation to optimize performance and efficiency in your critical processes.

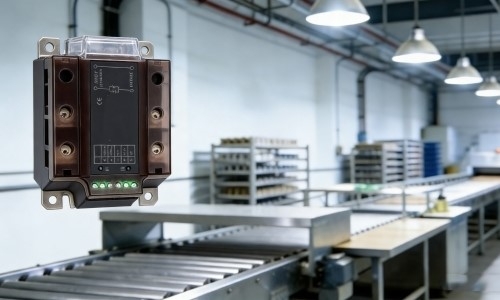

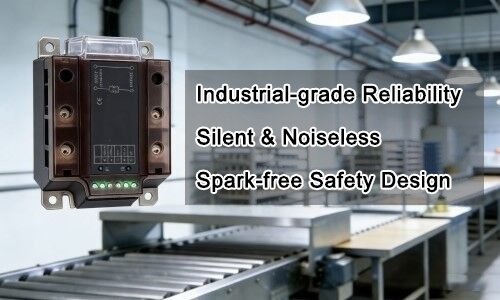

    AC Voltage Regulator Module Feature

    Feature

    • Industrial-grade Reliability: Can work stably in environments below 45ā„ƒ and 90% RH.
    • Silent and Noiseless: Works without noise and has strong anti-interference ability.
    • No Sparking: No mechanical contact action, eliminating sparks, safe and reliable.
    • Stronger Isolation: Adopts enhanced optocoupler technology for smoother and more stable operation.

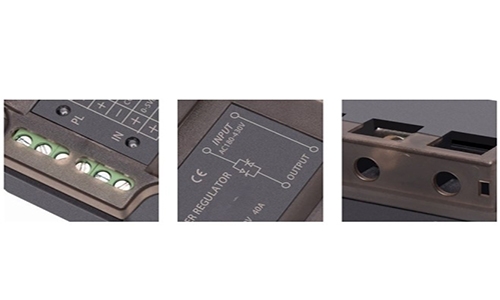

    Details

    1. Clear Indicator Light: Equipped with independent status indicator lights, which can intuitively display the operating status of the module.
    2. Convenient Terminal Blocks: Adopt multi-pin terminal blocks with clear layout and clear identification, supporting quick wiring and stable connection.
    3. Professional Wiring Diagram: A clear wiring diagram is printed on the shell, helping users quickly complete the wiring and avoiding misoperation.
    AC Voltage Regulator Module Details

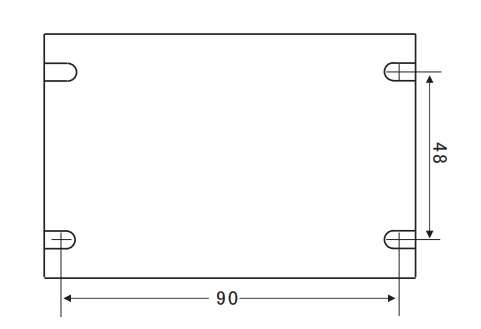

    Voltage Regulator Module Installation Dimension (Unit: mm)

    AC Voltage Regulator Module Installation Dimension

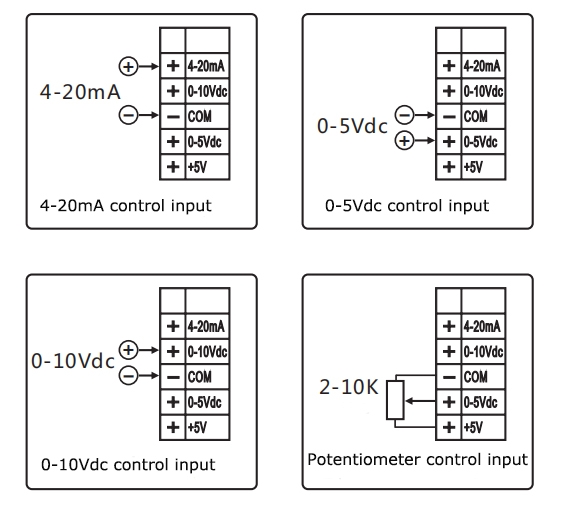

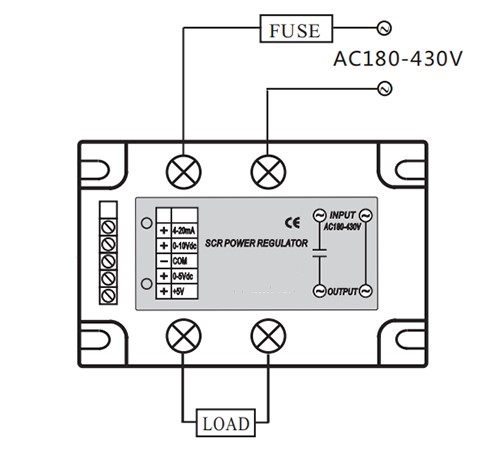

    Voltage Regulator Module Wiring Diagram

    AC Voltage Regulator Module Wiring Diagram

    AC Voltage Regulator Module Wiring Diagram

    Specs
    Model PH-SCR-LA-T
    Module Type Single phase or 2-phase
    Load Current (Optional) 25A, 40A, 75A, 90A, 120A
    Load Voltage 180-430VAC
    Ambient Temperature -20ā„ƒ~+75ā„ƒ
    Control Mode (Optional) 0-5VDC, 4-20mA
    On Voltage ā‰¤2V
    Off Leakage Current ā‰¤10mA
    On-off Time ā‰¤10mS
    Dielectric Strength 2000VAC
    Certification CE
    Insulation Resistance 500MĪ©/500VDC
    Mounting Method Bolted
    Work Instruction LED
    Application
    Packaging Machinery

    Packaging Machinery

    Food Machinery

    Food Machinery

    Plastic Machinery

    Plastic Machinery

    Glass Machinery

    Glass Machinery

    FAQ

    Q1: What are the current limits for different loads when using SCR voltage regulator module?

    Resistive loads must not exceed 60% of the rated current, inductive or capacitive loads must not exceed 40%, and motor loads must not exceed 20%. This limitation prevents module overload caused by different load characteristics, ensuring long-term stable operation.

    Q2: How to perform overcurrent protection for SCR voltage regulator module?

    Overcurrent and short-circuit are the main causes of permanent damage to thyristors, which can directly lead to module failure. Effective overcurrent protection can be achieved by installing fast-acting fuses or air switches to avoid damage to key components.
