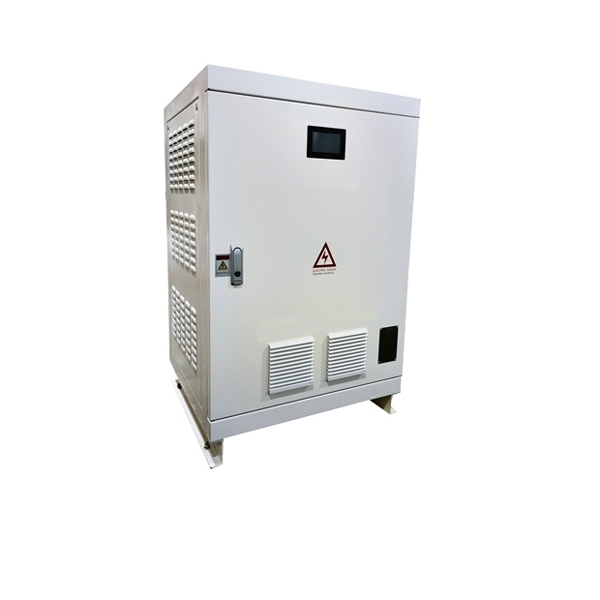

100kW Single Phase to Three Phase Converter

SKU: PH-SP3PC-100KW

$63,153.99

● Pure sine wave output with 50/60 Hz selectable frequency ensures compatibility with various equipment ● Input current 184.5 A at 230 V supports high power conversion efficiency ● Electrical insulation 2000 Vac for 1 minute ensures strong safety performance ● Low noise ≤50 dB with IP20 protection suitable for indoor environments

Input Voltage (Single phase) *
Output Voltage (Three phase) *
Input Frequency *
Output Frequency *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Application
FAQ
Reviews

Overview

With integrated electrical isolation, advanced SVPWM control, dual startup modes, and full protection systems, the single phase to three phase converter provides stable, low-distortion three-phase power (≤3% THD) with fast response ≤50 ms and efficiency up to 94%. It enables reliable operation of motors, machine tools, and industrial equipment in single-phase power supply scenarios while reducing the need for additional frequency converters.

Note:

When the load is a motor, the phase converter should be more than 5~7 times the motor capacity.
When the load is soft start + motor, the phase converter should be more than 3 times the motor capacity.
When the load is VFD + motor, the phase converter should be more than 1.5~2 times the motor capacity.

Feature

Reliable Power for Industrial Loads: Pure sine wave phase converter for motors, pumps, and heavy-duty equipment.
Stable Output Performance: Ensures consistent voltage and frequency under varying loads.
Reduced Equipment Cost: Eliminates the need for additional frequency converters.
Enhanced Equipment Lifespan: Clean sine wave protects connected devices.
Flexible Integration: Easy installation with customizable parameters.
Continuous Duty Operation: For long-term industrial applications.

Details

LCD Display: Intelligent interface for real-time performance monitoring and fault indication.
Built-in SPD: Premium surge protection for maximum equipment safety.
Circuit Breaker: Robust protection system for reliable operation.
Wiring Hole: Clean and efficient cable management design.
Input / Output Terminals: Precision-engineered terminals for secure and stable connections.

Single phase to three phase converter detail

Dimension

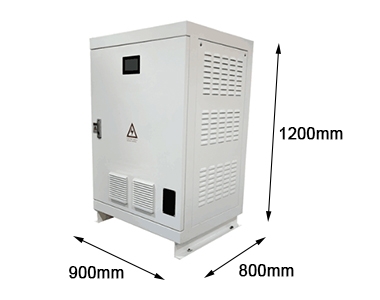

100kw single phase to three phase converter size

Wiring Instructions

Single Phase

Split Phase

Application

HVAC Systems

Grinders

Temporary Power Scenarios

Agricultural Equipment

FAQ

Q1: Can this single phase to three phase converter run industrial motors?

Yes, this single phase to three phase converter is designed for industrial motor applications. With pure sine wave output, stable frequency control, and flexible input and output voltage options, it is suitable for powering many kinds of three phase motors and industrial equipment. It can be used for pumps, fans, compressors, conveyors, machine tools, and other equipment that requires stable three phase power.

Q2: Why are IPM module and SVPWM modulation important?

The use of an IPM module and SVPWM modulation is one of the key advantages of this single phase to three phase converter. The IPM module helps improve control precision, operational reliability, and system protection. SVPWM modulation helps produce a cleaner and more stable output waveform, which supports efficient motor operation and better output performance. For industrial users, these technologies are important because they help deliver stable three phase power with improved conversion quality.
