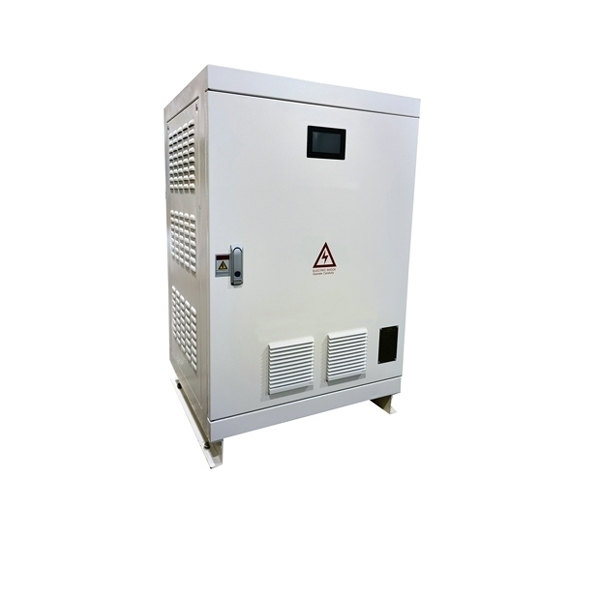

60kW Single Phase to Three Phase Converter

SKU: PH-SP3PC-60KW

$31,242.99

● 60 kW (80 hp) pure sine wave output with stable 3-phase 400 V and power factor 1 for reliable industrial operation. ● Wide 110–480 V single-phase input and 220-480 V three-phase output ensures strong compatibility. ● Efficiency >93% with THD ≤3% delivers clean and stable power quality. ● 150% overload capacity for 5 seconds with comprehensive protection ensures safe performance.

Input Voltage (Single phase) *
Output Voltage (Three phase) *
Input Frequency *
Output Frequency *

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

An 60kW (80 hp) single phase to three phase converter is a high-performance power unit providing 86.6 A output at 400 V, power factor 1, and 150% overload capacity for 5 seconds, ensuring strong motor starting capability. It is ideal for driving compressors, pumps, fans, conveyors, and hydraulic systems in factories, workshops, and industrial plants where reliable three-phase power is required.

Note:

When the load is a motor, the phase converter should be more than 5~7 times the motor capacity.
When the load is soft start + motor, the phase converter should be more than 3 times the motor capacity.
When the load is VFD + motor, the phase converter should be more than 1.5~2 times the motor capacity.

Feature

Customizable Power Parameters: Input voltage, output voltage, and frequency can be customized to meet different power supply requirements.
Pure Sine Wave Output: Phase converter provides stable pure sine wave output with low waveform distortion and fast transient response.
High Conversion Efficiency: Uses SVPWM control technology with conversion efficiency up to 94% and low no-load loss.
Isolation Transformer Design: Built-in low-frequency isolation transformer ensures electrical isolation and reduces interference.
Dual Startup Modes: Supports step-down start and variable frequency start, selectable via LCD according to load type.
Stable and Clean Power: Filters grid interference and delivers stable voltage and frequency for sensitive equipment.
Comprehensive Protection: Includes overvoltage, overload, short circuit, and overheating protection for reliable operation.

Details

LCD Display: Displays real-time voltage, current, frequency, power, and fault information.
Built-in SPD: Protects equipment from voltage surges and transient spikes.
Circuit Breaker: Provides reliable overload and short circuit protection.
Wiring Hole: Designed for convenient and tidy cable installation.
Input / Output Terminals: Clearly marked for safe and secure wiring connections.

Single phase to three phase converter detail

Dimension

60kw single phase to three phase converter size

Wiring Instructions

Single Phase

Split Phase

Specs

Rated Output Power	80 hp (60 kW)
Isolation Mode	Low frequency transformer
Input Voltage	Optional: 110V/ 120V/ 220V/ 230V/ 240V/ 415V/ 440V/ 480V) single phase 2 wire
Output Voltage	Optional: 220V/ 380V/ 400V/ 415V/ 440V/ 480V) 3 phase 4 wire+PE
Input Current	184.5A at 230V (Input Current=Power/Input Voltage/1.414)
Output Waveform	Pure sine wave
Output Current	86.6A at 400V
Frequnecy	50Hz or 60Hz
Power Factor	1
Overload Ability	150%, 5 Seconds
Efficiency	>93%
Waveform Distortion Rated (THD)	≤3%（Linear load）
Dynamic Respond (0 to 100% load)	5%, ≤50ms
Display	LCD
Running Mode	Working continously
Electrical Inslation Properties	2000Vac, 1 Minute
Communication Interface	RS485 (Optional)
Protection	Input under voltage, overvoltage, output over-current, short circuit, overheating etc.
Cooling Method	Forced air cooling
Short Circuit Protection	No automatic recovery, need to restart the machine
Noise (1 meter)	≤50dB
Degree of Protection	IP20 (indoor)
Working Altitude	≤2000m
Woorking Temperature	-25~+55°C
Relative Humidty	0~90%, Non condensing
Dimension	7507501480mm
Weight	590kg

Application

HVAC Systems

Grinders

Temporary Power Scenarios

Agricultural Equipment

FAQ

Q1: How do I choose the right single phase to three phase converter?

You should check the motor horsepower, rated current, voltage, frequency, load type, and starting method before choosing a single phase to three phase converter. It is also important to consider whether the application has light load or heavy load demands. Selecting a converter with the correct power margin helps improve stability, safety, and service life.

Q2: Can a single phase to three phase converter start motors under load?

Yes, many high-performance single phase to three phase converters can start motors under load, especially models designed for industrial applications. However, starting performance depends on the converter capacity and the specific motor load. For equipment with high inrush current or heavy startup demand, a larger model is usually recommended.
