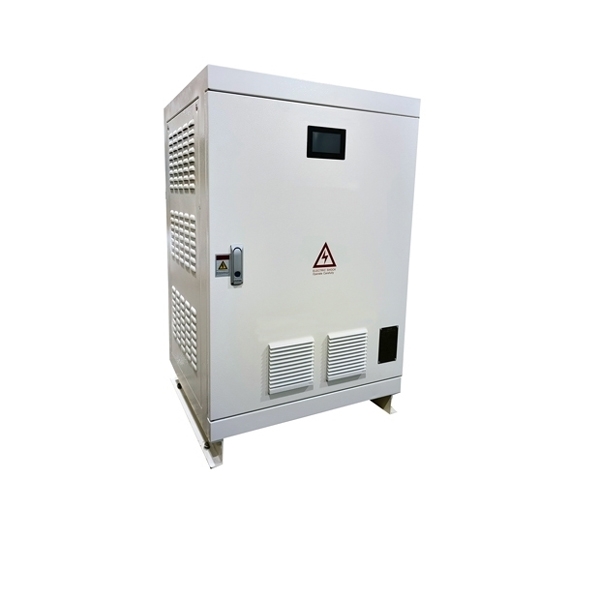

30kW Single Phase to 3 Phase Converter, 230V to 440V

The 30kW single phase to 3 phase converter converts standard single-phase power into stable three-phase power for industrial motors and equipment. It delivers pure sine wave output with THD ≤2%, high conversion efficiency ≥94%, and stable frequency ≤0.01%, ensuring reliable operation for demanding loads. Designed with SVPWM control technology, IPM modules, and electrical isolation, the phase converter provides stable voltage, strong load capacity, and low power loss. With 80–320V wide input voltage, dual startup modes, LCD monitoring, and comprehensive protection functions, it offers a dependable power conversion solution for industrial and commercial applications.

Note:

1. When the load is a motor, the phase converter should be more than 5~7 times the motor capacity.
2. When the load is soft start + motor, the phase converter should be more than 3 times the motor capacity.
3. When the load is VFD + motor, the phase converter should be more than 1.5~2 times the motor capacity.

Feature

• Single Phase to Three Phase Power Conversion: Convert standard single-phase power into stable three phase power supply for motors, compressors, pumps, and industrial machinery.
• Pure Sine Wave Output: This phase converter delivers clean three-phase AC output with minimal harmonic distortion and stable voltage.
• Motor-Friendly Startup: Two startup modes allow optimized motor starting performance for inductive loads.
• High Efficiency Phase Conversion: Advanced SVPWM control algorithm enables efficiency up to 94% with low energy loss.
• Industrial-Grade Reliability: Built with high-quality IPM modules and isolation transformer for long-term stable operation.
• Comprehensive Safety Protection: Integrated protection against overload, short circuit, overheating, and over-voltage.

Details

• Real-Time LCD Display: Monitor voltage, current, frequency, power, and fault information at a glance.
• Reliable Circuit Protection: Built-in circuit breaker ensures protection against overload and short circuits.
• SPD Surge Protection: Protects internal components and connected equipment from sudden voltage surges.
• Clear Wiring Terminals: Labeled input and output terminals ensure safe and secure power connections.
• Practical Wiring Hole: Designed for easier cable routing and installation.

Dimension

Wiring Instructions

Single Phase

Split Phase
