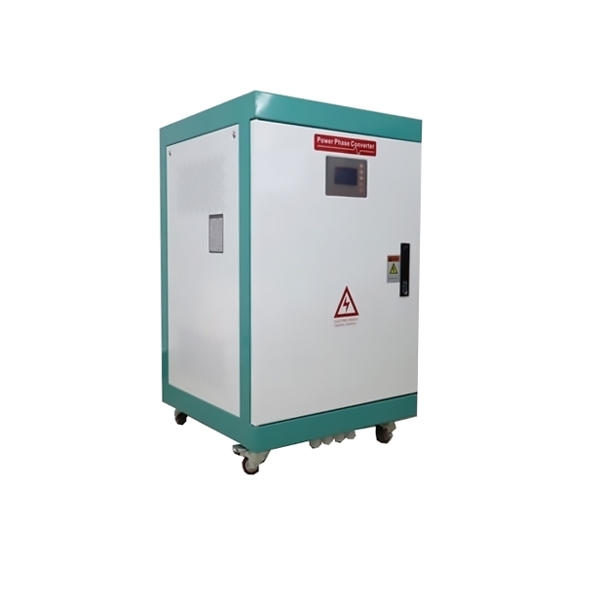

4kW Single Phase to 3 Phase Converter

Engineered for industrial power applications, the 4kW single phase to three phase power converter delivers stable three-phase output for motor-driven equipment. With pure sine wave output and low THD, the converter provides clean power for machines such as CNC systems, drilling machines, milling machines, and air compressors. Its advanced SVPWM vector control technology improves power conversion efficiency while maintaining stable voltage and frequency performance.

Note:

1. When the load is a motor, the phase converter should be more than 5~7 times the motor capacity.
2. When the load is soft start + motor, the phase converter should be more than 3 times the motor capacity.
3. When the load is VFD + motor, the phase converter should be more than 1.5~2 times the motor capacity.

Feature

• Wide Voltage Compatibility: 1 Phase to 3 Phase converter supports multiple input voltage options and customizable output parameters.
• High Quality Output Power: Generates pure sine wave three-phase power for stable equipment operation.
• Advanced SVPWM Control: Improves conversion efficiency and reduces energy loss during operation.
• Flexible Startup Control: Two startup modes allow better performance with inductive loads and motors.
• Clean and Stable Power: Built-in filtering helps eliminate electrical interference.
• Long-Term Reliability: Multiple protection functions ensure safe and stable operation.

Details

• Status Display LCD: Shows operating status and key electrical parameters.
• SPD: Protects internal circuits from surge voltage and power disturbances.
• Circuit Breaker: Enhances system safety by preventing overload damage.
• Wiring Hole: Provides organized cable routing for easy installation.
• Input / Output Terminal: Ensures secure and reliable electrical connections.

Dimension

Wiring Instructions

Single Phase

Split Phase
