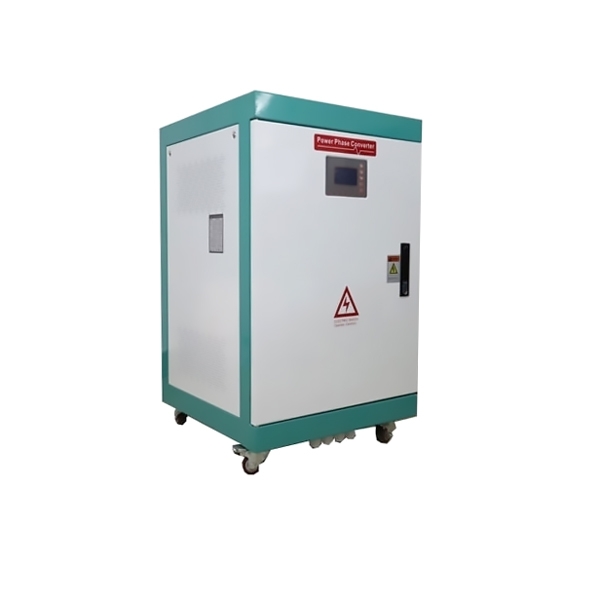

12kW Single Phase to Three Phase Converter

SKU: PH-SP3PC-12KW

$5,999.88

● Efficient 12kW single phase to three phase converter designed for motor-driven equipment. ● Pure sine wave three phase output ensures stable performance for CNC machines and pumps. ● Wide voltage input compatibility allows use in different electrical environments. ● Equipped with LCD monitoring and multiple safety protections.

Input Voltage (Single phase) *
Output Voltage (Three phase) *
Input Frequency *
Output Frequency *
Enclosure Type *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The 12kW single phase to three phase power converter provides an efficient way to obtain 3 phase power from single phase supply. It converts standard single-phase electricity into balanced three-phase output, making it suitable for powering industrial motors, machine tools, compressors, and pumps. Featuring pure sine wave output, high conversion efficiency, and stable voltage and frequency, this converter ensures smooth operation for sensitive and motor-driven loads in workshops and manufacturing facilities.

Feature

Customizable Power Settings: Input voltage, output voltage, and frequency can be customized according to different power requirements.
Pure Sine Wave Output: Provides stable pure sine wave AC output with low distortion and fast response.
High Efficiency Conversion: Uses SVPWM control technology with efficiency up to 94% and low idle power loss.
Dual Startup Modes: 12kW phase converter supports step-down start and frequency start, selectable via LCD for different loads.
Stable Power Supply: Filters grid interference and provides stable voltage and frequency output.
Reliable Protection: Single phase to three phase converter equipped with overvoltage, overload, short circuit, and overheating protection.

Details

Status Display LCD: Real-time display of voltage, current, frequency, power, and fault codes.
SPD: Integrated surge protection device prevents damage from voltage spikes.
Circuit Breaker: Provides quick disconnection during overload or short circuit.
Wiring Hole: Allows convenient cable entry and installation.
Input / Output Terminal: Clear terminals for single-phase input and three-phase output wiring.

Single phase to three phase converter detail

Dimension

4kw single phase to three phase converter size

Wiring Instructions

Single Phase

Split Phase

Specs

Power	12 kW
Circuit Mode	IPM module, SVPWM modulation
Output Waveform	Standard pure sine wave
Wide Voltage Input	80-320V AC (can customization)
Input Voltage	Optional: 110V/ 120V/ 220V/ 230V/ 240V/ 380V/ 415V/ 440V/ 480V single phase 2 wire
Input Current	36.9A at 230V (Input Current=Power/Input Voltage/1.414)
Output Voltage	Optional: 220V/ 380V/ 400V/ 415V/ 440V/ 480V 3 phase 4 wire+PE
Output Current	17.3A at 400V
Input Frequency	50Hz/ 60Hz
Output Frequency	50Hz/ 60Hz
Startup Mode Selection	Stable frequency step-down start or frequency start (can be selected on the LCD screen settings)
Frequency Stability	≤0.01%
Load Regulation	≤3%
THD	≤2% (Linear load)
Phase Angle	120°±1°
Crest Factor Ratio	3:01
Weight	140kg
LCD Display	Output voltage, output current, output frequency, output power, fault code, time temperature, startup mode selection, setting parameters
Protection	Input under voltage, overvoltage, output over-current, short circuit, overheating etc.
Protective Reaction Time	≤2ms
Machine Efficiency	≥94%
Insulation Properties	1800V AC/ 10mA/1 min
Insulation Impedance	500V DC/ 50MΩ
Cooling Method	Forced air cooling
Noise	1m> 60dB
Ambient Temperature	-25℃~+55℃
Humidity	0~95% (No condensation)
Size	540mm(L) * 540mm(W) * 760mm(H)

Single Phase to Three Phase Converter.PDF

Application

CNC Machines

Air Compressors

Woodworking Machinery

Agricultural Equipment

FAQ

Q1: Can a 12kW single phase to three phase converter run multiple machines?

Yes, a 12kW phase converter can run multiple machines as long as the total load does not exceed the converter’s rated capacity. It is widely used in factories, workshops, and industrial facilities where several three-phase machines need to operate from a single-phase power source.

Q2: What is a single phase to three phase converter?

A single phase to three phase converter is a power conversion device that converts single-phase electricity into three-phase power to run industrial motors and equipment. It allows users to operate three-phase machines such as pumps, compressors, CNC machines, and lathes in locations where only single-phase power is available.
