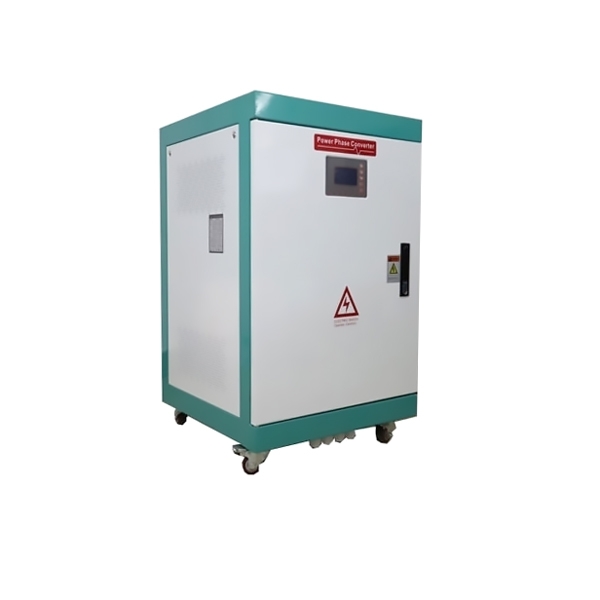

3kW Single Phase to Three Phase Converter

0 review(s) | Add your review

SKU: PH-SP3PC-3KW

$3,144.99

● Converts single-phase power to stable three-phase output with 6kW (7.5HP) capacity, ideal for driving industrial motors and equipment. ● Provides pure sine wave output with ≤2% THD and up to 94% efficiency, ensuring smooth and reliable operation for sensitive loads. ● Supports wide AC input voltage (80–320V) and multiple three-phase output options, suitable for different electrical systems. ● Features LCD monitoring, dual startup modes, and multiple protection functions for safe and stable industrial power conversion.

Input Voltage (Single phase) *
Output Voltage (Three phase) *
Input Frequency *
Output Frequency *
Enclosure Type *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Designed for workshops and industrial facilities, the 3kW single phase to three phase power converter converts single-phase input into high-quality three-phase output for motor-driven loads. The unit features pure sine wave power, high efficiency up to 94%, and stable frequency output, ensuring reliable performance for industrial motors, CNC machines, and mechanical equipment. It provides an efficient way to operate three-phase machines using single-phase electricity without installing expensive three-phase power lines.

Feature

Customizable Power Parameters: Input voltage, output voltage, and frequency can be customized to meet different power supply requirements.
Pure Sine Wave Output: Phase converter provides stable pure sine wave output with low waveform distortion and fast transient response.
High Conversion Efficiency: Uses SVPWM control technology with conversion efficiency up to 94% and low no-load loss.
Isolation Transformer Design: Built-in low-frequency isolation transformer ensures electrical isolation and reduces interference.
Dual Startup Modes: Supports step-down start and variable frequency start, selectable via LCD according to load type.
Stable and Clean Power: Filters grid interference and delivers stable voltage and frequency for sensitive equipment.
Comprehensive Protection: Includes overvoltage, overload, short circuit, and overheating protection for reliable operation.

Details

Status Display LCD: Displays voltage, current, frequency, power, and fault codes for real-time monitoring.
SPD: Built-in surge protection device protects equipment from voltage spikes.
Circuit Breaker: Provides overload and short circuit protection for safe operation.
Wiring Hole: Designed for easy cable routing and installation.
Input / Output Terminal: Clearly marked terminals ensure secure single-phase input and three-phase output connections.

Single phase to three phase converter detail

Dimension

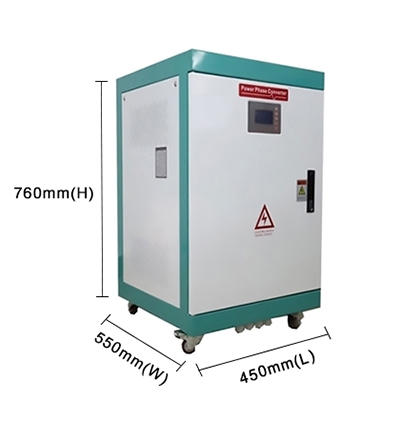

3kw single phase to three phase converter size

Wiring Instructions

Single Phase

Split Phase

Specs

Power	3 kW (4 hp)
Weight	85kg
Output Waveform	Standard pure sine wave
Wide Voltage Input	80-320V AC (can customization)
Input Voltage	Optional: 110V/ 120V/ 220V/ 230V/ 240V/ 380V/ 415V/ 440V/ 480V single phase 2 wire
Input Current	9.2A at 230V (Input Current=Power/Input Voltage/1.414)
Output Voltage	Optional: 220V/ 380V/ 400V/ 415V/ 440V/ 480V 3 phase 4 wire+PE
Output Current	4.3A at 400V
Input Frequency	50Hz/ 60Hz
Output Frequency	50Hz/ 60Hz
Startup Mode Selection	Stable frequency step-down start or frequency start, can be selected on the LCD screen settings
Frequency Stability	≤0.01%
Load Regulation	≤3%
THD	≤2% (Linear load)
Phase Angle	120^°±1^°
Crest Factor Ratio	3:1
Circuit Mode	IPM module, SVPWM modulation
LCD Display	Output voltage, output current, output frequency, output power, fault code, time temperature, startup mode selection, setting parameters
Protection	Input under voltage, overvoltage, output over-current, short circuit, overheating etc.
Protective Reaction Time	≤2ms
Machine Efficiency	≥94%
Insulation Properties	1800V AC/ 10mA/1 min
Insulation Impedance	500V DC/ 50MΩ
Cooling Method	Forced air cooling
Noise	1m> 60dB
Ambient Temperature	-25℃~+55℃
Humidity	0~95% (No condensation)
Size	450mm(L) * 550mm(W) * 760mm(H)

Single Phase to Three Phase Converter.PDF

Application

CNC Machines

Air Compressors

Woodworking Machinery

Agricultural Equipment

FAQ

Q1: What motor size can a 3kW single phase to three phase converter run?

A 3kW phase converter is typically suitable for motors up to about 3kW (around 4HP). It provides stable three-phase output for small machines such as drill presses, small lathes, and cutting machines.

Q2: Can a 1 phase to 3 phase converter run multiple machines?

Yes, a single phase to three phase converter can power multiple machines if the total power consumption does not exceed the converter’s rated capacity. It is commonly used in workshops and factories where several three-phase motors or machines need to operate from a single-phase power supply.
