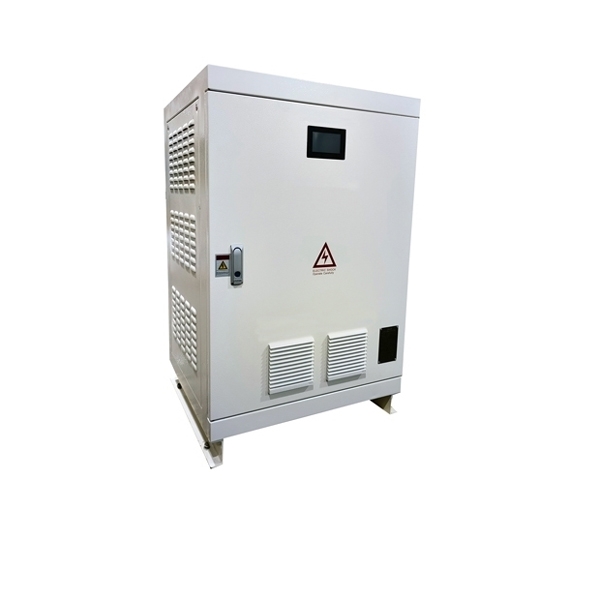

15kW Single Phase to 3 Phase Converter, 220V to 380V

The 15kW single phase to 3 phase converter is designed to convert standard single-phase power into stable three-phase power for industrial motors and equipment. Using advanced SVPWM control and IPM modules, it delivers pure sine wave output with high efficiency up to 94%, low harmonic distortion, and stable voltage and frequency performance. The phase converter supports wide input voltage, customizable output parameters, and dual startup modes, making it suitable for various loads including motors, compressors, pumps, and machinery. With built-in LCD monitoring, electrical isolation, and comprehensive protection functions, it ensures safe, reliable, and efficient operation in industrial and commercial applications.

Note:

1. When the load is a motor, the phase converter should be more than 5~7 times the motor capacity.
2. When the load is soft start + motor, the phase converter should be more than 3 times the motor capacity.
3. When the load is VFD + motor, the phase converter should be more than 1.5~2 times the motor capacity.

Feature

• Flexible Power Input: 15kW phase converter supports single-phase, two-phase, or three-phase input power, eliminating the need for complex three-phase installation and reducing wiring costs.
• Pure Sine Wave Output: Delivers stable three-phase pure sine wave power with low distortion, ensuring reliable operation for motors and AC equipment.
• Dual Start Modes: Step-down start and variable frequency start can be selected according to load type, improving motor startup performance.
• Stable Power Supply: Built-in filtering reduces grid interference and provides stable voltage and frequency for downstream equipment.
• High Efficiency Design: SVPWM control technology enables conversion efficiency above 94% with low no-load power loss.
• Reliable Protection: Equipped with over-voltage, overload, short circuit, and over-temperature protection for safe operation.

Details

• LCD Status Display: Real-time monitoring of voltage, current, frequency, power, and fault codes.
• Built-in SPD Protection: Integrated surge protection safeguards equipment from voltage spikes.
• Circuit Breaker Protection: Provides overload and short circuit protection for safe operation.
• Easy Wiring Design: Built-in wiring hole allows convenient cable routing and installation.
• Input & Output Terminals: Clearly labeled terminals ensure secure single-phase input and three-phase output connections.

Wiring Instructions

Single Phase

Split Phase
